VALVE<br />
Brand: SMC<br />
Modelo: VHS40-N03B-Z<br />
[40]: Body size, 40<br />
[N]: Thread type, NPT<br />
[03]: Port size, 3/8<br />
[B]: Handle/Bonnet material, Aluminum<br />
[Z]: Semi-standard specification, PSI as unit displayed on label

<div>PUMP</div>

<div>Brand: WILDEN</div>

<div>Model: P100</div>

<div>P/N: 01-3181-20</div>

<div>Series,<span> </span>Pro-Flo</div>

<div>Connection Outlet Size,<span> </span>0.5" (13 mm)</div>

<div>Connection Inlet Size, 0.5" (13 mm)</div>

<div>Wetted Path Material, Polypropylene</div>

<div>Construction, Bolted</div>

<div>Connection Type, NPT</div>

<div>Diaphragm Design, Traditional</div>

<div>Diaphragm Flow Capacity, Full Stroke</div>

<div>Max Flow Capacity, 15.5 gpm</div>

<div>Valve Balls, Santoprene</div>

<div>Seats Material, Polypropylene</div>

<div>Seats Seal, Santoprene</div>

<div>Differential Pressure Ratio, 1:1</div>

<div>Max Air Inlet Pressure,<span> </span>125 psi</div>

<div>Max Solid Size, 1/16" (1.6 mm)</div>

<div>Lower Temperature Limit, 32 F</div>

<div>Upper Temperature Limit, 175 F</div>

<div>Primary Diaphragms Material, Santoprene</div>

Spun Aluminum Gravity Ventilator<br />
Housing Material : Spun Aluminum<br />
Includes Birdscreen<br />
Required Accessory : Roof curb for new installations

AGITADOR INDUSTRIAL<br />
Marca: FLUIDMIX<br />
Modelo: VTS4-0703C00(2)/16.2<br />
Datos tanque<br />
 Tipo, Rectangular<br />
 Posición, Centrado con deectores<br />
 Presión, Atmosférica<br />
 Medidas, 0.8m x 0.8m<br />
 Nivel líquido, 1.70m<br />
 Temp. operación, 25ºC<br />
 Altura total, 1.8m<br />
 Volumen nominal, 1m3<br />
Datos del agitador<br />
 Motor, 1,5 kW, 4 polos, 220/440V- 60 Hz<br />
 Reductor, Ejes paralelos<br />
  Ratio, 16,47<br />
  Factor servicio, 2<br />
  Velocidad giro, 102 rpm<br />
 Anclaje, Placa cuadrada 300 x 300 mm, acero al carbono<br />
 Eje, Longitud 1600 mm<br />
 Móvil, Turbina axial<br />
  Diámetro, 0.4m<br />
  Nº Palas, 4<br />
  Pot.absorbida, 0.32kw<br />
  Caudal axial, 97.47 m3/h<br />
 Móvil, Turbina axial<br />
  Diámetro, 0.4m<br />
  Nº Palas, 4<br />
  Pot.absorbida, 0.32kw<br />
  Caudal axial, 97.47 m3/h<br />
Esfuerzos dinámicos y estáticos<br />
 Peso total, 80 kg<br />
 Par. Torsor, 141 Nm<br />
 Esfuerzo axial, 1838 N<br />
 Esfuerzo radial, 133 N

<p class="MsoNormal" style="background:#ffffff;"><b><span style="font-family:Aptos, sans-serif;color:#000000;">Model : DC EX 1<br />
BRAND : DES-CASE</span></b><br />
<span style="font-family:Aptos, sans-serif;color:#000000;">27cfm / 765lpm /  400gal/ 1514L 100gal / 379L</span><br />
Unit Height : 4.7″/119mm<br />
Unit Diameter : 5.66″/143.88mm<br />
Amount of SilicaGel : 1.2 lbs./0.54kg<br />
Connection Size : BSPT 1″<br />
Flow Rate(cfm) :<span style="font-family:Aptos, sans-serif;color:#000000;"> </span>27 @ 1 psid<br />
 </p>

NSV PROXIMTY PROBE<br />
Brand: BENTLY NEVADA<br />
Model: 330905-0-13-05-02-00<br />
M10 x 1 thread<br />
[0]: Unthreaded Length, 0 mm<br />
[13]: Overall Case Length, 13 mm<br />
[05]: Total Length, 0.5 metre (20 in)<br />
[02]: Connector and Cable-Type, Miniature coaxial ClickLoc connector, standard cable<br />
[00]: Agency Approval, Not required<br />


VALVE TRIDART<br />
Brand: EDART<br />
Model: TD300A(2290mm)<br />
Pressure Rating, Non-Pressurized<br />
Temperature Rating, 50° Celsius<br />
VALVE<br />
Size 300<br />
Bonnet Type, Standard<br />
Material, Mild Steel<br />
Paint, Jotun/Carboline - Yellow<br />
Valve Length, 2290 mm<br />
Shaft Material, 304 StSt<br />
Shaft Guards, Yes<br />
Guide Bar Material, Mild Steel + Polyurethane<br />
Bellows Seal, Excluded<br />
ACTUATOR<br />
Type/Feedback, Pneumatic/Mechanical<br />
Air Fail Method/Position, None/None<br />
Model, EDT250-DA<br />
Max/Min Pressure, 700 kPaG/500 kPaG<br />
Material, Standard<br />
Stroke/Speed, 210 mm/< 25 seconds<br />
Fittings and Piping, Brass Fittings and Plastic Piping<br />
TRIM<br />
Flow Direction, Over the Plug<br />
Plug Size // Characteristic, 300 NB // Linear<br />
Seat Size, Full Bore - A (300 NB)<br />
Material-Lining, Mild Steel - Polyurethane<br />
Fasteners, 304 StSt<br />
Backing Cone, Yes

DIAPHRAGM VALVE<br />
Brand: VIGOUR<br />
Model: VDV32UBS-M-MV12-MV12<br />
[S]: Materials, 316L<br />
[M]: Actuator, Manual actuator<br />
[MV12]: End Connection, 3/4” VFS male<br />
Max. Working Pressure, 150 psig (10 bar)<br />
Pneumatic Operating Pressure, 58-87psig (4-6bar)<br />
Max. Working Temp., 14°F - 176°F (-10°C - 80°C)<br />
//////// VFS es igual a VCR/////

DIAPHRAGM VALVE<br />
Brand: VIGOUR<br />
Model: VDV32UBS-PO-MV12-MV12<br />
[S]: Materials, 316L<br />
[PO]: Actuator, Pneumatic actuator, normally opened<br />
[MV12]: End Connection, 3/4” VFS male<br />
Max. Working Pressure, 150 psig (10 bar)<br />
Pneumatic Operating Pressure, 58-87psig (4-6bar)<br />
Max. Working Temp., 14°F - 176°F (-10°C - 80°C)<br />
//////// VFS es igual a VCR/////

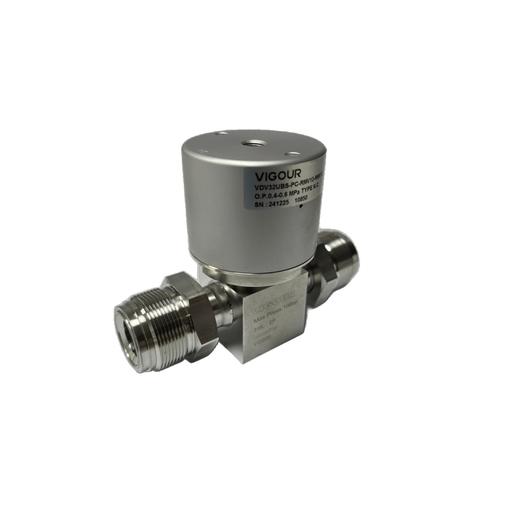

DIAPHRAGM VALVE<br />
Brand: VIGOUR<br />
Model: VDV32UBS-PC-MV12-MV12<br />
[S]: Materials, 316L<br />
[PC]: Actuator, Pneumatic actuator, normally closed<br />
[MV12]: End Connection, 3/4” VFS male<br />
Max. Working Pressure, 150 psig (10 bar)<br />
Pneumatic Operating Pressure, 58-87psig (4-6bar)<br />
Max. Working Temp., 14°F - 176°F (-10°C - 80°C)<br />
//////// VFS es igual a VCR/////

PUMP<br />
Brand: IMO<br />
Model: AA3G/NVPSCB143SE<br />
[N]: Hardened screw set, no<br />
[V]: Seal, Fluorocarbon bellows maechanical seal, carbon on<br />
Ni-resist, Fluorocarbon O-rings<br />
[P]: Case material and outlet port, Iron case, SAE 4-bolt port pad<br />
[S]: Inlet port, Radial inlet 4-bolt port pad<br />
[C]: Mounting, SAE flange mount<br />
[B]: Relief valve set range, 60/75 psi defferential<br />
[143SE]: Size/Lead/Rotation, 1.7D, CCW

VALVULA DE BOLA 1/2" CON ACCIONAMIENTO MANUAL<br />
Marca: JAMESBURY<br />
Modelo: 1/2-4B3600XTB2<br />
Diametro, 1/2" | Cv max: 13<br />
Conexión a proceso, Roscada NPT<br />
Rating Presion, 2500 psi<br />
Diseño, Paso Total<br />
Materiales,<br />
 Cuerpo, Acero Inoxidable CF8M<br />
 Bola, Acero Inoxidable CF8M<br />
 Vástago, Acero Inoxidable CF8M<br />
 Asiento, Xtreme (Superior al RPTFE)<br />
 Empaque, TFM (Diseño V-ring)

ACOPLAMIENTO DE REJILLA<br />
Marca: FALK<br />
Modelo: 1100T-10<br />
Grilla Flexible.<br />
Masas de Acero (Sin mecanizar / Eje piloto)<br />
Cobertor, Kit de Sellos y Pernos<br />
O.D. 251 mm<br />
Dmax, 110 mm<br />
Tnom, 6280 Nm<br />
n-max, 2440 n-min<br />
Lube-weight, 0.426 Kg

Modelo: TR110030<br />
VÁLVULA CHECK 3"<br />
Material Cuerpo/Sello: Acero Inoxidable<br />
Marca: END ARMATUREN

BIGFOOT CRANE OUTRIGGER PADS<br />
MARCA: NYLACAST (Engineering Plastic Solutions) <br />
MATERIAL : BIGFOOT CRANE OUTRIGGER PADS <br />
MATERIAL :BIGFOOT :<br />
SQUARESIZE : 1220 mm <br />
THICKNESS :55 mm <br />
WEIGHT :93 Kg.
<div>
<div class="gtx-trans-icon"></div>
</div>

RESORTES PARA USARLOS EN GANCHO<br />
​Marca: Johnson

POSICIONADOR ELECTRONEUMATICO <br />
MARCA: SAMSON MANUFACTURI<br />
CON COMUNICACIÓN FFB (FOUNDATION FIELDBUS).<br />
N°/P: 3730-51000000100000000<br />
MODEL: 3730-5

CONTROL VALVE<br />
MARCA: SAMSON
<div>
<div class="gtx-trans-icon"></div>
</div>

CONTROL VALVE<br />
MARCA: SAMSON
<div>
<div class="gtx-trans-icon"></div>
</div>

CONTROL VALVE<br />
MARCA: SAMSON
