ACOPLE DE EJE FLOTANTE<br />
Marca: FALK<br />
Conexión motor # Eje de molino con eje espaciador BE=475 mm<br />
Diam. Máximo: masa flexible 4.875"<br />
masa rígida 5.875" F.S. 2.07.<br />
Masas sin maquinar<br />
2 acoples G52 completos<br />
dos discos espaciadores y el eje flotante diam. 4.875" en acero 1045.<br />

<p><span style="font-size:14px;"><span style="font-family:arial, helvetica, sans-serif;">MOTOR ELECTRICO ASINC, 2.2/2.6 KW<br />
Modelo :20111521825<br />
MARCA:OILTECH,<br />
955/1155 RPM,<br />
FRAME K21R 230/400-275/480 VOLTS,<br />
6 POLOS,<br />
CA 50/60HZ, 9.3/5.35-9.1/5.2 AMP,<br />
TRIFASICO AISLACION CLASE F,<br />
FACTOR DE SERVICIO 1. 15</span></span></p>

<p>MOTOR ELECTRICO ASINC, 2.2/2.2/2.6 KW<br /><span style="font-size:14px;"><span style="font-family:arial, helvetica, sans-serif;">MODELO : </span></span><span style="font-size:11pt;font-family:Calibri, sans-serif;">20111521725</span><br /><span style="font-size:14px;"><span style="font-family:arial, helvetica, sans-serif;">MARCA:OILTECH,</span></span><br /><span style="font-size:11pt;font-family:Calibri, sans-serif;">1425/1425/1720 RPM,<br />
FRAME 100L 240/420/480 VOLTS,<br />
4 POLOS,<br />
CA 50/50/60 HZ, 8.5/4.9/4.8 AMP,<br />
TRIFASICO AISLACION CLASE F,<br />
FACTOR DE SERVICIO 1. 0</span></p>

<p><span style="font-size:14px;"><span style="font-family:arial, helvetica, sans-serif;">MOTOR ELECTRICO ASINC, 1.5/1.75 KW<br />
MODELO : </span></span>20111521751<br /><span style="font-size:14px;"><span style="font-family:arial, helvetica, sans-serif;">MARCA:OILTECH,-<br />
930/1120 RPM,<br />
FRAME IMB14 240/420-280/480<br />
VOLTS, 6 POLOS, CA 50/60 HZ, 6.9/4.0-6.8/3.9 AMP,<br />
TRIFASICO AISLACION CLASE F,<br />
FACTOR DE SERVICIO 1. 0</span></span></p>

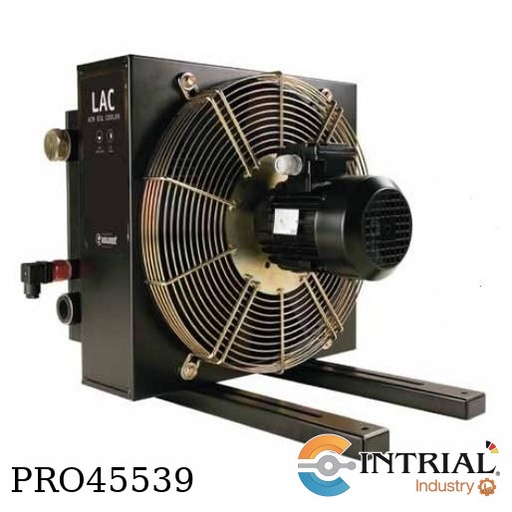

<strong>LAC Air Oil Coolers<br />
Model: LAC-2-007-4-D-60-T25-0-0<br />
Brand: OILTECH</strong><br />
[LAC-2] Model<br />
[007] COOLER SIZE<br />
[4] Number 4 Pole<br />
[D] VOLTAGE AND FREQUENCY<br />
Three-phase 220-240/380-420 V 50 Hz 440/480 V 60 Hz*** <br />
 *** = for LAC 007 to LAC 023<br />
[60] THERMO CONTACT  60 °C<br />
[T25] Built-in temperature and pressure-controlled bypass, two-pass*<br />
50 °C, 2.2 bar<br />
[0] MATRIX GUARD No guard<br />
[0] Standard<br />
N/P : 5836007066

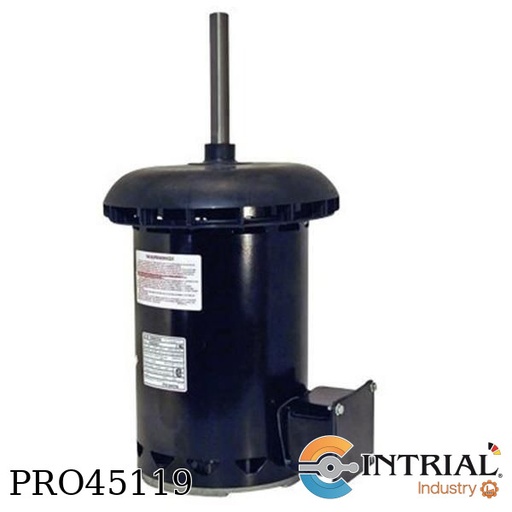

CENTURY 1 HP CONDENSER FAN MOTOR,<br />
1075 RPM, 200-230/460 Volts, 48 Frame, OAO <br />
Brand: REGAL BELOIT<br />
HeatMaster - Commercial Condenser Fan Motor - Fan Canopy<br />
5.6" Diameter - 48 Frame<br />
Permanent Split Capacitor (PSC); Capacitor Required: 25 Mfd-370 Volts (Not Supplied with Motor)<br />
Thermally Protected<br />
Open Air Over<br />
Class F Insulation, 70°C Ambient<br />
Ball Bearing<br />
5/8" Diameter Shaft with Flat and Keyway<br />
Conduit Box<br />
Belly Band, Vertical Shaft Up

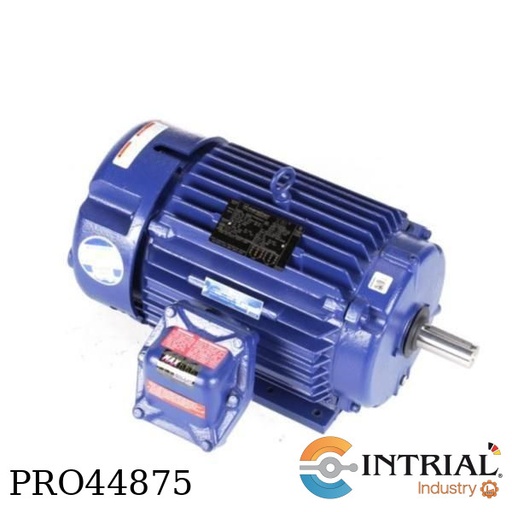

MOTOR ELÉCTRICO ANTIEXPLOSIVO<br />
Marca: MARATHON<br />
7.5 HP<br />
1800 RPM<br />
230/460 Vac<br />
60 Hz<br />
Trifásico<br />
EPFC<br />
Frame 213T<br />
F.S. 1.15, F.L.A. 19.2/9.6 Amp<br />
Explosion Proof Motor<br />
Aislamiento clase F, 91 %<br />
Eficiencia NEMA PREMIUM<br />
División I<br />
División II<br />
Clase I: Grupos C y D<br />
Clase II: Grupos F y G<br />
Con Caja Conduit <br />
Rodamientos Reengrasables <br />
Servicio continuo<br />
Montaje Horizontal con base rígida

MOTOR ELÉCTRICO <br />
Marca: MARATHON <br />
7.5 HP<br />
1768 RPM<br />
230/460 VAC<br />
Trifásico<br />
TEFC<br />
Frame 2137<br />
F.S.1.15<br />
FLA. 19/9.5 Amp<br />
Severe Duty<br />
Aislamiento clase H, 91.7% <br />
Eficiencia NEMA PREMIUN<br />
Servicio Continuo<br />
Montaje Horizontal con base rígida<br />
totalmente de Fierro fundido<br />
Peso 90 Kgs.<br />
OPCION 1: MOTOR EFICIENCIA NEMA PREMIUN

MOTOR CUMMINS<br />
Brand: CUMMINS<br />
Fuel Type: Diesel<br />
Voltage: 277/480<br />
Model: DGDK-5632472<br />
Panel: with Autostart and Safety Shutdowns<br />
Batteries: Yes<br />
Hours: 208 Since New<br />
Frequency: 60 Cycles/Hz<br />
Phase: Three Phase<br />
Capacity :125KW<br />

MOTOR<br />
Marca: MC MILLAN<br />
26 Watts, 1100RPM<br />
220V<br />
50/60HZ, 1HP

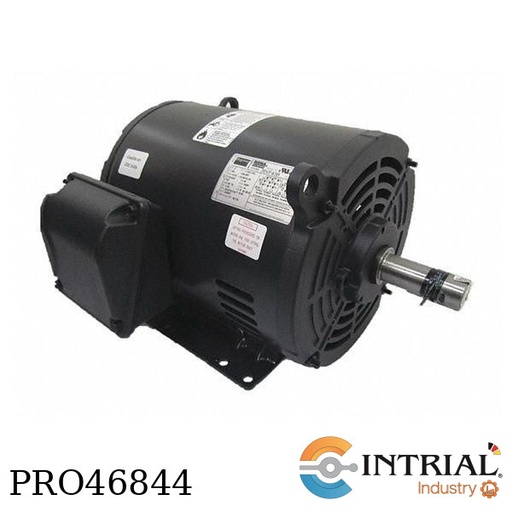

THREE PHASE INDUCTION MOTOR<br />
Brand: DAYTON<br />
Phase Three<br />
Motor Design 3-Phase<br />
HP 10<br />
Nameplate RPM 1,770<br />
No. of Speeds 1<br />
Voltage 230/460V AC<br />
Full Load Amps 24.8/12.4<br />
Frame 213/5T<br />
Hz 60<br />
Motor Service Factor 1.15<br />
Max. Ambient Temp. 40 Degrees C<br />
Motor Enclosure Design Open Dripproof<br />
Motor Shaft Rotation CW/CCW<br />
Motor Mounting Type Rigid Base<br />
Motor Mounting Position Horizontal<br />
Motor Efficiency Group NEMA Premium Efficient<br />
Nominal Efficiency 91.7 %<br />

MOTOR THREE PHASE<br />
BRAND: BALDOR<br />
OPEN DRIP PROOF<br />
FOOT MOUNTED<br />
HP 10, RPM 1800<br />
NEMA FRAME 215T<br />
FULL LOAD EFFICIENCY 91.7<br />
VOLTAGE 230/460<br />
AMPS 12.5<br />

MOTOR CONTROLLER<br />
Brand: ALVEY TECH<br />
Output Power: 250W<br />
Supply Voltage: 24V DC<br />
Rated speed: 2650RPM<br />
No load speed: 3000RPM<br />
Full load Current: ≤13.7A<br />
No load Current: ≤2.2A

MOTOR ELÉCTRICO<br />
Marca: MARATHON <br />
7.5 HP, 1800 RPM<br />
230/460 VAC, Trifásico<br />
TEFC, Frame 2137, F.S.1.15<br />
FLA. 19/9.5 Amp, Inverter Duty, Aislamiento clase F<br />
93.3% Eficiencia NEMA PREMIUN, Servicio Continuo<br />
Montaje Horizontal con base rígida<br />
Fierro Fundido, Peso 76 Kgs.

MOTOR BLOWER<br />
BRAND: YORK<br />
2HP, 1 SPEED<br />
200-230/460VAC<br />
THREE PHASE<br />
1725 RPM, 1 SPEED<br />
56 NEMA FRAME SIZE<br />
OPEN DRIP PROOF<br />
BALL BEARING<br />
REVERSIBLE ROTATION

Motor Eléctrico <br />
Brand: LEESON <br />
1/3 HP, 1725 RPM, <br />
115/230 VAC, 60 HZ, <br />
Monofásico, TEFC, <br />
FRAME 56C, Sin<br />
base, Servicio Continuo, Peso 10 kgs

Motor Eléctrico<br />
Brand:  LEESON <br />
HP, 1800 RPM<br />
115/208-230 Vac<br />
60 Hz, Monofásico<br />
TEFC, Frame 56C, F.S. 1.15<br />
FLA. 8.0/3.8-4.0 Amp<br />
Asilamiento clase<br />
F, 66% Eficiencia, Servicio Continuo, <br />
Montaje Horizontal, Acero Rolado; 10 Kgs<br />

CARCASA AEREA CON ENTRADA SUPERIOR PARA CONECTOR DE 24 PINESMARCA:Harting <br />
CODIGO: 09 30 024 0420<br />
Size 24 B<br />
Version Top entry<br />
Cable entry 1x Pg 21<br />
Limiting temperature -40 ... +125 °C<br />
Degree of protection acc. to IEC 60529<br />
IP65<br />
IP66<br />
IP67<br />
Type rating acc. to UL 50 / UL 50E<br />
4<br />
4X<br />
1

CONECTOR MACHO 24 PINES<br />
Marca:Harting<br />
Codigo: 09 33 024 2701<br />
Termination method Screw termination<br />
Gender Female<br />
Size 24 B<br />
With wire protection Yes<br />
Number of contacts 2<br />
Conductor cross-section 0.75 ... 2.5 mm²<br />
Conductor cross-section AWG 18 ... AWG 14<br />
Rated current 16 A<br />
Rated voltage 500 V<br />
Rated impulse voltage 6 kV<br />
Pollution degree 3<br />
Rated voltage acc. to UL 600 V<br />
Rated voltage acc. to CSA 600 V<br />
Insulation resistance >1010 Ω<br />
Contact resistance ≤1 mΩ<br />
Stripping length 7.5 mm

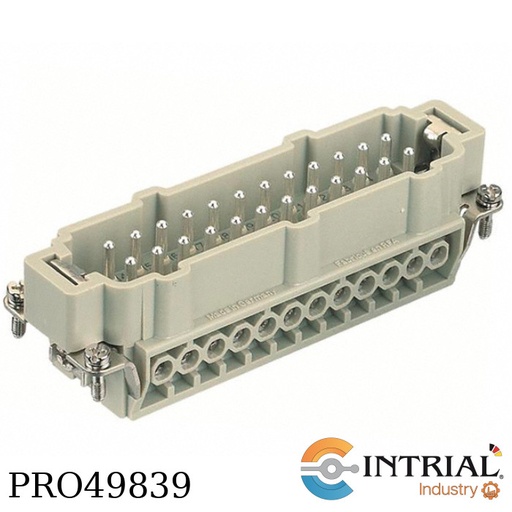

CONECTOR MACHO 24 PINES<br />
Marca:Harting<br />
Codigo: 09 33 024 2601<br />
Size:24 B<br />
Conductor cross-section 0.75 ... 2.5 mm²<br />
Conductor cross-section AWG 18 ... AWG 14<br />
Rated current 16 A<br />
Rated voltage 500 V<br />
Rated impulse voltage 6 kV<br />
Pollution degree 3<br />
Rated voltage acc. to UL 600 V<br />
Rated voltage acc. to CSA 600 V<br />
Insulation resistance >1010 Ω<br />
Contact resistance ≤1 mΩ<br />
Stripping length 7.5 m
