Rack de montaje<br />
30 Celdas 4OPzS200

Baterías Plomo – Ácido OPzS<br />
Modelo : PowerSafe 60 x 4OPzS200<br />
Tensión nominal (Vcc) : 120<br />
Capacidad 10h / 1.8Vpc / 20 ºC : 216 Ah<br />
Tipo de Tecnología : Electrolito líquido – Placa Tubular<br />
Aplicación : Ciclado Profundo

Bateria de Tracción Ironclad<br />
Características Eléctricas:<br />
Modelo de Batería : 24 E90-11# 80171-WGRN<br />
Tensión (Volts) : 48<br />
CAPACIDAD Ah (6hs – 25ºC) : 450<br />
Tipo : ANDERSON SBE160 AZUL<br />
SALIDA : B<br />
AWG : #2<br />
Peso +/- 5%(kg) : 753 kg<br />
Dimensiones : 810 x 568 x 576

SOLID STATE RELAY<br />
• Fabricante: OMRON ELECTRONICS<br />
• Operating Rated Voltage: 5 TO 24 VDC<br />
• Isolation: Photocoupler<br />
• Output Form: SPST-NO

SENSOR FOTOELECTRICO                 <br />
•    Marca: TELEMECANIQUE, INC<br />
•    24 A 240V, CA/CC<br />
•    P/N: XUL-M040319<br />
•    Sistema polarised reflex<br />
•    Distancia nominal de sensado 4 m<br />
•    Con diametro reflector de 80 mm<br />
•    Certificacion UL, CSA,<br />
•    Temperatura operacion -25° a 55°C<br />
•    Almacenaje -40°c a 70°C<br />
•    Resistencia a shock 20 gn<br />
•    Duracion 11 ms (iec 68-2-27)<br />
•    IP67<br />
•    Conexion 5 x 034 mm2, carcaza Abs,<br />
•    Lente pmma, cable PVC,<br />
•    Voltaje 24 a 240 V<br />
•    Limites de voltaje 20 - 264 V<br />
•    Maxima frecuencia de interrupcion 20Hz<br />
•    Retardos primer <=60 ms, respuesta <=25 ms<br />
•    Recuperacion <=25 ms

<div>SOLID STATE RELAY</div>

<div>•<span> </span>Fabricante: OMRON ELECTRONICS</div>

<div>•<span> </span>Operating Rated Voltage: 100 TO 120 VAC</div>

<div>•<span> </span>Isolation: Photocoupler</div>

<div>•<span> </span>Output Form: SPST-NO</div>

<div>RELÉ DE ESTADO SÓLIDO</div>

<div>•<span> </span>Fabricante: OMRON ELECTRONICS</div>

<div>•<span> </span>Operating Rated Voltage: 200 TO 240 VAC</div>

<div>•<span> </span>Isolation: Photocoupler</div>

<div>•<span> </span>Output Form: SPST-NO</div>

PL-SS2515<br />
•    SUN SHROUD KIT,<br />
•    MARCA: PELCO

Baterias de Tracción (48V 6PZS-480)<br />
Tensión (Volts) : 48<br />
Capacidad (Ah) 5hs a 30ºC: 480

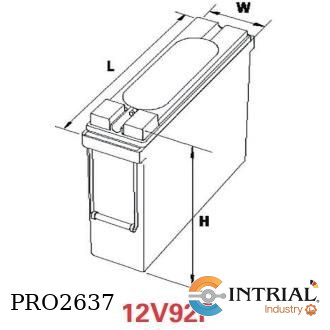

Baterias Plomo Acido VRLA<br />
Marca: ENERSYS<br />
Procedencia: UK<br />
Power Safe V Front Terminal Monoblock<br />
Capacidad: 92Ah (10hr rate to 1.8Vpc)<br />
Cells: 06 ; Nominal Voltage: 12Vdc<br />
Short Circuit Current (A): 2500<br />
Internal Resistance (mOhms): 5.05<br />
Terminals: M8 F<br />
Weight: 28Kg<br />
Dimensions: L=395mm; W=105mm; H=264mm

MODEL:PV24S<br />
CONVERTIDOR<br />
Marca: ALFATRONIX<br />
24V CC-12V CC<br />
20-25 AMP

TEMPORIZADOR ESTADO SOLIDO<br />
VOLTAJE DE ALIMENTACIÓN : 24 – 240 VAC / 12 –240 VDC.<br />
TIME RANGES: 7<br />
SELECT METHOD: THUMBWHEEL SWITCH<br />
INPUT SIGNALS: START, RESET, GATE, CHECK<br />
INPUT METHOD: NO-VOLTAGE INPUT<br />
OUTPUT MODES: A (ON DELAY), B (REPEAT CYCLE), C (SIGNAL ON/OFF<br />
DELAY), D (SIGNAL OFF DELAY), E (INTERVAL), F (ONE SHOT FLICKER), G<br />
(SIGNAL ON/OFF DELAY), H (SIGNAL OFF DELAY)<br />
RESET SYSTEM: SELF-RESET/EXTERNAL RESET

ENCODER<br />
Brand: KOYO ELECTRONICS<br />
Encoder Type: Absolute(Gray Code)<br />
Duty Type: Medium<br />
Pulse Per Revolution: 360 (9-bit)<br />
Input Voltage (VDC): 10-26<br />
Output Form: NPN Open Collector<br />
Signal Format: Clockwise (CW)<br />
Output From: Side<br />
Connector Type: Relay Connector<br />
Protection Level: IP65 (Waterjet Proof)<br />
Mounting Screws: Included<br />
Short Circuit Protection No<br />
Reverse Origin Action: Negative Logic (Active Low)

<div>•<span> </span>FABRICADO POR SIEMENS</div>

<div>•<span> </span>FURNAS ELECTRICO</div>

<div>•<span> </span>OVERLOAD RELAY 13-27AMP 3PHASE CL20</div>

<div>•<span> </span>MANUAL RESET</div>

<div>CONECTOR SIN CABLE</div>

<div>•<span> </span>Marca: LEINE LINDE</div>

Modelo : FOB80-EGG-SM<br />
Receiver<br />
LWL-Signalempfänger FOB80-EGG-SM<br />
8 Digitalausgänge 24V<br />
This receiver freeces the signal when an error occurs. Alternatively you can choose position 3 depending on<br />
which solution is more suitable in your case.

•        WINCHE ELECTRICO<br />
•         MARCA: WISKEHRS<br />
•         CAP 500KG<br />
•         110/220 VAC<br />
•         N PARTE: 10035004E<br />
•         VOLTAGE 110/220 VAC<br />
•         FRECUENCIA 50/60 HZ<br />
•         POTENCIA 3/2.2 CV/KW<br />
•         CARGA MAXIMA 500 KG<br />
•         VELOCIDAD 22 MT/MIN<br />
•         DIAMETRO TAMBOR 115 MM<br />
•         DIAMETRO CABLE 6 MM<br />
•         LARGO CABLE 43 MT<br />
•         CARGA DE RUPTURA 2650 KG

POWER SUPPLY<br />
Brand: GEORGIN<br />
Ouput IS = Uo : 7,2 V Io : 185 mA Po : 0,62 W<br />
Model : Without command<br />
Power supply : 24 Vdc<br />
Mounting : Din rail<br /><br />
ATEX informations:<br />
EC type examination certificate LCIE 02 ATEX 6104X<br />
[Ex ia] IIC (-20 °C < Ta < 60 °C)<br />
Group II (surface) - category (1) G/D<br />
Installation in safe zone<br />
barrier for equipment installed in zone 0,1,2 gas<br />
or zone 20,21,22 dust<br />
See leaflet for a safe use

Modelo:CC7- PDT-7-09-726<br />
PARTIAL DISCHARGE COUPLING CAPACITOR <br />
MARCA: PDTECH<br />
TYPE CC7<br />
TENSION NOMINAL: 7KV RMS<br />
CAPACITANCIA: 1000PF<br />
Modelo: PDT-7-09-726
