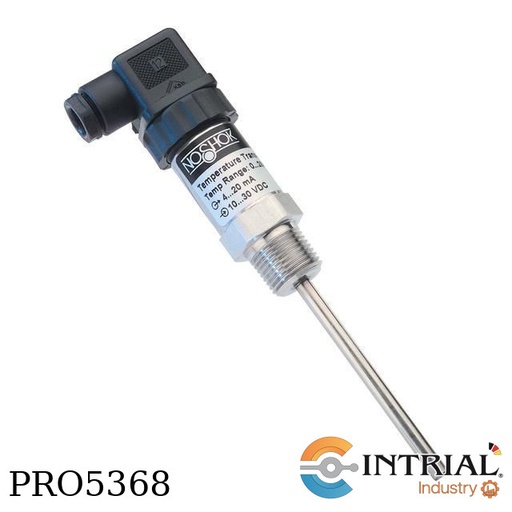

TRANSMISOR DE TEMPERATURA<br />
Marca: NOSHOK<br />
Rango de temperatura: 0-200ºF <br />
Precisión: Clase B, +/- 0.5%<br />
Salida: 02 hilos, 4…20 mA<br />
Conexión a proceso: 1/4”NPT <br />
Conexión eléctrica: Hirschmann w/mating Connector <br />
Longitud del bulbo: 2.5” <br />
Diámetro del bulbo: 6 mm

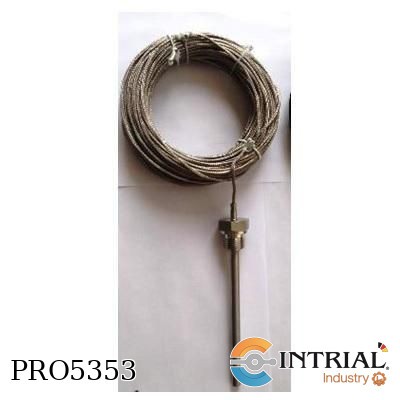

Screw-in resistance thermometer<br />
Brand:  INTRIAL (Made in Germany)<br />
2 x Pt 100 Ohm DIN EN 60751, class B,<br />
protective tube ø 14 mm, lenght 192 mm,<br />
thread G1/2", material 1.4571, SW27, with 60<br />
mm PTFE shrink tubing, with 25.000 mm<br />
connection wire Kapton/GL/VA-Geflecht<br />
(Cable no. 76A), 6-wire, with PTFE thread<br />
adapter, with 30 mm free ends, Temperature<br />
range: -50°C to +260°C, acc. to our drawing<br />
no, W0C1k0-2489-4015

Model : PRO5353<br />
Marca:  INTRIAL (Made in Germany)<br />
Screw-in resistance thermometer<br />
2 x Pt 100 Ohm DIN EN 60751, class B,<br />
protective tube ø 14 mm, lenght 245 mm,<br />
thread G1/2", material 1.4571, SW27, with 60<br />
mm PTFE shrink tubing, with 25.000 mm<br />
connection wire Kapton/GL/VA-Geflecht<br />
(Cable no. 76A), 6-wire, with PTFE thread<br />
adapter, with 30 mm free ends, Temperature<br />
range: -50°C to +260°C, acc. to our drawing<br />
no. W0C1k0-2489-4015

Model : PRO5352<br />
Marca:  INTRIAL (Made in Germany)<br />
Screw-in resistance thermometer<br />
1 x Pt 100 Ohm DIN EN 60751, class B,<br />
protective tube ø 14 mm, lenght 245 mm,<br />
thread G1/2", material 1.4571, SW27, with 60<br />
mm PTFE shrink tubing, with 25.000 mm<br />
connection wire GL/GL/VA-Geflecht (Cable<br />
no. 120A), 3-wire, with PTFE thread adapter,<br />
with 30 mm free ends, Temperature range:<br />
-50°C to +260°C, acc. to our drawing<br />
W0C1k0-2489-4015

Screw-in resistance thermometer<br />
Marca INTRIAL (Made in Germany)<br />
2 x Pt 100 Ohm DIN EN 60751, class B,<br />
protective tube ø 14 mm, lenght 277 mm,<br />
thread G1/2", material 1.4571, SW27, with 60<br />
mm PTFE shrink tubing, with 25.000 mm<br />
connection wire Kapton/GL/VA-Geflecht<br />
(Cable no. 76A), 6-wire, with PTFE thread<br />
adapter, with 30 mm free ends, Temperature<br />
range: -50°C to +260°C, acc. to our drawing<br />
no. W0C1k0-2489-4015

Screw-in resistance thermometer<br />
Marca INTRIAL (Made in Germany)<br />
1 x Pt 100 Ohm DIN EN 60751, class B,<br />
protective tube ø 14 mm, lenght 277 mm,<br />
thread G1/2", material 1.4571, SW27, with 60<br />
mm PTFE shrink tubing, with 25.000 mm<br />
connection wire GL/GL/VA-Geflecht (Cable<br />
no. 120A), 3-wire, with PTFE thread adapter,<br />
with 30 mm free ends, Temperature range:<br />
-50°C to +260°C, acc. to our drawing no.<br />
W0C1k0-2489-4015

Model : PRO5349<br />
Marca:  INTRIAL (Made in Germany)<br />
Screw-in resistance thermometer<br />
2 x Pt 100 Ohm DIN EN 60751, class B,<br />
protective tube ø 14 mm, lenght 253 mm,<br />
thread G1/2", material 1.4571, SW27, with 60<br />
mm PTFE shrink tubing, with 25.000 mm<br />
connection wire Kapton/GL/VA-Geflecht<br />
(Cable no. 76A), 6-wire, with PTFE thread<br />
adapter, with 30 mm free ends, Temperature<br />
range: -50°C to +260°C, acc. to our drawing<br /><br />


Model : PRO5348<br />
Screw-in resistance thermometer<br />
Marca:  INTRIAL (Made in Germany)<br />
1 x Pt 100 Ohm DIN EN 60751, class B,<br />
protective tube ø 14 mm, lenght 253 mm,<br />
thread G1/2", material 1.4571, SW27, with 60<br />
mm PTFE shrink tubing, with 25.000 mm<br />
connection wire GL/GL/VA-Geflecht (Cable<br />
no. 120A), 3-wire, with PTFE thread adapter,<br />
with 30 mm free ends, Temperature range:<br />
-50°C to +260°C, acc. to our drawing no.<br />


Screw-in resistance thermometer<br />
Marca:  INTRIAL (Made in Germany)<br />
1 x Pt 100 Ohm DIN EN 60751, class B,<br />
protective tube ø 9 mm, built-in lenght 100<br />
mm, thread G1/2", material 1.4571, with<br />
25.000 mm connection wire Glass silk/Glass<br />
silk/stainless steelbraided (cable no. 120A),<br />
3-wire, with 30 mm free ends, temperature<br />
range: -50°C to +260°C

Screw-in resistance thermometer<br />
Marca:  INTRIAL (Made in Germany)<br />
2 x Pt 100 Ohm DIN EN 60751, class B,<br />
protective tube ø 9 mm, built-in lenght 150<br />
mm, thread G1/2", material 1.4571, with<br />
25.000 mm connection wire Glass silk/Glass<br />
silk/stainless steelbraided (cable no. 76A), 2 x<br />
3-wire, with 30 mm free ends, temperature<br />
range: -50°C to +260°C

PRO5343<br />
•Screw-in resistance thermometer<br />
Marca:  INTRIAL (Made in Germany)<br />
•1 x Pt 100 Ohm DIN EN 60751, class B,<br />
•protective tube ø 9 mm, built-in lenght 150<br />
•mm, thread G1/2", material 1.4571, with<br />
•25.000 mm connection wire PTFE/stainless<br />
•steelbraided (cable no. 128), 3 x AWG24,<br />
•3-wire, with 30 mm free ends, temperature<br />
•range: -50°C to +260°C

Modelo : PRO5342<br />
Screw-in resistance thermometer<br />
Marca:  INTRIAL (Made in Germany)<br />
1 x Pt 100 Ohm DIN EN 60751, class B,<br />
protective tube ø 9 mm, built-in lenght 50<br />
mm, thread G1/2", material 1.4571, with<br />
25.000 mm connection wire Glass silk/Glass<br />
silk/stainless steelbraided (cable no. 120A),<br />
3-wire, with 30 mm free ends, temperature<br />
range: -50°C to +260°C

Screw-in resistance thermometer<br />
1 x Pt 100 Ohm DIN EN 60751, class B,<br />
protective tube ø 9 mm, built-in lenght 80<br />
mm, thread G1/2", material 1.4571, with<br />
25.000 mm connection wire Glass silk/Glass<br />
silk/stainless steelbraided (cable no. 120A),<br />
3-wire, with 30 mm free ends, temperature<br />
range: -50°C to +260°C

Modelo : PRO5340<br />
Screw-in resistance thermometer<br />
Marca:  INTRIAL (Made in Germany)<br />
1 x Pt 100 Ohm DIN EN 60751, class B,<br />
protective tube ø 9 mm, built-in lenght 70<br />
mm, thread G1/2", material 1.4571, with<br />
25.000 mm connection wire Glass silk/Glass<br />
silk/stainless steelbraided (cable no. 120A),<br />
3-wire, with 30 mm free ends, temperature<br />
range: -50°C to +260°C

<div><strong>SENSOR PT-100 SIMPLE 3 HILOS</strong></div>

<div><strong>Marca Intrial</strong></div>

<div><strong>Modelo: IDPT100C635300</strong></div>

<div>Elemento clase A, rango -50 + 400°C,</div>

<div>Bulbo acero inoxidable SS304 Ø1/4",</div>

<div>Largo bulbo 250mm incluido hilo</div>

<div>1/2" Npt </div>

<div>más cuello disipador SS304 Largo 50 mm</div>

<div>Cabezal aluminio grande.<br />
 </div>

<div></div>

<div><strong>TERMOPOZO MACIZO SS304 PERFORADO</strong></div>

<div><strong>Marca Intrial</strong></div>

<div><strong>Modelo: IDTWM170250A</strong></div>

<div>Diámetro bulbo 17 mm, diámetro</div>

<div>Perforación 3/8"</div>

<div>Conexión a Instrumento: 1/2" Npt Hi </div>

<div>Cnexion a proceso: 1/2" Npt He.</div>

<div>Largo bulbo útil 200mm</div>

<div>Largo total: 250 mm.</div>

<div></div>

<div>**Incluye**<br />
 </div>

<div><strong>CALIBRACIÓN Y CERTIFICACIÓN - PT-100</strong></div>

<div>•<span> </span>5 puntos</div>

RTD-TIPO DE SENSOR SPRING<br />
•    Conexión  1/2"<br />
•    Marca: ROSEMOUNT

SENSOR PT-100 SIMPLE 3 HILOS<br />
Elemento clase A, DIN 100 Ohms a 0°C.<br />
Rango temperatura -50 + 500°C.<br />
bulbo inoxidable SS316 Ø1/4"<br />
Largo bulbo 100mm incluido hilo de conexión a proceso 1/2 He NPT fijo.<br />
Sin cabezal, con 2 metros cable<br />
funda silicona 3x0,22mm.<br />
Marca:INTRIAL

PTS-635-0020<br />
SENSOR PT-100, 3 HILOS<br />
•Bulbo Acero Inoxidable SS 316.<br />
•Diámetro del bulbo 1/4"<br />
•Largo del Bulbo 20 cm + Hilo<br />
•Conexión a Proceso 1/2'' NPT He.<br />
•Conexión eléctrica 1/2'' NPT<br />
•Cabezal de Aluminio Grande<br />
•Marca: Intrial<br />
THI-950-0020<br />
THERMOWELL AC. INOXIDABLE SS316<br />
•Largo del bulbo de acuerdo a pt-100<br />
•Conexión a instrumento 1/2'' Hi Npt<br />
•Conexión a proceso 1/2" He Npt.<br />
•Marca: Intrial

<div>STANDARD L853 PROBE</div>

<div>•<span> </span>Dimensional Drawing</div>

<div>•<span> </span>Marca: PRINCO INSTRUMENTS </div>

Modelo: <span class="value">PRO4238</span><br />
•Marca: INTRIAL (Made in Germany)<br />
Screw-in resistance thermometer,<br />
2 x Pt 100 Ohm, DIN EN 60751 class B, 2 x<br />
3-wire, build-in length 100 mm, with thread<br />
G1/2", nominal length 120 mm, material<br />
stainless steel, connection head form J,<br />
temperature range: -40 to +400°C
