Screw-in resistance thermometer, 2 x Pt100<br />
Brand: Intrial (Made in Germany)<br />
Ohm DIN EN 60751, class B, 2 x 3-wire,<br />
glass sensor, measuring insert ø 6 mm,<br />
nominal length 51 mm, thread 1/2"NPT, neck<br />
tube ø 15 x 122 mm, material stainless steel,<br />
spring loaded in connection head ~3 mm<br />
spring way. connection head form KNE-HEAD<br />
1/2"NPT, ø ~82 mm, with ceramic socket<br />
6-pole, temperature range: 0 to +200°C

<p class="MsoNormal"><span style="font-size:10pt;line-height:107%;font-family:Arial, sans-serif;color:#000000;">Screw-in resistance thermometer(made in germany)</span><br style="word-spacing:0px;" /><span style="float:none;word-spacing:0px;">1 x Pt 100 Ohm DIN EN 60751, class B,</span><br style="word-spacing:0px;" /><span style="float:none;word-spacing:0px;">protective tube ø 6 mm, reducec to ø 3 x 40mm,</span><br style="word-spacing:0px;" /><span style="float:none;word-spacing:0px;">shank length 310 mm, with over sleeve</span><br style="word-spacing:0px;" /><span style="float:none;word-spacing:0px;">length 80 mm, spring clamping union with</span><br style="word-spacing:0px;" /><span style="float:none;word-spacing:0px;">screw reducing union thread G1/4A, material</span><br style="word-spacing:0px;" /><span style="float:none;word-spacing:0px;">1.4571, SW14/SW22, with 25.000 mm</span><br style="word-spacing:0px;" /><span style="float:none;word-spacing:0px;">connection cable FEP/Silicone, 4-wire, with</span><br style="word-spacing:0px;" /><span style="float:none;word-spacing:0px;">free ends, Temperature range: -50°C to</span><br style="word-spacing:0px;" /><span style="float:none;word-spacing:0px;">+260°C, like your drawing no. PRO24442</span><br style="word-spacing:0px;" /><span style="float:none;word-spacing:0px;">Brand:  Intrial(Made in Germany)</span></p>

<p></p>

<div>SENSOR DE TEMPERATURA TIPO PT-100 CON TRANSMISOR</div>

<div>•<span> </span>Salida de 3 hilos; Clase B</div>

<div>•<span> </span>Completo acero inoxidable.</div>

<div>•<span> </span>Diámetro bulbo 1/4"</div>

<div>•<span> </span>Conexión a proceso 1/2" hilo Npt macho.</div>

<div>•<span> </span>Cabezal de Aluminio Grande tapa roscada IP 67 </div>

<div>•<span> </span>Conector eléctrico 1/2" Npt</div>

<div>•<span> </span>Largo inserción: 250 mm.</div>

<div>•<span> </span>Marca: Intrial</div>

<div></div>

<div>INCLUYE TRANSMISOR DE TEMPERATURA </div>

<div>•<span> </span>Rango: 0-200°C, alojado en cabezal. </div>

<div>•<span> </span>Salida de 4-20mA.</div>

<div>SENSOR DE TEMPERATURA TIPO PT-100 CON TRANSMISOR</div>

<div>•<span> </span>Salida de 3 hilos; Clase B</div>

<div>•<span> </span>Completo acero inoxidable.</div>

<div>•<span> </span>Diámetro bulbo 1/4"</div>

<div>•<span> </span>Conexión a proceso 1/2" hilo Npt macho.</div>

<div>•<span> </span>Cabezal de Aluminio Grande tapa roscada IP 67 </div>

<div>•<span> </span>Conector eléctrico 1/2" Npt</div>

<div>•<span> </span>Largo inserción: 100 mm.</div>

<div>•<span> </span>Marca: Intrial</div>

<div></div>

<div>INCLUYE TRANSMISOR DE TEMPERATURA </div>

<div>•<span> </span>Rango: 0-200°C, alojado en cabezal. </div>

<div>•<span> </span>Salida de 4-20mA.</div>

Resistance thermometer type R272<br />
1 x Pt100 Ohm DIN EN 60751<br />
class A/0°C, 3-wire,<br />
measuring insert ø 6 mm<br />
material stainless steel<br />
with thermowell ø 16 mm<br />
length U=190,5 mm<br />
process connection 3/4"NPT,<br />
SW27<br />
length 20 mm<br />
inner thread 1/2"NPT<br />
thread 1/2"NPT<br />
material 1.4462<br />
length T=100 mm<br />
with connection head form CE1,<br />
temperature range: -200 to +600°C<br />
like your drawing

Resistance thermometer type R272<br />
1 x Pt100 Ohm DIN EN 60751<br />
class A/0°C, 3-wire,<br />
measuring insert ø 6 mm<br />
material stainless steel<br />
with thermowell ø 16 mm<br />
length U=190,5 mm<br />
process connection 3/4"NPT<br />
SW27, length 20 mm<br />
inner thread 1/2"NPT<br />
thread 1/2"NPT<br />
material brass 2.0401<br />
length T=100 mm<br />
with connection head form CE1<br />
temperature range: -200 to +600°C<br />
like your drawing

Resistance thermometer type R272<br />
1 x Pt100 Ohm DIN EN 60751<br />
class A/0°C, 3-wire<br />
measuring insert ø 6 mm<br />
material stainless steel<br />
with thermowell ø 16 mm<br />
length U=63,5 mm<br />
process connection 3/4"NPT<br />
SW27, length 20 mm<br />
inner thread 1/2"NPT,<br />
thread 1/2"NPT, material brass 2.0401<br />
length T=100 mm<br />
with connection head form CE1<br />
temperature range: -200 to +600°C<br />
like your drawing

Resistance thermometer type R272<br />
1 x Pt100 Ohm DIN EN 60751<br />
class A/0°C, 3-wire,<br />
measuring insert ø 6 mm<br />
material stainless steel<br />
with thermowell ø 16 mm<br />
length U=63,5 mm<br />
process connection 3/4"NPT,<br />
SW27, length 20 mm<br />
inner thread 1/2"NPT<br />
thread 1/2"NPT<br />
material brass 2.0401<br />
length T=100 mm<br />
with connection head form CE1,<br />
temperature range: -200 to +600°C<br />
like your drawing

Resistance thermometer type R272, 1 x Pt100 Ohm DIN EN 60751, class A/0°C, 3-wire,<br />
measuring insert ø 6 mm, material stainless<br />
steel, with thermowell ø 16 mm, length U=420<br />
mm, process connection 3/4"NPT, length 20<br />
mm, inner thread 1/2"NPT, thread 1/2"NPT,<br />
material 1.4301, length T=76 mm, with<br />
connection head form CE1, temperature<br />
range: -200 to +600°C, like your drawing

RESISTANCE THERMOMETER Pt100/0<br />
Brand: INTRIAL<br />
single<br />
4-wires circuit, Class B<br />
protection tube: dia 6,0 mm;<br />
mat no 1.4301<br />
length "L": 160mm

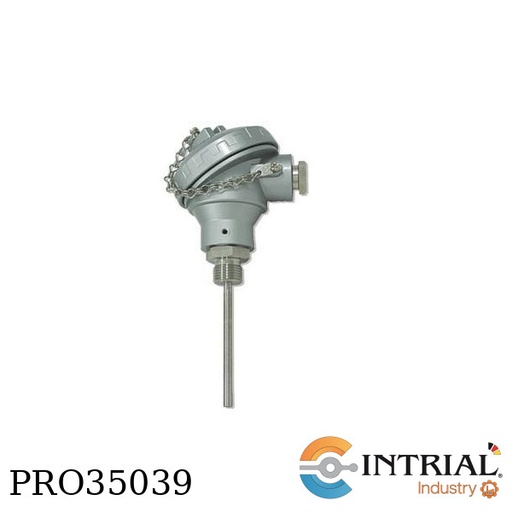

SCREW-IN RESISTANCE THERMOMETER<br />
Brand: INTRIAL (Made in Germany)<br />
1 x Pt 100 Ohm DIN EN 60751<br />
Class A/0°C, 3-wire,<br />
Protective tube ø 6 mm, built-in length 210 mm<br />
Material 1.4571, thread M16, length 12 mm<br />
10.000 mm connection cable Teflon<br />
Socket and connection head form B <br />
M16 female input <br />
M12 Female probe connection<br />
Temperature range: -30 to +60°C

CHECK VALVE<br />
MARCA: REXROTH<br />
N° PARTE: R901454065

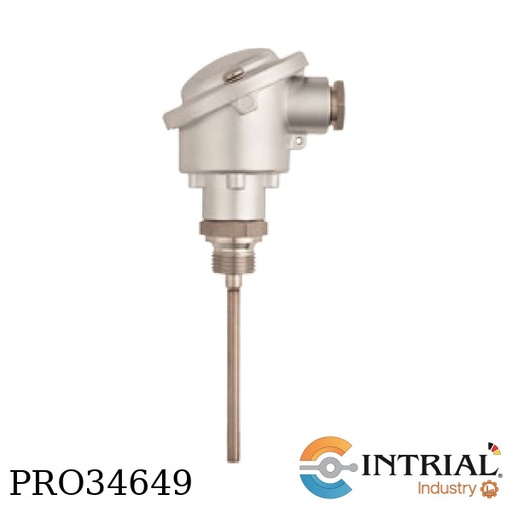

SCREW-IN RESISTANCE THERMOMETER WITHOUT SUPPORT TUBE, STEPPED PROTECTION TUBE<br />
Brand: JUMO<br />
Basic type Screw-in resistance thermometer without<br />
support tube, stepped protection tube<br />
Operating temp. -50..260°C<br />
Measuring insert 1x Pt100 in 2-wire circuit<br />
Tolerance class Class B<br />
Diameter 6,00mm<br />
Fitting length 250,00mm<br />
Process connection Screw connection G 1/2<br />
Stepped tube diam. 3,30 mm<br />
Stepped tube length 15,00 mm<br />
E.c. terminal head Terminal head form B blue

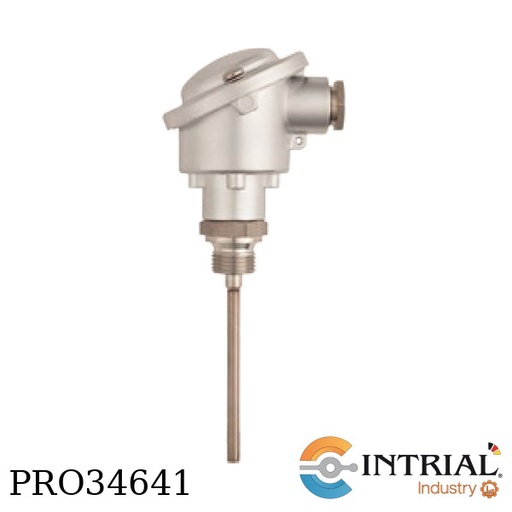

SCREW-IN RTD TEMPERATURE PROBES WITH TERMINAL HEAD FORM B<br />
Brand: JUMO<br />
Basic type JUMO Etemp B, screw-in RTD temperature<br />
probe with terminal head Form B and<br />
stepped protection tube for air measurement<br />
Operating temp. -50 to 200 °C<br />
Measuring insert 1x Pt100 in 2-wire circuit<br />
Tolerance class Class B<br />
Diameter Ø 6mm<br />
Insertion length 250,0 mm<br />
Process connection Screw connection G 1/2

SCREW-IN RESISTANCE THERMOMETER<br />
Brand: Intrial(Made In Germany)<br />
1 x Pt 100 Ohm DIN EN 60751<br />
Class B<br />
Protective tube ø 9 mm<br />
EL: Built-in lenght 200 mm<br />
Thread G1/2"<br />
Material 1.4571<br />
With 2.000 mm connection wire PFA/shield/PFA<br />
4x 0,22 mm² 1 wire cut<br />
White, 3-wire<br />
With 30 mm free ends<br />
Temperature range: -50°C to +260°C

SENSOR DE TEMPERATURA<br />
Marca: DWYER<br />
[TE-TNS]: Series<br />
[N]: Tipo de hilo, NPT<br />
[09]: Longitud, 9"<br />
[4N]: Material y elaboracion, 304 SS mecanizado<br />
[14]: Conexión, 1/4˝ NPT / 1/2˝ NPT<br />

TRANSMISOR DE TEMPERATURA<br />
Marca: DWYER<br />
Tipo PT100 con transmisor en el cabezal <br />
Salida 4 – 20 mA <br />
Rango de medición -10 a 100 ºC <br />
Longitud: 8"

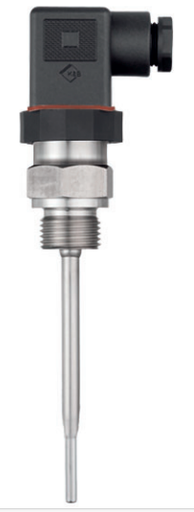

TERMORESISTENCIA PARA ENROSCAR CON TRANSMISOR ANALÓGICO Y CAJA DE CONEX
Marca: JUMO
Modelo: (00467686)902044/25-370-1003-1-6-60-102-26/298
Tipo: Termoresistencia para enroscar con transmisor analógico y caja de conex. según DIN EN 175301-803 (DIN 43650)
Temp. de aplicación: -50..+150°C
Elemento sensor: 1x Pt 100 en circuito de dos hilos
Tolerancia/clase: Clase B
Diámetro: 6 mm
Longitud de montaje: 60,00 mm
Tipo de conexión a p: Racor G 1/4
Material de tubo de: Acero inox. CrNi 1.4571
Rango transmisor: 0..100°C

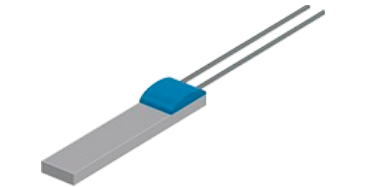

SENSORES DE TEMPERATURA CON CHIP DE PLATINO Y CABLES DE CONEXION
Brand: JUMO
Model: 906135/0-2-5-1,3-100-10-1-030
Versión básica: PCW-S-PtNi
Modelo: Versión estándar
Ancho: 2 mm
Longitud: 5 mm
Altura: 1,3 mm
Valor de resistencia: 100 Ohm
Long. alambres conex: 10 mm
Tipo de empaque: Klappblister
Tolerancia: F 0,3
Clase de temperatura: Standard (bis +400 °C)
Mat.alambre.conex.: Camisa de platino con núcleo de níquel
Diámetro cable de co: 0,2 mm
Temp.aplic.mín: -70 °C
Temp. aplic. máx: 400 °C
Punto de medición: 2 mm antes extremo alambre

SENSORES DE TEMPERATURA CON CHIP DE PLATINO Y CABLES DE CONEXION
Brand: JUMO
Model: 906135/0-2-5-1,3-100-10-1-015
Versión básica: PCW-S-PtNi
Modelo: Versión estándar
Ancho: 2 mm
Longitud: 5 mm
Altura: 1,3 mm
Valor de resistencia: 100 Ohm
Long. alambres conex: 10 mm
Tipo de empaque: Klappblister
Tolerancia: F 0,15
Clase de temperatura: Standard (bis +400 °C)
Mat.alambre.conex.: Camisa de platino con núcleo de níquel
Diámetro cable de co: 0,2 mm
Temp.aplic.mín: -70 °C
Temp. aplic. máx: 400 °C
Punto de medición: 2 mm antes extremo alambre
