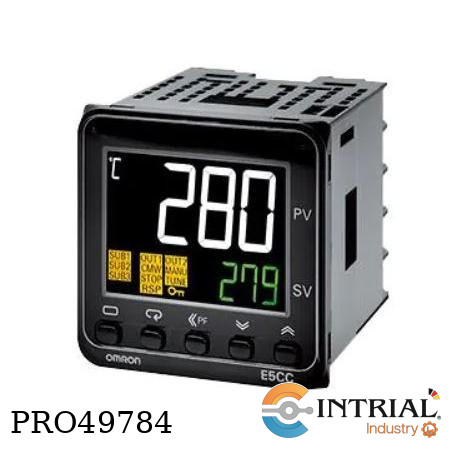

DIGITAL TEMPERATURE CONTROLLER<br />
Brand: OMRON<br />
[E5CC]: Screw Terminal Blocks, 48 × 48 mm<br />
[RX]: Control output 1, Relay output<br />
Control output 2, None<br />
[3]: 3 (one common)<br />
[A]: 100 to 240 VAC<br />
[5]: Screw terminal blocks (with cover)<br />
[M]: Universal input<br />
[003]: HB alarm and HS alarm, 2 (for 3-phase heaters)<br />
Communications, RS-485

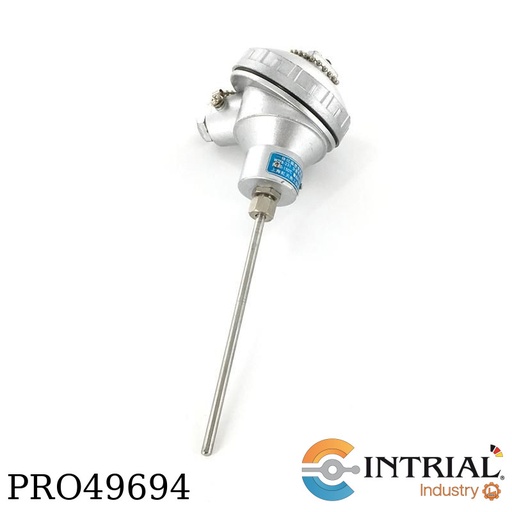

SENSOR DE TEMPERATURA RTD<br />
MARCA: SOR <br />
MODELO: 1440<br />
Tipo de cabezal: Aluminio, NEMA4X<br />
Material elemento: Platino 100Ohm 3 hilos<br />
Máxima temperatura: 260°C<br />
Diámetro del sensor: 1/4"<br />
Longitud de inserción: 2.36” (Aprox. 6cm)<br />
Material del sensor: Acero inoxidable<br />
Conexión al proceso: 1/2” NPTlos

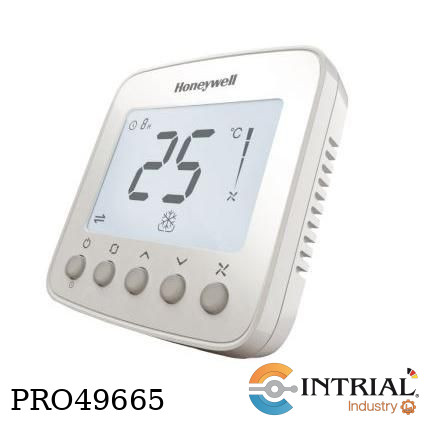

COMMUNICATING FAN COIL THERMOSTAT<br />
Brand: HONEYWELL<br />
Rated Power & Frequency 220/230VAC, 50/60Hz<br />
Power consumption <2W<br />
Control PI, On/off output<br />
Accuracy ±1°C at 21°C<br />
Auto Cycle times 100,000 times<br />
Manual Cycle times 10,000 times<br />
Protection class IP20<br />
Set point range: 10 ~ 32°C<br />
Display range: 0 ~ 37°C<br />
Ambient operating limits: 0~ +49°C<br />
Ambient storage limits: -30 ~ +60°C<br />
Humidity limits: 5~90% RH, non-condensing<br />
Action Type: 1<br />
Pollution Degree 2<br />
Protection against electric shock class Class II<br />
Electronic control software class Class A<br />
Rated Impulse Voltage: 2500V<br />
Maximum Temperature: 155°C

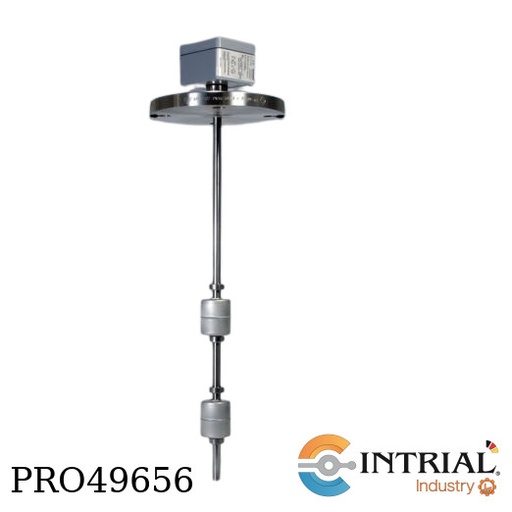

<div>LEVEL SWITCH</div>

<div>Brand: BARKSDALE</div>

<div>Model: UNS2000-VA/T2-KX4-VA52-LI-EEXI </div>

<div>Type: UNS2000</div>

<div>[VA]= stainless steel 1.4571 (316 Ti)</div>

<div>[T2]= G2" Tank screw (not with VA80 float)</div>

<div>[KX4]= PVC-Cable sealed, specify length at order, IP65</div>

<div>[VA52]= Min.Density Medium: 0,78 g/cm3 </div>

<div>Material: SS 1.4571 (316 Ti) </div>

<div>Form: Ball </div>

<div>52mm Ø</div>

<div>Max Temperature:150 °C </div>

<div>Max Pressure:40 bar</div>

<div>[L1]=  1 Switchpoint</div>

ALARMA VISUAL O BALIZA<br />
Brand: THERMO SCIENTIFIC<br />
Rotating Signal Light (230 VAC)<br />

ALARMA SONORA O SIRENA<br />
Brand: THERMO SCIENTIFIC<br />
Alarm Horn (230 VAC)<br />

CONTROLADOR PARA SENSOR<br />
Brand: THERMO SCIENTIFIC<br />
Model: 21-35-NM-F-4X<br />
TILT SWITCH<br />
PN: 092203<br />
Descripción: CSA Tilt Sensor Control<br />
in field (F) mount NEMA-4X SST box<br />

SONDA TIPO TILT<br />
(atoro de chute) – Libre de Mercurio<br />
Marca: Thermo scientific<br />
Modelo: 21-59-NM-15M<br />
Probe, 1" Cast Iron,<br />
15 metros de Cable<br />
Parte: 508526

DURÓMETRO NO DESTRUCTIVO PARA ARÁNDANOS/UVA<br />
Marca: BAXLO<br />
Sku: 001542<br />
Fuerza Máxima:113 g<br />
Medidas del penetrador: esférico Ø2,38mm

AQUASTAT<br />
BRAND: HONEYWELL<br />
Amperage Rating: 5.1 to 48<br />
Bulb Size : 3/8 x 2-7/8 in Copper<br />
Differential: 5 to 30<br />
Mounting Type: Horizontal/Vertical<br />
Spud Size: 1/2<br />
Switch Type: Micro Switch™ Snap-Acting<br />
Temperature Rating: 100 to 240 degF<br />
Type: Breaks on Rise<br />
Voltage Rating: 120 to 240 VAC/0.25 to 12 VDC

Model: GEFEDERTE-KV-Ø5-M8X1<br />
Spring-loaded compression fitting for ø5<br />
with PTFE clamping ring, spring travel ~12 mm, <br />
connection thread M8x1, width across flats <br />
SW22, material 1.4571<br />

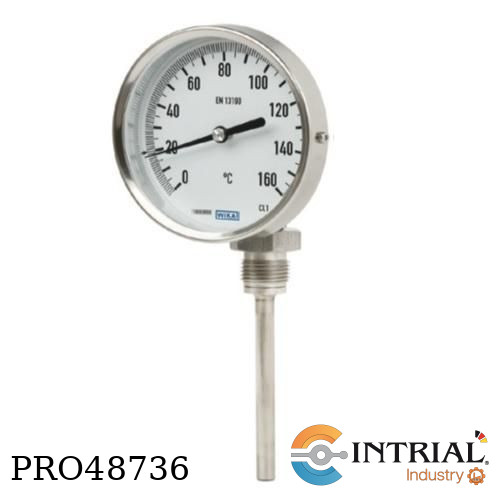

BIMETAL THERMOMETER FOR INDUSTRIAL<br />
APPLICATIONS<br />
Brand: WIKA<br />
Mechanical temperature measuring<br />
instrument<br />
Lower mount (radial)<br />
Nominal size 160<br />
Connection position bottom<br />
Connection type: 2<br />
Connection rotatable<br />
Display range: 0 °C ... 80 °C<br />
Process connection: G 1/2 B<br />
Stem diameter: 8 mm<br />
Immersion length L1: 74 mm<br />
Additional ordering information: Connection at 55°C<br />
Housing: CrNi steel<br />
Stem material: CrNi Steel<br />
Protection class: IP 43<br />
Viewing window: Instrument flat glass<br />
Manufactured in accordance with EN 1319<br />
Scale spacing in °C : 1

CONTROLADOR DE TEMPERATURA TIPO INTERRUPTOR TÁCTIL<br />
Marca: AUTONICS<br />
Método de visualización : 4 dígitos 7 segmentos LED<br />
Método de control : ON/OFF control, P, PI, PD, Control PID<br />
Tipo de entrada : Termopar: K (CA), J (IC), L (IC)<br />
RTD: DPt100Ω, Cu50Ω<br />
Ciclo de muestreo : 100ms<br />
Salida de control : Relé (250 V CA ~ 3 A) o SSR (12 V CC ) <br />
[ON / OFF, fase, ciclo]<br />
Fuente de alimentación : 100-240VCA~50/60Hz<br />

TACÓMETRO DIGITAL<br />
Marca: SKF<br />
Pantalla: Pantalla LCD con retroiluminación de 5 dígitos<br />
Resolución de la pantalla: 0,1 r. p. m. hasta 10 000 r. p. m., <br />
o bien 1 r. p. m.<br />
Memoria: Memoria para 10 lecturas<br />
Indicador de batería baja: Sí<br />
Apagado automático: Tras 15 segundos<br />
Rango de velocidad de giro: 2 a 20 000 r. p. m.<br />
Temperatura de funcionamiento: de 0 a 50 °C (de 32 a 122 °F)<br />
Temperatura de almacenamiento: de –10 a +50 °C (de 14 a 122 °F)<br />

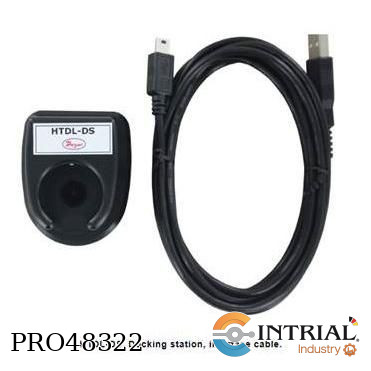

Docking station, interface cable<br />
Marca: DWYER<br />
Modelo: HTDL-DS

HIGH TEMPERATURE DATA LOGGER<br />
Brand: DWYER<br />
Model:HTDL-20<br />
High temperature data logger with 2˝ rigid probe<br />
Range: -328 to 500°F (-200 to 260°C).<br />
Memory Size: 32,700 readings.<br />
Accuracy: 0.18°F (0.1°C) @ 68 to 284°F (20 to 140°C); 0.54°F (0.3°C) @ -4 to<br />
67.98°F (-20 to 19.99°C).<br />
Resolution: 0.02°F (0.01°C).<br />
Temperature Limits: -4 to 284°F (-20 to 140°C).<br />
Sampling Method: Stop on memory full or continuous recording.<br />
Sampling Rate: Selectable from 1 sec to 24 hrs.<br />
Computer Requirements: Windows® Xp Sp3, Windows Vista ®, Windows® 7<br />
operating systems.<br />
Power Requirements: User replaceable 3.6 V high temperature lithium battery.<br />
Battery Life: 1 year (approx).<br />
Interface: Docking station and USB cable.<br />
Housing Material: 316 SS.<br />
Weight: 4.2 oz (120 g).<br />
Agency Approvals: CE

Immersion thermostats with housing <br />
Brand: AFRISO<br />
Stem length: 100 mm<br />
0/90 °C<br />
Adjustment: External

<strong>TRANSMISOR DE TEMPERATURA P/TERMOCUPLA 24VDC<br />
Codigo: 3101<br />
Marca: PR Electronics</strong><br />
Entrada : Termocupla tipo J/ K<br />
Salida : mA / V<br />
Alimentacion : 16.8...31.2 VDC<br />
Dimensiones ( HxWXD) :113 x 6.1 x 115 mm<br />
Programacion: DIP-switches<br />
Exactitud: 0.1%<br />
Aprovaciones :<br />
ATEX 2014/34/EU <br />
IECEx , FM ,DNV Marine ,UL

[XR66085]<br />
XDT IN NEMA 4X BOX FOR DIV 2 AREAS<br />
Brand: XENTAUR CORPORATION<br />
Analog Output<br />
6ft. Signal cable<br />
power cable c/w hermetically<br />
sealed relays for use in Div 2 hazardous áreas<br /><br />
[XR19060]<br />
SENSOR ELEMENT XTR-100<br />
Brand: XENTAUR CORPORATION<br />
Range:(-100ºC to 20ºC dp)<br />
Encapsulated in 100-micron sintered SS.<br /><br />
[XR19070]<br />
STANDARD SENSOR FITTING<br />
Brand: XENTAUR CORPORATION<br />
500psi / 34 bar 3/4"-16 &<br />
14mm x 1.25mm Threads<br /><br />
[XR19093]<br />
SAMPLE CELL <br />
Brand: XENTAUR CORPORATION<br />
1/4" Tubing

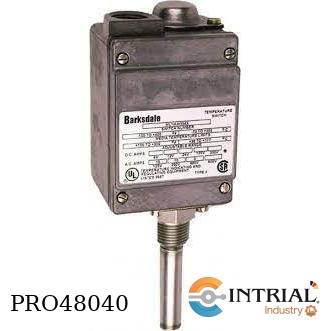

TEMPERATURE SWITCH<br />
Brand: BARKSDALE<br />
Application:Compressors;Mining;<br />
Manufacturing Facilities;Oil and Gas<br />
Electrical Connection:Screw Terminals<br />
Output:Single Switch Point;SPDT<br />
Temperature Range:75~200 deg F<br />
Sensor Length:2.25 in Probe<br />
Display:None<br />
Mounting Style:Local<br />
Process Connections:3/4 in NPT Male Thread<br />
NEMA Rating:NEMA 4<br />
Approvals:UL;CSA;CE<br />
Comments:Stainless Steel Sensor<br />
