TERMOMETRO BIMETALICO,Marca: KOBOLD (Alemania),Material de la carcasa: Acero Inox,Precisión (DIN 16203): clase 1,Tipo de conexión: Trasera,Sonda: G 1/2 macho,Dial: 63 mm,Rango: 0 ... 120 ° C,Longitud de inmersión tubo: L1 = 63 mm

Bimetallic Thermometers<br />
Brand: Kobold<br />
Housing material, st.st.<br />
Diameter, 150 mm<br />
Measuring Range, 0-200°C<br />
Case and ring stainless steel AISI 316<br />
Silicone filling (max. 250 °C) IP 67<br />
Calibration report 5 Points<br />
Longitud total del Termopozo, 280mm<br />
Conexión a Proceso: 1/2’’NPT

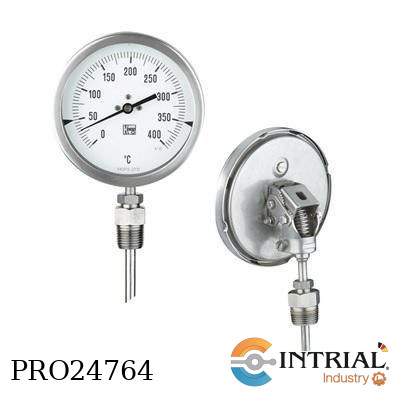

Bimetallic Thermometers<br />
Brand: Kobold (Alemania)<br />
Model: TBE-2-3-C20-9A-8-R11-C01 + TWL-0000-N-GN4B-0-0<br />
[TBE-2]<br />
Housing material st.st.<br />
Accuracy (DIN 16203) class 1<br />
Connection to bottom<br />
Probe st.st.<br />
Process connection, AISI 316 St. St.<br />
Welding, AISI 304 St. St. TIG<br />
Case, AISI 304 St. St.<br />
Ring, AISI 304 St. St. bayonet lock<br />
Min. order quantity 5 pieces per order<br />
[3]: Diameter, 150mm<br />
[C20]: Measuring Range, Scale °C, ranges 0-200°C<br />
[9A]: Probe type/Process connection, sliding male and swivel nut 1/2 NPT<br />
[8]: Bulb diameter/-length, 8 mm / 239 mm<br />
[R11]: Options, Silicone filling (max. 250 °C) IP 67<br />
[C01]: Options, Calibration report<br /><br />
Dimensions:<br />
Inmersion length (S): 239 mm (Include extension length 50 mm)<br />
Bulb diameter: 8 mm<br /><br />
Include:<br />
Thermowells for Temperature Sensors<br />
Model: TWL-0000-N-GN4B-0-0<br />
[TWL-0000]:<br />
Thermowell, cylindrical drilled<br />
Material neckpipe/sensor/thermowell, st.st. 1.4404<br />
Connection head, Form XD with chain, M20 x 1,5,<br />
Approval, ATEX II 2 GD Ex d IIC T6<br />
[N]: Connection neckpipe, 1/2" NPT male<br />
[GN4B]: Connection thermowell, 1/2" NPT male, PN 100<br />
Immersion length (U), 150 mm (6”)<br />
[0]: Lagging extension (T), w/o lagging extension<br /><br />
Dimensions:<br />
Thermowell Inmersion length (U): 150 mm<br />
Thermowell Bulb diameter: 15 mm

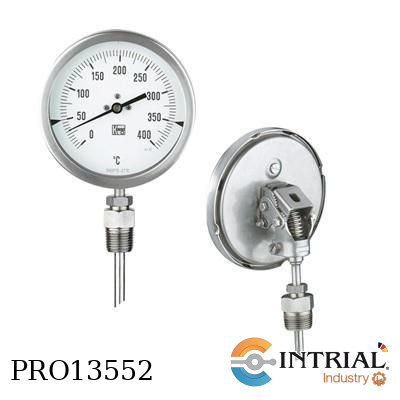

<strong>Bimetallic Thermometers<br />
Brand: Kobold (Alemania)<br />
Model: TBE-2-3-C20-9A-6-R11-C01 + TWL-0000-N-GN4B-0-0</strong><br /><br />
[TBE-2]:<br />
Housing material st.st.<br />
Accuracy (DIN 16203) class 1<br />
Connection to bottom<br />
Probe st.st.<br />
Process connection, AISI 316 St. St.<br />
Welding, AISI 304 St. St. TIG<br />
Case, AISI 304 St. St.<br />
Ring, AISI 304 St. St. bayonet lock<br />
Min. order quantity 5 pieces per order<br />
[3]: Diameter, 150mm<br />
[C20]: Measuring Range, Scale °C, ranges 0-200°C<br />
[9A]: Probe type/Process connection, sliding male and swivel nut 1/2 NPT<br />
[6]: Bulb diameter/-length, 6 mm /  319 mm<br />
[R11]: Options, Silicone filling (max. 250 °C) IP 67<br />
[C01]: Options, Calibration report<br /><br /><em>Dimensions:<br />
Inmersion length (S): 319 mm<br />
Bulb diameter: 6 mm</em><br /><br /><strong>Include:<br />
Thermowells for Temperature Sensors<br />
Model: TWL-0000-N-GN4B-0-0</strong><br /><br />
[TWL-0000]:<br />
Thermowell, cylindrical drilled<br />
Material neckpipe/sensor/thermowell, st.st. 1.4404<br />
Connection head, Form XD with chain, M20 x 1,5,<br />
Approval, ATEX II 2 GD Ex d IIC T6<br />
[N]: Connection neckpipe, 1/2" NPT male<br />
[GN4B]: Connection thermowell, 1/2" NPT male, PN 100<br />
Immersion length (U), 280 mm (11”)<br />
[0]: Lagging extension (T), w/o lagging extension<br /><br /><em>Dimensions:<br />
Thermowell Inmersion length (U): 280 mm<br />
Thermowell Bulb diameter: 15 mm</em>

TERMOMETRO BIMETALICO<br />
Marca: KOBOLD<br />
Material: Todo en Acero Inoxidable<br />
Diámetro Nominal reloj, 150 mm<br />
Rango de Temperatura, 0-200°C<br />
Diámetro del bulbo: 8 mm<br />
Longitud del bulbo: 150 mm<br />
THERMOWELL TUBO ACERO INOX SS316<br />
Conexión a proceso 1/2" NPT

Bimetallic Thermometers<br />
Model: TBE-2-3-C20-9A-6-R11-C01 + TWL-0000N-GN4B-0<br />
Housing material st.st.<br />
Diameter, 150mm<br />
Measuring Range, 0-200°C<br />
Bulb diameter/-length, 6 mm / 273 mm aprox.<br />
Connection thermowell, 1/2" NPT male, PN 100<br />
Immersion length (U), 230 mm
