LÁPIZ TÉRMICO PARA MEDIR TEMPERATURA<br />
Marca: CUTWELD<br />
Modelo: COX0303180<br />
Temperatura máxima: 180 °C

LÁPIZ TÉRMICO PARA MEDIR TEMPERATURA<br />
Marca: CUTWELD<br />
Modelo: COX0303175<br />
Temperatura máxima: 175 °C

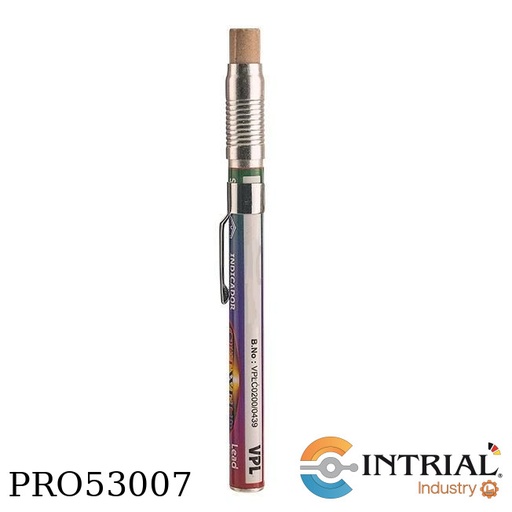

LÁPIZ TÉRMICO PARA MEDIR TEMPERATURA<br />
Marca: CUTWELD<br />
Modelo: COX0303150<br />
Temperatura máxima: 150 °C

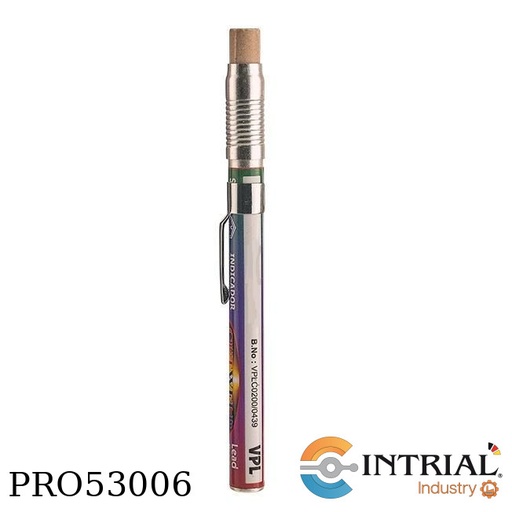

LÁPIZ TÉRMICO PARA MEDIR TEMPERATURA<br />
Marca: CUTWELD<br />
Modelo: COX0303120<br />
Temperatura máxima: 120 °C

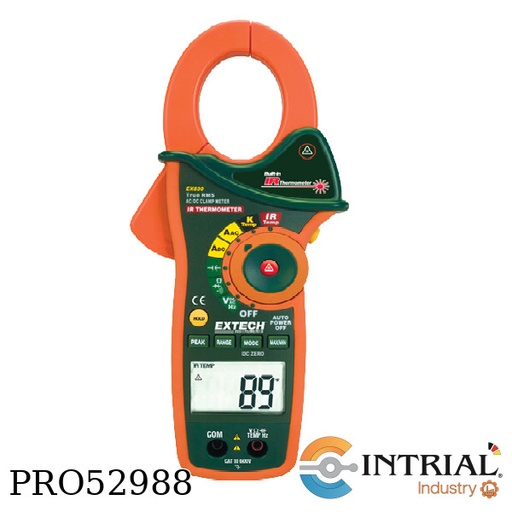

CLAMP METERS WITH IR THERMOMETERS<br />
Brand: EXTECH INSTRUMENTS<br />
Model: EX830-NISTL<br />
R Temperature (IR), -50 to 518ºF<br />
                    -50 to 270ºC ±4ºF/±2ºC<br />
AC Current, 0.1 to 1000A<br />
DC Current, 0.1 to 1000A<br />
AC Voltage, 0.1mV to 600V<br />
DC Voltage, 0.1mV to 600V<br />
Resistance, 0.1 to 40MΩ<br />
Capacitance, 0.001nF to 40,000μF ±3.0%<br />
Frequency, 0.001kHz to 4kHz ±1.5%<br />
Type K Temperature, -4 to 1400ºF<br />
                    -20 to 760ºC<br />
Continuity, Yes<br />
Inrush, Yes<br />
Diode, Yes<br />
Dimensions, 10.6x4.3x2" (270x110x50mm)<br />
Weight, 13.6oz (386g<br />
EX830-NISTL, EX830 with limited NIST for certificate of traceability

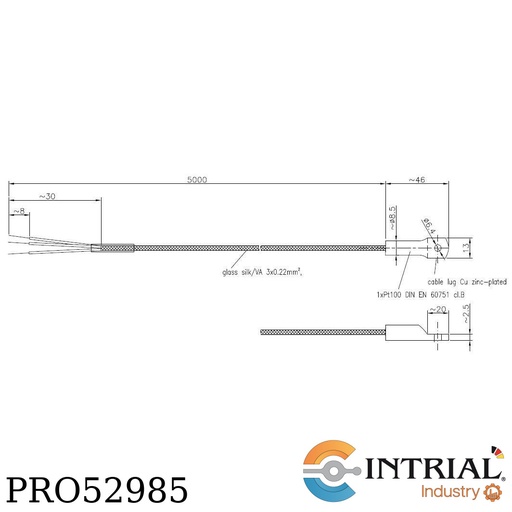

<p class="MsoNormal">SENSOR DE TEMPERATURA PT-100Ω DE 3 HILOS DE OJAL<br />
Modelo: PRO52985<br />
Marca:  INTRIAL(Made in Germany)<br />
 * Sensor: De Tres Hilos – Platino 100 Ω. Adecuado para movimiento y/o vibración.<br />
* Coeficiente de Temperatura del Sensor: 0.00385 Ohms/ Ohms/° C.<br />
* Grado de Precisión: Clase B - Norma IEC 751<br />
* Tolerancia: DIN EN 60751 - F 0,3 (Clase B).<br />
* Temperatura de Servicio: -70° C @ 400° C.<br />
* Temperatura de Uso: No Indicado<br />
* Bulbo: En Acero Inoxidable tipo ojal M6<br />
* Cable: 10m de cable conductor en fibra de vidrio, recubierto con malla de Acero Inoxidable de tres hilos.<br />
* Marca del Elemento: Heraeus – Made in Germany</p>

Bimetallic Thermometers<br />
Brand: Kobold(Alemania)<br />
Model: TBE-2-2-C10-3A-6-C40-C01(360mm)<br />
[TBE-2]:<br />
Housing material, st.st<br />
Accuracy (DIN 16203), class 1<br />
Connection / Orientation to, bottom<br />
Probe, st.st<br />
[2]: Diameter, 125 mm<br />
[C10]: Measuring Range, Scale °C, ranges acc.(0…+100°C)<br />
[3A]: Connection type/Process connection, Protect. tube/immers. tube 1/2 NPT<br />
[6]: Bulb diameter/-length, 6 mm<br />
[C40]: Options, Case and ring stainless steel AISI 316<br />
[E65]: Options, Protection degree IP 65 (without filling)<br />
S= 360mm<br />
S= U+H-7mm (300+60-7)

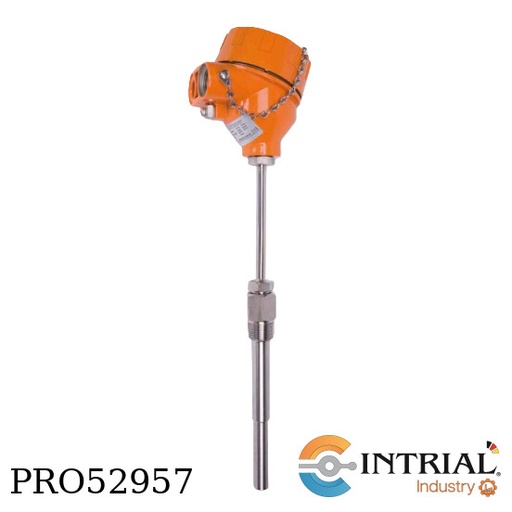

Thermowells for Temperature Sensors<br />
Brand: Kobold(Alemania)<br />
Model: TWL-0000-N-DA97-0(307mm)<br />
[TWL-0000]:<br />
Thermowell, tapered drilled<br />
Material neckpipe/sensor/thermowell, st.st. 1.4404<br />
Connection head, Form XD with chain, M20 x 1,5<br />
Approval, ATEX II 2 GD Ex d IIC T6<br />
[N]: Connection neckpipe, 1/2" NPT male<br />
[DA97]: Connection thermowell, ANSI-flange 2" 600 lbs<br />
Immersion length (U), 307 mm<br />
[0]: Lagging extension (T), w/o lagging extension

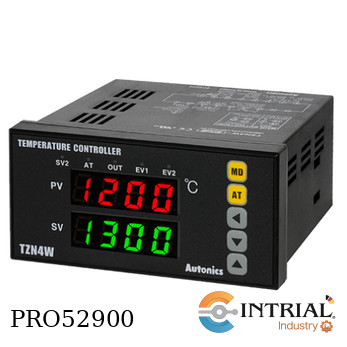

TEMPERATURE CONTROLLER<br />
Brand: AUTONICS<br />
Model: TZN4W-14R<br />
[TZN]: Item, Temperature dontroller (PID New type)<br />
[4]: Digit, 4 digit<br />
[W]: Size, DIN W96×H48mm<br />
[1]: Auxiliary output, Event 1 output<br />
[4]: Power supply, 100-240 VAC 50/60 Hz<br />
[R]: Control output, relay output<br />
Display accuracy, 7 segment (PV:red, SV: green) LED method<br />
Input Type, RTD, DPt100Ω, JPt100Ω, 3wire (allowable line resistance max. 5Ω per a wire)<br />
            Thermocouple, K(CA), J(IC), R(PR), E(CR), T(CC), S(PR), N(NN), W(TT) (allowable line resistance max. 100Ω)<br />
            Anañog, 1-5VDC, 0-10VDC, DC4-20mA

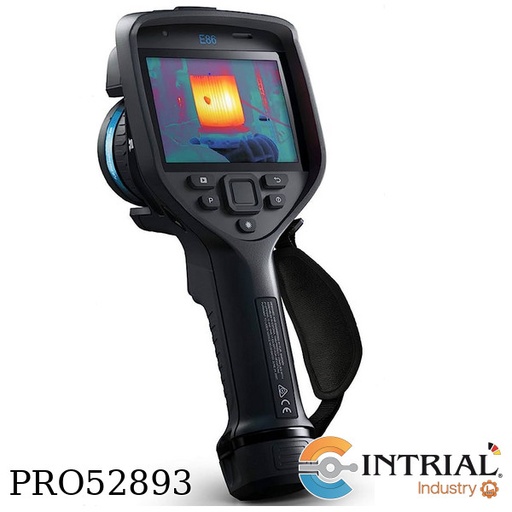

INFRARED CAMERA<br />
Brand: FLIR<br />
Range (F) – Infrared:-4 to 248°F, 572 to 2732°F<br />
Temp. Range (C) - Infrared-20 to 120°C; 300 to 1500°C<br />
Field of View - IR Camera24° Horizontal × 18° Vertical<br />
Focus Distance - InfraredMinimum 0.15 m<br />
Focus MethodAuto and Manual<br />
Thermal Sensitivity - IR Camera40 mK<br />
Detector Resolution - Infrared464 × 348 px<br />
Display - IR Camera4.0 in Touch Screen Color LCD<br />
Display Resolution - IR Camera4", 464 × 348 Pixel Touchscreen LCD with Auto-rotation<br />
Data Logging – InstrumentYesWirelessYes<br />
NIST Certified No<br />
Spectral Response - Infrared7.5 to 14 µm<br />
Frame Rate - IR Camera30 Hz<br />
Picture In Picture Yes<br />
Laser Sighting Yes<br />
Alarm No<br />
Visual Light Resolution 5.0 MP<br />
Image NotationText; Voice<br />
Removable Memory Card Yes<br />
File FormatsJPEG<br />
Thermal and Visible Light Blending Yes<br />
Articulating Lens No<br />
Special Features4 in Touchscreen; Built In GPS;<br />
Image Sktech; METERLiNK to FLIR Meters<br />
UltraMax (Super-Resolution)<br />
Voice Annotations<br />
Multiple Lens Option Yes<br />
Drop Tested 2 m<br />
EmissivityAdjustable 0.01 to 1.00<br />
Ambient Temp. Range5° to 122°F<br />
Temp. Accuracy (F) - Infrared±3.6°For ±2% of the Reading<br />
Temp. Accuracy (C) - Infrared±2°C or ±2% of the Reading<br />
Ambient Temp. Range (F)5° to 122°<br />
Safety RatingEN/UL/CSA/PSE 60950-1<br />
Includes:<br />
(1) 24° Lens<br />
(1) Battery Charger<br />
(1) FLIR Route Creator Plugin for Thermal Studio Pro (3 Month Subscription)<br />
(1) Front Lens Cap<br />
(1) Hard Transport Case<br />
(1) Infrared Camera with Lens<br />
(1) Lanyard<br />
(1) License Card: FLIR Thermal Studio Pro (3 Month Subscription)<br />
(1) Power Supply<br />
(1) SD Card (8 GB)<br />
(1) Small Viewfinder Eyecup<br />
(2) Batteries<br />
(6) Cables (USB 2.0 A to USB Type-C<br />
USB Type-C to HDMI<br />
USB Type-C to USB Type-C)<br /><br />

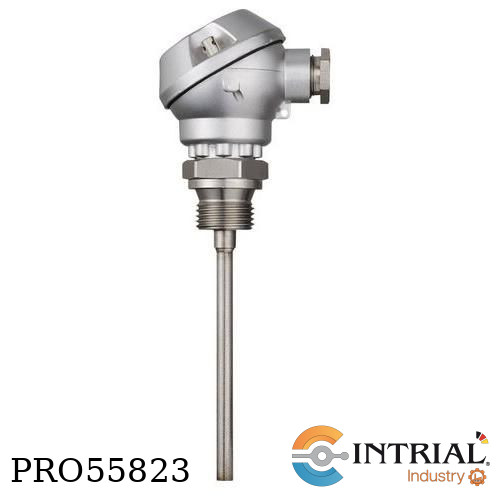

TERMORESISTENCIA PARA ENROSCAR CON CABEZAL DE CONEXIÓN FORMA J<br />
Brand: JUMO<br />
Model: 902030/10-402-1001-1-6-150-104/000<br />
Temp. de aplicación, -50..+400°C<br />
Elemento sensor, 1x Pt 100 en circuito de tres hilos<br />
Tolerancia/clase, Clase B<br />
Diámetro, Ø 6mm<br />
Longitud de montaje, 150 mm<br />
Tipo de conexión a p, Racor G 1/2<br />
Longitud cuello, sin tubo de cuello<br />
Superf. tubo protecc, desnudo

Capillary Thermometers diam. 160 acc. DIN EN 13190<br />
Brand: KOBOLD (Alemania)<br />
Model: TNF-5G-2-30-E-9A-Y<br />
[TNF-5G]:<br />
Diameter, 160 mm<br />
Probe material, st.st.<br />
Class, 1,0<br />
[2]: Housing material, st.st.<br />
[30]: Range, 0...300 °C<br />
[E]: Capillary tube, st.st., 3 m<br />
[9A]: Probe, 1/2 NPT<br />
[Y]: Options, Probe diameter 10 mm<br />
L= 200 mm

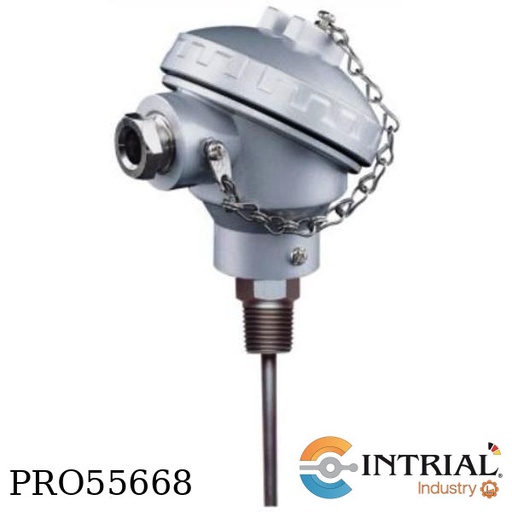

Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold(Alemania)<br />
Model: MWD-A-A-C15-C-3-E-0-0<br />
[MWD-A]:<br />
Version: Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material: st.st. 1.4404<br />
Max. pressure (@ 20°C): 30 bar<br />
Connection: Compression fitting<br />
Neckpipe: without<br />
[A]: Diameter/length thermowell, 10 mm/205 mm<br />
[C15]: Process connection, Compression fitting 1/2 NPT male<br />
[C]: Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br />
[3]: Wiring, 3 wires<br />
[E]: Terminal head, aluminium head with LCD display and HART transmitter included<br />
[0]: Head-mounted transmitter, without transmitter<br />
[0]: Options, without

Industrial Resistance Thermometers acc. DIN<br />
Brand: KOBOLD (Alemania)<br />
Model: MWD-E-C-G20-C-3-I-0-0<br />
[MWD-E]:<br />
Version, Protective tube acc. DIN 43772, filled with MgO, insert removable<br />
Protective tube material, st.st. 1.4404<br />
Max. pressure (@ 20°C), 30 bar<br />
Connection, Compression fitting<br />
Neckpipe, without<br />
[C]: Diameter/length thermowell, 12 mm<br />
[G20]: Process connection, G 3/4 male<br />
[C]: Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br />
[3]: Wiring, 3 wires<br />
[I]: Terminal head, screw cap with chain, st. steel 1.4401<br />
[0]: Head-mounted transmitter, without transmitter<br />
[0]: Options, without<br />
L= 200 mm<br />
INCLUYE ADAPTADOR                                              <br />
CONEXION ELECTRICA, M20x1.5 Male  a 3/4 NPT Female

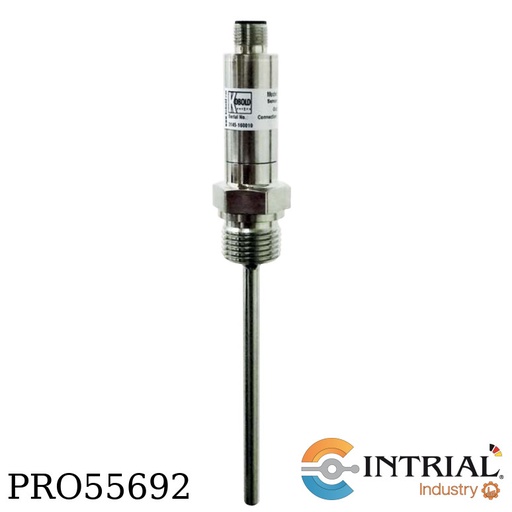

Insertion Resistance Thermometers compact<br />
Brand: KOBOLD (Alemania)<br />
Model: MMA-0-10-N15-C-3-D-B-0<br />
[MMA-0]:<br />
Probe material, st.st. 1.4404<br />
Connection, fixed<br />
Design, w/o stand-off<br />
Max. temperature, - 70...+150°C<br />
[10]: Immersion length/diameter, 100 mm / Ø6<br />
[N15]: Connection, 1/2 NPT<br />
[C]: Sensor Type/Category, 1x Pt100, class A (-70..+250°C)<br />
[3]: Wiring, 3-wire<br />
[D]: Electr. Connection, plug acc. to DIN 43650<br />
[B]: Head Transmitter, 4..20 mA,range acc. customers specification<br />
[0]: Options, without

INDUSTRIAL RESISTANCE THERMOMETERS ACC. DIN<br />
Brand: KOBOLD (Alemania)<br />
Model: MWD-E-6-C15-C-3-I-0-0(140mm)<br />
[MWD-E]:<br />
Version, Protective tube acc. DIN 43772, filled with MgO, insert removable<br />
Protective tube material, st.st. 1.4404<br />
Max. pressure (@ 20°C), 30 bar<br />
Connection, Compression fitting<br />
Neckpipe, without<br />
[6]: Diameter / length thermowell, 6 mm<br />
[C15]: Process connection, Compression fitting 1/2 NPT male<br />
[C]: Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br />
[3]: Wiring, 3 wires<br />
[I]: Terminal head, screw cap with chain, st. steel 1.4401<br />
[0]: Head-mounted transmitter, without transmitter<br />
[0]: Options, without<br />
L= 140 mm<br />
<br />


Industrial Resistance Thermometers acc. DIN<br />
Brand: KOBOLD (Alemania)<br />
Model: MWD-L-C-G20-C-3-I-0-0<br />
[MWD-L]:<br />
Version, Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material, st.st. 1.4404<br />
Max. pressure (@ 20°C), 30 bar<br />
Connection, fixed connection<br />
Neckpipe, without<br />
[C]: Diameter/length thermowell, 12 mm<br />
[G20]: Process connection, G 3/4 male<br />
[C]: Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br />
[3]: Wiring, 3 wires<br />
[I]: Terminal head, screw cap with chain, st. steel 1.4401<br />
[0]: Head-mounted transmitter, without transmitter<br />
[0]: Options, without<br />
L= 200 mm<br />
INCLUYE ADAPTADOR                                              <br />
CONEXION ELECTRICA, M20x1.5 Male  a 3/4 NPT Female<br />
<br />


Industrial Resistance Thermometers acc. DIN<br />
Brand: KOBOLD (Alemania)<br />
Model: MWD-L-C-G20-C-3-G-0-0<br />
[MWD-L]:<br />
Version, Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material, st.st. 1.4404<br />
Max. pressure (@ 20°C), 30 bar<br />
Connection, fixed connection<br />
Neckpipe, without<br />
[C]: Diameter/length thermowell, 12 mm<br />
[G20]: Process connection, G 3/4 male<br />
[C]: Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br />
[3]: Wiring, 3 wires<br />
[G]: Terminal head, screw cap with chain, aluminium<br />
[0]: Head-mounted transmitter, without transmitter<br />
[0]: Options, without<br />
L= 200 mm<br />
INCLUYE ADAPTADOR                                              <br />
CONEXION ELECTRICA, M20x1.5 Male  a 3/4 NPT Female

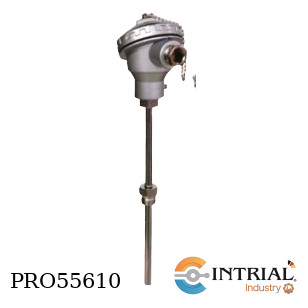

INDUSTRIAL RESISTANCE THERMOMETERS ACC. DIN<br />
Brand: KOBOLD (Alemania)<br />
Model: MWD-E-6-C15-C-3-G-0-0(60mm)<br />
[MWD-E]:<br />
Version, Protective tube acc. DIN 43772, filled with MgO, insert removable<br />
Protective tube material, st.st. 1.4404<br />
Max. pressure (@ 20°C), 30 bar<br />
Connection, Compression fitting<br />
Neckpipe, without<br />
[6]: Diameter / length thermowell, 6 mm<br />
[C15]: Process connection, Compression fitting 1/2 NPT male<br />
[C]: Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br />
[3]: Wiring, 3 wires<br />
[G]: Terminal head, screw cap with chain, aluminium<br />
[0]: Head-mounted transmitter, without transmitter<br />
[0]: Options, without<br />
L= 60 mm<br />
<br />


INDUSTRIAL RESISTANCE THERMOMETERS ACC. DIN<br />
Brand: KOBOLD (Alemania)<br />
Model: MWD-E-6-C15-C-3-I-0-0(195mm)<br />
[MWD-E]:<br />
Version, Protective tube acc. DIN 43772, filled with MgO, insert removable<br />
Protective tube material, st.st. 1.4404<br />
Max. pressure (@ 20°C), 30 bar<br />
Connection, Compression fitting<br />
Neckpipe, without<br />
[6]: Diameter / length thermowell, 6 mm<br />
[C15]: Process connection, Compression fitting 1/2 NPT male<br />
[C]: Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br />
[3]: Wiring, 3 wires<br />
[I]: Terminal head, screw cap with chain, st. steel 1.4401<br />
[0]: Head-mounted transmitter, without transmitter<br />
[0]: Options, without<br />
L= 195 mm<br />
<br />
INCLUYE<br />
[PRO56321]: ADAPTADOR CONEXION ELECTRICA, M20x1.5 Male  a 1/2 NPT Female
