SAFIR MULTI-FUNCTION DIGITAL INDICATOR<br />
Brand: MCC<br />
Input: universal configurable PT100 3 Wires, Thermocouple,<br />
Potensiometer, Voltage,<br />
Current, 2 isolated logic inputs<br />
6 alarm thresholds and 8 status LEDs<br />
Linearization on 20 segments, Static calculations and ratio,<br />
Auto / manual station, Transmitter<br />
setpoint, Integration - Totalization on 6 digits<br />
3 Slots Option<br />
Transmitter power supply isolated<br />
Dimension: 96 x 48mm, depth: 137mm<br />
Power supply: 20 to 60 Vac / Vdc<br />
RMS measurement: WITHOUT<br />
Slot 1 output: Current 4 - 20 mA<br />
Slot 2 output: WITHOUT<br />
Slot 3 output: WITHOUT<br />
HIGH LEVEL electrical measurement: WITH (up to 500V or 5A)<br />
Option: WITHOUT

SENSOR NTC HT<br />
Marca: CAREL<br />
IP55<br />
3 m cable<br />
0t150 °C<br />
IP67<br /><br />

TRANSMISOR EASIDEW<br />
Brand: MICHELL INSTRUMENTS<br />
Product type : Easidew 2-wire Dew-Point Transmitter<br />
Range : 100 to +20°C<br />
Protection : Standard HDPE guard (with protection against fine particulate (<10µm))

HUMIDITY/TEMPERATURE TRANSMITTER<br />
Brand: DWYER<br />
Cable Length: 12´<br />
Output: Current<br />
Relative Humidity Range: 0 to 100% RH.<br />
Temperature Range: -40 to 140°F (-40 to 60°C)<br />
Accuracy: ±2% @ 10-90%.<br />
Temperature Limits: -40 to 140°F (-40 to 60°C).<br />
Storage Temperature: -40 to 176°F (-40 to 80°C).<br />
Compensated Temperature Range: -4 to 140°F (-20 to 60°C).<br />
Power Requirements: 10-35 VDC.<br />
Output Signal: 4-20 mA loop powered.<br />
Response Time: Less than 15 s.<br />
Electrical Connections: Terminal block.<br />
Conduit Connection: 1/2˝ NPT.<br />
Process Connection: 1/2 NPSM.

<div>EASIDEW 2-WIRE DEW-POINT TRANSMITTER</div>

<div>Brand: MICHELL INSTRUMENTS</div>

<div>Measurement range (dp) -100 to +20°C dew point (-148 to +68°F)</div>

<div>Accuracy (dp) ±2°C dew point (±3.6°F)</div>

<div>Response time 5 mins to T95 (dry to wet)</div>

<div>Repeatability 0.5°C dew point (0.9°F)</div>

<div>Output signal 4-20 mA (2-wire connection, current source) </div>

<div>Output Dew point, moisture content in ppmV</div>

<div>Output range Dew point: -100 to +20°C (-148 to +68°F) </div>

<div>Supply voltage 12-28 VDC</div>

<div>Load resitance Max 250 Ω @ 12 V (500 Ω @ 24 V)</div>

<div>Current consumption 20 mA max</div>

<div>Operating humidity 0–100% RH</div>

<div>Operating temperature -40 to +60°C (-40 to +140°F)</div>

<div>Operating pressure 45 MPa (450 barg / 6500 psig) max</div>

<div>Flow rate 1 to 5 Nl/min (2.1 to 10.6 scfh) mounted in standard sampling block</div>

<div>0 to 10 m/sec (0 to 32.8 ft/sec) direct insertion</div>

<div>Housing material Stainless steel</div>

<div>Dimensions 132mm x ø27mm (5.19” x ø 1.00”)</div>

<div>Filter HDPE Guard <10 μm</div>

<div>Mounting thread 5/8” – 18 UNF</div>

<div>Power Supply<span> </span>85 to 264 VAC 50/60 hz</div>

BIMETAL THERMOMETER<br />
Brand: DWYER<br />
Wetted Materials: 304 SS.<br />
Housing Material: 300 SS.<br />
Lens: Scratch resistant glass.<br />
Accuracy: ±1%.<br />
Temperature Limits: Ambient: 15 to 300°F (-10 to 150°C).<br />
Dial Size: 3˝.<br />
Process Connection: 1/2˝ NPT.<br />
Stem Length: 6˝<br />
Connection: Back<br />
Range °F (°C): 0 to 200 (-17.8 to 93.3)<br />
Resolution: 2°<br />

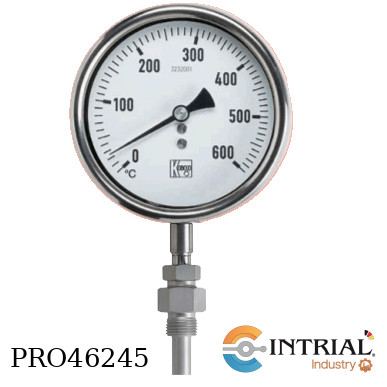

<strong>Stem Thermometers diam. 100 acc. to DIN EN 13190<br />
Brand: Kobold (Alemania)<br />
Model: TNS-0F-2-20-0CA-Y</strong><br />
[TNS-0F]<br />
Diameter: 100 mm<br />
Probe material: st.st.<br />
Class: 1,0<br />
[2]: Housing material, st.st.<br />
[20]: Range, 0...200 °C<br />
[0CA]: Probe, 1/2 NPT fixed nipple<br />
[Y]: Probe diameter 8 mm<br />
*Probe tube length (L): 130 mm

<strong>Resistance thermometer<br />
Model: PT100-3W-6mm-170</strong><br />
1 x Pt 100 Ohm, 3 wire, class B, protective<br />
tube ø 6 mm lenght 170 mm, material 1.4571,¡<br />
connection head form B, electrical connection<br />
NPT 1/2", temperature range: -40 to +400°C<br /><br />
Include:<br /><strong>Perno-Ajustable-6mm-1/2NPT<br />
Model: HMovil-6mm-1/2NPT</strong><br />
thread NPT 1/2", ø 6 mm, material 1.4571,<br />
with PTFE ring<br /><br />
Include:<br /><strong>Programmable 2-wire Transmitter dedicated for Pt100 sensors<br />
Model: IPAQ-C202 (70C2020010)<br />
Brand: Inor -Sweden</strong><br />
Technical Specification<br />
Type Head mounted<br />
Input RTD<br />
Input RTD Pt100<br />
Type of transmitter Digital<br />
Output 4-20 mA<br />
Isolation Unisolated<br />
Measuring channels 1 channel<br />
Sensor connection 3-wire connection<br />
Power Supply Standard version: 6 to 32 VDC<br />
Ex version: 8 to 30 VDC<br />
Typical accuracy Max. ±0.1K or ±0,1 % of span<br />
Approvals (IPAQ-C202X) ATEX: II 1G Ex ia IIC T6…T4 Ga<br />
IECEx: Ex ia IIC T6…T4 Ga

<strong>Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-W-6-N15-B-3-G-A-0</strong><br />
[MWD-W]:<br />
Version: For mounting in thermowell, insert filled with MgO, removable<br />
Protective tube material: st.st. 1.4404<br />
Max. pressure (@ 20°C): see thermowell<br />
Connection: fixed connection<br />
Neckpipe: divisible<br />
[6]: Measuring insert diameter, 6mm /150mm<br />
[N15]: Process connection, 1/2" NPT male<br />
[B] Sensor, 2x Pt100, cat. B, (-70..+250 °C) <br />
[3]: Wiring, 3 wires<br />
[G]: Terminal head, screw cap with chain, aluminium<br />
[D]: Head-mounted transmitter, prepared for subsequebt mounting of transmitter<br />
[0]: Options, without<br /><br />
Largo HL 150 mm<br />
Largo EL 150 mm

<strong>Resistance Thermometers Exd<br />
Model: TWL-2-2-3-A-N-0000-G-0<br />
Brand: Kobold (Alemania)</strong><br />
[TWL-2]<br />
Version, with nipple union<br />
Thermowell, w/o<br />
Material neckpipe/sensor/thermowell, st.st, 1.4404<br />
Connection head, Form XD with chain, M20x1.5<br />
Approval, ATEX II 2 GD Ex d IIC T6<br />
[2] Sensor, 2x Pt100, cat. B, (-30..+550 °C)<br />
[3] Wiring, 3 wires<br />
[A] Head-mounted transmitter, Model 5333D<br />
[N] Connection neckpipe, 1/2" NPT male<br />
[0000] Connection thermowell, w/o thermowell<br />
[G] Neckpipe/lagging extension, Standard neckpipe (150 mm) w/o thermowell<br />
[0] Options, w/o<br /><br />
Largo HL 150 mm<br />
Largo EL 150 mm

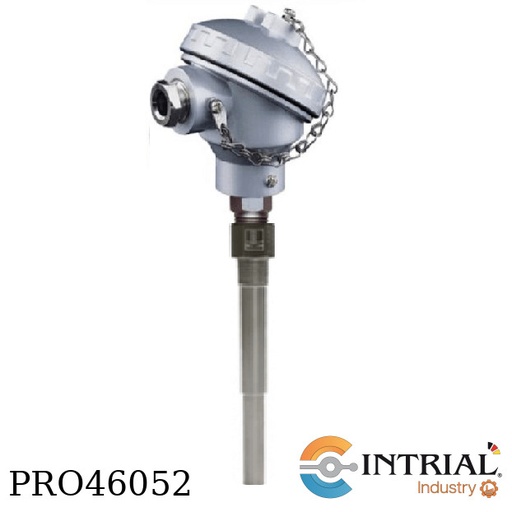

<strong>Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-L-6-N15-C-3-G-0-0</strong><br />
[MWD-L]<br />
Version, Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material, st.st. 1.4404<br />
Max. pressure (@ 20°C), 30 bar<br />
Connection, fixed connection<br />
Neckpipe, without<br />
[6] Diameter / length thermowell, 6 mm / 496 mm<br />
[N15] Process connection, 1/2" NPT male<br />
[C] Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br />
[3] Wiring, 3 Wires<br />
[G] Terminal head, screw cap with chain, aluminium<br />
[0] Head-mounted transmitter, without transmitter<br />
[0] Options, without<br /><br />
Include:<br />
Thermowells for Temperature Sensors<br />
Brand: Kobold (Alemania)<br />
Model: TWL-0000-N-GN4B-0<br />
[TWL-0000]:<br />
Thermowell, cylindrical drilled<br />
Material neckpipe/sensor/thermowell, st.st. 1.4404<br />
Connection head, Form XD with chain, M20 x 1,5,<br />
Approval, ATEX II 2 GD Ex d IIC T6<br />
[N]: Connection neckpipe,1/2" NPT male<br />
[GN4B]: Connection thermowell,1/2" NPT male, PN 100<br />
Immersion length (U), 450 mm<br />
[0]: Lagging extension (T),w/o lagging extension

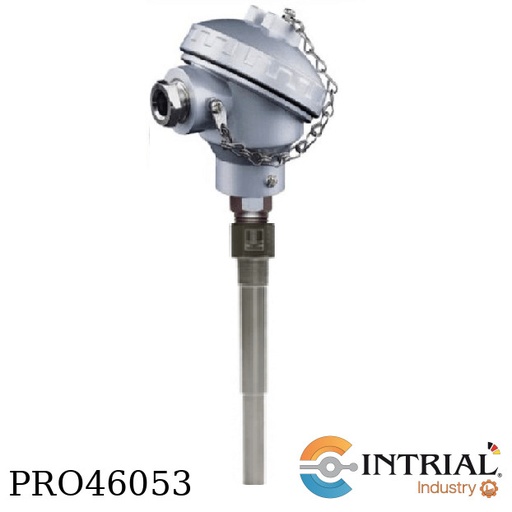

<strong>Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-L-6-N15-C-3-G-0-0</strong><br />
[MWD-L]<br />
Version, Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material, st.st. 1.4404<br />
Max. pressure (@ 20°C), 30 bar<br />
Connection, fixed connection<br />
Neckpipe, without<br />
[6] Diameter / length thermowell, 6 mm / 296 mm<br />
[N15] Process connection, 1/2" NPT male<br />
[C] Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br />
[3] Wiring, 3 Wires<br />
[G] Terminal head, screw cap with chain, aluminium<br />
[0] Head-mounted transmitter, without transmitter<br />
[0] Options, without<br /><br />
Include:<br />
Thermowells for Temperature Sensors<br />
Brand: Kobold (Alemania)<br />
Model: TWL-0000-N-GN4B-0<br />
[TWL-0000]:<br />
Thermowell, cylindrical drilled<br />
Material neckpipe/sensor/thermowell, st.st. 1.4404<br />
Connection head, Form XD with chain, M20 x 1,5,<br />
Approval, ATEX II 2 GD Ex d IIC T6<br />
[N]: Connection neckpipe,1/2" NPT male<br />
[GN4B]: Connection thermowell,1/2" NPT male, PN 100<br />
Immersion length (U), 250 mm<br />
[0]: Lagging extension (T),w/o lagging extension

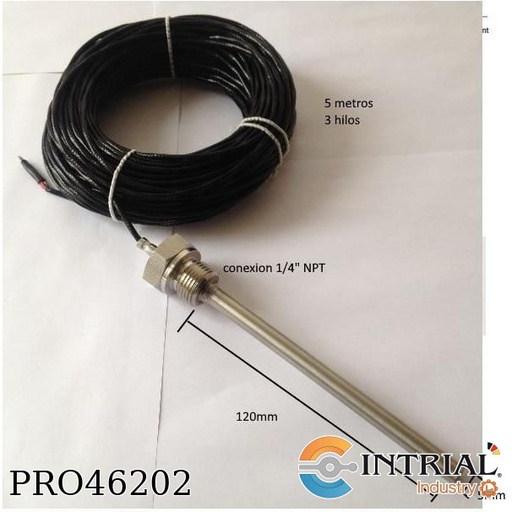

<strong>Screw-in resistance thermometer<br />
Brand: Intrial <br />
Model: PRO46202</strong><br />
- 1 x Pt 100 Ohm DIN EN 60751, class B, <br />
- protective tube ø 5 mm, <br />
- built-in lenght 120 mm,  <br />
- thread 1/2NPT, material 1.4571, <br />
- with  5.000 mm connection wire PTFE/Cu/PTFE (cable no. 98B), <br />
- 3-wire, with 30 mm free ends, <br />
- temperature range: -40°C to +250°C

Vibrationstest withstands 10 to 2000 Hz at<br />
20G's/min. per MIL-STD-202, Method 204,<br />
Test condition D

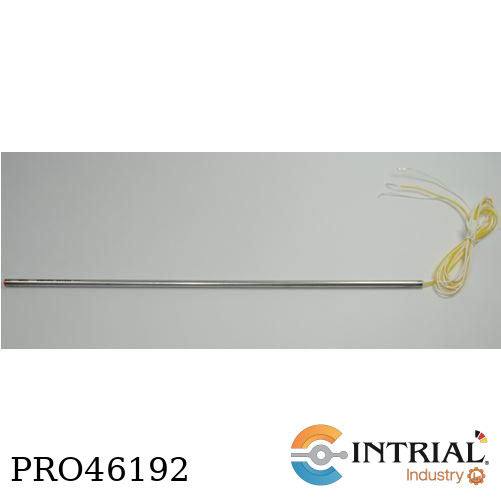

<strong>PT100 temperature sensor<br />
Brand: Intrial - Alemania<br />
Model: RTD-3-2-MA-D4.5</strong><br />
Specification:<br />
Sleeve temperature probe, 2 x Pt 100 Ohm<br />
DIN EN 60751, class A/0°C, sleeve ø 4,5 x<br />
101,6 mm, material stainless steel, with 914<br />
mm single wire Teflon, 2 x 3-wire, 4 x white/2<br />
x yellow, with free ends, temperature range:<br />
-50 to +260°C, like your photo<br /><br />

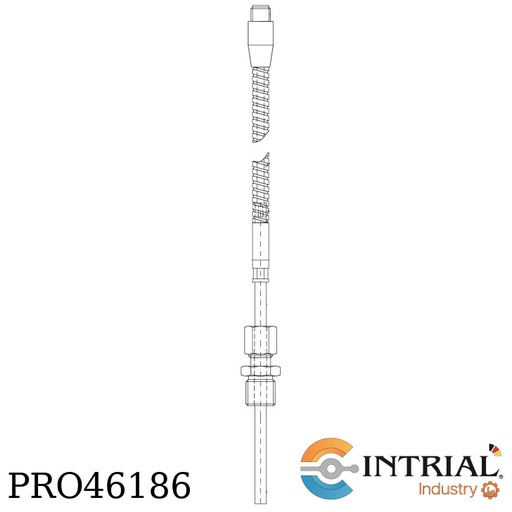

<strong>Sheath thermocouple<br />
Brand: Intrial <br />
Model: TTK-2-1-T900-D6-L10M</strong><br />
Specification:<br />
- Sheath thermocouple, our type 310, 1 x type K,<br />
- sheath ø 6 mm, sheath material<br />
- Inconel, welding point indirect, nominal length 100 mm,<br />
- with compression fitting M14x1,5, <br />
- with transition sleeve ø 8 x 40 mm,<br />
- with 10000 mm compensating cable glass  fibre/wire braid (No. 76),<br />
- with 10000 mm ring wave hose,<br />
- material stainless steel,<br />
- with binder plug M12 4-pole<br />
- Article no.: 99-0429-14-04,<br />
- max. temperature range: sheath: +900°C, sleeve: +180°C, cable: +350°C<br />


<strong>Stem Thermometers diam. 100 acc. to DIN EN 13190<br />
Brand: Kobold (Alemania)<br />
Model: TNS-0F-2-20-0CA-Y</strong><br />
[TNS-0F]<br />
Diameter: 100 mm<br />
Probe material: st.st.<br />
Class: 1,0<br />
[2]: Housing material, st.st.<br />
[20]: Range, 0...200 °C<br />
[0CA]: Probe, 1/2 NPT fixed nipple<br />
[Y]: Probe diameter 8 mm<br />
*Probe tube length (L): 343 mm

MINERAL- INSULATED RTD TEMPERATURE PROBE WITH TERMINAL HEAD FORM B <br />
Brand: JUMO<br />
MODEL: 902220/99-415-2003-1-3-115-121/320(00344054)<br />
Basic type Special version not to data sheet<br />
Operating temp. -50..600°C<br />
Measuring insert 2x Pt100 in 2-wire circuit<br />
Tolerance class Class B<br />
Diameter prot. tube 3mm<br />
Insertion length 115,0 mm<br />
Process connection Screw connection M14 x 1,5<br />
E.c. terminal head Terminal head form BUZ<br />
Free from oil+grease Not free from oil and grease

<strong>Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-L-C-N15-C-3-G-0-0</strong><br />
[MWD-L]<br />
Version, Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material, st.st. 1.4404<br />
Max. pressure (@ 20°C), 30 bar<br />
Connection, fixed connection<br />
Neckpipe, without<br />
[C] Diameter / length thermowell, 12 mm / 496 mm<br />
[N15] Process connection, 1/2" NPT male<br />
[C] Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br />
[3] Wiring, 3 Wires<br />
[G] Terminal head, screw cap with chain, aluminium<br />
[0] Head-mounted transmitter, without transmitter<br />
[0] Options, without<br /><br />
Include: <br />
Thermowells for Temperature Sensors<br />
Brand: Kobold (Alemania)<br />
Model: TWL-0000-N-GN4B-0<br />
[TWL-0000]:<br />
Thermowell, cylindrical drilled<br />
Material neckpipe/sensor/thermowell, st.st. 1.4404<br />
Connection head, Form XD with chain, M20 x 1,5,<br />
Approval, ATEX II 2 GD Ex d IIC T6<br />
[N]: Connection neckpipe,1/2" NPT male<br />
[GN4B]: Connection thermowell,1/2" NPT male, PN 100<br />
Immersion length (U), 450 mm<br />
[0]: Lagging extension (T),w/o lagging extension

<strong>Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-L-6-N15-C-3-G-0-0</strong><br />
[MWD-L]<br />
Version, Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material, st.st. 1.4404<br />
Max. pressure (@ 20°C), 30 bar<br />
Connection, fixed connection<br />
Neckpipe, without<br />
[6] Diameter / length thermowell, 6 mm / 81 mm<br />
[N15] Process connection, 1/2" NPT male<br />
[C] Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br />
[3] Wiring, 3 Wires<br />
[G] Terminal head, screw cap with chain, aluminium<br />
[0] Head-mounted transmitter, without transmitter<br />
[0] Options, without<br /><br />
Include: <br />
Thermowells for Temperature Sensors<br />
Brand: Kobold (Alemania)<br />
Model: TWL-0000-N-GN4B-0<br />
[TWL-0000]:<br />
Thermowell, cylindrical drilled<br />
Material neckpipe/sensor/thermowell, st.st. 1.4404<br />
Connection head, Form XD with chain, M20 x 1,5,<br />
Approval, ATEX II 2 GD Ex d IIC T6<br />
[N]: Connection neckpipe,1/2" NPT male<br />
[GN4B]: Connection thermowell,1/2" NPT male, PN 100<br />
Immersion length (U), 35 mm<br />
[0]: Lagging extension (T),w/o lagging extension
