Brand : DWYER<br />
Model : 16L2034<br />
Selectable Inputs: 10 thermocouple, 4 RTD, DC voltage, or DC current selectable.<br />
Display: Two 4 digit, 7 segment 0.3˝ (7.62 mm) high LEDs.<br />
Accuracy: ±0.25% of span, ±1 least significant digit.<br />
Power Requirements: 100-240 VAC, nominal, +10 -15%, 50 to 400 Hz. single<br />
phase; 132-240 VDC, nominal, +10 -20%.<br />
Power Consumption: 5 VA maximum.<br />
Temperature Limits: 14 to 131°F (-10 to 55°C).<br />
Memory Backup: Nonvolatile memory. No batteries required.<br />
Output: Relay: SPST, 3 A @ 240 VAC resistive; 1.5 A @ 240 VAC inductive.<br />
Weight: 8 oz (227 g).<br />
Front Panel Rating: NEMA 4X (IP66).

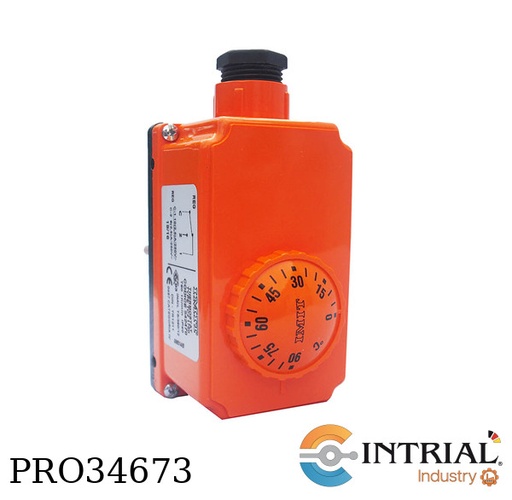

​TERMOSTATO<br />
Marca: IMIT<br />
Temperatura intervento: 0-90°C<br />
Max. Temperatura testa: 80°C<br />
Max. temperatura bulbo: 150 °C<br />
Grado de protección: IP 40

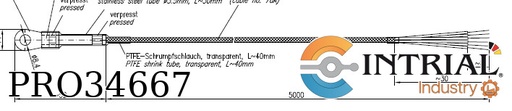

RING CABLE SHOE TEMPERATURE PROBE<br />
Brand: INTRIAL (MADE IN GERMANY)<br />
2 x Pt100 Ohm DIN EN 60751<br />
Class B suitable for M8<br />
Inner-ø 7 mm<br />
with 5000 mm connection cable <br />
Kapton/glass silk/VA-steel<br />
braided(cable no. 76A) 6-wire<br />
Crossing cable shoe/cable with shrinking hose <br />
Temperature range: -50 to +260°C
<div>
<div class="gtx-trans-icon"></div>
</div>

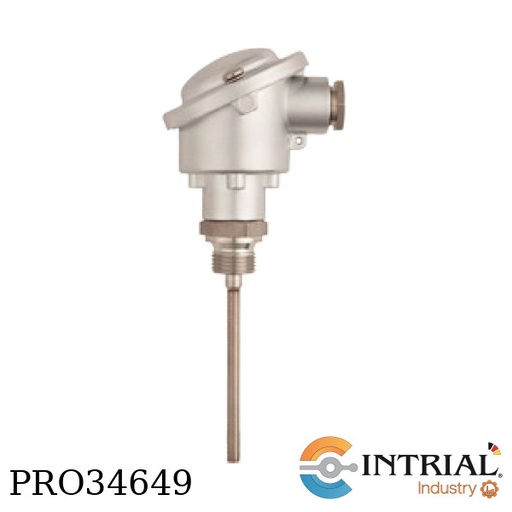

SCREW-IN RESISTANCE THERMOMETER WITHOUT SUPPORT TUBE, STEPPED PROTECTION TUBE<br />
Brand: JUMO<br />
Basic type Screw-in resistance thermometer without<br />
support tube, stepped protection tube<br />
Operating temp. -50..260°C<br />
Measuring insert 1x Pt100 in 2-wire circuit<br />
Tolerance class Class B<br />
Diameter 6,00mm<br />
Fitting length 250,00mm<br />
Process connection Screw connection G 1/2<br />
Stepped tube diam. 3,30 mm<br />
Stepped tube length 15,00 mm<br />
E.c. terminal head Terminal head form B blue

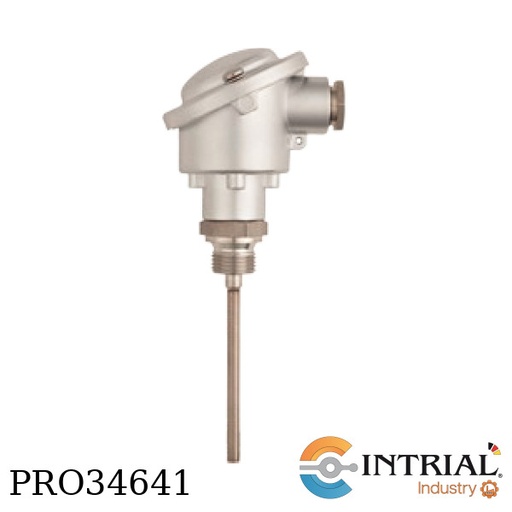

SCREW-IN RTD TEMPERATURE PROBES WITH TERMINAL HEAD FORM B<br />
Brand: JUMO<br />
Basic type JUMO Etemp B, screw-in RTD temperature<br />
probe with terminal head Form B and<br />
stepped protection tube for air measurement<br />
Operating temp. -50 to 200 °C<br />
Measuring insert 1x Pt100 in 2-wire circuit<br />
Tolerance class Class B<br />
Diameter Ø 6mm<br />
Insertion length 250,0 mm<br />
Process connection Screw connection G 1/2

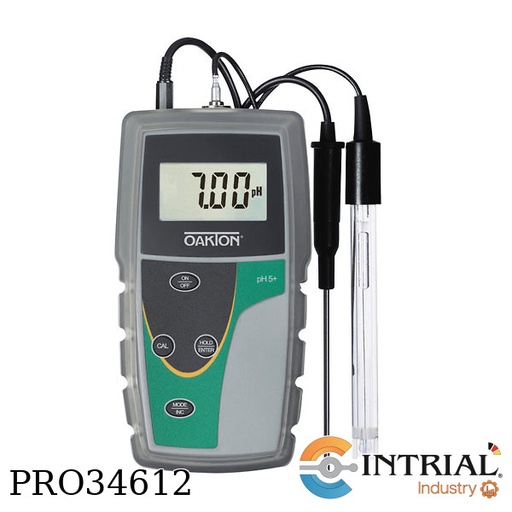

JUEGO DE MEDIDOR DE PH/MV/TEMPERATURA PORTABLE<br />
MARCA: OAKTON INSTRUMENTS<br />
MODELO PH SERIE 6+<br />
MODO PH RANGO 0 A 14<br />
MODO TEMP RANGO 0 A 100 GDOS CELSIUS<br />
MODO MV RANGO +/- 1000 MV,<br />
PANTALLA DIGITAL LCD<br />
COMPENSACION AUTOMATICA DE TEMPERATURA CON SENSOR ATC<br />
3 PUNTOS DE CALIBRACION<br />
AUTO APAGADO<br />
ALIMENTACION POR 4 BATERIAS<br />
1.5 TIPO AAA<br />
INCLUYE MEDIDOR<br />
ELECTRODO DE PH DE JUNTA SENCILLA<br />
CUEPOR EPOXICO<br />
SENSOR TEMPERATURA<br />
SOBRES CON SOLUCION BUFFER DE PH 4.01, 7.00, 10.00 Y AGUA DE ENJUAGE<br />
BOTELLA DE MUESTREO<br />
CUBIERTA PROTECTORA EN CAUCHO<br />
BATERIAS, ESTUCHE Y MANUAL

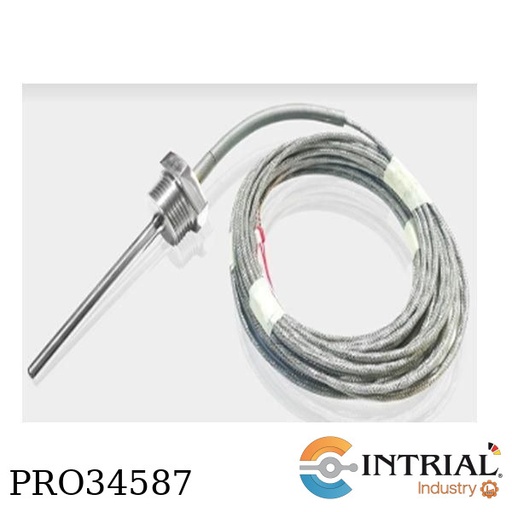

SCREW-IN RESISTANCE THERMOMETER<br />
Brand: Intrial(Made In Germany)<br />
1 x Pt 100 Ohm DIN EN 60751<br />
Class B<br />
Protective tube ø 9 mm<br />
EL: Built-in lenght 200 mm<br />
Thread G1/2"<br />
Material 1.4571<br />
With 2.000 mm connection wire PFA/shield/PFA<br />
4x 0,22 mm² 1 wire cut<br />
White, 3-wire<br />
With 30 mm free ends<br />
Temperature range: -50°C to +260°C

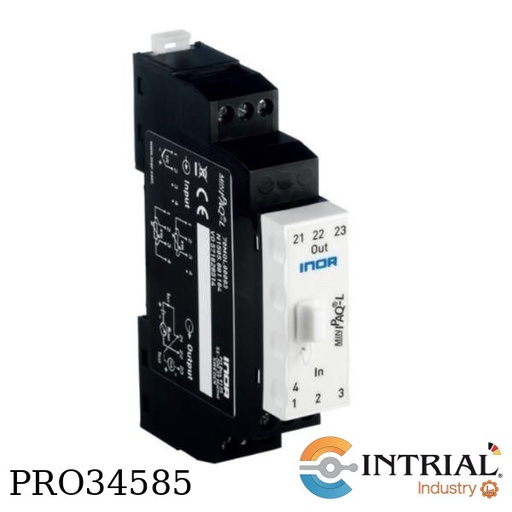

<div>BASIC PROGRAMMABLE 2-WIRE TRANSMITTER<br />
Brand: INOR<br />
Input RTD 3-, 4-wire connection<br />
Pt100 ( α = 0.00385) 1) -200 to +1000 °C / -328 to +1832 °F<br />
Pt1000 ( α =0.00385) 1) -200 to +200 °C / -328 to +392 °F<br />
PtX 10 ≤ X ≤ 1000 ( α =0.00385) 1) Upper range depending on X-value<br />
Pt100 ( α =0.003902) -200 to +1000 °C / -328 to +1832 °F<br />
Pt100 ( α =0.003916) -200 to +1000 °C / -328 to +1832 °F<br />
Ni1002) -60 to +250 °C / -76 to +482 °F<br />
Ni10002) -10 to +150 °C / +14 to +302 °F<br />
Ni1203) -70 to +300 °C / -94 to +572 °F<br />
Cu104) -200 to +260 °C / -328 to +500 °F<br />
Input Thermocouples<br />
Types B, C, E, J, K, L, N, R, S, T, U<br />
Sensor failure Upscale, downscale or off<br />
Adjustments - Zero Any value within range limits<br />
Adjustments - Minimum spans<br />
Pt100, Pt1000, Ni100, Ni120, Ni1000 10 °C /18 °F<br />
T/C 2 mV<br />
Output 4-20 mA, temperature linear<br />
Operating temperature -20 to +70 °C / -4 to +158 °F<br />
Galvanic isolation No<br />
Power supply 8.0...32.0 VDC<br />
Typical accuracy ±0.15 % of temperature span<br />
Mounting Rail acc. to DIN EN 50022, 35 mm</div>

<div></div>

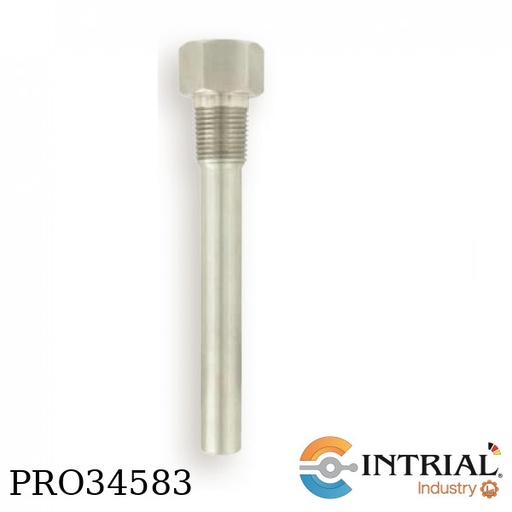

SENSOR DE TEMPERATURA<br />
Marca: DWYER<br />
[TE-TNS]: Series<br />
[N]: Tipo de hilo, NPT<br />
[09]: Longitud, 9"<br />
[4N]: Material y elaboracion, 304 SS mecanizado<br />
[14]: Conexión, 1/4˝ NPT / 1/2˝ NPT<br />

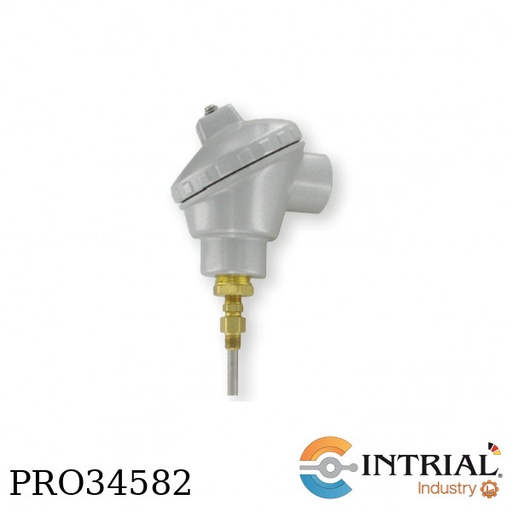

TRANSMISOR DE TEMPERATURA<br />
Marca: DWYER<br />
Tipo PT100 con transmisor en el cabezal <br />
Salida 4 – 20 mA <br />
Rango de medición -10 a 100 ºC <br />
Longitud: 8"

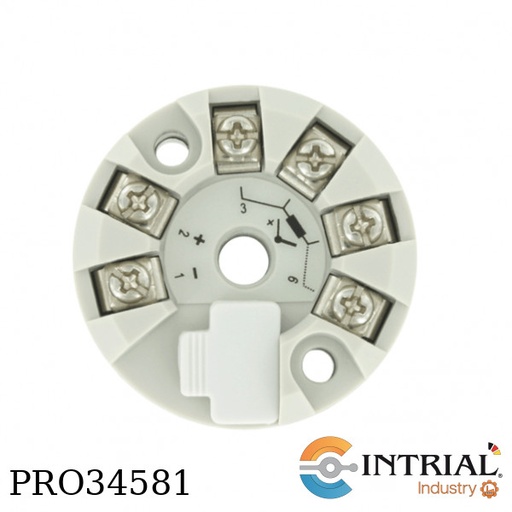

TRANSMISOR DE TEMPERATURA<br />
Marca: DWYER<br />
Salida de 4 – 20 mA<br />
Rango de temperatura de -10 a 100 ºC<br />
Alimentacion 24VDC

MOUNT THERMOMETERS<br />
BRAND: QUALITROL <br />
CONTROL AND ALARM WITH SWITCHES AND OPTIONAL SCADA OUTPUT TWO<br />
NORMALLY OPEN CONTACT TWO NORMALLY

WINDING TEMPERATURE INDICATOR<br />
BRAND: QUALITROL CORPORATION
<div>
<div class="gtx-trans-icon"></div>
</div>

SENSOR PT-100 MINERAL SIMPLE 3 HILOS<br />
MARCA: INTRIAL<br />
largo total(recto 160mm.angular 76mm.) <br />
punta de inconell 600<br />
​abrazadera de montaje para cañería de 6", cabezal de aluminio grande.

SENSOR PT-100 MINERAL SIMPLE 3 HILOS<br />
MARCA: INTRIAL<br />
largo total(recto 140mm.angular 76mm.) <br />
punta de inconell 600<br />
​abrazadera de montaje para cañería de 4", cabezal de aluminio grande.

RELATIVE HUMIDITY & TEMPERATURE <br />
MARCA: EXTECH MFR<br />
MODEL: 445582 <br />
GRAINGER ITEM #4ZG12

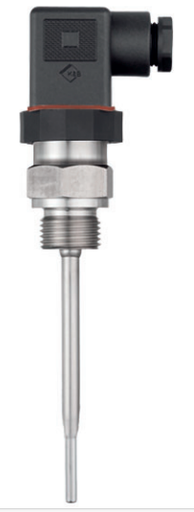

TERMORESISTENCIA PARA ENROSCAR CON TRANSMISOR ANALÓGICO Y CAJA DE CONEX
Marca: JUMO
Modelo: (00467686)902044/25-370-1003-1-6-60-102-26/298
Tipo: Termoresistencia para enroscar con transmisor analógico y caja de conex. según DIN EN 175301-803 (DIN 43650)
Temp. de aplicación: -50..+150°C
Elemento sensor: 1x Pt 100 en circuito de dos hilos
Tolerancia/clase: Clase B
Diámetro: 6 mm
Longitud de montaje: 60,00 mm
Tipo de conexión a p: Racor G 1/4
Material de tubo de: Acero inox. CrNi 1.4571
Rango transmisor: 0..100°C

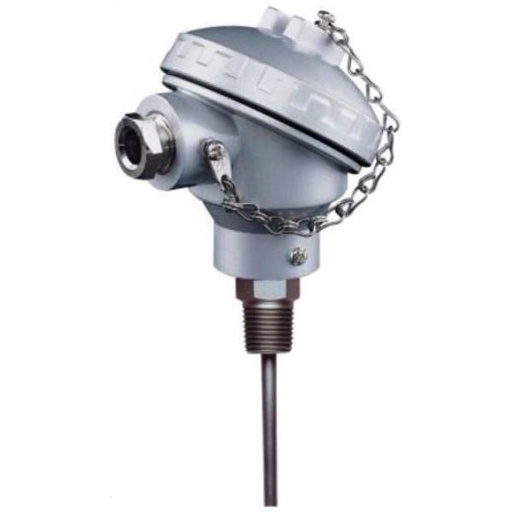

Industrial Resistance Thermometers acc. DIN
Brand: KOBOLD (Alemania)
Model: MWD-A-6-C15-C-3-G-0-0(220mm)
[MWD-A]:
Version, Protective tube acc. DIN 43772, filled with MgO, insert not removable
Protective tube material, st.st. 1.4404
Max. pressure (@ 20°C), 30 bar
Connection, Compression fitting
Neck pipe, without
[6]: Diameter / length thermowell, 6 mm / EL= 220 mm
[C15]: Process connection, Compression fitting 1/2 NPT male
[C]: Sensor, 1x Pt100, cat. A, (-70..+250 °C)
[3]: Wiring, 3 Wires
[G]: Terminal head, screw cap with chain, aluminium
[0]: Head-mounted transmitter, without transmitter
[0]: Options, without

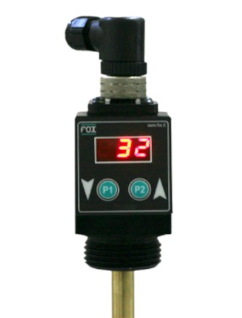

ELECTRONIC ADJUSTABLE DISPLAYED THERMOSTAT
Brand: FOX
Model: XT51V/P30
[XT51V]: Regulation range, 0>100°C
P max, 100 Bar
Hydraulic connection, 1” BSP-M
Execution, Separed contacts: NO+NC
[P30]: Type of execution, L=300mm

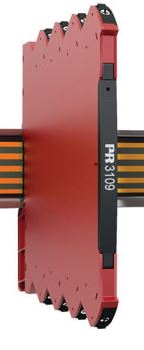

CONVERTIDOR/DUPLICADOR CON AISLAMIENTO GALVANICO
Marca: PR ELECTRONIC
Modelo: PR-3109
Salida de corriente
Rango de la señal, 0...23 mA
Rangos de señal programables, 0 / 4...20 mA
Carga (a salida de corriente), ≤ 300 Ω
Estabilidad de carga, ≤ 0,002% d. intervalo / 100 Ω
Límite de corriente, ≤ 28 mA
Salida de tensión
Rango de la señal, 0...10 VDC
Rangos de señal programables, 0/1...5 y 0/2...10 V
Carga (a salida de tensión), ≥ 10 kΩ
Tensión de alimentación, 16,8...31,2 VCC
Potencia necesaria máx., ≤ 1,2 W
Max. disipación de potencia, 0,60 W
