Resistance thermometer, 190-5 mm, 1/2"NPT, 600C,
Resistance thermometer type R272<br />
1 x Pt100 Ohm DIN EN 60751<br />
class A/0°C, 3-wire,<br />
measuring insert ø 6 mm<br />
material stainless steel<br />
with thermowell ø 16 mm<br />
length U=190,5 mm<br />
process connection 3/4"NPT,<br />
SW27<br />
length 20 mm<br />
inner thread 1/2"NPT<br />
thread 1/2"NPT<br />
material 1.4462<br />
length T=100 mm<br />
with connection head form CE1,<br />
temperature range: -200 to +600°C<br />
like your drawing
S/ 2,967.03 2967.03 PEN
Resistance thermometer, 190.5 mm, 1/2"NPT, 600C
Resistance thermometer type R272<br />
1 x Pt100 Ohm DIN EN 60751<br />
class A/0°C, 3-wire,<br />
measuring insert ø 6 mm<br />
material stainless steel<br />
with thermowell ø 16 mm<br />
length U=190,5 mm<br />
process connection 3/4"NPT<br />
SW27, length 20 mm<br />
inner thread 1/2"NPT<br />
thread 1/2"NPT<br />
material brass 2.0401<br />
length T=100 mm<br />
with connection head form CE1<br />
temperature range: -200 to +600°C<br />
like your drawing
S/ 1,260.44 1260.44 PEN
Resistance thermometer 63.5mm, 1/2NPT
Resistance thermometer type R272<br />
1 x Pt100 Ohm DIN EN 60751<br />
class A/0°C, 3-wire<br />
measuring insert ø 6 mm<br />
material stainless steel<br />
with thermowell ø 16 mm<br />
length U=63,5 mm<br />
process connection 3/4"NPT<br />
SW27, length 20 mm<br />
inner thread 1/2"NPT,<br />
thread 1/2"NPT, material brass 2.0401<br />
length T=100 mm<br />
with connection head form CE1<br />
temperature range: -200 to +600°C<br />
like your drawing
S/ 1,012.58 1012.58 PEN

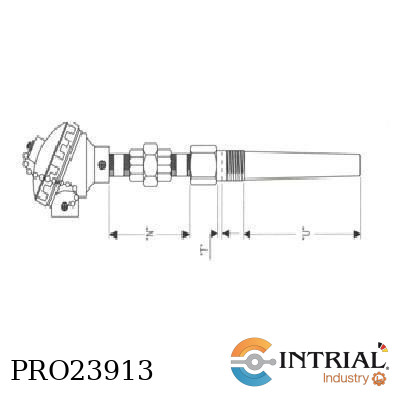

Resistance thermometer length 63-5 mm, 1/2"NPT
Resistance thermometer type R272<br />
1 x Pt100 Ohm DIN EN 60751<br />
class A/0°C, 3-wire,<br />
measuring insert ø 6 mm<br />
material stainless steel<br />
with thermowell ø 16 mm<br />
length U=63,5 mm<br />
process connection 3/4"NPT,<br />
SW27, length 20 mm<br />
inner thread 1/2"NPT<br />
thread 1/2"NPT<br />
material brass 2.0401<br />
length T=100 mm<br />
with connection head form CE1,<br />
temperature range: -200 to +600°C<br />
like your drawing
S/ 1,012.58 1012.58 PEN
Resistance thermometer, 914-4 mm, 1/2"NPT,
Resistance thermometer type R272<br />
1 x Pt100 Ohm DIN EN 60751<br />
class A/0°C, 3-wire,<br />
measuring insert ø 6 mm<br />
material stainless steel<br />
with thermowell ø 16 mm<br />
length U=914,4 mm<br />
process connection 3/4"NPT,<br />
SW27, length 20 mm<br />
inner thread 1/2"NPT,<br />
thread 1/2"NPT<br />
material brass 2.0401<br />
length T=100 mm<br />
with connection head form CE1,<br />
temperature range: -200 to +600°C<br />
like your drawing
S/ 1,499.92 1499.92 PEN
Resistance thermometer, 420 mm, 3/4"NPT,
Resistance thermometer type R272, 1 x Pt100 Ohm DIN EN 60751, class A/0°C, 3-wire,<br />
measuring insert ø 6 mm, material stainless<br />
steel, with thermowell ø 16 mm, length U=420<br />
mm, process connection 3/4"NPT, length 20<br />
mm, inner thread 1/2"NPT, thread 1/2"NPT,<br />
material 1.4301, length T=76 mm, with<br />
connection head form CE1, temperature<br />
range: -200 to +600°C, like your drawing
S/ 1,149.27 1149.27 PEN
Resistance thermometer length 100 mm, 1/2"NPT
Resistance thermometer type R27<br />
1 x Pt100 Ohm DIN EN 60751<br />
class A/0°C, 3-wire,<br />
measuring insert ø 6 mm<br />
material stainless steel<br />
with thermowell ø 10 mm<br />
length U=63,5 mm<br />
process connection 3/4"NPT,<br />
length 20 mm<br />
inner thread 1/2"NPT<br />
thread 1/2"NPT<br />
material 1.4571<br />
length T=100 mm<br />
with connection head form CE1<br />
temperature range: -200 to +600°C<br />
like your drawing
S/ 963.37 963.37 PEN

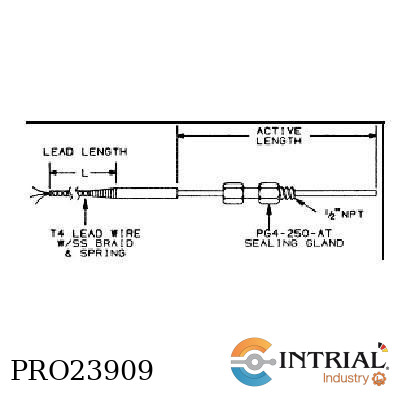

Screw-in resistance thermometer Pt100, 152,4 mm
Screw-in resistance thermometer, 1 x Pt 100<br />
Ohm DIN EN 60751, class B, 3-wire,<br />
protective tube ø 6,35 mm, built-in length<br />
152,4 mm, material 1.4571, thread NPT1/2",<br />
with over sleeve, with 6000 mm connection<br />
cable R-glass silk/steel braided, with spring,<br />
temperature range: -200 to +600°C, like your<br />
drawing
S/ 644.80 644.8000000000001 PEN

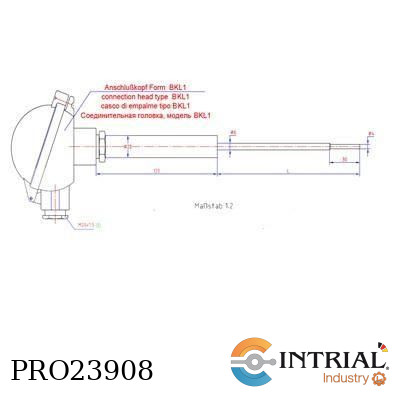

resistance thermometer Pt100, 160mm
RESISTANCE THERMOMETER Pt100/0<br />
Brand: INTRIAL<br />
single<br />
4-wires circuit, Class B<br />
protection tube: dia 6,0 mm;<br />
mat no 1.4301<br />
length "L": 160mm
S/ 1,589.22 1589.22 PEN

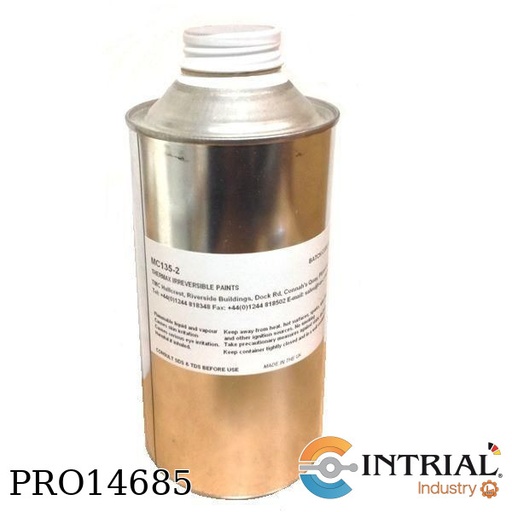

MULTI CHANGE PAINT
MULTI CHANGE PAINT MC135-2 (1L)<br />
Brand: THERMAX<br />
1L of paint has 2 changes of color<br />
1st temp change form pink to blue<br />
10 min@135°C/275°F; 20 min@130°C/266°F; 60 min@125°C/257°F;<br />
120 min@122°C/252°F; 300 min@120°C/248°F; 900 min@117°C/243°F;<br />
2880 min@116°C/241°F<br />
2nd temp change from blue to grey<br />
10 min@315°C/599°F; 60 min@275°C/527°F;<br />
180 min@243°C/469°F<br />
Non-Reversible Multi-Change Indicating Thermal Paint
S/ 249.72 249.72 PEN

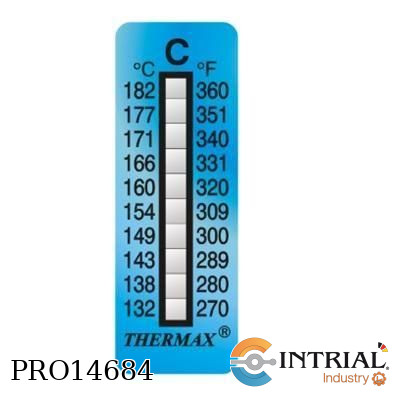

STICKER, 132C - 182C
NON-REVERSIBLE 10 LEVEL TEMPERATURE LABEL<br />
Brand: THERMAX<br />
270°F~360°F (132°C~182°C)<br />
Generates Permanent Record of Max Temperature<br />
Pack of 10
S/ 249.72 249.72 PEN

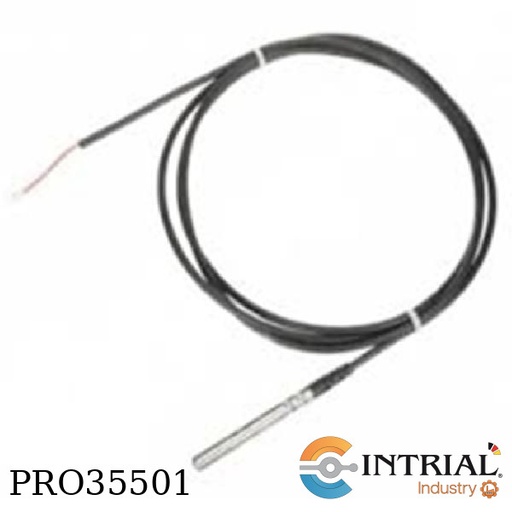

TEMPERATURE SENSOR, 12 m, -50T105 °C, IP67
TEMPERATURE SENSOR<br />
Brand: CAREL<br />
Length: 12m<br />
Storage conditions: -50T105 °C<br />
Operating range: -50T105 °C<br />
Connections: Stripped ends, dimensions 5±1mm<br />
Sensor: NTC 10 kΩ ±1% a 25 °C Beta 3435<br />
Dissipation factor (in air): ca. / approx. 7 mW/°C<br />
Thermal constant over time (in air):  ca. / approx. 10 s<br />
Cable: Two-wire with double sheath, AWG22, OD 3.5 mm max<br />
Sensitive element index of protection: IP67<br />
S/ 0.00 0.0 PEN
​SCREW-IN RESTISTANCE THERMOMETER, protective tube ø 6 mm length 450
SCREW-IN RESTISTANCE THERMOMETER<br />
Brand: INTRIAL (Made in Germany)<br />
1 x Pt 100 Ohm DIN EN 60751<br />
class B<br />
3-wires<br />
protective tube ø 6 mm<br />
length 450<br />
mm, material 1.4571<br />
with connection thread 1/2" NPT<br />
connection head form B<br />
temperature range: -50 to +400°C<br />
incl. addtional thermowell suitable to probe
S/ 761.81 761.8100000000001 PEN
SCREW-IN RESTISTANCE THERMOMETER, protective tube ø 6 mm length 300 mm
SCREW-IN RESTISTANCE THERMOMETER<br />
Brand: INTRIAL (Made in Germany)<br />
1 x Pt 100 Ohm DIN EN 60751<br />
class B<br />
3-wires<br />
protective tube ø 6 mm<br />
length 300 mm<br />
material 1.4571<br />
with connection thread 1/2" NPT<br />
connection head form B,<br />
temperature range: -50 to +400°C<br />
incl. addtional thermowell suitable to probe
S/ 732.65 732.65 PEN
​SCREW-IN RESTISTANCE THERMOMETER, 1 x Pt 100 Ohm DIN EN 60751 class B 3-wires, protective tube ø 6
SCREW-IN RESTISTANCE THERMOMETER<br />
Brand: INTRIAL (Made in Germany)<br />
1 x Pt 100 Ohm DIN EN 60751<br />
class B<br />
3-wires, protective tube ø 6 mm, length 35 mm<br />
material 1.4571<br />
with connection thread 1/4" NPT<br />
connection head form B,<br />
temperature range: -50 to +400°C<br />
incl. addtional thermowell suitable to probe
S/ 641.52 641.52 PEN
​SCREW-IN RESTISTANCE THERMOMETER, 1 x Pt 100 Ohm DIN EN 60751 class B 3-wires
SCREW-IN RESTISTANCE THERMOMETER<br />
Brand: INTRIAL (Made in Germany)<br />
1 x Pt 100 Ohm DIN EN 60751<br />
class B<br />
3-wires<br />
protective tube ø 12 mm<br />
length 450 mm <br />
material 1.4571<br />
with connection thread 1/2" NPT<br />
connection head form B<br />
temperature range: -50 to +400°C<br />
incl. addtional thermowell suitable to probe
S/ 783.68 783.6800000000001 PEN
SCREW-IN RESTISTANCE THERMOMETER, 1 x Pt 100 Ohm DIN EN 60751 class B 3-wires
SCREW-IN RESTISTANCE THERMOMETER<br />
Brand: INTRIAL (Made in Germany)<br />
1 x Pt 100 Ohm DIN EN 60751<br />
class B<br />
3-wires<br />
protective tube ø 6 mm<br />
length 35 mm<br />
material 1.4571<br />
with connection thread 1/2" NPT<br />
connection head form B<br />
temperature range: -50 to +400°C<br />
incl. addtional thermowell suitable to probe
S/ 681.62 681.62 PEN
SCREW-IN RESTISTANCE THERMOMETER, 1 x Pt 100 Ohm DIN EN 60751 class B 3-wires
SCREW-IN RESTISTANCE THERMOMETER<br />
Brand: INTRIAL (Made in Germany)<br />
1 x Pt 100 Ohm DIN EN 60751<br />
class B<br />
3-wires <br />
protective tube ø 6 mm<br />
length 250 mm<br />
material 1.4571 <br />
with connection thread 1/2" NPT<br />
connection head form B<br />
temperature range: -50 to +400°C<br />
incl. addtional thermowell suitable to probe
S/ 721.71 721.71 PEN

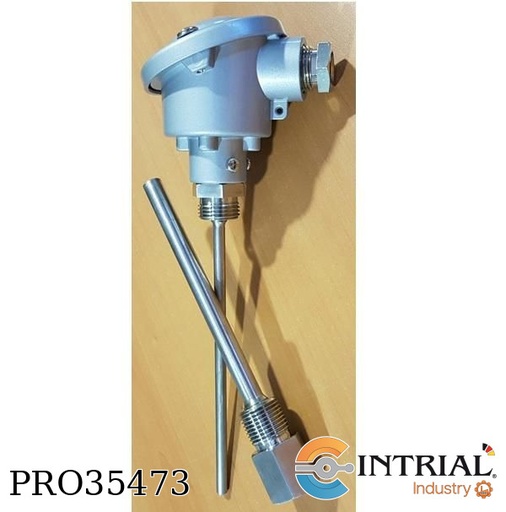

SCREW-IN RESTISTANCE THERMOMETER, temperature range: -50 to +400°C
SCREW-IN RESTISTANCE THERMOMETER<br />
Brand: INTRIAL (Made in Germany)<br />
1 x Pt 100 Ohm DIN EN 60751<br />
class B<br />
3-wires, protective tube ø 6 mm<br />
length 200 mm<br />
material 1.4571<br />
with connection thread 1/2" NPT<br />
connection head form B<br />
temperature range: -50 to +400°C<br />
incl. addtional thermowell suitable to probe
S/ 714.42 714.42 PEN
SCREW-IN RESTISTANCE THERMOMETER, 1 x Pt 100 Ohm DIN EN 60751 class B 3-wires
SCREW-IN RESTISTANCE THERMOMETER<br />
Brand: INTRIAL (Made in Germany)<br />
1 x Pt 100 Ohm DIN EN 60751<br />
class B<br />
3-wires<br />
protective tube ø 6 mm<br />
length 110 mm<br />
material 1.4571<br />
with connection thread 1/2" NPT<br />
connection head form B<br />
temperature range: -50 to +400°C<br />
incl. addtional thermowell suitable to probe
S/ 696.20 696.2 PEN
