TERMOMETRO PARA APLIACCIONES INDUSTRIALES,Marca: AFRISO (Alemania),Tamaño nominal: 150 x 36,Posición de conexión: recto,Vivienda: aluminio, lacado, color bronce,Vástago de inmersión: Bronce diametro  10 mm,Conexión: con tornillo en la pieza de conexión ,G ½ A de acero inoxidable,,Longitud bulbo: 300 mm,Rango: 0/100 ° C,Precisión: ACC. según DIN 16195,Nota.- Incluye Termpozo especial con conexión, especial para aplicación

THERMOHIGROMETRO JUMBO DE PARED,<br />
Marca : CONTROL COMPANY (USA),<br />
Display digital “LCD” , dígitos de 1 1/8”altura.,Rango Humedad : 25 a 95 %RH (resolución 1%),Precisión de Humedad :+/- 2 a +/- 4 % RH,Rango Temperatura : -5 a 55 ºC / 23 a 162 ºF ,(resolución 1°C),Precisión de Temperatura: +/- 1°C,Sensor externo de 3 mt de cable que mide ,de –50°C a 70 °C,Funciones : Máximo y Mínimo, Reseteo,Dimensiones : 41/4” X 31/4”,INCLUYE CERTIFICADO TRACEABLE ISO 17025

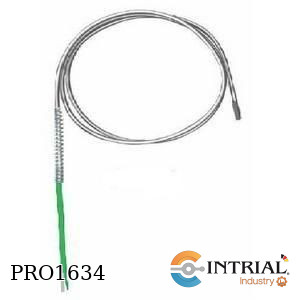

TERMOCUPLA "K" MINERALMENTE AISLADA<br />
Funda Inconel 600 ( max.T° 1200°C)<br />
Diámetro del bulbo 3 mm<br />
Largo del Bulbo 5000 mm<br />
5 metros cable PVC.<br />
Resorte unión entre bulbo y cable.<br />
Sellado especial sumergido en aceite.<br />
Marca: Intrial

SENSOR PT - 100 CARTUCHO<br />
Marca: INTRIAL<br />
3 HILOS<br />
Bulbo Inox SS316<br />
Diametro del Bulbo 4,5 mm<br />
Largo del Bubo Total 360 mm<br />
Punta de Cobre Largo 10 mm<br />
Con 2 mts. Cable Siliconado<br />
Calibre 3 x 0,22 mm.

TEMPERATURE MEASURING INSTRUMENT TM 6<br />
Brand: AFRISO<br />
Short response time for measurements at cycles of a second<br />
Min./max. and Hold function<br />
Memory for 19 measured values 1 point Cal function: Correction of measured values, e.g. for compensation of probe tolerances<br />
Standard connector type K for all NiCr-Ni probes<br />
Measuring range: -99.9/+1,370 °C<br />
Resolution: °C from -99.9/+299.9 °C<br />
Accuracy: ± 0.5 °C ± 1 digit<br />
Operating temperature range<br />
Ambient/storage: 0/50 °C<br />
Hours of operation: 200 hours<br />
Weight : 240 g<br />
Dimensions: W x H x D 65 x 130 x 25 mm<br />
Display: LCD, 1 line W x H: 42 x 21 mm<br />
Supply voltage x 1.5 V AA batteries<br />
Scope of delivery Measuring instrument with batteries

ICON-X COMPLETE CONFIGURATION KIT EX<br />
Brand: INOR<br />
Transmitter Configuration Kit with USB Communication<br />
PC to USB Interface USB cable type A to type B<br />
USB Interface to transmitter Changeable adapter cables<br />
Power Supply PC´s USB port, 5 VDC, 74 mA max<br />
Operation temperature 0 to 50 °C / 32 to 122 °F<br />
Storage temperature -20 to 70 °C / -4 to 158 °F<br />
Humidity (non-condensing) 0 to 90 %RH<br />
Galvanic isolation 1500 VAC<br />
System requirements<br />
Windows 32- or 64-bit edition of Windows<br />
XP (SP2+) / Vista / 7 / 8 / 8.1 / 10<br />
Free hard disk space 185 MB<br />
PC Port 1x USB 1.1 or higher port type A

Modelo: RTDIMAN-2-05<br />
•Marca: INTRIAL (Made in Germany)<br />
•Sensor de Temperatura PT-100 IMANTADO (200 N )simple, 3 hilos, <br />
•DIN 100 1 x Pt 100 Ohm DIN EN 60751, class A/0°C, 3-wire<br />
•Tipo superficie imantada cilíndrica diámetro 25mm, <br />
•Espesor 12.5 mm cuello de largo 50mm<br />
•Incluye 10 mts de cable fibra de vidrio malla metalica<br />
•RTDIMAN: Sensor de Temperatura tipo IMAN -50 hasta +180°C<br />
•2 = especial cable con 10 metros  3 x 0,22 mm² PTFE/acero inoxidable<br />
•05 = 05 metros de cable

•Modelo: PRO11993<br />
•Screw-in resistance thermometer<br />
•Brand:  INTRIAL (Made in Germany, special design)<br />
•2 x Pt 100 Ohm DIN EN 60751, class B, 2 x3-wire, <br />
•protective tube ø 6 mm, length 686mm<br />
•material stainless steel, <br />
•copper tip 10 mm, <br />
•spring loaded system, process<br />
•connection 1/2" NPT, thread length 14 mm,<br />
•connection head form NNA, <br />
•electrical output 1/2" NPT female,<br />
• temperature range: -50 to +400°C

<div>SLEEVE THERMOCOUPLE</div>

<div>•<span> </span>1 x type J</div>

<div>•<span> </span>Stainless steel sleeve ø 5 x 50 mm</div>

<div>•<span> </span>Material 1.4571</div>

<div>•<span> </span>Junction point indirect</div>

<div>•<span> </span>with spring</div>

<div>•<span> </span>with 3000 mm connection cable FEP/Silicone</div>

<div>•<span> </span>with earth wire</div>

<div>•<span> </span>with shrinking hose at the cable end</div>

<div>•<span> </span>with free ends, according your photo</div>

<div>•<span> </span>Brand: Intrial (Made in Germany</div>

Screw-in resistance thermometer<br />
Brand: INTRIAL(Made in Germany)<br />
1 x Pt 100 Ohm DIN EN 60751, <br />
class B, 3-wire, <br />
protective tube ø 6 mm, <br />
length 165mm(6,5”), <br />
material stainless steel, <br />
clamp thread G1/2", <br />
connection head form B, IP68,<br />
temperature range: -50 to +400°C,

Screw-in resistance thermometer<br />
1 x Pt 100 Ohm DIN EN 60751, <br />
class B,3-wire, <br />
protective tube ø 6 mm, <br />
length 127mm(5”), <br />
material stainless steel, <br />
clamp thread G1/2", <br />
connection head form B, IP68,<br />
temperature range: -50 to +400°C

Screw-in resistance thermometer<br />
Brand: INTRIAL(Made in Germany)<br />
1 x Pt 100 Ohm DIN EN 60751, <br />
class B,3-wire, <br />
protective tube ø 6 mm, <br />
length 76mm(3”), <br />
material stainless steel, <br />
clamp thread G1/2", <br />
connection head form B, IP68,<br />
temperature range: -50 to +400°C

Screw-in resistance thermometer<br />
Brand: INTRIAL(Made in Germany)<br />
1 x Pt 100 Ohm DIN EN 60751, <br />
class B, 3-wire, <br />
protective tube ø 6 mm, <br />
length 51mm(2”), <br />
material stainless steel, <br />
clamp thread G1/2",<br />
connection head form B, IP68,<br />
temperature range: -50 to +400°C,

<div>•<span> </span>Screw-in resistance thermometer</div>

<div>•<span> </span>Brand: INTRIAL(Made in Germany)</div>

<div>•<span> </span>1 x Pt 100 Ohm DIN EN 60751, </div>

<div>•<span> </span>class B, 3-wire, </div>

<div>•<span> </span>protective tube ø 6 mm, </div>

<div>•<span> </span>length 38mm(1,5”), </div>

<div>•<span> </span>material stainless steel, </div>

<div>•<span> </span>clamp thread G1/2", </div>

<div>•<span> </span>connection head form B, IP68,</div>

<div>•<span> </span>temperature range: -50 to +400°C,</div>

<strong>RS232 CONFIGURATION KIT <br />
•Brand: INOR</strong><br />
•(Ex-approved)<br />
•(HART modem not included)<br />
•Kit for configuration of all transmitters <br />
•(except C201 and  MinIPAQ-HLP/-L) <br />
•including: Ex-approved RS232 Interface, cables and transmitter softwares on CD

MINERAL ISULATED THERMOCOUPLE<br />
2 x type K<br />
Sheath ø 6 mm<br />
Junction point indirect<br />
Length : 180+1/-4 mm<br />
Material 1.4541<br />
With over sleeve ø 6,35 x 30 mm<br />
High temperature sealed<br />
With shinking hose<br />
With 2 x 72” connection cable glass silk/glass silk<br />
(cable no. 102), with free ends<br />
Brand: INTRIAL (German manufacture)<br />
*According your drawing 309-306871-007**

<div>Modelo:<span> </span>PRO12083</div>

<div>•<span> </span>Screw-in resistance thermometer</div>

<div>•<span> </span>1 x Pt 100 Ohm DIN EN 60751, class B,</div>

<div>•<span> </span>protective tube M4 x 8 mm, SW7, tube ø 6 x</div>

<div>•<span> </span>15 mm, double pressed, material 1.4571, with</div>

<div>•<span> </span>10.000 mm connection wire</div>

<div>•<span> </span>FEP/Cu-shield/FEP (cable no. 13C), 4 x 0,22</div>

<div>•<span> </span>mm², with 30 mm free ends, temperature</div>

<div>•<span> </span>range: -50°C to +200°C, according our</div>

<div>•<span> </span>drawing W0C1k0-2489-4282</div>

<strong>Temometro bimetalico posterior 0 a 120ºC (65347201)<br />
Modelo : Bith 100 E D201<br />
Marca : Afriso</strong><br />
Rango : 0 a 120 °C<br />
Conexión Posterior<br />
Longitud de Bulbo : 2 1/2" (63mm) - Bronce<br />
Conección de 1/2" NPT

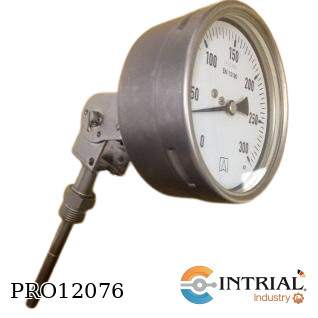

Fth100Ch,D482(0 a 300ºC)(64389482)<br />
Marca : Afriso (Alemania)<br />
Rango:0/300ºC, <br />
bulbo 100 mm<br />
Angulo variable<br />
conex 1/2 NPT
<div>
<div class="gtx-trans-icon"></div>
</div>

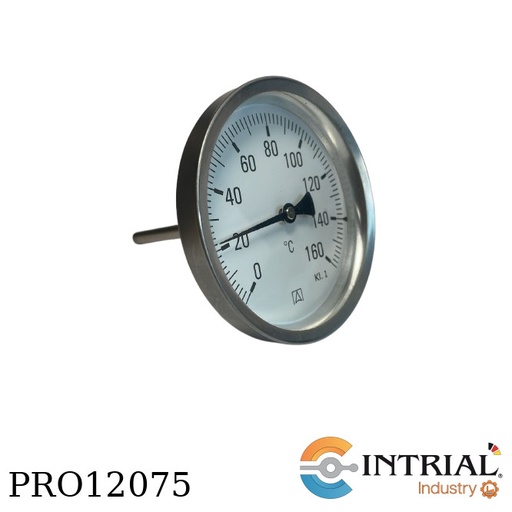

BITH(66353302)(0 A 160ºC)<br />
Termometro bimetalico Bith 100 E<br />
Marca : Afriso (Alemania)<br />
Rango:0/160ºC, <br />
bulbo 100 mm x 8mm  posterior central,
