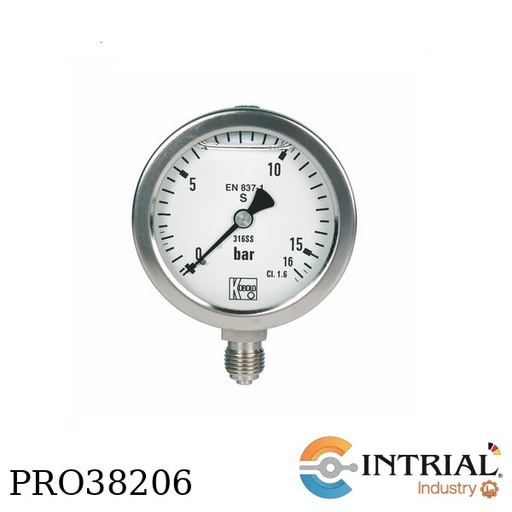

Bourdon Tube Pressure Gauge<br />
Brand: Kobold (USA)<br />
MAN-R:<br />
F: Housing Size, Dial Size: 4” (100 mm)<br />
2: Housing Material / Fill Option: Stainless Steel<br />
M: Connection Material / Position; Brass Connection: ½” NPT Bottom Connection<br />
H325: Pressure Range, 30” Hg to 15 PSIG

MODEL: MAN-RD75-C5-Y<br />
[MAN-RD75] All Stainless Steel- Pressure Gauges with Bourdon Tube<br />
Connection at bottom<br />
Accuracy class: 1.6<br />
Diameter: 63 mm<br />
Housing material: VA, filled*<br />
Connection: St.St.<br />
Process Connection: G 1/4 male<br />
Max. medium temperature: 80 °C<br />
Contact compatible: No<br />
Standard filling: Glycerin<br />
[C5] Indication range: 0...400 bar<br />
Scale double: PSI and BAR

MODEL: MAN-RF76-C5-Y<br />
[MAN-RF76] All Stainless Steel- Pressure Gauges with Bourdon Tube<br />
Connection at bottom<br />
Accuracy class: 1.0<br />
Diameter: 100 mm<br />
Housing material: VA, filled*<br />
Connection: St.St.<br />
Process Connection: G 1/2 male<br />
Max. medium temperature: 80 °C<br />
Contact compatible: Yes, special safety only inductive<br />
Standard filling: Glycerin<br />
[C5] Indication range: 0...400 bar<br />
Scale double: PSI and BAR

Digital manometer<br />
Brand: Kobold (Alemania)<br />
Model: MAN-SD1-SS-B7-0-C<br />
[MAN-SD1]:<br />
Output: w/o<br />
Accuracy class: 0,5<br />
Diameter: 74 mm <br />
Housing: Glass fibre reinforced PA<br />
MIN/MAX memory: MIN or MAX<br />
Power supply: Battery, 9V battery<br />
Medium temperature: -30..+85 °C<br />
Protection : IP65<br />
[SS]:Connection , 1/2 NPT <br />
[B7]: Measuring range , 0...10 bar <br />
[0]: Electrical connection , without <br />
[C]: Automatic disconnecting time, 8 Minutes (Standard for MAN-SD1)

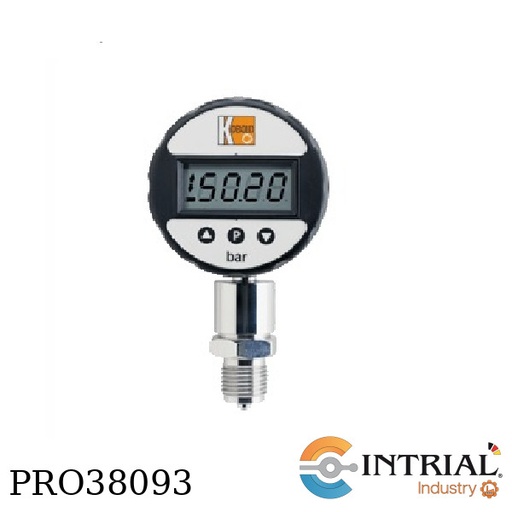

Digital manometer<br />
Modelo: MAN-SD1-SS-B4-0-C<br />
Housing Material: Glass fibre reinforced plastic<br />
Diameter of housing: 74 mm <br />
Accuracy class: 0,5<br />
Power supply: Battery, 9V<br />
MIN/MAX memory : MIN or MAX<br />
Medium temperature: -30..+85 °C<br />
Protection : IP65<br />
SS:Connection , 1/2 NPT <br />
B4: Measuring range , 0...2,5 bar (another unit on request)<br />
0: Electrical connection , without <br />
C: Automatic disconnecting time, 8 Minutes (Standard for MAN-SD1)

All Stainless Steel- Pressure Gauges with Bourdon Tube for exceptional safety<br />
MODEL: MAN-NFB-SS-B8-000<br />
BRAND: KOBOLD <br />
MAN-NFB: <br />
Connection at bottom<br />
Accuracy class: 1.0<br />
Diameter: 100 mm<br />
Housing: fillable<br />
Connection: St.Steel AISI 316 L<br />
Max. medium temperature: 150 °C<br />
Contact compatible: NOT<br />
SS:Process Connection, 1/2 NPT male bottom<br />
B8: Indication range, 0...16 bar<br />
000: Options, w/o

All Stainless Steel- Pressure Gauges with Bourdon Tube for exceptional safety<br />
MODEL: MAN-NFB-SS-B7-000<br />
BRAND: KOBOLD <br />
MAN-NFB: <br />
Connection at bottom<br />
Accuracy class: 1.0<br />
Diameter: 100 mm<br />
Housing: fillable<br />
Connection: St.Steel AISI 316 L<br />
Max. medium temperature: 150 °C<br />
Contact compatible: NOT<br />
SS:Process Connection, 1/2 NPT male bottom<br />
B7: Indication range, 0...10 bar<br />
000: Options, w/o<br />


<ul><li>All Stainless Steel- Pressure Gauges with Bourdon Tube</li>
<li>Brand: Kobold (Alemania)</li>
<li>[MAN-RF76]:</li>
<li>Connection at bottom</li>
<li>Accuracy  class 1,0</li>
<li>Diameter 100 mm</li>
<li>Housing  st. st., filled*</li>
<li>Connection St.St.</li>
<li>Process Connection G 1/2 male</li>
<li>Max. medium temperature 80 °C**</li>
<li>Contact compatible Yes, special safety only inductive</li>
<li>[B8]: Indication range, 0...16 bar</li>
<li>[M1]: Magnetic-Spring-Contact, 1 N/O contact</li>
</ul>

All Stainless Steel- Pressure Gauges with Bourdon Tube<br />
Brand: Kobold (Alemania)<br />
Model: MAN-RF76-A3-M1<br />
[MAN-RF76]:<br />
Connection at bottom <br />
Accuracy class 1,0<br />
Diameter 100 mm <br />
Housing st. st., filled*<br />
Connection St.St.<br />
Process Connection G 1/2 male<br />
Max. medium temperature 80 °C**<br />
Contact compatible Yes, special safety only inductive<br />
[A3]: Indication range, -1...+5 bar <br />
[M1]: Magnetic-Spring-Contact, 1 N/O contact

Model: DRG26-1-216-M-11<br />
SS Pressure Gauge with Switches<br />
DRG26:<br />
Stainless Steel Bourdon Tube Pressure Gauge with Switches<br />
1: 100 mm (4 inch) Dial Face, Bottom Process Connection<br />
216: Available Measuring Ranges, 160 PSIG<br />
M: Type of Switches, Magnetic spring contact switch(es)<br />
11: High/Low Function, = N/O Low & N/O High

Chemical pressure gauges<br />
MODEL: MAN-ZF2-6-B9-A4<br />
MAN-ZF2:<br />
Versión, Standard<br />
Accuracy class, 1.0<br />
Diameter, 100 mm<br />
Housing, St.St.<br />
Power supply, 13-30 VDC<br />
Medium temperature, max. 60 °C<br />
Protection, IP 65<br />
6: Connection, G 1/2 male bottom<br />
B9: Measuring range, 0-25 bar<br />
A4: Analogue output, 4-20 mA

Manómetro con tubo de bourdon<br />
MODELO: MAN-NH2-US-B9-C40-SVP<br />
MARCA: KOBOLD <br />
PROCEDENCIA: ALEMANIA<br />
MAN-NH2: <br />
Exactitud clase: 1.0<br />
Diámetro de dial, 150 mm<br />
Conexión, Acero Inoxidable AISI 316 L<br />
Conexión de proceso , 1/2 NPT macho POSTERIOR<br />
Max. Temperatura, 150 °C<br />
B9: Rango: 0...25 bar<br />
C40: Carcasa/ anillo de acero inoxidable AISI 316, POSTERIOR<br />


Manómetro con tubo de bourdon<br />
MODELO: MAN-NH2-SS-B9-C40-SVP<br />
MARCA: KOBOLD <br />
PROCEDENCIA: ALEMANIA<br />
MAN-NH2: <br />
Exactitud clase: 1.0<br />
Diámetro de dial, 150 mm<br />
Conexión, Acero Inoxidable AISI 316 L<br />
Conexión de proceso , 1/2 NPT macho inferior<br />
Max. Temperatura, 150 °C<br />
B9: Rango: 0...25 bar<br />
C40: Carcasa/ anillo de acero inoxidable AISI 316, inferior<br />
SVP: Sobrepresión 50% de la escala<br />


MAN-RF76-C4-S11<br />
Stainless Steel - Pressure Gauges with Bourdon Tube<br />
MODEL: MAN-RF76-C4-S11<br />
[MAN-RF76] <br />
[C4] Indication range: 0...250 bar <br />
[S11] Two (2) N/O contact<br />
Accuracy class: 1.0<br />
Housing material: stainless steel 1.4301<br />
Protection: IP 67<br />
Connection: stainless steel 1.4571<br />
Thread connection: G 1/2 male<br />
Max. medium temperature: 80°C<br />
Datasheet: http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/p1gb_man-r-chem.pdf

<strong>All Stainless Steel- Pressure Gauges with Bourdon Tube,<br />
brass, NG 63/8</strong><br /><strong>Model: MAN-RD21-B7<br />
Brand: Kobold (Alemania)</strong><br />
[MAN-RD21]:<br />
Accuracy  class 1,6 <br />
Diameter 63 mm <br />
Housing St.St. <br />
Connection Brass<br />
Process Connection G 1/4 male <br />
Max. medium temperature 80 °C<br />
Contact compatible No <br />
[B7]: Indication range, 0...10 bar

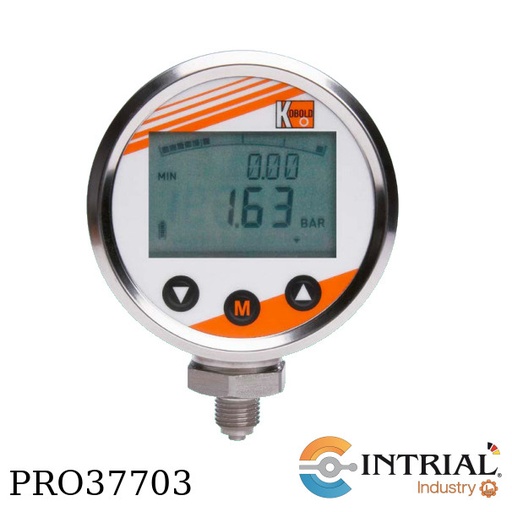

Pressure Gauge Digital with Ceramic/Thin Film Cell PDC<br />
Model: PDC-202-N2-B7-A<br />
[PDC-202] Chemical pressure gauges / Digital-manometer with battery<br />
[N2] min/max memory / Connection: Connection 1/4 NPT male bottom<br />
[B7] Measuring range: 0...10 bar (0 - 140 PSI)<br />
[A] Options: Standard (without options)<br />
Version: 2x19999 Digit, lighted<br />
Accuracy class: 0,5% of FS +- 1 Digit<br />
Diameter: 83,5 mm<br />
Housing: St.St.<br />
Power supply: 2 x 1,5 V (AA)<br />
Medium temperature: -30..+85 °C (+100 °C <span style="color:rgb(32,33,36);font-family:arial, sans-serif;font-size:16px;background-color:rgb(255,255,255);"><= </span>100 bar)<br />
Protection: IP 65

MODEL: MAN-RD21-AD<br />
[MAN-RD21] Pressure Gauges with Bourdon Tube, brass, NG 63<br />
[AD] Indication range: -1...0 bar<br />
Accuracy class: 1.6<br />
Diameter: 63 mm<br />
Housing material: stainless steel<br />
Connection: Brass<br />
Process Connection: G 1/4 male<br />
Max. medium temperature: 80°C
