HS45 HOLLOW SHAFT HEAVY MILL DUTY MAGNETIC ENCODER<br />
HS45WAYXX6WXA905<br />
Including the following features & options:<br />
20mm bore via insert: universal end of shaft and thru shaft fit<br />
Left Output: 1024 PPR<br />
Right Output: No Right Output<br />
5-24v in, 5-24v out (7272) recommended for single-ended wiring (A,B,Z, n 1.5m/5' Special Cable Length, No Connector<br />
No Tether<br />
Output Channels: Standard, All Channels A,A\,B,B\,Z,Z\<br />
Special Options: 1.5m/5' Special Cable Length, No Connector

REPARACION de Encoder Magnetico<br />
Modelo Encoder: HS45WAYXX6WUA905<br />
Including the following features & options:<br />
20mm bore via insert: universal end of shaft and thru shaft fit<br />
Left Output: 1024 PPR<br />
Right Output: No Right Output<br />
5-24v in, 5-24v out (7272) recommended for single-ended wiring (A,B,Z, n<br />
1.5m/5' Special Cable Length, No Connector<br />
No Tether<br />
Output Channels: Standard, All Channels A,A\,B,B\,Z,Z\<br />
Special Options: 1.5m/5' Special Cable Length, No Connector

HS45TETHER-G<br />
* HS45 G Threaded rod Tether kit, 110mm-300mm/4.5"-12"adjustable

HS45 HOLLOW SHAFT HEAVY MILL DUTY MAGNETIC ENCODER<br />
HS45WAYXX6WEA905<br />
Including the following features & options:<br />
 20mm bore via insert: universal end of shaft and thru shaft fit<br />
 Left Output: 1024 PPR<br />
 Right Output: No Right Output<br />
 5-24v in, 5-24v out (7272) recommended for single-ended wiring (A,B,Z, n 1.5m/5' Special Cable Length, No Connector<br />
Tether: 4.5" NEMA C-fase<br />
 Output Channels: Standard, All Channels A,A\,B,B\,Z,Z\<br />
 Special Options: 1.5m/5' Special Cable Length, No Connector

QS24 : 24 Hours Quick Ship (Entrega en 24 Horas en Fabrica USA)<br />
* Considera solo dias Laborales<br />
=================================================<br />
* US$ 310 (Por los primeros 02 Encodes)<br />
* US$ 155.00 Adicional por los Encoders restantes.

AV85A 8.5"<br />
C-FACE HEAVY MILL DUTY MODULAR MAGNETIC ENCODER<br />
Including the following features & options:<br />
• 20mm bore Cam Screw Thru-Shaft Rotor<br />
• Outboard Seal Plate for Thru-Shaft with V-Ring Seal<br />
• Single Output<br />
• 5-24v in, 5-24v out (7272) recommended for single-ended wiring (A,B,Z, no A/,B/,Z/)<br />
• Left Output: 1024 PPR<br />
• Right Output: No Right-Hand Output, Single Output Only<br />
• 1.5m/5' Special Cable Length<br />
• Accessories: None

AV20Q4BWA47BA000    <br />
Encoder Óptico, 2.0" Flange, 500 PPR<br />
Marca: AVTRON<br />
Modelo: AV25<br />
Descripción:<br />
- PPR: Q - 500 PPR<br />
- Line Driver: 4 - 5-28v In, 5v Out (7272)<br />
- Shaft Size: B - 3/8 in. diameter Shaft w/Flat<br />
- Connector Options: W - Cable (18" or special length)<br />
- Wiring: A - Side Exit<br />
- Mounting Style: 4 - 2 in. Servo Flange w/1.181 in Female Pilot, 1.875 in. Groove<br />
- Face/Bolt Pattern: 7 - 3 x 4-40 tapped holes on a 1.5 in. B. C.<br />
- Seals: B - Shielded Bearings (for female pilot housings)

ENCODER ,Marca: TR ELECTRONIC,Aditional Information.-,Typ: IEV 58,Art. Nr.- IEV58-00001,S/N:1860,Stebel: 3508,Auscangspegel Up=Us,Optionen: Programmierbar,Us= 11-28V,PrufNr:1377051

Model:62-AAEF-0720-AB,Modelo:M050590 series 60 ,heavy Duty Descripcion:Heavy Duty bearing w/ 1/2'', diameter shaft LED optical light source Unbreakab,le disk Wide selection of resolutions available up, tp 2500 PPR,servo ring and face mount options mo,del:Bidirectional,Heavy Duty,Housing:Standard ,Housing for single Shaft 1/2''Dia.1.0''len w/ Fla,t Output:Single Ended,Voltage:5 to 15 VDC,Puls,e/rev 0720,writing MS connector,Misc Shaft seals

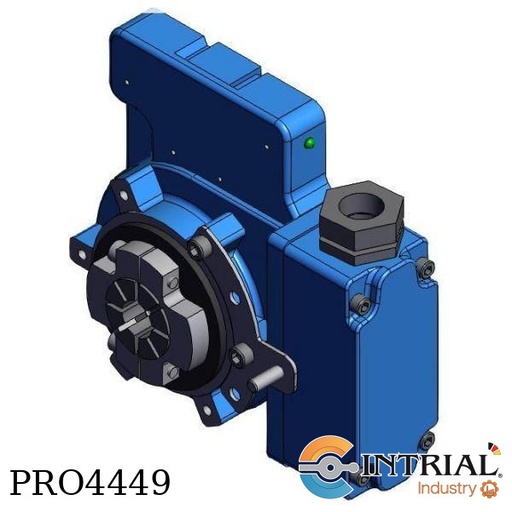

HS45 HOLLOW SHAFT HEAVY MILL DUTY MAGNETIC ENCODER<br /><br />
Including the following features & options:<br />
•    16mm bore via insert: universal end of shaft and thru shaft fit<br />
•    Left Output: 1024 PPR<br />
•    Right Output: No Right Output<br />
•    5-24v in, 5-24v out (7272) recommended for single-ended wiring (A,B,Z, no A/,B/,Z/)<br />
•    Terminal box w/cord grip, EU labels, LED & Remote Alarm Diagnostics<br />
•    Universal Tether/Arm Kit (includes all standard tethers)<br />
•    Output Channels: Standard, All Channels A,A\,B,B\,Z,Z\<br />
•    Special Options: No Special Options<br /><br />
HS45 Model Characteristics:<br />
•    Frequency Range: 0 to 165 KHz<br />
•    Maximum Instantaneous Current Output: 3000mA*<br />
•    PPR: 8-5000<br />
•    Speed: 5000 RPM Max. std., for higher speeds, consult factory<br />
•    Electronics: Fully Encapsulated, IP67**<br />
•    Temperature: -40° to +100°C<br />
•    Vibration: 18Gs<br />
•    Shock: 100Gs<br />
•    Chemical: Polyurethane enamel paint protects against salt spray, mild acids, and bases.

<div><strong>ENCODER </strong></div>

<div><strong>•<span> </span>Marca: HOHNER</strong></div>

<div>•<span> </span>Reemplazo directo al modelo 10-38921</div>

MAGNETIC, MILL DUTY INCREMENTAL /HOLLOW SHAFT MOUNT<br />
Left PPR (Y): 1024 PPR<br />
Right PPR (X): No Right Output<br />
Line Driver (6):  5-28v In/Out (7272)<br />
Bore Size: (Q): 14mm via insert<br />
Connector Options (W): 18 in. Sealed Cable (or Special Length)<br />
Mounting Style (U):  Universal (Thru & End of Shaft)<br />
Protection (0): No Protective Basket<br />
Anti-Rotational Tehther (G): 12 inch - 300mm Threaded Rod Torque Arm<br />
Channels and Modifications (910): 10' / 3m Cable, All channels (A, A\, B, B\, Z, Z\)

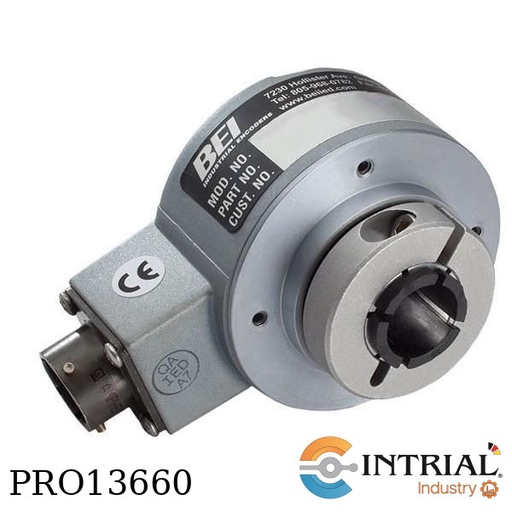

<strong>EXPRESS ENCODER<br />
Brand: BEI SESNSORS<br />
Model: XHS35F-100-R2-SS-1200-ABZC-28V/V-SM18</strong><br />
HS = Hollow Shaft<br />
35 = 3.5” Encoder Diameter<br />
F = HOUSING CONFIG: Standard<br />
100 = SHAFT BORE: 1.00”<br />
R2 = TETHER: Tether Arm<br />
SS = SHAFT SEAL CONFIGURATION: Through Shaft Rubber Seals<br />
1200  = CYCLES PER TURN: 1200<br />
ABZC = NO. OF CHANNELS:<br />
28V/V = VOLTAGE/OUTPUT: 5–28Vin/out<br />
SM18 = OUTPUT TERMINATION: MS3102R18-1P

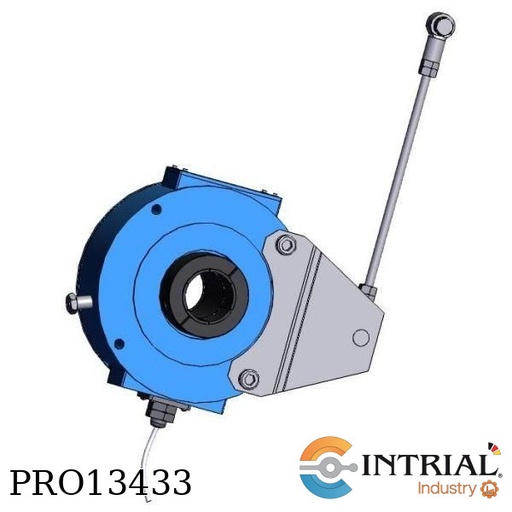

M4-8T1HX51-W003<br />
Magnetic, Heavy Mill Duty HOLLOW SHAFT<br />
8: Rotor Size 1-1/2”<br />
T: Thru Shaft<br />
1: Line driver 5-24v in/out (7272)<br />
H: 1024 PPR Left Out<br />
51: Base PPR<br />
W: 3’ Flexible Cable, sealed<br />
003: Torque Arm Mount

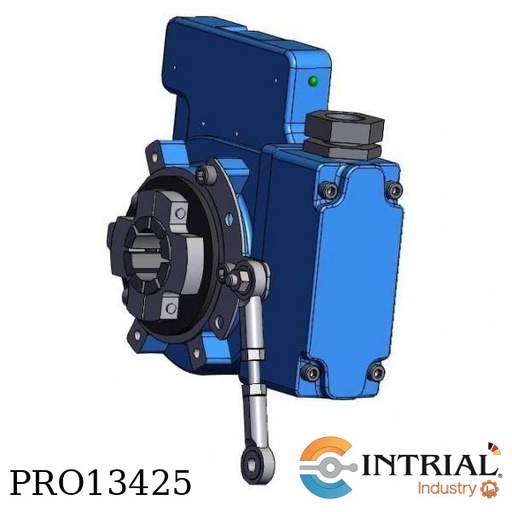

HS45 – Heavy Mill Duty MAGNETIC Hollow Shaft<br />
Part Number: HS45FAYXX6HPA000<br />
F - 1 in. bore, insulated shaft bushing, universal end or thru shaft mountable<br />
AY - 1024 PPR<br />
XX - No Right Output<br />
6 - 5-24v in, 5-24v out (7272) recommended for single-ended wiring (A,B,Z, no Complements, and differential wiring up to 500'.<br />
H - Terminal box w/USA 1/2 in. conduit, LED & Remote Alarm Diagnostics<br />
P - Threaded Rod Torque Arm Kit, Fixed 70mm Length<br />
A - All Channels (A, A/, B, B/, Z, Z/ )<br />
000 - No Special Options

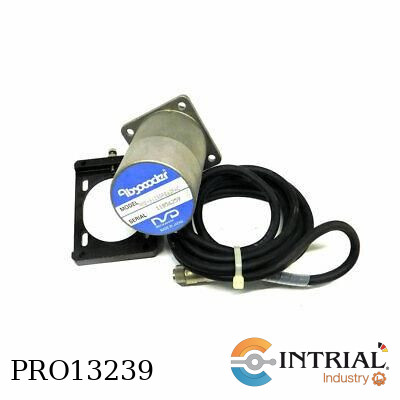

ABSOCODER SENSOR<br />
BRAND: NSD<br />
SINGLE-TURN TYPE<br />
P062 TYPE<br />
8192 DIVISIONS<br />
98 N RADIAL<br />
49 N THRUST<br />
3600 RPM<br />
2 M SENSOR CABLE

ENCODER Magnetico INCREMENTAL<br />
HS35M5X9R2U0UA00<br />
DESCRIPTION:<br />
Left Output PPR (5): 2500 PPR<br />
Right Output PPR(X): No Right Output<br />
Line Driver(9): 5-28v In, 5v Out (7272) (TTL/RS422)<br />
Bore Size (R): 15mm via insert<br />
Connector Options (2): M23 12 Pin Euro w/o plug, L&L/Hubner Pin Out<br />
Mounting (U): Universal (Thru & End of Shaft)<br />
Protection (0): No Protective Basket<br />
Anti-Rotational Tether (    U): All Tether Kits A-F<br />
Channels and Modifications (A00): Standard, No Special Features, All Channels A, A\, B, B\, Z, Z\

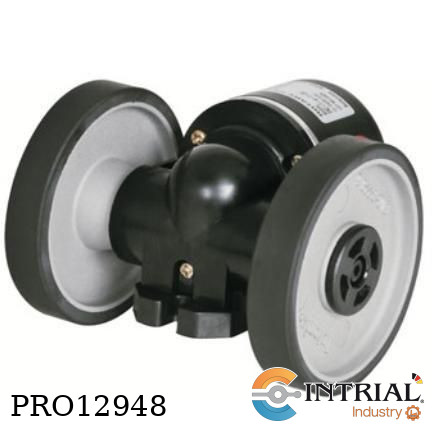

INCREMENTAL ENCODER <br />
Brand: AUTONICS<br />
Wheel Type<br />

<div>
<div class="gtx-trans-icon"></div>
</div>

HS45 – Heavy Mill Duty MAGNETIC Hollow Shaft<br />
Part Number: HS45FA4XX6WUA904<br />
(F) Bore Size: 1 in. bore, insulated shaft bushing, universal end or thru shaft mountable<br />
(A4) Left Output PPR: 2048 PPR<br />
(XX) Right Output PPR: No Right Output<br />
(6) Line Driver: 5-24v in, 5-24v out (7272) recommended for single-ended wiring (A,B,Z, no Complements, and differential wiring up to 500'.<br />
(W) Connector Options: Cable (36 in. or special length) with Remote Alarm Diagnostics<br />
(U) Anti-Rotation Tether: Universal Tether/Torque Arm Kit (includes all standard tethers)<br />
(A) Channels: All Channels (A, A/, B, B/, Z, Z/ )<br />
(904) Modifications: 1.2m/4 ft. Special Cable Length
