629201-5-2.0+Cupon<br />
Kit Compuesto Por:<br />
.<br />

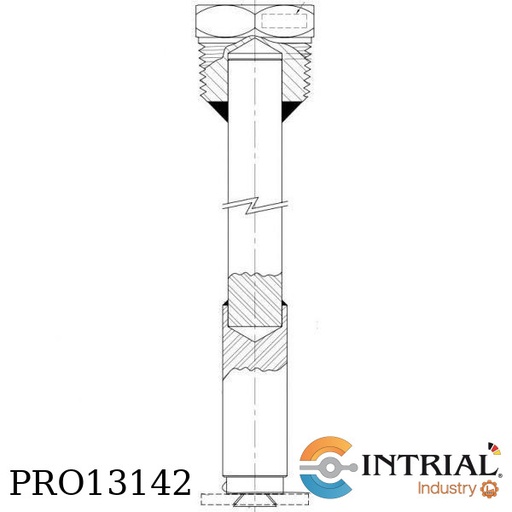

629201-5-2.0 (Porta Cupón Fijo)<br />
===========================’<br />
• Porta Cupón Fijo para rosca de Montaje hembra de 2”<br />
• X= 5” Longitud total del Porta cupón<br />
• Cuerpo en Acero Inox 316 SS<br />
• Marca: COSASCO<br />
NOTA: Hasta una longitud de 10”, el precio es el mismo.<br />
.<br />
CI-D-G10180-0-3-0-0 (Cupón Tipo Disco)<br />
=================’<br />
Dimensiones: 1.25" Diámetro; 0.125" espesor; Agujero de Montaje ID 0.312”<br />
• Área de Superficie expuesta 2.5 sq. in. (16.1 sq. cm.)<br />
• Ground Surface Finish, Pre-weighed.<br />
• Material: G10180 (1018 mild Steel)<br />
• Marca: COSASCO

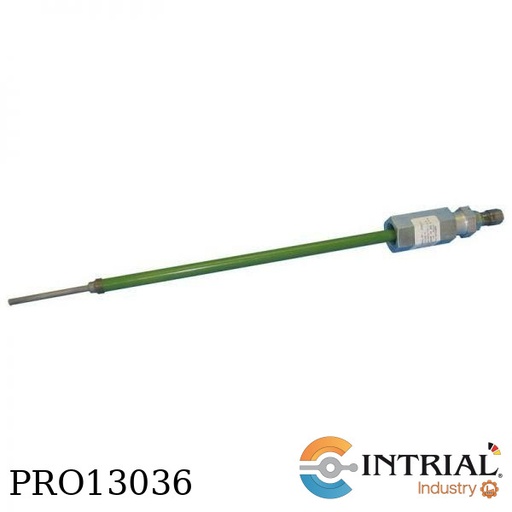

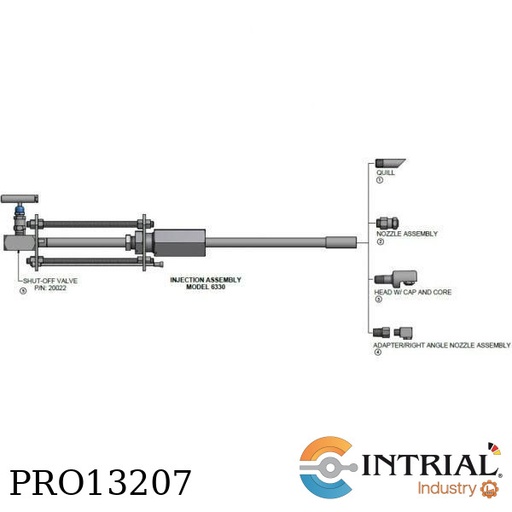

Retractable Injection/Sampling Tube Assembly<br />
• Pressure Rating 1500 Psi<br />
• Mounting 1” Full Port Valve<br />
• Temperature Rating 260 C<br />
• Tube and Adaptor Material: 304 SS<br />
• Stuffing Box: 316 SS<br />
• Seal Material: Teflon<br />
• Order Length: 36 Inches<br />
• Safety Clamp INCLUDED

006277<br />
Stainless Steel TAG-Etched<br />
Up to 3 Lines of text<br />
COSASCO

ACCESS VALVE ASSY, RETRACTABLE SYSTEM<br />
• W/ C.S. SOCKETWELD-O-LET FOR 6" PIPE SIZE.<br />
• X = 1-1/2in DIA FULL PORT BALL VALVE IN C.S.<br />
• X = 1-1/2" PIPE X 1.00" NPT CONCENTRIC REDUCER C.S.<br />
• WITH BLEED VALVE 316 S.S.<br />
• X = SOCKOLET 6" PIPE SIZE IN C.S.<br />
• C= Customized requirement (All thread Nipple welded to both sides of Valve and also to Threadolet as picture show by customer)<br />
Please Refer to “ANEX 01” attached with this Purchase Order

Retractable Strip Coupon,<br />
•Alloy A106GrB,<br />
•Dimensions: 1/16"TH x 1/2"W x 3"LG,<br />
•Grid Blast, Standard Nylon Insulators (250F),<br />
•Preweighed<br />
•Brand: COSASCO

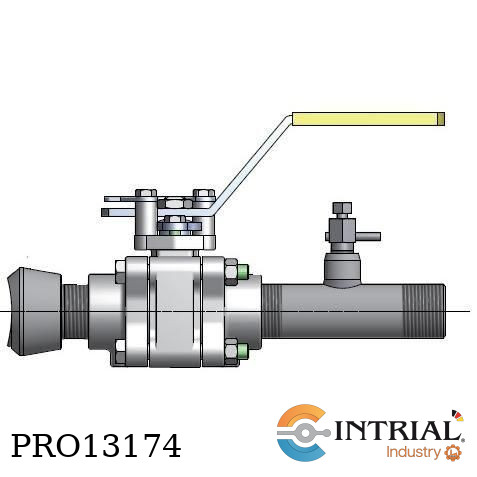

Access Valve Assembly Retractable System with Bleed Valve<br />
Consisting of:<br />
• 1" Full Port Ball Valve Provided in Carbon Steel<br />
• Threadolet for pipe size 4” to 36”<br />
• All thread nipple 1"<br />
• Ball valve 1”<br />
• 5” Nipple with Bleed Valve in 316 SS

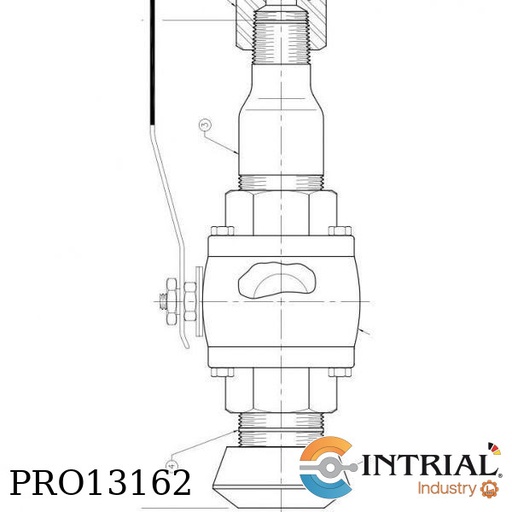

ACCESS VALVE ASSY, RETRACTABLE SYSTEM<br />
• W/ C.S. SOCKETWELD-O-LET FOR 6" PIPE SIZE.<br />
• X = 1-1/2in DIA FULL PORT BALL VALVE IN C.S.<br />
• X = 1-1/2" PIPE X 1.00" NPT CONCENTRIC REDUCER C.S.<br />
• WITH BLEED VALVE 316 S.S.<br />
• X = SOCKOLET 6" PIPE SIZE IN C.S.

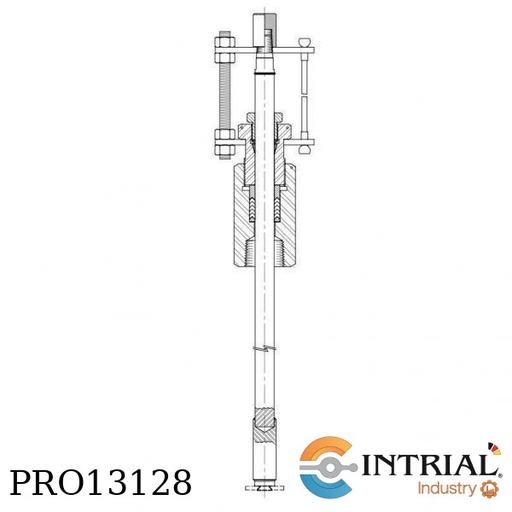

Coupon Holder Retractable system for a Flush Disc coupon..<br />
• With Stuffing Box Assy.<br />
• Length 30” according to drawing. Pressure rating 1500PSI,<br />
• Mounting 1” NPT<br />
• Requires Full port valve 1 ½” minimum with Niple reduction to 1"NPT<br />
• Safety Clamp Included<br />
• Temperature rating 260C

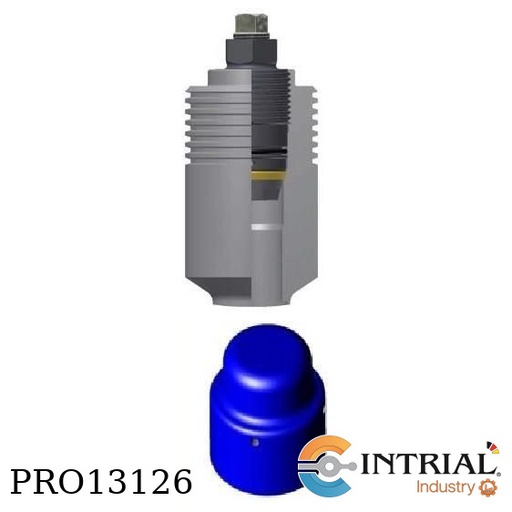

COSASCO High Pressure Two Inch Access Fitting Assembly w/PLUG Included<br />
• Non-tee, Flarweld Mounting with integral Branch Reinforcement per ASME B31.3<br />
• Standard Temperature Rating with Viton O-Ring /Teflon Primary Packing (-26C to 204 C)<br />
• Pressure Rating: 6000 Psi<br />
• INCLUDE:  SOLID Plug Assembly in 316L<br />
• Pipe Size: 04”<br />
• Body Material: ASTM A105 Carbon Steel<br />
• INCLUDES Polycarbonate Cover without Hole

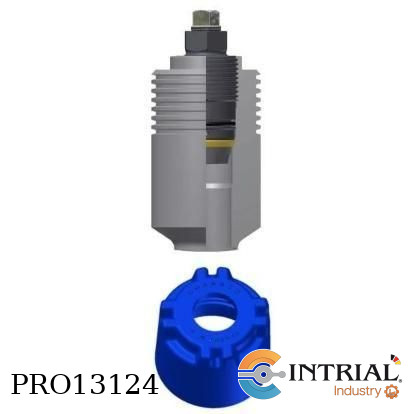

COSASCO High Pressure Two Inch Access Fitting Assembly w/PLUG Included<br />
• Non-tee, FLARWELD Mounting with integral Branch Reinforcement per ASME B31.3<br />
• Standard Temperature Rating with Viton O-Ring /Teflon Primary Packing (-26C to 204 C)<br />
• Pressure Rating: 6000 Psi<br />
• INCLUDE:  HOLLOW Plug Assembly in 316L<br />
• Pipe Size: 04”<br />
• Body Material: ASTM A105 Carbon Steel (K03504)<br />
• INCLUDES Polycarbonate Cover with Hole

621202-30 (RETRACTABLE Coupon Holder)<br />
==================================’<br />
Coupon Holder retractable system for a Flush Disc coupon.<br />
• Brand: COSASCO<br />
• With Stuffing box assy.<br />
• Length 30” according to drawing. Pressure rating 1500PSI,<br />
• Mounting 1” (full port valve 1 ½” minimum)<br />
• Safety Clamp Included<br />
• Temperature rating 260C<br />
• QTY: 01<br />
.<br />
061501-4 (Access Valve Retractable System)<br />
===============================’<br />
• Brand: COSASCO<br />
• Access Valve Assembly with Threadolet for pipe size 4” to 36”<br />
• All thread nipple,<br />
• Ball valve 1 ½”<br />
• Reduction Nipple 1 ½” to 1”<br />
• Full Valve Provided in Carbon Steel<br />
• QTY: 01<br />
.<br />
CI-D-G10180-0-3-0-0 (Flush Disc Coupon)<br />
==================================<br />
• Brand: COSASCO<br />
• Dimensions: 1.25" Dia; 0.125" Thickness; Mounting hole ID 0.312”<br />
• Exposed surface area 2.5 sq. in. (16.1 sq. cm.)<br />
• Ground Surface Finish, Pre-weighed.<br />
• Material: G10180 (1018 mild Steel)<br />
• QTY: 02

621202-24 (RETRACTABLE Coupon Holder)<br />
==================================’<br />
Coupon Holder retractable system for a Flush Disc coupon.<br />
• Brand: COSASCO<br />
• With Stuffing box assy.<br />
• Length 24” according to drawing. Pressure rating 1500PSI,<br />
• Mounting 1” (full port valve 1 ½” minimum)<br />
• Safety Clamp Included<br />
• Temperature rating 260C<br />
• QTY: 01<br />
.<br />
061501-4 (Access Valve Retractable System)<br />
===============================’<br />
• Brand: COSASCO<br />
• Access Valve Assembly with Threadolet for pipe size 4” to 36”<br />
• All thread nipple,<br />
• Ball valve 1 ½”<br />
• Reduction Nipple 1 ½” to 1”<br />
• Full Valve Provided in Carbon Steel<br />
• QTY: 01<br />
.<br />
CI-D-G10180-0-3-0-0 (Flush Disc Coupon)<br />
==================================<br />
• Brand: COSASCO<br />
• Dimensions: 1.25" Dia; 0.125" Thickness; Mounting hole ID 0.312”<br />
• Exposed surface area 2.5 sq. in. (16.1 sq. cm.)<br />
• Ground Surface Finish, Pre-weighed.<br />
• Material: G10180 (1018 mild Steel)<br />
• QTY: 02
