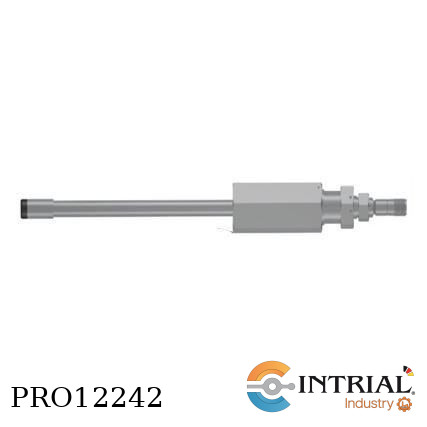

Replacement Probe Insert for CYLINDRICAL Microcor Probe<br />
•    For Cylindrical Probe Model M3500<br />
•    Probe Body Stainless Steel<br />
•    Element Probe: K03005<br />
•    Element T20 (10 mils Probe Span)<br />
•    Length: 24"

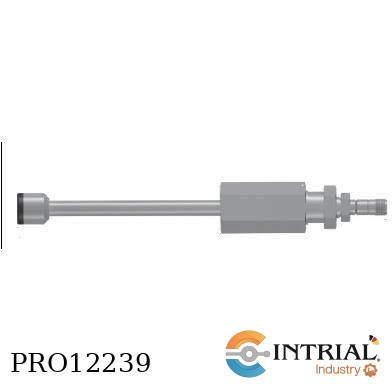

Microcor FLUSH Retractable Probe<br />
* Flush Probe Element<br />
* Diameter Head: 1.25”<br />
* Mounting: Requires 1.5" Full Port Valve plus Swaged nipple connection between valve & stuffing box.<br />
* Temp. Rating for Model M3000 — 425°F 218°C<br />
* Pressure Rating for Model M3000 — 1500 PSI/10.3 MPa<br />
* Element Type: F20 (10 mils probe span)<br />
* Element Alloy: K03005 (Carbon Steel)<br />
* Length: 24" Nominal<br />
* Safety Clamp Included

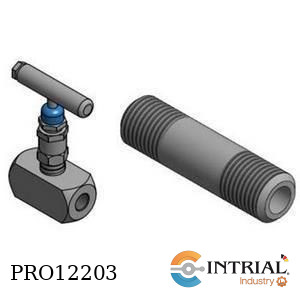

NIPPLE<br />
=====’<br />
•    Nipple:  ¼” x ¼” NPT<br />
•    Length:  4.00<br />
•    Material: 316 SS.<br />
VALVE<br />
======’<br />
•    Shutoff Valve ¼” NPT<br />
•    Material: 316 SS.

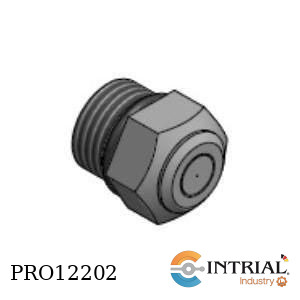

Head with Cap and Core<br />
•    Orifice Size: 0.016<br />
•    Capacity:<br />
o    0.30 GPH with a Pressure Differential of 40 Psi<br />
o    0.36 GPH with a Pressure Differential of 60 Psi<br />
o    0.42 GPH with a Pressure Differential of 80 Psi<br />
o    0.48 GPH with a Pressure Differential of 100 Psi<br />
o    0.67 GPH with a Pressure Differential of 200 Psi<br />
o    0.82 GPH with a Pressure Differential of 300 Psi<br />
o    1.1 GPH with a Pressure Differential of 500 Psi<br />
o    1.3 GPH with a Pressure Differential of 700 Psi<br />
o    1.5 GPH with a Pressure Differential of 1000 Psi

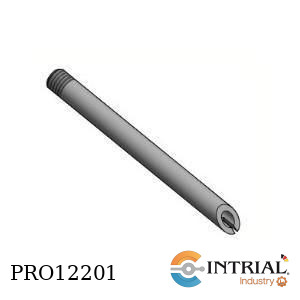

QUILL Injection Tube,1/4" NPT x 3.5"<br />
For High Pressure Retrievable Injection/Sampling Assembly Model 63<br />
Lenght: 3.5"<br />
SS.SS 316<br />
COSASCO

Injection Tube<br />
•    1/4 “ NPT x Head (9/16”)<br />
•    Length: 3.5”

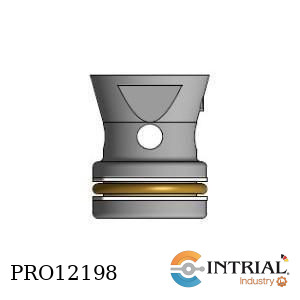

Injection/Sampling Nut Assembly (1/4” NPT)<br />
•    With Bleed Ports in the side wall above<br />
•    Drilled and tapered with 1/4” NPT thread to enable attachment of diferent size injection/sampling Tube or Nuzzle Assemblies.<br />
•    For Access Fitting Body Height of 5.25”

Disc Coupon Holder High Pressure Two Inch System<br />
•    Disc Coupon Holder Assembly Non-Welded<br />
•    Material: 316 SS.<br />
•    Meets NACE MR0175 and MR0103<br />
•    Length: 2.625”<br />
6202N-2.625

Disc Coupon Holder High Pressure Two Inch System<br />
•    Disc Coupon Holder Assembly Non-Welded<br />
•    Material: 316 SS.<br />
•    Meets NACE MR0175 and MR0103<br />
•    Length: 2.75”

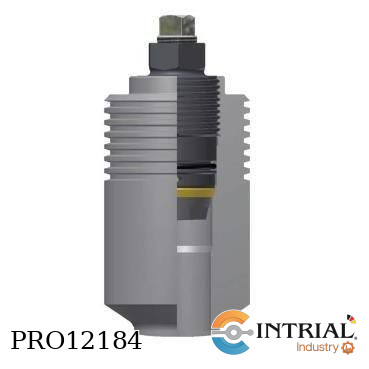

COSASCO Two-Inch System Access Fitting<br />
•    Non-tee, Flarweld Mounting with integral Branch Reinforcement per ASME B31.3<br />
•    Standard Temperature Rating with Viton O-Ring /Teflon Primary Packing (-26C to 204 C)<br />
•    Pressure Rating: 6000 Psi<br />
•    INCLUDE:  SOLID Plug Assembly in 316L<br />
•    Pipe Size: 8-10”<br />
•    Body Material: ASTM A105 Carbon Steel<br />
•    DO NOT Include Protective Cover
