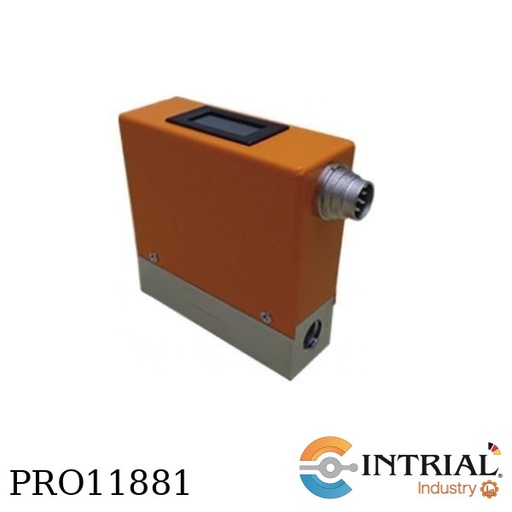

DIRECT MASS FLOW METER AND CONTROLLER FOR GASES<br />
Brand: KOBOLD<br />
Operating principle: Direct Thermal Flow<br />
Output: 0-5 V or 4-20 mA<br />
Tube/Measuring range: 32 mm/50-1000 Ln/min air<br />
Connection: Tube 16 mm/32 mm: G 1/2<br />
Display/Protection class: display counter, IP40<br />
Output: 4-20 mA

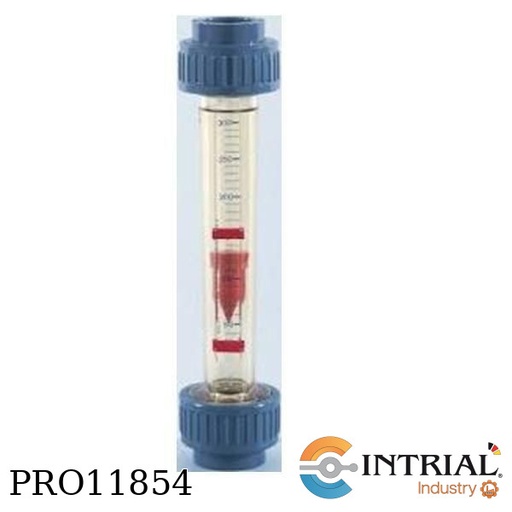

LOW VOLUME FLOWMETER/-SWITCH<br />
Mounting position, vertical<br />
Flow direction, from bottom<br />
Material, Trogamide<br />
Accuracy, Class 4<br />
Max. Temperatura, 60 °C<br />
Max. Pressure, PN 10<br />
Seal, EPDM<br />
Measuring range, 30...300 L/h water<br />
Connection, PVC G 1/2 female<br />
Option contact: 2 N/O

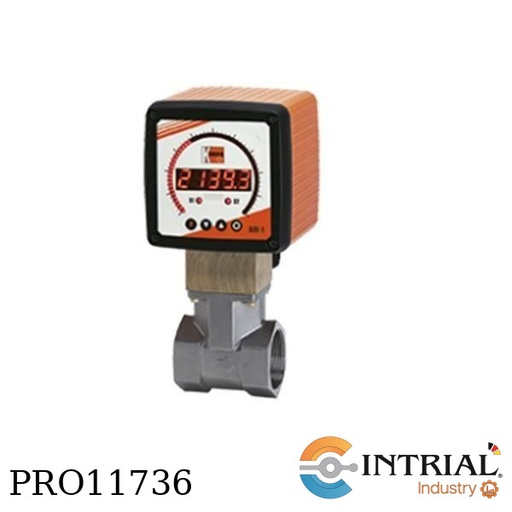

Torsional Paddle Flow Meter/Monitor, <br />
Operating principle: paddle-torsion<br />
max. Temperature: 80 °C<br />
Material: Brass casting<br />
Measuring range, 100-230 L/min water<br />
Connection size, 1 1/2 NPT female<br />
Evaluating electronic, Compact electronic, 4-20mA, 1x PNP,<br />
Power supply, 230 VAC

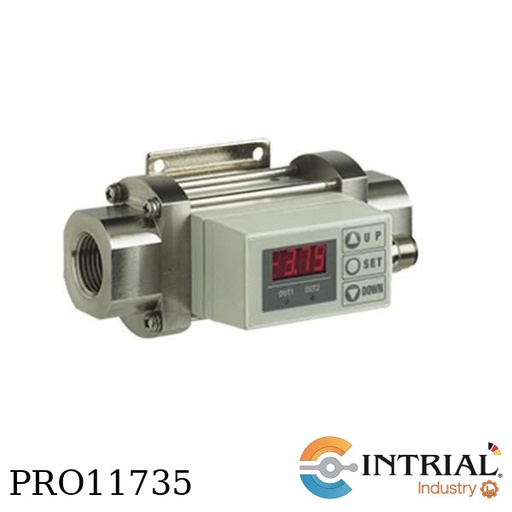

Calorimetric Flow Meter, Monitor, Totalizer, <br />
Mounting position: all directions<br />
Indication: LCD<br />
max. Temperature: 50 °C<br />
max. Pressure: 7.5 bar<br />
Material: St. st. / PPS<br />
Design: Compact<br />
Measuring range/ Connection, 50-500 L/min air / G 1/2 <br />
Output, 2 x PNP Switch

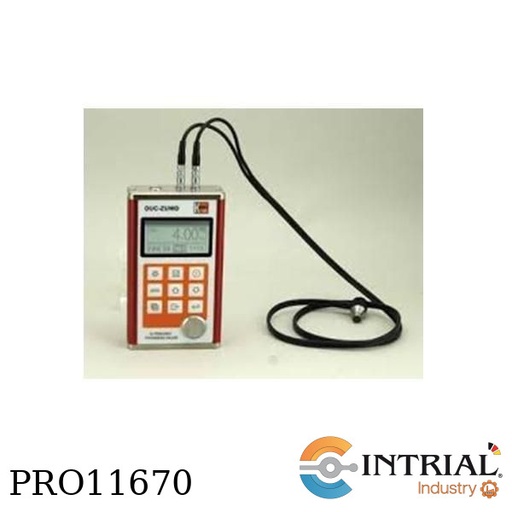

<strong>Accessories for DUC<br />
Model: DUC-ZU-WD</strong><br />
[DUC-ZU-WD]<br />
wall thickness gauge (Universal)

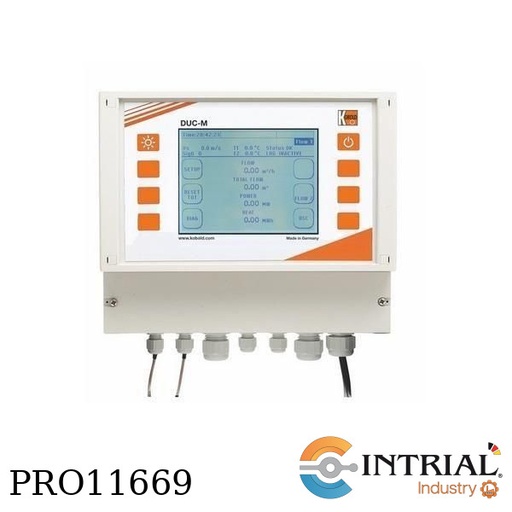

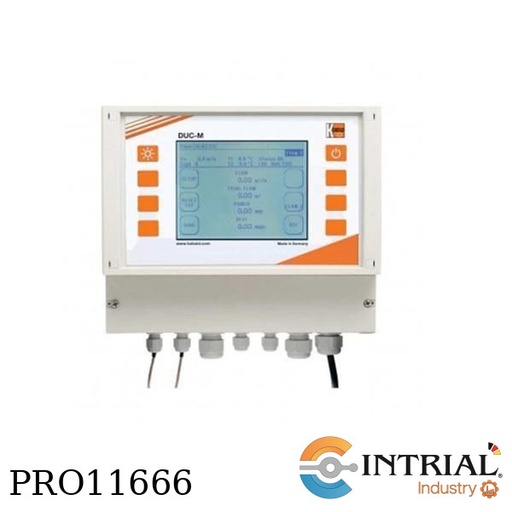

Transmitter Clamp-on Ultrasonic Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: DUC-MF-1-0-0-S-00<br />
[DUC-MF]:<br />
Operating principle ,Ultrasonic<br />
Mounting version, stationary, wallmount<br />
Measuring units, volume flow, flow velocity, thermal output<br />
Counter, heat quantity, volume<br />
Housing, ABS<br />
Additional input for heat measuring, 2x Pt100<br />
Output, 2x4-20 mA, 1(2) pulse, 1x micro-USB,<br />
1 relay; optional RS232/RS485<br />
Measuring channels: 1, optional 2 channels<br />
Protection: IP 65<br />
[1] Measuring channels, 1 channel<br />
[0] Power supply, 90-240 VAC<br />
[0] Ex-approval, without<br />
[S] Language packages, german/spanish/french<br />
[00] Options, without

ACCESSORIES FOR DUC<br />
Brand: KOBOLD<br />
DUC-ZF-MS<br />
Mounting rails suitable for transducer DUC-WF10, -WP10 (max. DN 400), max.150 °C

<strong>Transmitter Clamp-on Ultrasonic Flow Meter<br />
Model: DUC-MF-2-0-0-S-00<br />
Brand: Kobold (Alemania)</strong><br />
[DUC-MF]: <br />
Operating principle: Ultrasonic<br />
Mounting position: stationary, wallmount<br />
Measuring units: volume flow, flow velocity, thermal output<br />
Counter: heat quantity, volume<br />
Housing: ABS<br />
Additional input for heat measuring: 2x Pt100<br />
Output: 2x4-20 mA, 1(2) pulse, 1x micro-USB, 1 relay; optional RS232/RS485<br />
Measuring channels: 1, optional 2 channels<br />
Protection: IP 65<br />
[2] Measuring channels: 2 channel<br />
[0] Power supply: 90-240 VAC<br />
[0] Ex-approval: without<br />
[S] Language packages: german/spanish/french<br />
[00] Options: without

Low Volume Flowmeter/-switch<br />
Brand: Kobold (Alemania)<br />
Model: KSK-2-025-H-P08-00<br />
[KSK-2]<br />
Operation principle variable area<br />
Mounting position vertical<br />
Flow direction from bottom<br />
Material Polysulfone <br />
Accuracy Class 4<br />
Max. temperature 100 °C*<br />
* with PVC-Connection max. 60 °C<br />
Max. pressure PN 10<br />
Seal EPDM <br />
[025] Measuring range: 2,5...30 L/h water<br />
[H] Scale, L/h waterscale<br />
[P08] Connection for size, PVC G 1/4 female <br />
[00] Option contact, w/o

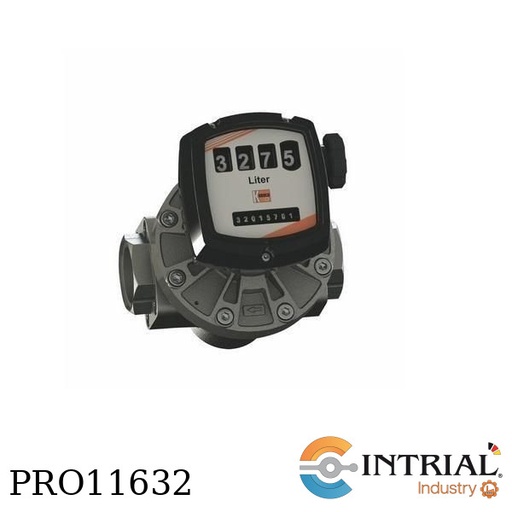

Medidor de Caudal para DIESEL<br />
Temperatura de operación: hasta 80 °C<br />
Material de carcasa: st. steel<br />
Material de rotor: PPS<br />
Rango de operación: 30 a 450 L/min<br />
Conexión mecánica: 2” NPT<br />
Electrónica: Dual LCD totaliser/rate, outputs: pulse, analogue<br />
Sello: FKM

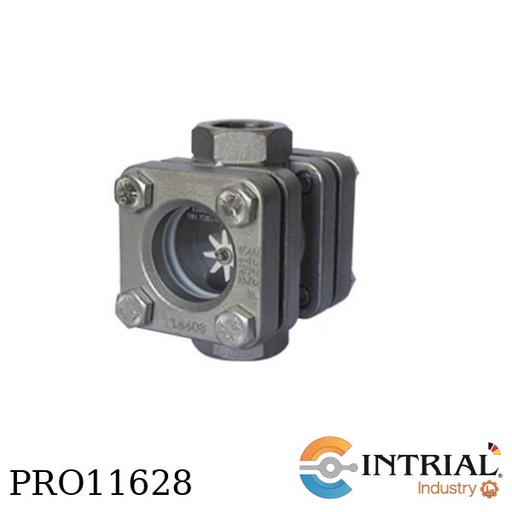

<strong>Flowindicator with Threaded Connection<br />
Brand: Kobold (Alemania)<br />
Model: DAR-1308H-R50-B </strong><br />
[DAR-1]:<br />
Operating principle: Rotor<br />
Mounting position: all directions<br />
Flow direction: in direction of the arrow<br />
Max. temperature: 120 °C (Option B/R: 260 °C)<br />
Max. pressure: 16 bar (Option 25 or 40 bar)<br />
[3]: Housing: Cast steel<br />
[08H]: Nom. diameter, 2"<br />
[R]: Thread: G-thread female<br />
[50]: Connection*, 2"<br />
* acc. to nom. diameter<br />
[B]: Option: 2" borosilicate glass

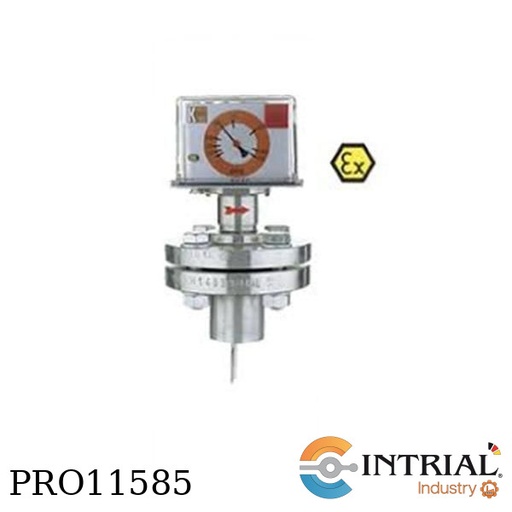

Indicador de Flujo con Interruptor con Paleta y Fuelle<br />
Marca: Kobold<br />
Flow range: 7.2 - 90 m3/h<br />
Material combination: St. Steel / Steel<br />
For pipe corsssection: DN80<br />
Pilot lamp: Without pilot lamp<br />
Direction of flow: Form left to right<br />
Location of Indicator: Above Lead

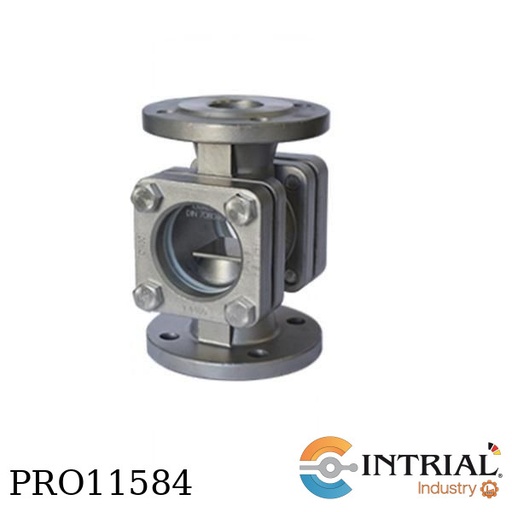

<strong>Flow Indicator with Flap DAK-2<br />
Brand: Kobold (Alemania)<br />
Model: DAK-2-3-08H-F-80</strong><br />
[DAK-2]:<br />
Operating principle, Flap<br />
Mounting position, Horizontal<br />
Flow direction, in direction of the arrow<br />
max. temperature, 150 °C <br />
max. pressure, 16 bar <br />
[3]: Housing, cast steel<br />
[08H]: Nom. diameter, 80<br />
[F]: Flanges, flange acc. EN 1092-1<br />
[80]: Connection: DN 80 / 3"

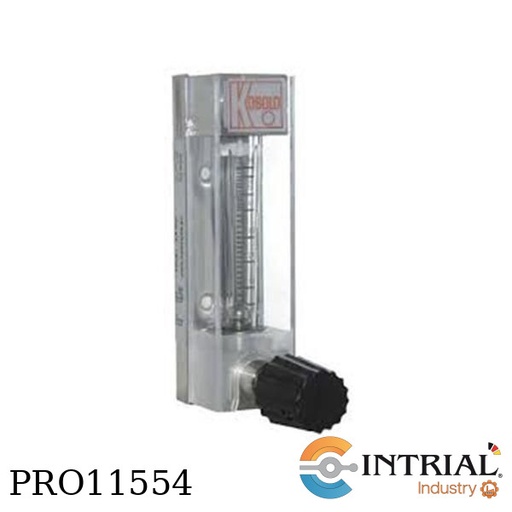

<strong>Low Volume Flowmeter<br />
Model: KDF-22-39-N-V-0-00-0<br />
Brand: Kobold (Alemania)</strong><br />
[KDF-22]:<br />
Mounting length, 125 mm<br />
Operating principle, variable area<br />
Flow direction, from bottom to top<br />
Body material, st.st.<br />
Glass, Borosilicate<br />
Accuracy, class 2.5<br />
Max. temperature without/with contact, 100 °C / 80 °C<br />
Max. pressure, PN 16<br />
[39]: Measuring range, 10...100 L/h water<br />
[N]: Connection, 1/4 NPT<br />
[V]: Seal, FPM<br />
[0]: Panel mounting kit, w/o<br />
[00]: Contacts measuring range, w/o<br />
[0]: Flow differential pressure regulator, w/o

<strong>Multivariable VORTEX Flowmeter<br />
Model: DVH-V-40-2-S-L-L-2-S-0-H</strong><br />
Brand: Kobold - Heinrichs<br />
[DVH] Inline Version<br />
[V] Elektronic - Options: Flow measurement of Liquids, Gases<br />
[40] Flow Body FLANGE, DN 40 ANSI 1½" JIS 40<br />
[2] Pressure rating, Class 300, ASME B16.5-2003<br />
[S] Material Flow Body, Stainless steel 1.4404 (316 L)<br />
[L] Transmitter mounting, Compact (IP 66 / Nema 4X)<br />
[L] Power supply, 12…36V DC , 2-wire (loop-powered) <br />
for output signal: 2<br />
[2] Output Signal, 1x 4-20mA HART,<br />
1x totalizer pulse, only for power supply: L<br />
[S] Process Temperature, Standard, -40….+260°C<br />
[0] Pressure transmitter, w/o Pressure Sensor<br />
for Electronic-Option V / T / E<br />
[H] Version: Heinrichs

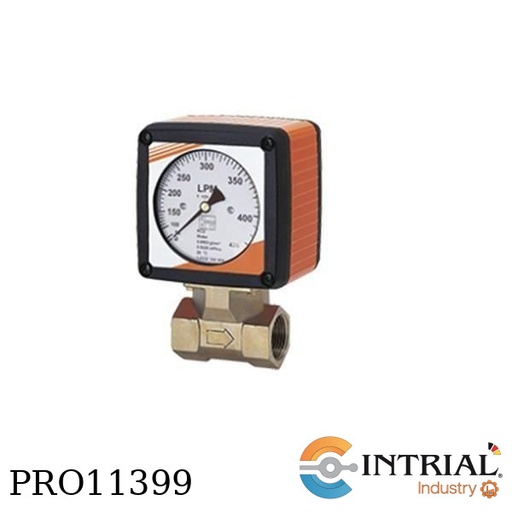

Medidor/Interruptor de Caudal por Presión Diferencial Modelo RCD <br />
Precisión de medición:3% <br />
Temperatura ambiente:máx. 80°C <br />
Presión mínima:0.6 bar <br />
Conexion a Proceso: G 1 ½” <br />
Rango de medicion: 60.0...420 l/h (agua) = 100...630 (Rango de aire1bar abs./20°C[m3N/h])

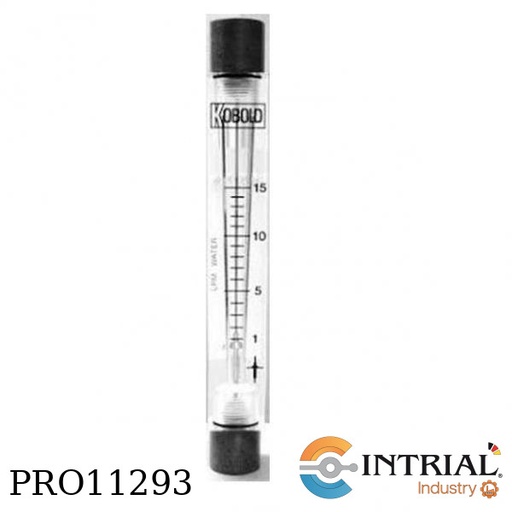

<strong>Low Volume Flowmeter<br />
Brand: Kobold (USA)<br />
Model: KFR-6351-PMV1</strong><br />
[KFR-6351]:<br />
Body Material, Clear Acrylic<br />
Max. Pressure, 100 PSIG<br />
Float Material, SS.<br />
Range, 4 - 50 SCFM <br />
[PMV1]: Panel Mount Version with Rear Inlet/Outlet Fittings and Inlet Needle Valve

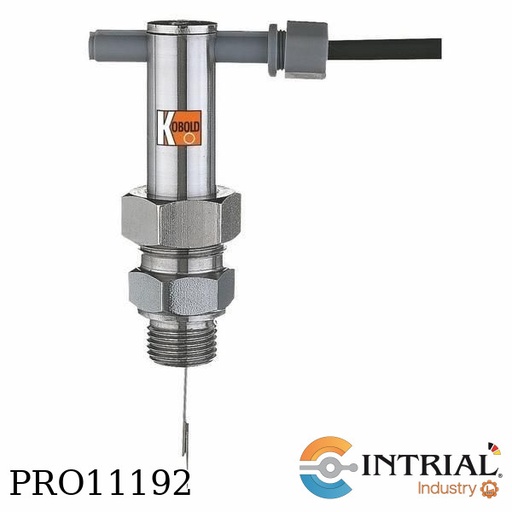

<strong>Paddle Type Flow Switch PSE<br />
MODELO: PSE-12-520-N-15-U-1<br />
[PSE-12] Paddle Type Flow Switch</strong><br />
[520] Measuring range/paddle: Paddle length: 52 mm(58 mm for NPT)<br />
[N] Connection: NPT-thread<br />
[15] Connection: 1/2"<br />
[U] Contact versión: SPDT<br />
[1] Connecting cable: PVC-cable 1.5 m (standard)<br />
Operating principle: paddle<br />
Mounting position: horizontal<br />
Approvals: w/o <br />
Body material: st.st.<br />
max. pressure 250 bar

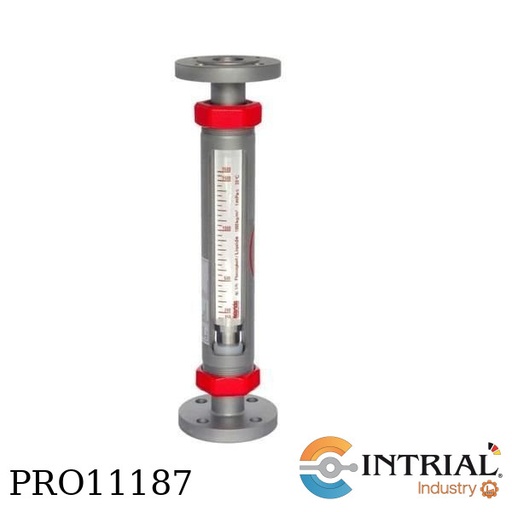

<strong>VARIABLE AREA FLOWMETER<br />
Modelo: V31-320B3S-04-E5W-B-F-S-0-0-4-0-0-0-0-0-K<br />
Marca: Kobold-Heinrichs</strong><br />
Max. 6 bar<br />
Temp. min. -10 °C, max. 80 °C<br />
Accuracy: 1,6% Liquid <br />
320B3S: Flange, DN50 PN10/16 Form B1 EN1092-1, length: 425 mm Material, SS<br />
04: Type of float, Material, Stainless steel 1.4571 - independent of viscosity > 3 mPa.s(cp)<br />
E5W: Measuring range - stainless steel float (guided), H2O: 10.5 a 105 LPM<br />
B: Gasket, EPDM<br />
F: Float-stop, PVDF<br />
S: Union nut, Stainless steel<br />
0: without<br />
0: without<br />
4: Scale, Measuring range-scale (medium)

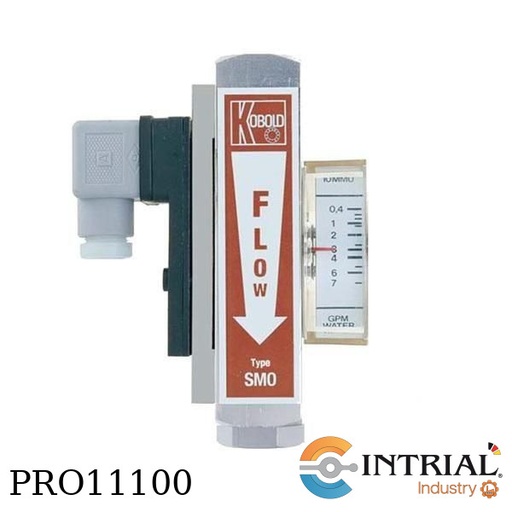

All-Metal Flowmeter and Switch SM Series<br />
Brand: Kobold (USA)<br />
Model: SMO-7110-B<br />
Flowmeter and Switch<br />
1 N/O Contact<br />
Water Scale<br />
Range Water (GPM), 0.2...2.0<br />
Float, AL<br />
Special Conn. (NPT) Suffi x ..B
