<strong>Magnetic Inductive Flow Sensor<br />
Model: PITe-S-A504-013-H-5-0-0-0-K+UMF2-G-1-1-G-0BK-D<br />
Brand: Heinrichs (Germany)</strong><br />
[PITe-S]:<br />
stainless steel (1.4571/1.4404)/PTFE<br />
for pipe sizes DN80..DN400 / 3"…16"<br />
Temperature, Tmax. = 100°C<br />
[A504]: Process connection, Weld on adaptor<br />
Q40 mm with  thread M52x2, union nut with locking device <br />
[013]: Sensor length, 138,5 mm<br />
[H]: Electrode Material, Hastelloy<br />
[5]: Transmitter layout, remote transmitter (UMF2)<br />
Protection class, IP68; grouted junction box on sensor<br />
[0]: Approval, without<br />
[0]: Certificate, w/o<br />
[0]: Supplement Equipment, without<br />
[K]: Version, Kobold<br /><br /><strong>UMF2-G-1-1-G-0BK-D<br />
[UMF2]:Transmitter</strong><br />
[G]: Transmitter layout, remote transmitter IP68<br />
including pipe-/wallmount set<br />
 Power supply cable entry, ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz,<br />
[G]: Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold<br />
[D]: Interconnecting cable, IP68, 15 m<br />
unction box on transmitter

<strong>Plastic Flowmeter/-switch<br />
Model: KSM-2-010-6-P20-R0<br />
Brand: Kobold (Alemania)</strong><br />
[KSM-2]:<br />
Operating principle variable area<br />
Mounting position vertical<br />
Flow direction from bottom<br />
Armature material Polysulfone<br />
Accuracy ±4 % FS<br />
Max. temperature, 100 °C*<br />
* 60 °C c/w PVC-connection<br />
Max. pressure, 16 bar<br />
[010]: Measuring range, 10 to 90 Nm3/h<br />
[6]: scales for air, 6 bar rel.<br />
[P20]: Option connection for size 005, PVC G 3/4 female<br />
[R0]: Option contact; w/o contact

<strong>Plastic Flowmeter/-switch<br />
Model: KSM-2-005-6-P20-R0<br />
Brand: Kobold (Alemania)</strong><br />
[KSM-2]:<br />
Operating principle variable area<br />
Mounting position vertical<br />
Flow direction from bottom<br />
Armature material Polysulfone<br />
Accuracy ±4 % FS<br />
Max. temperature, 100 °C*<br />
* 60 °C c/w PVC-connection<br />
Max. pressure, 16 bar<br />
[005]: Measuring range, 6 to 45 Nm3/h<br />
[6]: scales for air, 6 bar rel.<br />
[P20]: Option connection for size 005, PVC G 3/4 female<br />
[R0]: Option contact; w/o contact

<strong>Oval Gear Flow Meter/Counter<br />
Model: DON-1-25H-N6-1-RE-N-0<br />
Brand: Kobold (Alemania)</strong><br />
[DON-1]:<br />
Operating principle, Gear Wheel<br />
Mounting position, horizontal / vertical<br />
Flow direction, in direction of the arrow<br />
max. temperature, 120°C (80°C for electronic Z,L,M)<br />
max. pressure, 16...64 bar<br />
Accuracy, ±0,2 % …1 % of reading<br />
Housing material, Aluminium<br />
Rotor material, PPS<br />
[25H]: Measuring range, 10-150 L/min<br />
[N6]: Mech. connection, NPT 1"<br />
[1]: Seal, FKM up to DON-x25<br />
[RE]: Electronic: Pulse output / Reed switch with ATEX approval (Exd)<br />
[N]: Cable entry, 1/2 NPT<br />
[0]: Options (please specify in clear text): without

<strong>Wall thickness gauge (Universal)</strong><br /><strong>Model: DUC-ZUWD<br />
Brand: Kobold (Alemania)</strong><br />
Measuring principle, ultrasonic transit time<br />
measuring range, 0.75 - 80 mm (steel)<br />
Accuracy, ±(0.5% of thickness+0.04 mm)<br />
Operating temperature, -20...70 °C<br />
ultrasonic transducers, 7 MHz

<strong>Transmitter Clamp-on Ultrasonic Flow Meter <br />
Model: DUC-MF-1-0-0-S-00+DUC-WF-05-0-20+DUC-ZF-05+DUC-ZF-BE<br />
Brand: Kobold (Alemania)</strong><br />
[DUC-MF]: <br />
Operating principle ,Ultrasonic<br />
Mounting version, stationary, wallmount<br />
Measuring units, volume flow, flow velocity, thermal output<br />
Counter,  heat quantity, volume<br />
Housing, ABS<br />
Additional input for heat measuring: 2x Pt100<br />
Output: 2x4-20 mA, 1(2) pulse, 1x micro-USB,<br />
1 relay; optional RS232/RS485<br />
Measuring channels: 1, optional 2 channels<br />
Protection: IP 65<br />
[1] Measuring channels: 1 channel<br />
[0] Power supply: 90-240 VAC<br />
[0] Ex-approval: without<br />
[S] Language packages: german/spanish/french<br />
[00] Options: without<br /><br /><strong>Include:<br />
Transducer Clamp-on Ultrasonic Flow Meter<br />
Model: DUC-WF-05-0-20</strong><br />
[DUC-WF]:<br />
Application area for stationary<br />
flow velocity 0..2 m/s, 2-30 m/s<br />
Temperature range (-40..+100°C)<br />
Sensor Housing PEEK/aluminium<br />
Protection IP 68 (for stationary transducer)<br />
Included Accessories Mounting rail, coupling foil, steel strap<br />
[05]: for tube diameter, DN200..DN6000, 0,5 MHz<br />
[0]: Ex-approval¸ without<br />
[20]: Cable length, 20 m<br /><br /><strong>Accessories for DUC<br />
Model: DUC-ZF-05</strong><br />
[DUC-ZF]: Application area for stationary<br />
[05]: coupling foil 1 pair for DUC-WF05<br /><br /><strong>Accessories for DUC<br />
Model: DUC-ZF-BE</strong><br />
[DUC-ZF]: Application area for stationary<br />
[BE]: stainless steel strap (1 pair) suitable<br />
for ultrasonic transducer DUC-WF 05

<strong>Accessories for DUC<br />
Model: DUC-ZF-BE<br />
Brand: Kobold (Alemania)</strong><br />
[DUC-ZF]: Application area for stationary<br />
[BE]: stainless steel strap (1 pair) suitable <br />
         for ultrasonic transducer DUC-WF 05

<strong>Accessories for DUC<br />
Model: DUC-ZF-05<br />
Brand: Kobold (Alemania)</strong><br />
[DUC-ZF]: Application area for stationary<br />
[05]: coupling foil 1 pair for DUC-WF05

<strong>EPS Electromagnetic Flow Meter<br />
Model: EPS-H-384B-1-S-S-2-0+UMF2-C-1-1-G-0BH-1<br />
Brand: Heinrichs (Alemania)</strong><br />
[EPS-H]: Sensor<br />
Material Lining, Hard Rubber (Ebonit)<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes, 0°C…+95°C<br />
[384B]: Process connection, DN600 PN10 Form B1 DIN EN 1092-1<br />
Max. measuring range, 9566 m³/h, Installation length, 600 mm.<br />
[1]: Material Process connection, Flange steel painted<br />
[S]: Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S]: Earthing electrode, st.st. 1.4571 (316 TI)<br />
[2]: Transmitter mounting, Remote Transmitter<br />
Protection class, sensor, IP 67 terminal conn.box via M 20x1<br />
cable > 10m add. term.conn.box on transmitter<br />
[0]: Certificates, w/o<br /><br /><strong>UMF2-C-1-1-G-0BH-1<br />
[UMF2]: Transmitter</strong><br />
[C]: Mounting, IP67; Remote transmitter<br />
incl 2,5 m cable, c/w pipe-/wall mounting bracket<br />
cable > 10m add. term.conn.box on transmitter, ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G]: Output Signal: <br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BH]: Design, Heinrichs<br />
[1]: Longer cable, 5m, breakout cable

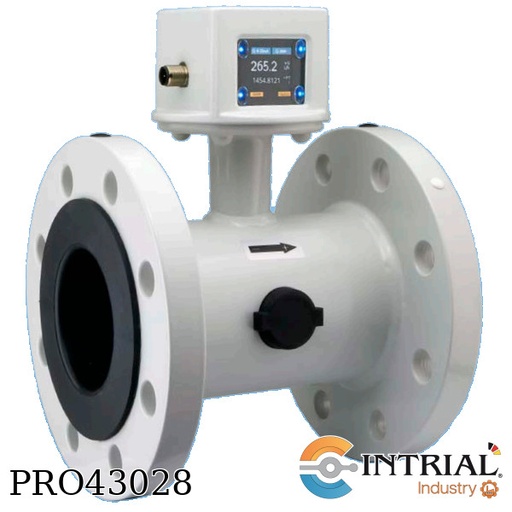

<strong>Compact Magnetic Inductive Flow Meter<br />
Model: MIS-H-345B-1-HH-100<br />
Brand: Kobold (Alemania)</strong><br />
[MIS]:<br />
MIS Operating principle Magnetic Inductive<br />
Mounting position all directions, display rotatable<br />
Display: TFT-display, 128 x 128 color pixel,<br />
1,4", rotatable in 90° steps,<br />
2 indications free assignable<br />
Functions/output:<br />
Pulse, Frequency, Analogue Output<br />
Alarm function, IO-link<br />
dosing and counter function<br />
Material electronic housing Aluminium coated, display window PMMA<br />
Accuracy ±(0.8% of meas.value +0,5% of FS)<br />
Max. Viscosity 70 mm²/s<br />
Min. conductivity >20 μS/cm<br />
Power supply 19 - 30 VDC<br />
Max. temperature (ambient) -10°C …+60°C<br />
Max. temperature (medium) -10°C…+70°C<br />
Max. pressure PN 16<br />
Protection IP 67<br />
[H]: Material Lining, Hard rubber (NBR)<br />
[345B]: Flange size, DIN EN 1092-1, DN 150 PN 16; max. 632 m³/h<br />
[1]: Material Process Connection, steel, coated<br />
[HH]: Measuring and Grounding electrodes, Hastelloy C-276<br />
[100]: Transmitter Mounting, direct mounted

<strong>Thermal Mass Flow Meter for gases<br />
Model: MAS-31-04-C1-V2-A<br />
Brand: Kobold (Alemania)</strong><br />
[MAS-31]: <br />
Operating principle: thermal, Bypass<br />
Mounting position: all directions<br />
Indication: LCD+Counter<br />
Max. Temperatura: 50 °C<br />
Max. Pressure: 35 bar<br />
Design: st.st.<br />
[04] Measuring range: 0-100 cm³N/min N2<br />
[C1] Connection: Swagelok 1/8" (max. 5 LN/min)<br />
[V2] Power supply: 24 VDC<br />
[A] Output: 4-20 mA

<strong>Thermal Mass Flow Meter for gases<br />
Model: MAS-31-15-C3-V2-A<br />
Brand: Kobold (Alemania)</strong><br />
[MAS-31]: <br />
Operating principle: thermal, Bypass<br />
Mounting position: all directions<br />
Indication: LCD+Counter<br />
Max. Temperatura: 50 °C<br />
Max. Pressure: 35 bar<br />
Design: st.st.<br />
[15] Measuring range: M-body 0-100 LN/min N2<br />
[C3] Connection: Swagelok 3/8" (max. 300 LN/min)<br />
[V2] Power supply: 24 VDC<br />
[A] Output: 4-20 mA

<strong>Digital Thermal Mass Flow Meter and Controller<br />
Model: DMS-2-13-N2-F-D2-3-L<br />
Brand: Kobold (Alemania)</strong><br />
[DMS-2]:<br />
Operating principle, thermal<br />
Mounting position, all directions<br />
Indication LC-Display (Option)<br />
Output 4-20 mA + 0-5/0-10/1-5V<br />
max. temperature 50 °C<br />
max. pressure 35 bar<br />
Design Meter, M-Body<br />
[13]: Measuring range (air), 0-100 LN/min<br />
[N2]: Connection, 1/4 FNPT (up to 185 L/min)<br />
[F]: Seal, FPM<br />
[D2]: Display, with Display<br />
[3]:Electrical connection, 24 VDC / plug connection incl. 3 m cable.<br />
[L]: Options, w/o.

<strong>EPS Electromagnetic Flow Meter<br />
Brand: Heinrich (Alemania)<br />
Model: EPS-H-384B-1-S-S-1-0+UMF2-A-1-1-G-0BH</strong><br />
[EPS-H]: Sensor<br />
Material Lining, Hard Rubber (Ebonit)<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes, 0°C…+95°C<br />
[384B]: Process connection, DN600 PN10 Form B1 DIN EN 1092-1<br />
Max. measuring range, 9566 m³/h, Installation length, 600 mm.<br />
[1]: Material Process connection, Flange steel painted<br />
[S]: Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S]: Earthing electrode, st.st. 1.4571 (316 TI)<br />
[1]: Transmitter mounting, Integrated transmitter<br />
Protection class, sensor IP 67<br />
[0]: Certificates, w/o<br /><br /><strong>UMF2-A-1-1-G-0BH<br />
[UMF2]: Transmitter</strong><br />
[A]: Mounting, IP67<br />
Integrated transmitter IP 67 standard<br />
term.conn.box on transmitter ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G]: Output Signal: <br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BH]: Design, Heinrichs

<strong>EPS Electromagnetic Flow Meter<br />
Brand: Heinrichs (Alemania)<br />
Model: EPS-H-335B-1-H-H-3-0+UMF2-G-1-1-G-0BK-D</strong><br />
[EPS]: Sensor<br />
[H]: Material – lining, Hard Rubber (Ebonit) <br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes<br />
Process-Temperature, 0°C…+95°C<br />
[335B]: Process Connection, DN100 PN16 Form B1 DIN EN 1092-1<br />
Max. measuring range (Water 20°C, 1 mPas), 274 m³/h<br />
Installation length, 250 mm<br />
[1]: Material Process connection, Flange steel painted<br />
[H]: Material electrodes, Hastelloy C276<br />
[H]: Earthing electrode, Hastelloy<br />
[3]: Transmitter mounting, Remote Transmitter<br />
Protection class sensor, IP 68, term.conn.box via M 20 x 1,5, encapsulate,<br />
add. term.conn.box on transmitter<br />
[0]: Certificates, w/o<br /><br /><strong>UMF2-G-1-1-G-0BK-D<br />
[UMF2] Transmitter</strong><br />
[G] Mounting, remote transmitter, IP 68<br />
Connection to sensor, incl 2,5 m cable, c/w pipe-/wall mounting bracket<br />
Thread - electrical connection, transmitter c/w term.conn.box; M20 x 1,5<br />
[1] Display and control unit, integrated<br />
[1] Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G] Output signal, current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK] Design, Kobold<br />
[D]: Longer cable, 15 m; add junction box to transmitter

<strong>Compact Magnetic Inductive Flow Meter<br />
Model: MIK-5VA-08-E-L343<br />
Brand: Kobold (Alemania)</strong><br />
[MIK-5VA]:<br />
Operating principle Magnetic Inductive<br />
Mounting position all directions<br />
Max. temperature/pressure 80 °C / 10 bar<br />
Protection IP 65<br />
Housing PPS<br />
Electrodes St. st.<br />
Seal FPM<br />
[08]: Measuring range (liquid >30 µS/cm), 10…500 mL/min; G 1/2 male<br />
[E]: Connection set, st.st. weld-on ends: G ½ -  Ø5/10,2 mm<br />
[L343]: Evaluation electronic for MIK, Analogue output, 24 VDC, 4-20 mA, plug M12, 3-wire

<strong>Variable Area Flowmeter/-switch<br />
Model: DSV-2104H-R0-N15<br />
Brand: Kobold (Alemania)</strong><br />
[DSV-21]:<br />
Operating Principle: Variable Area<br />
Mounting Position: Vertical<br />
Flow Direction: From Bottom<br />
Fitting Material: Brass<br />
Sight Glass: Borosilicate<br />
Accuracy: ±4 % FS<br />
Max. temperature: 100 °C (metal-float)<br />
70 °C (plastic-float)<br />
Max. pressure: 10 bar<br />
[04H]: Measuring Range l/min Water: 1...10 l/min<br />
[R0]: Contact: 1 N/O<br />
[N15]: Connection measuring range, 1/2 NPT female (up to 18 L/min)

<strong>Viscosity Compensated Flowmeter /-switch<br />
Model: VKM-81-12-C4P-N25-0-B+ZUB-KAB-12-K502<br />
Brand: Kobold (Alemania)</strong><br />
[VKM-81]:<br />
Operating principle, variable area<br />
Mounting position, all directions<br />
Flow direction, in direction of the arrow<br />
Body material, Brass<br />
Seal, NBR<br />
Accuracy ±4 % FS (at 105 mm²/s)<br />
Max. temperature 100 °C<br />
Max. pressure 250 bar<br />
Viscosity range 1...540 mm²/s<br />
[12]: Measuring range, 8...72 L/min oil<br />
[C4P]: Output/Indicator, Compact electr. 24 VDC, 4-20 mA, 1xPNP<br />
[N25]: Connection, 1 NPT female<br />
[0]: Option special connection, w/o<br />
[B]: Flow direction, from bottom<br /><br /><strong>Include:<br />
Accessories round plug<br />
Model: ZUB-KAB-12-K502</strong><br />
Version: M12x1 box 2 m cable, 5-pin

<strong>Viscosity Compensated Flowmeter /-switch<br />
Model: VKM-81-07-C4P-N15-0-B+ZUB-KAB-12-K502<br />
Brand: Kobold (Alemania)</strong><br />
[VKM-81]:<br />
Operating principle, variable area<br />
Mounting position, all directions<br />
Flow direction, in direction of the arrow<br />
Body material, Brass<br />
Seal, NBR<br />
Accuracy ±4 % FS (at 105 mm²/s)<br />
Max. temperature 100 °C<br />
Max. pressure 250 bar<br />
Viscosity range 1...540 mm²/s<br />
[07]: Measuring range, 4...12,6 L/min oil<br />
[C4P]: Output/Indicator, Compact electr. 24 VDC, 4-20 mA, 1xPNP<br />
[N15]: Connection, 1/2 NPT female<br />
[0]: Option special connection, w/o<br />
[B]: Flow direction, from bottom<br /><br /><strong>Include:<br />
Accessories round plug<br />
Model: ZUB-KAB-12-K502</strong><br />
Version: M12x1 box 2 m cable, 5-pin

<strong>Oval Gear Flow Meter/Counter<br />
Model: DON-2-60H-AC-1-Z3-N-0<br />
Brand: Kobold (Alemania)</strong><br />
[DON-2]<br />
Operating principle Gear Wheel<br />
Mounting position horizontal / vertical<br />
Flow direction in direction of the arrow<br />
max. temperature 120 °C *<br />
max. pressure 16...100 bar<br />
Accuracy ±0,2 % …1 % of reading<br />
Housing material, st. steel<br />
Rotor material, st. steel<br />
[60H]: Measuring range, 150-2500 L/min<br />
[AC]: Mech. connection, ANSI flange 4" 150 lbs<br />
[1]: Seal, FKM for DON-x60<br />
[Z3]: Electronic, dual LCD totaliser/rate, outputs: pulse, analogue<br />
[N]: Cable entry, 1/2 NPT<br />
[0]: Options (please specify in clear text), without<br />
*Not Include Battery
