<strong>Coriolis Massflowmeter<br />
Brand: Kobold - Heinrichs (Alemania)<br />
Model: TMU-S-025-205R- A00F-L100H</strong><br />
[TMU-S] Wetted materials: Stainless steel<br />
[025] Meter line size, DN25, ANSI 1"<br />
Range: min. 3.000 kg/h - max. 30.000 kg/h<br />
[205R] Process connection, 1½" Class 150 RF ASME B16.5-2003<br />
Installation length, 670 mm<br />
[A] Containment options, Stainless steel containment 1.4301 (304)<br />
[0] Heating / cooling, None<br />
[0] Connection for heating / cooling, None<br />
[F] Sensor configuration, Remote mount transmitter<br />
Process temperature -40° to 212°F, -40° to 100°C<br />
Sensor Cable Terminal block via M20x1,5  IP 66<br />
[L] Approvals, ATEX / IECEx II 1/2G Ex ia IIC T6 - T2 Ga/Gb<br />
[1] Calibration flow, Standard, 3-point<br />
[0] Calibration density, None<br />
[0] Supplementary equipment, None<br />
[H] Desing Henrich<br />
<br />
Model: UMC4-D12A21<br />
[D] Mounting, Remote mount / terminal connection box, mounted<br />
Conduit port opening, M20 x 1,5 Cable length 5 m<br />
[1] Display / Interface board:<br />
Integral within transmitter housing, for ambient temperature up to 60°C<br />
[2] Power supply,19 - 36V DC, 24V AC (±20%), 50/60Hz<br />
[A] Outputs:<br />
Analog output 1: 4 - 20mA with HART®<br />
Analog output 2: 4 - 20mA<br />
Pulse output: passive Um=30V DC<br />
Status output: passive Um=30V DC<br />
[2] Approvals, II(1)2G Ex d [ia Ga] IIC T3-T4 Gb (terminal compartment Ex d),<br />
ambient to 60° C<br />
[1] Type of protection (signal output), Ex [ia Ga] intrinsically safe<br />
<br />
<br />
<br />


Compact Magnetic Inductive Flow Meter<br />
Model: MIM-1-2-10HG5-C3T-K<br />
Brand: Kobold (Alemania)<br />
[MIM-1]<br />
Operating principle, Magnetic Inductive<br />
Mounting position, all directions, display rotatable<br />
Display:<br />
TFT-display, 128 x 128 color pixel,<br />
1,4", rotatable in 90° steps,<br />
2 indications free assignable<br />
Integrated temperature sensor, Pt 1000<br />
Material housing / insulation part, see below<br />
Accuracy, ±(0.8% of meas.value +0,5% of FS)<br />
Max. Viskosity, 70 mm²/s<br />
Min. conductivity, >20 µS/cm<br />
Power supply, 19 - 30 VDC<br />
Ambient temperature: -20 °C … +60 °C<br />
Max. temperature (medium): -20°C..+70°C (compact)<br />
Max. pressure, PN 16<br />
Protection, IP 67<br />
[2] Material housing / insulation part / sealingt, st. steel 1.4404 / PEEK / FKM<br />
[10HG5] Measuring range (flow/temperature), 0,1…25 L/min / [°C]; G ¾ male<br />
[C3T] Evaluation electronic:<br />
Analogue output: 0(4)-20 mA, 0-10 V,<br />
Switching output NPN, PNP, PushPull,<br />
Frequency output, pulse output,<br />
Part- or grand totaliser.<br />
[K] Options, with calibration report according to the following line item<br />
<br />
Flow direction: From Left to Right.<br />
<br />
MIM Fitting Sets Accessory Kits<br />
Model: ZUB-AD2G20N20<br />
Meter connection: G 3/4 female<br />
Process connection: 3/4" NPT female<br />
Fitting set type: Adapter<br />
<br />
Calibration Certificate<br />
Brand: Kobold (Alemania)<br />
Model: DOK-FM-05<br />
[DOK-FM]:<br />
Department: production F3-MIM<br />
[05]: Measurement report for water -devices 5 measurement points

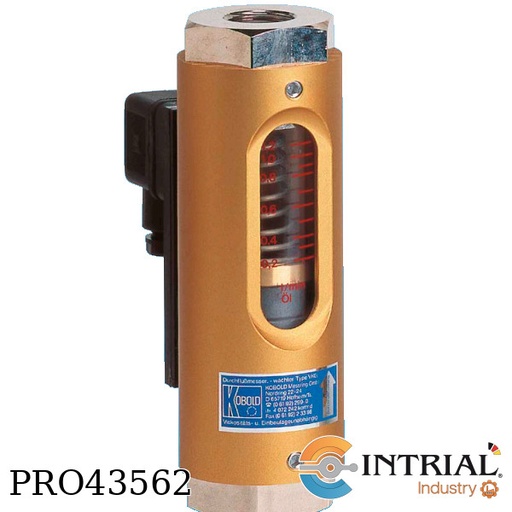

Viscosity Compensated Flowmeter/-switch<br />
Brand: Kobold(Alemania)<br />
Model: VKG-21-03-D0-R15<br />
Operating principle variable area<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Body material Brass<br />
Seal NBR<br />
Sight glass Duran<br />
Side mounted dial w/o<br />
Switch point adjustable<br />
Accuracy ±4 % FS (at 105 mm²/s)<br />
Max. temperature 100 °C<br />
Max. pressure 12 bar<br />
Viscosity range 1...540 mm²/s<br />
[03] Measuring range; 0,4...2 L/min oil<br />
[D0] Contact; 1 SPDT (cCSAus)<br />
[R15] Connection; G 1/2 female

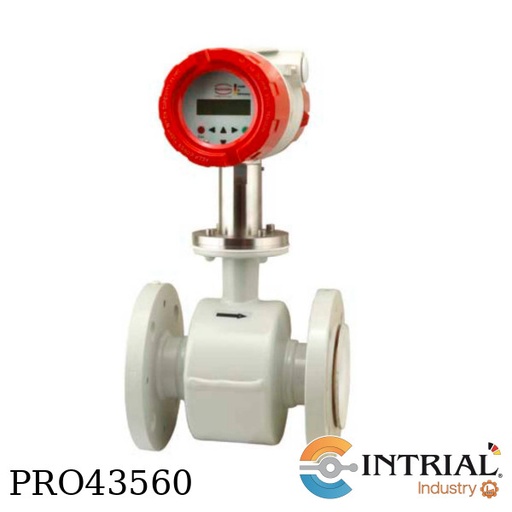

EPS Electromagnetic Flow Meter<br />
Brand: KOBOLD <br />
Model:  EPS-H-376B-1-S-S-1-0 <br />
[H] Material Lining; Hard Rubber (Ebonit)<br />
Electrodes; Standard 2x Measuring- + 2x Groundelectrodes<br />
Process-Temperature; 0°C…+95°C<br />
[376B] Process connection; DN400 PN16 Form B1 DIN EN 1092-1<br />
Max. measuring range (Water 20°C, 1 mPas); 4191 m³/h<br />
Installation length; 600 mm<br />
[1] Material Process connection; Flange steel painted<br />
[S] Material electrodes; st.st. 1.4571 (316 -TI) <br />
[S] Earthing electrode; st.st. 1.4571 (316 TI)<br />
[1] Transmitter mounting; Integrated transmitter<br />
Protection class, sensor; IP67 <br />
[0] Certificates; w/o<br /><br />
Model: UMF2-A-1-1-G-0BK<br />
[UMF2]:Transmitter<br />
[A]: Mounting, Integrated transmitter IP 67 standard<br />
Thread - electrical connection, ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G]: Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold

EPS Electromagnetic Flow Meter<br />
Brand: KOBOLD <br />
Model: EPS-H-363B-1-S-S-1-0<br />
[H] Material Lining; Hard Rubber (Ebonit)<br />
Electrodes; Standard 2x Measuring- + 2x Groundelectrodes<br />
Process-Temperature; 0°C…+95°C<br />
[363B] Process connection; DN300 PN16 Form B1 DIN EN 1092-1<br />
Max. measuring range (Water 20°C, 1 mPas); 2560 m³/h<br />
Installation length; 500 mm<br />
[1] Material Process connection; Flange steel painted<br />
[S] Material electrodes; st.st. 1.4571 (316 -TI) <br />
[S] Earthing electrode; st.st. 1.4571 (316 TI)<br />
[1] Transmitter mounting; Integrated transmitter<br />
Protection class, sensor; IP67 <br />
[0] Certificates; w/o<br />
<br />
Model: UMF2-A-1-1-G-0BK<br />
[UMF2]:Transmitter<br />
[A]: Mounting, Integrated transmitter IP 67 standard<br />
Thread - electrical connection, ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G]: Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold

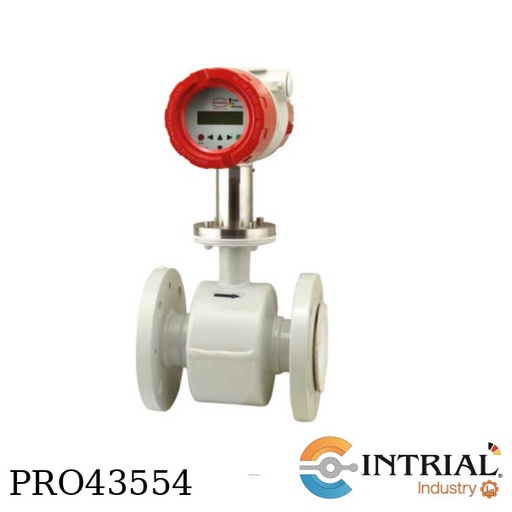

<strong>EPS Electromagnetic Flow Meter<br />
Brand: Heinrichs (Alemania)<br />
Model: EPS-P-210R-1-H-0-1-0+UMF2-A-1-1-G-0BK</strong><br />
[EPS-P]: Sensor<br />
Material Lining, PTFE<br />
Electrodes, Standard 2x Measuring Electrodes, -20°C...150°C<br />
[210R]: Process connection, 4" Class 150 RF ASME B16.5-2003<br />
Max. measuring range 274 m³/h, length, Installation 250 mm<br />
[1]: Material Process connection, Flange steel painted<br />
[H]:Material electrodes, Hastelloy C276<br />
[0]: Earthing electrode, w/o<br />
[1]: Transmitter mounting, Integrated transmitter<br />
Protection class, sensor IP 67<br />
[0]:Certificates, w/o<br />
<br />
[UMF2]: Transmitter<br />
[A]: Mounting, Integrated transmitter IP 67 standard<br />
Thread - electrical connection, ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G]: Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocol<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold

<strong>EPS Electromagnetic Flow Meter<br />
Model: EPS-H-212R-1-S-S-1-0<br />
Brand: Kobold-Heinrich</strong><br />
[EPS] Sensor<br />
[H] Material Lining, Hard Rubber (Ebonit), Standard 2x Measuring Electrodes,<br />
Process-Temperature, 0°C…+95°C<br />
[212R] Process connection, 6" Class 150 RF ASME B16.5-2003<br />
Max. measuring range, 632 m³/h, Installation length, 300 mm.<br />
[1] Material Process connection, Flange steel painted<br />
[S] Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S] Earthing electrode, st.st. 1.4571 (316 -TI)<br />
[1] Transmitter mounting, Integrated transmitter<br />
Protection class, sensor IP 67<br />
[0] Certificates, w/o<br /><br /><br />
[UMF2] Transmitter<br />
[A] Mounting, Integrated transmitter IP 67 standard<br />
Thread - electrical connection, ½" NPT (f)<br />
[1] Display and control unit, integrated<br />
[1] Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G] Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK] Design, kobold

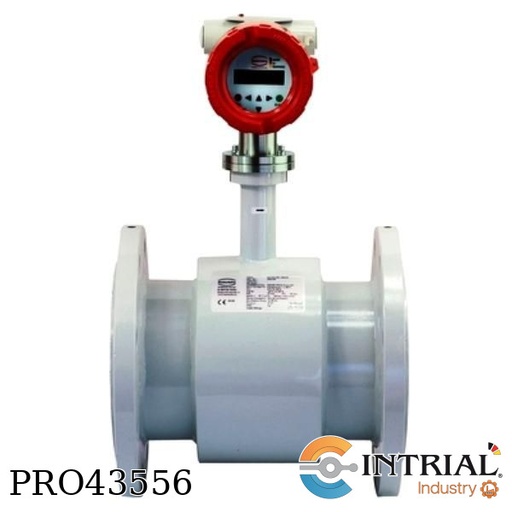

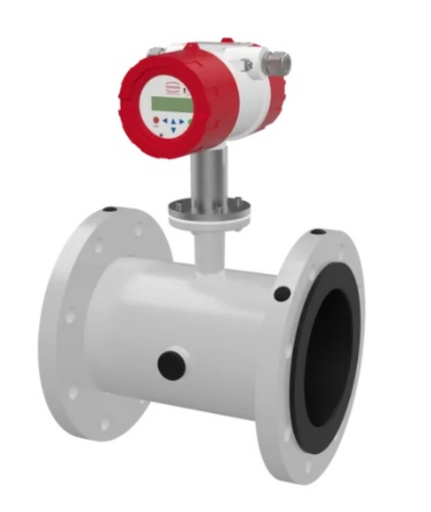

<strong>EPS Electromagnetic Flow Meter<br />
Brand: Heinrich (Alemania)<br />
Model: EPS-H-213R-1-S-S-1-0+UMF2-A-1-1-G-0BK</strong><br />
[EPS]: Sensor<br />
[H]: Material Lining, Hard Rubber (Ebonit)<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes, 0°C…+95°C<br />
[213R]: Process connection, 8" Class 150 RF ASME B16.5-2003,<br />
Max. measuring range, 1110 m³/h, Installation length, 350 mm.<br />
[1]: Material Process connection, Flange steel painted<br />
[S]: Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S]: Earthing electrode, st.st. 1.4571 (316 TI)<br />
[1]: Transmitter mounting, Integrated transmitter<br />
Protection class, sensor, IP67<br />
[0]: Certificates, w/o<br />
<br />
[UMF2]: Transmitter<br />
[A]: Mounting, Integrated transmitter IP 67 standard<br />
Thread-electrical connection ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G]: Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocol<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold<br />
[0BK]: Design, Kobold

EPS Electromagnetic Flow Meter<br />
Brand: KOBOLD (Heinrichs)<br />
Model: EPS-H-214R-1-S-S-1-0<br />
[EPS]: Sensor Model<br />
[H]: Material Lining, Hard Rubber (Ebonite),<br />
Electrodes, Standard 2x Measuring- + 2x Ground electrodes, 0°C...95°C<br />
[214R]:Process connection, 10" Class 150 RF ASME B16.5-2003<br />
Max. Proc measuring range (Water 20°C, 1 mPas), 1786 m³/h<br />
Installation length, 450 mm<br />
[1]: Material Process connection, Flange steel painted<br />
[S]: Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S]: Earthing electrode, st.st. 1.4571 (316 TI)<br />
[1]: Transmitter mounting, Integrated transmitter<br />
Protection class, sensor, IP 67<br />
[0]:Certificates, w/o<br />
<br />
Include<br />
TRANSMITTER<br />
Brand: KOBOLD (Alemania)<br />
Model: UMF2-A-1-1-G-0BK<br />
[A]: Mounting, Integrated transmitter IP 67 standard<br />
Thread - electrical connection, Electrical connection, ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G]: Output:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold

<strong>Compact Magnetic Inductive Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: MIM-1-3-15HG6-C3T-0</strong><br />
[MIM-1]<br />
Operating principle, Magnetic Inductive<br />
Mounting position, all directions, display rotatable<br />
Display:<br />
TFT-display, 128 x 128 color pixel,<br />
1,4", rotatable in 90° steps,<br />
2 outputs free assignable<br />
Integrated temperature sensor, Pt 1000<br />
Material housing / insulation part, see below<br />
Accuracy, ±(0.8% of meas.value +0,5% of FS)<br />
Min. conductivity >20 µS/cm<br />
Power supply, 19 - 30 VDC<br />
Ambient temperature: -20 °C … +60 °C<br />
Max. temperature (medium): -20°C..+70°C (compact)<br />
Max. pressure, PN 16<br />
Protection, IP 67<br />
[3] Material housing / insulation part / sealingt, st. steel 1.4404 / PEEK / EPDM<br />
[15HG6] Measuring range (flow/temperature), 0,2…50 L/min / [°C], G1 male<br />
[C3T] Evaluation electronic:<br />
Analogue output: 0(4)-20 mA, 0-10 V,<br />
Switching output NPN, PNP, PushPull,<br />
Frequency output, pulse output<br />
Part- or grand totaliser<br />
[0] Options, without<br />
<br />
Accessories Round Plug<br />
Brand: Kobold (Alemania)<br />
Model: ZUB-KAB-12-K005<br />
[ZUB-KAB-12]<br />
[K005]: Version: M12x1 socket with 5 m cable, 4 pins

<strong>Compact Magnetic Inductive Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: MIM-1-3-35HG9-C3T-0</strong><br />
[MIM-1]<br />
Operating principle, Magnetic Inductive<br />
Mounting position, all directions, display rotatable<br />
Display:<br />
TFT-display, 128 x 128 color pixel,<br />
1,4", rotatable in 90° steps,<br />
2 indications free assignable<br />
Integrated temperature sensor, Pt 1000<br />
Material housing/insulation part, see below<br />
Accuracy, ±(0.8% of meas.value +0,5% of FS)<br />
Max. Viscosity, 70 mm²/s<br />
Min. conductivity, >20 μS/cm<br />
Power supply, 19 - 30 VDC<br />
Ambient temperature: -20 °C … +60 °C<br />
Max. temperature (medium): -20°C..+70°C (compact)<br />
Max. pressure, PN 16<br />
Protection, IP 67<br />
[3] Material housing / insulation part / sealingt, st. steel 1.4404 / PEEK / EPDM<br />
[35HG9] Measuring range (flow/temperature), 1,5…350 L/min. / [°C] G 2 male<br />
[C3T] Evaluation electronic:<br />
Analogue output: 0(4)-20 mA, 0-10 V,<br />
Switching output NPN, PNP, PushPull,<br />
Frequency output, pulse output,<br />
Part- or grand totaliser.<br />
[0]: Options, without<br /><br />
Accessories Round Plug<br />
Brand: Kobold (Alemania)<br />
Model: ZUB-KAB-12-K005<br />
[ZUB-KAB-12]<br />
[K005]: Version: M12x1 socket with 5 m cable, 4 pins

All-Metal Variable Area Flowmeter BGN<br />
Brand: Kobold – Heinrichs (Alemania)<br />
Model: BGN-S25-309B-Q-0-S-0-0-S-5-0-0-H<br />
[S25] Stainless Steel, process temperature ≤ 350°C<br />
[309B] Connection, size; DN25 PN40 Form B1 DIN EN 1092-1<br />
[Q] Range (water 20°C, 1 mPas); 400 - 4000 l/h<br />
[0] Heating / cooling; without heating / Cooling<br />
[S] Damping/spring stop, Gas damping, and spring stop<br />
[0] Self-draining, without<br />
[0] Certificates, without<br />
[S] Display, dard display housing,, Process temperature ≤ 150°C for electrical output, Process temperature ≤ 200°C for local indication<br />
[5] Scale, Measuring range-Scale (Media)<br />
[0] Switches, without - Ambient temperature, -40° to +80°C<br />
[0] Accessories, without<br />
[H] Design, Heinrichs

<strong>Variable Area Flowmeter<br />
Brand: Heinrichs (Kobold Group)<br />
Model: V31-60301S-05-C7L-B-F-A-0-0-4-0-0-0-0-0-0-0-K</strong><br />
[V31]: Model<br />
[60301S] Thread, NPT ½"(F), Length 375 mm,<br />
Connection-wetted parts, Stainless steel<br />
[05] Type of float, Material, PVDF<br />
[C7L] Measuring Range: 1.7 a 17 Nm3/h<br />
[B] Gasket, EPDM<br />
[F] Float – stop, PVDF, without guide<br />
[A] Union nut,  Aluminium lacquered<br />
[0] Shatter protection max. 80°C, without<br />
[0] Electrical output, without<br />
[4] Scale, Measuring range-scale (Medium)<br />
[0] Approvals, without<br />
[0] Calibration certificate, without<br />
[0] Cleaning according works standard, without<br />
[0] Pressure / leakage test, without<br />
[0] Approvals, without<br />
[0] Marking, without<br />
[0] Accessories, without<br />
[K] Make, Kobold

<strong>Variable Area Flowmeter<br />
Brand: Heinrichs (Kobold Group)<br />
Model: V31-60301S-05-C7L-B-F-S-0-0-4-0-0-0-0-0-0-0-K</strong><br />
[V31]: Model<br />
[60301S] Thread, NPT ½"(F), Length 375 mm,<br />
Connection-wetted parts, Stainless steel<br />
[05] Type of float, Material, PVDF<br />
[C7L] Measuring Range: 1.7 a 17 Nm3/h<br />
[B] Gasket, EPDM<br />
[F] Float – stop, PVDF, without guide<br />
[S] Union nut, Stainless steel<br />
[0] Shatter protection max. 80°C, without<br />
[0] Electrical output, without<br />
[4] Scale, Measuring range-scale (Medium)<br />
[0] Approvals, without<br />
[0] Calibration certificate, without<br />
[0] Cleaning according works standard, without<br />
[0] Pressure / leakage test, without<br />
[0] Approvals, without<br />
[0] Marking, without<br />
[0] Accessories, without<br />
[K] Make, Kobold

Differential Pressure Flow Meter / Monitor<br />
Brand: KOBOLD(Alemania)<br />
Model: RCD-11-25L-N6-C34P<br />
Operating principle Venturi-nozzle<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Protection class IP 65<br />
max. temperature 80 °C (100 °C)<br />
max.pressure 40 bar<br />
Material Brass casting<br />
[25L] Measuring range; 20-188 m³N/h Luft/Air (20 °C; 1 bar abs)<br />
[N6] Process Connection; 1 NPT female<br />
[C34P] Evaluating electronics; 4-20mA, 1x PNP<br />
<br />
Model: ZUB-KAB-12-K502<br />
Brand: KOBOLD(Alemania)<br />
M12x1 box 2 m cable, 5-pin

<strong>Magnetic inductive Flowmeter PIT with UMF2<br />
Brand: Heinrichs (Alemania)<br />
Model: PIT-S-206R-163-H-0-1-0-0-0-K+UMF2-A-1-1-G-0BK</strong><br />
[PIT] Sensor<br />
[S] Model, Stainless steel (1.4571/1.4404)/PTFE<br />
Temperature, Tmax. = 80°C compact version<br />
[206R] Process connection, 2" Class 150 RF ASME B16.5-2013<br />
[163] Sensor Length, 163 mm (for Tubes < DN600)<br />
6001883[H] Electrode Material, Hastelloy C-4<br />
[0] Measuring range / medium velocity, 1-10 m/s<br />
[1] Transmitter layout, compact transmitter<br />
Protection class, IP67<br />
[0] Approvals, without approval<br />
[0] Certificate, without<br />
[0] Supplementary equipment, without<br />
[K] Design, Kobold<br />
<br />
<strong>Model: UMF2-A-1-1-G-0BK</strong><br />
[UMF2]: Transmitter layout<br />
[A]: Transmitter layout, compact transmitter IP67<br />
Power supply cable entry, ½" NPT (F)<br />
[1]: Indication / user interfcace, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G]: Outputs,<br />
current output: (0)4-20mA with HART® - protocol<br />
pulse output: passive Um=24VDC<br />
status output: passive Um=24VDC<br />
[0BK]: Design, Kobold<br />
<br />


<strong>EPS Electromagnetic Flow Meter<br />
Brand: Heinrichs (Alemania)<br />
Model: EPS-H-321B-1-S-S-1-0</strong><br />
[EPS] Sensor<br />
[H] Material Lining,Hard Rubber (Ebonit)<br />
Standard 2x Measuring- + 2x Groundelectrodes,<br />
Process-Temperature 0°C...95°C<br />
[321B] Process connection, DN50 PN40 Form B1 DIN EN 1092-1<br />
Max. measuring range, 70 m³/h, Installation length, 200 mm.<br />
[1] Material Process connection, Flange steel painted<br />
[S] Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S] Earthing electrode, st.st. 1.4571 (316 TI)<br />
[1] Transmitter mounting, Integrated transmitter<br />
Protection class, sensor IP 67<br />
[0] Certificates, w/o<br />
<br />
[UMF2] Transmitter<br />
[A] Mounting, Integrated transmitter IP 67 standard<br />
Thread - electrical connection ½" NPT (f)<br />
[1] Display and control unit, integrated<br />
[1] Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G] Output Signal:<br />
<strong>current output: 1x 0/4-20 mA c/w HART protocoll</strong><br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK] Design, Kobold
<div></div>

Variable Area Flowmeter/-switch<br />
Brand: Kobold (ALEMANIA)<br />
Model: SWK22-40-U<br />
[SWK-22]:<br />
Operating principle variable area<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Function Meter/switch<br />
Material, housing st.st.<br />
Repeatability contact <= 2,5 %<br />
display +-4 % FS<br />
Max. temperature 100 °C<br />
Max. pressure 250 bar<br />
Connection G 1/2 female<br />
[40]: Measuring range, 1,7...4 L/min water<br />
[U]: Limit switch, Reed contact SPDT<br />

<div><strong>Compact Magnetic Inductive Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: MIM-1-3-15HG6-C3T-E02-0</strong><br />
[MIM-1]<br />
Operating principle, Magnetic Inductive<br />
Mounting position, all directions, display rotatable<br />
Display:<br />
TFT-display, 128 x 128 color pixel,<br />
1,4", rotatable in 90° steps,<br />
2 outputs free assignable<br />
Integrated temperature sensor, Pt 1000<br />
Material housing / insulation part, see below<br />
Accuracy, ±(0.8% of meas.value +0,5% of FS)<br />
Min. conductivity >20 µS/cm<br />
Power supply, 19 - 30 VDC<br />
Ambient temperature: -20 °C … +60 °C<br />
Max. temperature (medium): -20°C..+140°C (remote, ETFE)<br />
Max. pressure, PN 16<br />
Protection, IP 67<br />
[3] Material housing / insulation part / sealingt, st. steel 1.4404 / PEEK / EPDM<br />
[15HG6] Measuring range (flow/temperature), 0,2…50 L/min / [°C], G1 male<br />
[C3T] Evaluation electronic:<br />
Analogue output: 0(4)-20 mA, 0-10 V,<br />
Switching output NPN, PNP, PushPull,<br />
Frequency output, pulse output<br />
Part- or grand totaliser<br />
[E02] remote electronic / 2m ETFE-cable<br />
[0] Options, without<br />
<br />
<br />
Accessories Round Plug<br />
Brand: Kobold (Alemania)<br />
Model: ZUB-KAB-12-K005<br />
[ZUB-KAB-12]<br />
[K005]: Version: M12x1 socket with 5 m cable, 4 pins</div>

Coriolis Massflowmeter<br />
Brand: Heinrichs - Kobold<br />
Model: TMU-S-008-201R-A-0-0-A-0-1-1-0+UMC4-B-1-1-A-0-0-K<br />
[TMU-S]<br />
Wetted materials, Stainless steel<br />
[008] Meter line size, DN8, ANSI ¼"<br />
Range, min. 0-60 kg/h - max. 0-600 kg/h<br />
[201R] Process connection, ½" Class 150 RF ASME B16.5-2003<br />
Installation length, 336 mm<br />
[A] Containment options, Stainless steel containment 1.4301 (304)<br />
[0] Heating / cooling, None<br />
[0] Connection for heating / cooling, None<br />
[A] Sensor configuration, Integral mount transmitter<br />
Process temperature, -4° to 212°F, -20° to 100°C<br />
Sensor Cable Connection, IP66<br />
[0] Approvals, None<br />
[1] Calibration flow, Standard, 3-point<br />
[1] Calibration density, Standard (3-point)<br />
[0] Supplementary equipment, None<br />
<br />
[UMC4] Model<br />
[B] Mounting, Integral mount<br />
Conduit port opening, M20 x 1,5<br />
[1] Display / Interface board, Integral within transmitter housing,<br />
for ambient temperature up to 60°C<br />
[1] Power supply, 90 - 265V AC, 50/60Hz<br />
[A] Outputs<br />
Analog output 1: 4 - 20mA with HART®<br />
Analog output 2: 4 - 20mA<br />
Pulse output: passive Um=30V DC<br />
Status output: passive Um=30V DC<br />
[0] Approvals, none<br />
[0] Type of protection, none<br />
[K] Kobold
