<strong>Low Volume Flowmeter<br />
Brand: Kobold (Alemania)<br />
Model: KFR-21-13-N0+KFR-PPHW024</strong><br />
[KFR-21]<br />
Operating principle variable area<br />
<span style="font-size:13.3333px;font-family:sans-serif;">Air measuring </span><span style="font-size:13.3333px;font-family:sans-serif;">range (at 1 bar </span><span style="font-size:13.3333px;font-family:sans-serif;">abs., 20 °C)</span><br />
Mounting position vertical<br />
Flow direction from bottom<br />
Total length 102 mm<br />
Accuracy ±5 % FS<br />
Max. temperature 65 °C<br />
Max. pressure 6,5 bar<br />
Housing Acryl<br />
Connection material brass<br />
Connection size 1/8 NPT female on rear<br />
Seal NBR<br />
[13]: Measuring range, 0.1...1 L/min air<br />
[N0]: Options, Needle valve<br />
[KFR-PPHW024] set hose barbes (2 pcs.)

<strong>Low Volume Flowmeter<br />
Brand: Kobold (Alemania)<br />
Model: KFR-21-12-N0+KFR-PPHW024</strong><br />
[KFR-21]<br />
Operating principle variable area<br />
Mounting position vertical<br />
<span style="font-size:13.3333px;font-family:sans-serif;">Air measuring </span><span style="font-size:13.3333px;font-family:sans-serif;">range (at 1 bar </span><span style="font-size:13.3333px;font-family:sans-serif;">abs., 20 °C)</span><br />
Flow direction from bottom<br />
Total length 102 mm<br />
Accuracy ±5 % FS<br />
Max. temperature 65 °C<br />
Max. pressure 6,5 bar<br />
Housing Acryl<br />
Connection material brass<br />
Connection size 1/8 NPT female on rear<br />
Seal NBR<br />
[12] Measuring range, 0,04...0,5 L/min air<br />
[N0] Options, Needle valve<br />
[KFR-PPHW024] set hose barbes (2 pcs.)

<strong>Viscosity Compensated Flowmeter and Switch<br />
for Viscous Liquids<br />
Brand: Kobold (USA)<br />
Model: VKM-5207-U</strong><br />
Specifications<br />
Max. Temperature: 212 °F<br />
Max. Pressure: 5000 PSIG for SS units<br />
Accuracy: ± 4% full scale (viscosity of 105 cSt)<br />
Viscosity Range: 1...540 cSt<br />
Range Oil: 1.0...3.5 GPM<br />
Stand Conn. 1/2" NPT<br />
Press. Drop. Max. 16.0 PSI<br />
Housing: SS 304<br />
Fittings: SS 304<br />
Float: SS 304<br />
Seals: FKM (SS units)<br />
Electr. Switch Housing: Plastic<br />
[U] SPDT Contact

<strong>Viscosity Compensated Flowmeter and Switch<br />
for Viscous Liquids<br />
Brand: Kobold (USA)<br />
Model: VKM-5107-U</strong><br />
Specifications<br />
Max. Temperature: 212 °F<br />
Max. Pressure: 3600 PSIG for Brass units<br />
Accuracy: ± 4% full scale (viscosity of 105 cSt)<br />
Viscosity Range: 1...540 cSt<br />
Range Oil: 1.0...3.5 GPM<br />
Stand Conn. 1/2" NPT<br />
Press. Drop. Max. 16.0 PSI<br />
Housing: Nickel-plated Brass<br />
Fittings: Nickel-plated Brass<br />
Float: Brass<br />
Seals: NBR (Brass units)<br />
Electr. Switch Housing: Plastic<br />
[U] SPDT Contact<br />

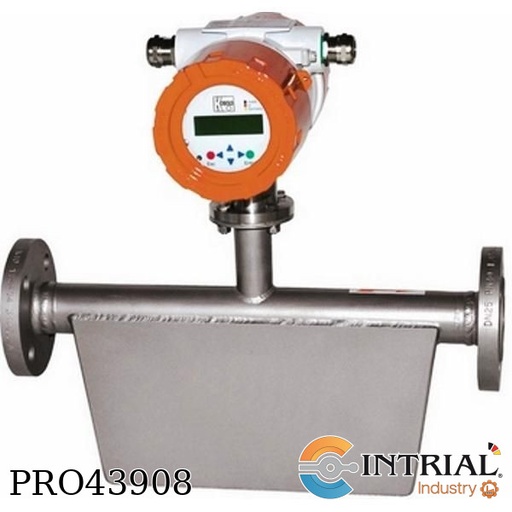

<strong>Coriolis Massflowmeter<br />
Brand: Kobold - Heinrichs (Alemania)<br />
Model: TMU-S-025-206R-A-0-0-A-L-1-1-0-H+UMC4-B-1-2-A-2-1-H</strong><br />
[TMU] Model<br />
[S] Wetted materials: Stainless steel<br />
[025] Meter line size DN25, ANSI 1", Rango: 0 a 350 Lpm<br />
[206R] Process connection, 2" Class 150 RF ASME B16.5-2003<br />
Installation length, 650 mm<br />
[A] Containment options, Stainless steel containment <br />
[0] Heating / cooling, without<br />
[0] Connection for heating / cooling, without<br />
[A] Sensor configuration, Integral mount transmitter<br />
Process temperature -4° to 212°F, -20° to 100°C<br />
Sensor Cable Connection: IP 66<br />
[L] Approvals, ATEX / IECEx II 1/2G Ex ia IIC T6 - T2 Ga/Gb<br />
[1] Calibration flow, Standard, 3-point<br />
[1] Calibration density, Standard (3-point)<br />
[0] Supplementary equipment, None<br />
[H] Design, Heinrich<br /><br />
Transmitter UMC4<br />
Model: UMC4-B-1-2-A-2-1-H<br />
[UMC4] Transmitter<br />
[B] Mounting, Integral mount<br />
Conduit port opening, M20 x 1,5.<br />
[1] Display / Interface board,<br />
Integral within transmitter housing, for ambient temperature up to 60°C<br />
[2] Power supply, 19 - 36V DC, 24V AC (+5% - 20%), 50/60Hz<br />
[A] Outputs:<br />
Analog output 1: 4 - 20mA with HART®<br />
Analog output 2: 4 - 20mA<br />
Pulse output: passive Um=30V DC<br />
Status output: passive Um=30V DC<br />
[2] Approvals, II(1)2G Ex d [ia Ga] IIC T3-T4 Gb (terminal compartment Ex d), ambient to 60°C<br />
[1] Type of protection, Ex [ia Ga] intrinsically safe<br />
[H] Heinrichs

Multivariable Vortex Flowmeter<br />
Model: DVH-T-15-1-S-L-L-2-S-0-H<br />
Brand: Kobold - Heinrich<br />
[DVH] Model<br />
[T] Elektronic – Options: Flow Velocity including temperature sensor<br />
[15] Flow Body FLANGE: DN15 DIN EN 1/2 inch ANSI JIS 15<br />
[1] Process Connection: ANSI 150 lbs ASME B16.5.2003 (not for wafer)<br />
[S] Material Flow Body: st.st. 1.4404 / 316 L (standard)<br />
[L] Sensor Configuration / Mounting Option: Kompakt inkl. LCD Anzeige,IP 66 / Nema 4<br />
[L] Input Power, 12-36 VDC loop powered<br />
[2] Output Signal, Loop powered 1x 4-20mA, HART 1 x pulse only with Input Power L passive<br />
[S] Process Temperature,:Standard Temperature -200….+260 °C -330+500°F<br />
[0] Option Pressure Sensor (Electronic versions T/P/E/M) (min. temp -40°C): w/o Pressure Sensor<br />
[H] Version, Heinrichs<br />
• Rango de caudal: 0 a 25 kg/h

<strong>Viscosity Compensated Flowmeter/-switch<br />
Brand: Kobold(Alemania)<br />
Model: VKG-21-07-R0-N25-B</strong><br />
[VKG-21]<br />
Operating principle variable area<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Body material Brass<br />
Seal NBR<br />
Sight glass Duran<br />
Side mounted dial w/o<br />
Switch point adjustable<br />
Accuracy ±4 % FS (at 105 mm²/s)<br />
Max. temperature 100 °C<br />
Max. pressure 12 bar<br />
Viscosity range 1...540 mm²/s<br />
[07] Measuring range; 4...20 L/min oil<br />
[R0] Contact; 1 N/O<br />
[N25] Connection;  1 NPT female<br />
[B] Option special connection<br />
on top female thread, bottom BVB

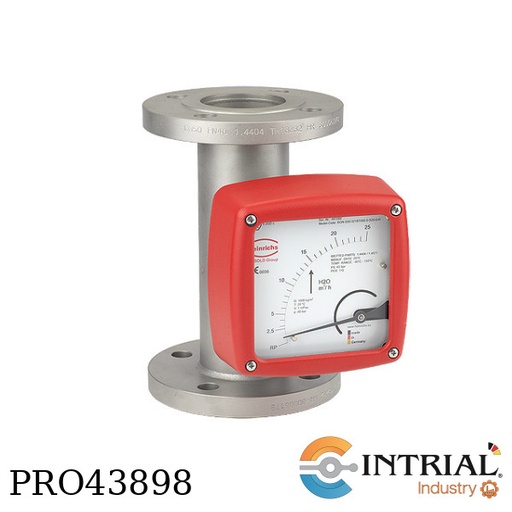

<strong>All-Metal Variable Area Flowmeter BGN<br />
Brand: Kobold - Heinrichs (Alemania)<br />
Model: BGN-S40-205R-R-0-F-0-0-S-2-0-0-K</strong><br />
[BGN] Model<br />
[S40] Stainless Steel, process temperature ≤ 350°C <br />
[205R] Connection, 1½" 150 lbs RF ASME B16.5-2003<br />
[R] Range, 600 - 6000 l/h <br />
[0] Heating/cooling, without heating / Cooling<br />
[F] Damping/spring stop, with liquid damping<br />
[0] Self-draining, without<br />
[0] Certificates, without<br />
[S] Display<br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[2] Scale, Measuring range-Scale (Water),<br />
[0] Switches, without<br />
[0] Accessories, without<br />
[K] Design, Kobold

<strong>All-Metal Variable Area Flowmeter BGN<br />
Brand: Kobold - Heinrichs (Alemania)<br />
Model: BGN-S40-205R-R-0-0-0-0-S-2-0-0-K</strong><br />
[BGN] Model<br />
[S40] Stainless Steel, process temperature ≤ 350°C <br />
[205R] Connection, 1½" 150 lbs RF ASME B16.5-2003<br />
[R] Range, 600 - 6000 l/h <br />
[0] Heating/cooling, without heating / Cooling<br />
[0] Damping/spring stop, without<br />
[0] Self-draining, without<br />
[0] Certificates, without<br />
[S] Display<br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[2] Scale, Measuring range-Scale (Water),<br />
[0] Switches, without<br />
[0] Accessories, without<br />
[K] Design, Kobold

Viscosity Compensated Plastic Flowmeter and Switch<br />
Brand: Kobold (USA)<br />
Model: VKP-5030-N115<br />
[VKP-5030]:<br />
Flowmeter with Oil Scale<br />
Mounting: Universal, Without Recalibration<br />
Flow Media: Oil, Water and Other Liquids<br />
Measuring Principle: Float, Spring Loaded<br />
Accuracy ±5 % FS<br />
Max. temperature 250 °F (185 °F Max. with Switch)<br />
Max. pressure 230 PSI<br />
Electrical Connection: DIN 43 650 C w/Cable Gland<br />
Range Oil (GPM): 0.5...8.0<br />
Press. Drop Max. (PSI): 9.57<br />
[N115]: Options: 1/2" NPT, Male, Brass Union Fittings

Oval Wheel Flowmeter Model DON<br />
Brand: Kobold (Alemania)<br />
Model: DON-2-20H-R4-4-M4<br />
[DON-2]:<br />
Operating principle: Gear Wheel<br />
Mounting position: horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
Max. temperature: 120°C<br />
Max. pressure: 16-100 Bar<br />
Accuracy: ±0,2 % …1 % of reading<br />
Housing material: st. steel<br />
Rotor material: st. steel<br />
[20H]: Measuring range, 1-40 L/min<br />
[R4]: Mech. Connection, for meas. range 20H: G 1/2<br />
[4]: Seal: NBR<br />
[M4]: Electronic: mech. totaliser 4-digit (not for DON-x05…DON-x15)

Oval Wheel Flowmeter Model DON<br />
Brand: Kobold (Alemania)<br />
Model: DON-2-55H-RC-4-M4<br />
[DON-2]:<br />
Operating principle: Gear Wheel<br />
Mounting position: horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
Max. temperature: 120°C<br />
Max. pressure: 16-100 Bar<br />
Accuracy: ±0,2 % …1 % of reading<br />
Housing material: st. steel<br />
Rotor material: st. steel<br />
[55H]: Measuring range, 75-1500 L/min<br />
[RC]: Mech. Connection, or meas. range 55H and 60H: G 4<br />
[4]: Seal: NBR<br />
[M4]: Electronic: mech. totaliser 4-digit (not for DON-x05…DON-x15)

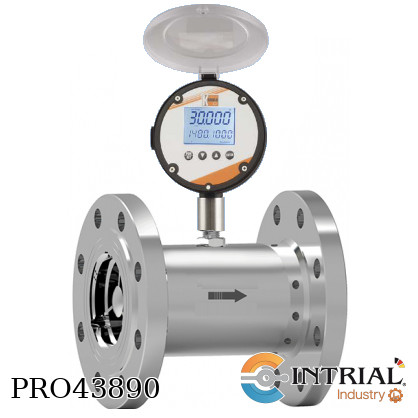

Turbine Wheel Flowmeter<br />
Brand: Kobold<br />
Model: DOT-13-35H-A9-Z3N-L<br />
[DOT-13]<br />
Operating principle Turbine wheel<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Connection/ Housing material st. Steel / st. steel<br />
max. temperature -20…+120 °C<br />
max. pressure 250 bar<br />
Linearity ± 0.5 % of Reading<br />
[35H] measuring range, 6.8-68 m³/h<br />
[A9] Mechanical connection, 2" ANSI 150 RF Flange for range code 35<br />
[Z3N] Electronics / cable entry, dual LCD totaliser/rate,<br />
outputs: pulse, analogue, cable entry 1/2 NPT<br />
[L] Flow direction, from left to right, indication on top<br />

<strong>Turbine Wheel Flowmeter<br />
Brand: Kobold<br />
Model: DOT-13-40H-AB-Z3N-L</strong><br />
[DOT-13]<br />
Operating principle Turbine wheel<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Connection/ Housing material st. Steel / st. steel<br />
max. temperature -20…+120 °C<br />
max. pressure 250 bar<br />
Linearity ± 0.5 % of Reading<br />
[40H] measuring range, 13.5-135 m³/h<br />
[AB] Mechanical connection, 3" ANSI 150 RF Flange for range code 40<br />
[Z3N] Electronics / cable entry, dual LCD totaliser/rate,<br />
outputs: pulse, analogue, cable entry 1/2 NPT<br />
[L] Flow direction, from left to right, indication on top

Low Volume Flowmeters<br />
Brand: Kobold (Alemania)<br />
Model: KSV-14-80<br />
[KSV-14]<br />
Operating principle, variable area<br />
Mounting position vertical, from bottom<br />
Accuracy ± 6% FS<br />
Max. temperature, 120 °C<br />
Max. pressure 6 bar<br />
Needle valve (only KSV-1), bottom<br />
Connection,1/8 NPT female on rear<br />
Seal, NBR<br />
Housing material, Polysulfone<br />
[80]: Measuring range, 0.5...2.5 Nm³/h air

Low Volume Flowmeter<br />
Brand: Kobold <br />
Model: KFR-42-53-N0<br />
[KFR-42]<br />
Operating principle, variable area<br />
Mounting position, vertical<br />
Flow direction, from bottom<br />
Total length, 165 mm<br />
Accuracy, ±3 % FS<br />
Max. temperature, 65 °C<br />
Max. pressure, 6,5 bar<br />
Housing, Acryl<br />
Connection material, st.st.<br />
Connection size, 1/8 NPT female on rear<br />
Seal, FPM<br />
[53]: Measuring range, 100...1500 cm³/min water<br />
[N0]: Options, Needle valve

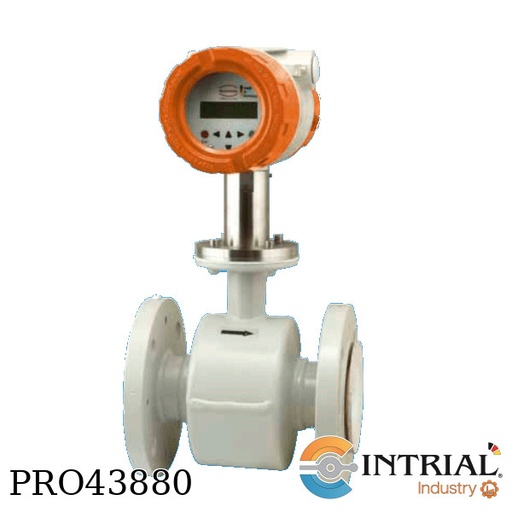

<strong>EPS Electromagnetic Flow Meter<br />
Model: EPS-H-230R-1-S-S-1-0 + UMF2-A-1-1-G-0BK<br />
Brand: Kobold- Alemania</strong><br />
[EPS-H]<br />
Mounting position: all directions<br />
Display / Protection class: LCD Display / IP 68<br />
Output: Analogue, frequency, connection and status output<br />
max. medium temperatura: 0…+95 °C <br />
Coating: hard rubber<br />
[230R]: Connection flange ASME 16.5: 4" 300 Class lbs,274 m³/h<br />
[1]: Material Process connection, Flange steel painted<br />
[S]: Electrodes material : st.st. 1.4571<br />
[S]: Grounding Electrodes material :st.st. 1.4571 <br />
[1]: Transmitter mounting, integrated version, protection IP 67<br />
[0]: Certificates (NET prices, no discount), without<br /><br />
Model: UMF2-A-1-1-G-0BK<br />
[UMF2]:Transmitter<br />
[A]: Mounting, Integrated transmitter IP 67 / ½" NPT (f)<br />
[1]: Display / Interface board, with display / interface board<br />
[1]: Power supply: 230 VAC 50/60 Hz<br />
[0GBK]: Output , Analogue, pulse, status, with HART®

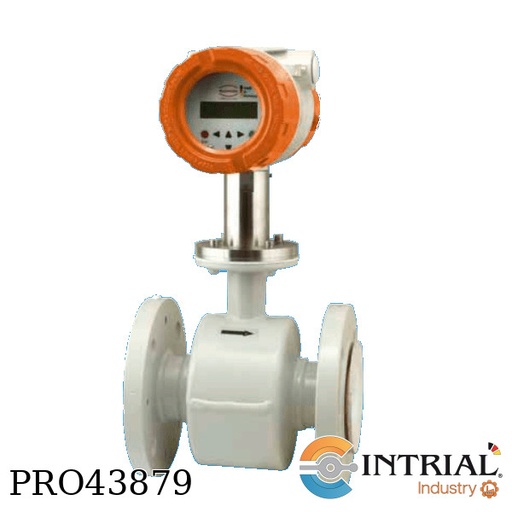

EPS Electromagnetic Flow Meter<br />
Model: EPS-H-228R-1-S-S-1-0 + UMF2-A-1-1-G-0BK<br />
Brand: Kobold- Alemania<br />
[EPS-H]<br />
Mounting position: all directions<br />
Display / Protection class: LCD Display / IP 68<br />
Output: Analogue, frequency, connection and status output<br />
max. medium temperatura: 0…+95 °C <br />
Coating: hard rubber<br />
[228R]: Connection flange ASME 16.5: 3" 300 Class lbs,170 m³/h<br />
[1]: Material Process connection, Flange steel painted<br />
[S]: Electrodes material : st.st. 1.4571<br />
[S]: Grounding Electrodes material :st.st. 1.4571 <br />
[1]: Transmitter mounting, integrated version, protection IP 67<br />
[0]: Certificates (NET prices, no discount), without<br /><br />
Model: UMF2-A-1-1-G-0BK<br />
[UMF2]:Transmitter<br />
[A]: Mounting, Integrated transmitter IP 67 / ½" NPT (f)<br />
[1]: Display / Interface board, with display / interface board<br />
[1]: Power supply: 230 VAC 50/60 Hz<br />
[0GBK]: Output , Analogue, pulse, status, with HART®

EPS Electromagnetic Flow Meter<br />
Model: EPS-H-226R-1-S-S-1-0 + UMF2-A-1-1-G0BK<br />
Brand: Kobold- Alemania<br />
[EPS-H]<br />
Mounting position: all directions<br />
Display / Protection class: LCD Display / IP 68<br />
Output: Analogue, frequency, connection and status output<br />
max. medium temperatura: 0…+95 °C <br />
Coating: hard rubber<br />
[226R]: Connection flange ASME 16.5: 2" 300 Class lbs ,70 m³/h<br />
[1]: Material Process connection, Flange steel painted<br />
[S]: Electrodes material : st.st. 1.4571<br />
[S]: Grounding Electrodes material :st.st. 1.4571 <br />
[1]: Transmitter mounting, integrated version, protection IP 67<br />
[0]: Certificates (NET prices, no discount), without<br />
<br />
Model: UMF2-A-1-1-G-0BK<br />
[UMF2]:Transmitter<br />
[A]: Mounting, Integrated transmitter IP 67 / ½" NPT (f)<br />
[1]: Display / Interface board, with display / interface board<br />
[1]: Power supply: 230 VAC 50/60 Hz<br />
[0GBK]: Output , Analogue, pulse, status, with HART®

<strong>EPS Electromagnetic Flow Meter<br />
Brand: Kobold-Heinrich<br />
Model: EPS-P-321B-1-H-0-1-0</strong><br />
[EPS-P]: Material Lining, PTFE<br />
Electrodes, Standard 2x Measuring Electrodes, -20°C...150°C<br />
[321B] Process connection, DN50 PN40 Form B1 DIN EN 1092-1<br />
Max. measuring range, 70 m³/h, Installation length, 200 mm.<br />
[1] Material Process connection, Flange steel painted<br />
[H] Material electrodes, Hastelloy C276<br />
[0] Earthing electrode, w/o<br />
[1] Transmitter mounting, Integrated transmitter<br />
Protection class, sensor, IP 67<br />
[0] Certificates, w/o<br />
<br />
[UMF2] Tranmitter<br />
[A] Mounting, Integrated transmitter IP 67 standard<br />
Thread - electrical connection, ½" NPT (f)<br />
[1] Display and control unit, integrated<br />
[4] Power supply, 24V DC (±15%)<br />
[G] Output Signal: <br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK] Design, Kobold
