<div>MODEL: DWU-26-A40-1-L-T-Y                <br />
[DWU-2] Flow Indicator and Switch with Paddle and Bellows<br />
[6] Material combination: st.st.<br />
[A40] Connection: Flange 1 1/2" #150 ANSI<br />
[1] Signal lamp: 110 VAC<br />
[L] Flow direction: flow from left to right<br />
[T] Location of indicator: above lead<br />
[Y] Protection IP65<br />
Scale: m³/h <br />
Operating principle: paddle-bellow<br />
Indication: pointer indication<br />
Flow direction: in direction of the arrow<br />
Output 1: microswitch/SPDT<br />
Max. Temperature: 100 °C<br />
Connection: flange</div>

<div>Ficha Técnica: http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s3gb</div>

<div>MODEL: DWU-26-A25-1-L-T-Y                 <br />
[DWU-2] Flow Indicator and Switch with Paddle and Bellows<br />
[6] Material combination: st.st.<br />
[A25] Connection: Flange 1" #150 ANSI<br />
[1] Signal lamp: 110 VAC<br />
[L] Flow direction: flow from left to right<br />
[T] Location of indicator: above lead<br />
[Y] Protection IP65<br />
Scale: m³/h <br />
Operating principle: paddle-bellow<br />
Indication: pointer indication<br />
Flow direction: in direction of the arrow<br />
Output 1: microswitch/SPDT<br />
Max. Temperature: 100 °C<br />
Connection: flange</div>

<div>Ficha Técnica: http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s3gb_dwu.pdf</div>

Variable Area Flowmeter<br />
MODELO URM 33 53L I6 P<br />
[URM 33] Variable Area Flowmeter/-switch Glass Cone with Thread Connection<br />
[53L] Range Full Scale 13…130 Nm³/h<br />
[I6] Connection: G1<br />
[P] Contacts: 1 x PNP-Open Collector, N/O<br />
Mounting position: vertical, flow direction from bottom<br />
Accuracy: Class 4<br />
Max. temperature 65 °C<br />
Max. pressure 6 bar...16 bar depend see data sheet<br />
Material: connection, float / seal/ ring: 1.4301 / NBR / PVC<br /><br />
Ficha Técnica:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s2gb_urm.pdf

MODEL: TUR-2125-K-0-4-2<br />
[TUR-21] Turbine Wheel Flowmeter<br />
[2125] Connection / Measuring range: NW 25 / 0,2...5 m³/h wáter<br />
[K] ADI and ZED: Universal Control Panel Indicating unit<br />
[0] Power Supply: 100-240 VAC/DC<br />
[4] Output: 0(4)-20 mA, 0-10 v<br />
[2] Contacts: 2 changeover contacts<br />
Operating principle: Turbine Wheel<br />
Mounting position: horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
Material: PVDF<br />
Max. Temperatura: 70 °C<br />
Max. Pressure: PN 10<br />
Accuracy: +-1% FS<br />
Protection: IP 65<br /><br />
Ficha Técnica:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s4gb_tur.pdf

Modelo: DOM-S-20H-R4-3-Z4-0<br />
[DOM-S] Oval Gear Flow Meter/Counter<br />
[20H] Measuring range: 1-40 L/min<br />
[R4] Mech. Connection: NPT 1/2 for meas. range 20H<br />
[3] Seal: PTFE encaps. FPM for meas. range 20H<br />
[Z4] Electronic: Z3 electronic with ATEX approval (Exi)<br />
[0] Accessory: Without<br />
Operating principle: Gear Wheel <br />
Mounting position:horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
max. temperature:120 °C<br />
max. pressure: 12...68 bar <br />
Accuracy: ±0,5 % ...1 % of reading<br />
Housing material:st. st. 1.4401<br />
Rotor material: st. st. 1.4401 <br /><br /><br />
Ficha Técnica:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s4gb_dom.pdf

<div>Modelo 1: KFR-2114</div>

<div>• KFR-21: Low Volume Flowmeter<br />
• Operating principle variable area<br />
• Mounting position vertical<br />
• Flow direction from bottom<br />
• Total length 101,6 mm<br />
• Connection material brass<br />
• Connection size 1/8 NPT female on rear<br />
• Seal NBR<br />
• 14: measuring range: 0,5...5 NL/min air</div>

<div>Hoja Técnica<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s1gb_kfr.pdf</div>

<strong>Low Volume Flowmeter<br />
Brand: Kobold (Alemania)<br />
Model: KFR-2112</strong><br /><br />
[KFR-21]: <br />
Operating principle, variable area<br />
Mounting position,vertical<br />
Flow direction, from bottom<br />
Total length, 102 mm<br />
Accuracy, ±5 % FS<br />
Max. temperature, 65 °C<br />
Max. pressure, 6,5 bar<br />
Housing, Acryl<br />
Connection material, brass<br />
Connection size, 1/8" NPT female on rear ( or 1/4" NPT female*)<br />
Seal, NBR<br />
[12]: Measuring range, 0,04...0,5 L/min air

<font style="background-color:rgb(255,255,255);">DOM-S-35H-A9-1-Z3-S<br />
[DOM-S]Oval Gear Flow Meter/Counter<br />
[35H]Measuring range: 30-450 L/min<br />
[A9]Mech. Connection: ANSI flange 2" 150 lbs for range 35H and 40H<br />
[1] Model + Code: Seal: FPM (Standard)<br />
[Z3] Electronic: LCD totaliser with rate<br />
[S] Accessory: Special gear wheels for viscosity > 1000 cP for range 35H<br />
Operating principle:Gear Wheel<br />
Mounting position: horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
max. temperature: 120 °C<br />
max. pressure: 12...68 bar<br />
Accuracy: ±0,5 % ...1 % of reading<br />
Housing material:st. st. 1.4401<br />
Rotor material: st. st. 1.4401</font><br />


MODEL: DOM-S35H-A9-1-Z3-0<br />
[DOM-S]Oval Gear Flow Meter/Counter<br />
[35H]Measuring range: 30-450 L/min<br />
[A9]Mech. Connection: ANSI flange 2" 150 lbs for range 35H and 40H<br />
[1] Model + Code: Seal: FPM (Standard)<br />
[Z3] Electronic: LCD totaliser with rate<br />
[0] Accessory: without<br />
Operating principle:Gear Wheel<br />
Mounting position: horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
max. temperature: 120 °C<br />
max. pressure: 12...68 bar<br />
Accuracy: ±0,5 % ...1 % of reading<br />
Housing material:st. st. 1.4401<br />
Rotor material: st. st. 1.4401<br /><br />
Ficha Técnica:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s4gb_dom.pdf

Oval Gear Flow Meter/Counter<br />
MODEL:   DOM-S-30H-A8-1-Z3-0<br />
[DOM-S]Oval Gear Flow Meter/Counter<br />
[30H]Measuring range: 15-250 L/min<br />
[A8]Mech. Connection: ANSI flange 1½" 150 lbs for range 30H<br />
[1] Model + Code: Seal: FPM (Standard)<br />
[Z3] Electronic: LCD totaliser with rate<br />
[0] Accessory: without<br />
Operating principle:Gear Wheel<br />
Mounting position: horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
max. temperature: 120 °C<br />
max. pressure: 12...68 bar<br />
Accuracy: ±0,5 % ...1 % of reading<br />
Housing material:st. st. 1.4401<br />
Rotor material: st. st. 1.4401<br /><br />
Ficha Tecnica:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s4gb_dom.pdf

MODEL NUMBER SENSOR: TMU-S025-XXXX-A00-A0-10-0<br />
Wetted parts : 1.4571 (316Ti)/1.4404 (316L)<br />
Range : min. 0-3000 kg/h max. 0-30000 kg/h<br />
Process connection : 2-1/2" SMS welding liner (on inlet and outlet side)<br />
Pressure rating : 16 bar<br />
Secondary Containment : 1.4571 (316Ti)/1.4301 (304L)<br />
Pressure rating sec. containment: 0 bar<br />
Ingress protection Sensor : IP65 (EN60529)<br />
Heating/cooling : without<br />
Connection for heating/cooling : without<br />
Sensor configuration : Integral mount<br />
Temperature service rating : -20 to 100°C<br />
Sensor cable connection : -<br />
Calibration flow : 3-point<br />
Calibration density : without<br />
Installation length : ~600 mm<br /><br />
MODEL NUMBER TRANSMITTER: UMC3-B11F00<br />
Mounting: Integral mount<br />
Connection to sensor cable: -<br />
Conduit port opening: M20x1,5<br />
Display/Interface board: Integral within transmitter housing<br />
Power supply: 90-265V AC, 50/60Hz<br />
Electrical output: MODBUS RTU (RS485)<br />
Analog output 1: 0/4-20 mA with HART®-protocol mass flow<br />
Pulse output 1: ... Imp/kg passive<br />
Status output 2: passive<br />
Approval: without<br />
Type of protection Signal output: without<br />
Ambient temperature : -20 to +60°C<br />
Ingress protection transmitter: IP65 (EN60529)

<strong>MODEL NUMBER SENSOR: TMU-S025-XXXX-A00-A0-10-0</strong><br />
Wetted parts: 1.4571 (316Ti)/1.4404 (316L)<br />
Range: min. 0-3000 kg/h max. 0-30000 kg/h<br />
Process connection: 2-1/2" SMS welding liner (on inlet and outlet side)<br />
Pressure rating: 16 bar<br />
Secondary Containment: 1.4571 (316Ti)/1.4301 (304L)<br />
Pressure rating sec. containment: 0 bar<br />
Ingress protection Sensor: IP65 (EN60529)<br />
Heating/cooling: without<br />
Connection for heating/cooling: without<br />
Sensor configuration: Integral mount<br />
Temperature service rating: -20 to 100°C<br />
Sensor cable connection: -<br />
Calibration flow: 3-point<br />
Calibration density: without<br />
Installation length: ~600 mm<br /><br />
MODEL NUMBER TRANSMITTER: UMC4-B11A00<br />
Mounting : Integral mount<br />
Connection to sensor cable : -<br />
Conduit port opening : M20x1,5<br />
Display/Interface board : Integral within transmitter housing<br />
Power supply : 90-265V AC, 50/60Hz<br />
Analog output 1 : 0/4-20 mA with HART®-protocol mass flow<br />
Analog output 2 : 0/4-20 mA mass flow, temperature, volume flow, density<br />
Pulse output 1 : ... Imp/kg passive<br />
Type of protection Signal output: without<br />
Ambient temperature : -20 to +60°C<br />
Ingress protection transmitter: IP65 (EN60529)

Pelton Wheel Flow Meter<br />
Model: DRB-11-25-N9-C34P<br />
Brand: Kobold<br />
[DRB-11]:<br />
Operating principle, Pelton Wheel (4-vane)<br />
Mounting position / flow direction:<br />
in all directions/ in direction of the arrow<br />
Protection IP 65<br />
Max. temperature 80 °C<br />
Max. pressure, 16bar<br />
Accuracy of final value, +/-3%<br />
Material Housing Brass casting<br />
Material Axis Hard metal<br />
[25]: Measuring range, 30-350 L/min<br />
[N9]: Mech. connection, for MR-Code: 25 2 NPT female<br />
[C34P]: Electronic, Compact electronics, 4-20 mA, 1x PNP

Paddle Type Flow Switch<br />
Brand: KOBOLD (Alemania)<br />
Model: PSR-12-258-N-25-R-1<br />
[PSR-12]:<br />
Operating principle, paddle<br />
Mounting position, all directions<br />
incl. fitting, st.st.<br />
Body material, st.st.<br />
max. pressure, 250 bar<br />
[258]: Measuring range/paddle, 7.4-18.2 L/min paddle: 8<br />
[N]: Connection, NPT-thread<br />
[25]: Connection, 1"<br />
[R]: Contact version, N/O<br />
[1]: Connecting cable, PVC-cable 1.5 m (standard)

<strong>Electronic Turbine Wheel Flowmeter<br />
Model: EDM-4S-14<br />
Brand: Kobold (Alemania)</strong><br />
Measurement range: 8...80 L/min water<br />
Connection: Rc ¾<br />
Operating principle: Turbine Wheel<br />
Housing material: st.st.<br />
Max. Pressure: 100 bar<br />
Power supply: 2 Lithium batteries

<strong>Calorimetric Meter/Switch KAL-A(K)<br />
Model: KAL-AK5-3-15-AS-PG<br />
Brand: Kobold (Alemania)</strong><br />
[KA-AK5]: Calorimetric Flow Meter / Monitor, Compact Version<br />
[3]: Probe material: st.st. 1.4301<br />
[15]: Connection: 1/2"<br />
[AS]: Output: N/O NPN/PNP; 4-20 Ma<br />
[PG]: Electron. Connection: M16x1,5 PNP/NPN

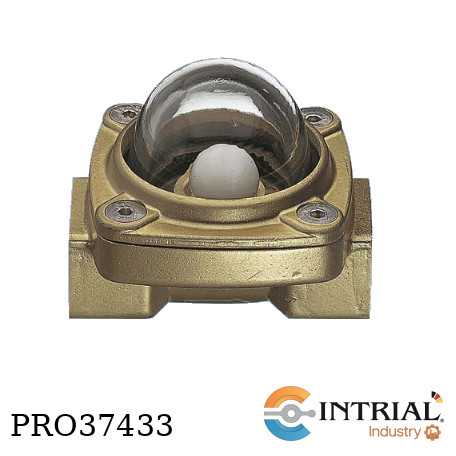

Rotating Vane Flow Indicator DIH<br />
Brand: Kobold (Alemania)<br />
Model: DIH-1-1-08H-R-25_DM<br />
Operating principle, Rotating vane<br />
Mounting position, all directions, rotating vane axle horizontal<br />
Flow direction, in direction of the arrow<br />
max. temperature, 80 °C<br />
max. pressure, 16 bar<br /><br />
*Maletin DEMO*

<strong>Flowindicator for Horizontal Mounting<br />
Model: DKB-11-04H-R-15<br />
Brand: Kobold (Alemania)</strong><br />
[DKB]:<br />
Operating principle, Ball<br />
Mounting position, horizontal<br />
Flow direction in direction of the arrow<br />
Housing material, brass <br />
max. temperature, 120 °C <br />
max. pressure, 6 bar<br />
[11]: Material (rotating vane or ball); POM<br />
[04H]: Nom. diameter/ind. Range; 1/2" 0,07...50 L/min water<br />
[R]: Thread, G-thread female<br />
[15]: Connection, 1/2"

Paddle Type Flow Switch<br />
Model: PSE-11-498-N-15-R-1<br />
Brand: Kobold<br />
[PSE-11]:<br />
Operating principle paddle<br />
Mounting position horizontal<br />
Approvals w/o<br />
Body material brass<br />
max. pressure* 100 bar<br />
[498]: Measuring range/paddle, Paddle length: 49 mm (60 mm for NPT)<br />
[N]: Connection, NPT-thread<br />
[15]: Connection, ½”<br />
[R]: Contact versión, N/O<br />
[1]: Connecting cable, PVC-cable 1.5 m (standard)

CAUDALÍMETRO PLÁSTICO DE BAJO CAUDAL KSV<br />
Body Material: Polycarbonate<br />
Connection Material: Brass, nickel-plated<br />
Float: Stainless Steel<br />
Water: 1 ... 4 l/h<br />
Air: 50 ... 150 Nl/h<br />
Max. temperature: 60°C<br />
Max. pressure: 6 bar<br />
Connection: 1/8' NPT female thread<br />
Measuring accuracy: ±6 % of full scale value
