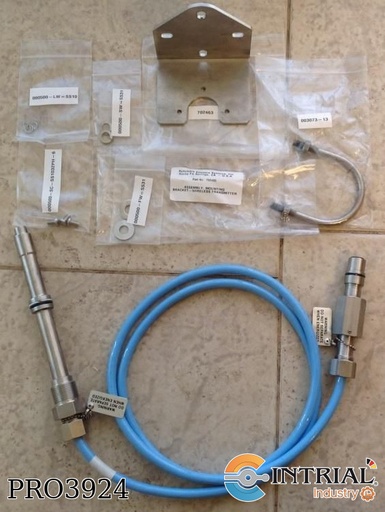

748497-6-6<br />
KIT, REMOTE MOUNTING             <br />
FOR MICROCOR WIRELESS / WIRED TRANSMITTER<br />
Retrievable (Unarmoured) 10,000 Psi<br />
6 FT. (1.8 mts) CABLE AND MTG BRACKET<br />
(for Retrievable Probes)

Cell constant, 3422 sc Digital<br />
Compression Fitting Style Contacting Conductivity Sensor<br />
3/4 inch NPT<br />
Kynear (PVDF) compression fitting style

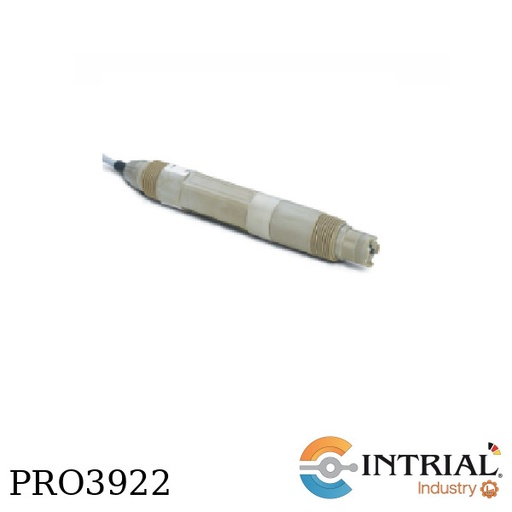

MODEL: DPD1P1<br />
PHd sc, Differential pH Digital Sensor<br />
BRAND: HACH<br />
PEEK Body Material<br />
Convertible Body Style<br />
General Purpose Glass Electrode<br />
70 C (158 F)Maximum Temperature
<div>
<div class="gtx-trans-icon"></div>
</div>

Controlador Universal SC200,Marca: Hach,Modelo: SC200,Supply: 100-240 VAC,Relay Output Ratings: 100-240 VAC 5 A MAX

TERMÓMETRO<br />
•    Marca: MESSKO<br />
•    Conexión: G1”B<br />
•    Longitud del bulbo: 134 mm<br />
•    Rango: -20 a 120 °C<br />
•    Microswitch 1 red<br />
•    Microswitch 1 blue

<div>Modelo: <span> </span>096-3557-01 + 096-3473-11 + 096-3483 + 096-3559-01 + 069-0097-50</div>

<div>///MERIDIAN HYDROGEN CYANIDE SENSOR – HCN , Versión Remota //<br />

<div>•<span> </span>///096-3557-01///: <span> </span>ALUMINUM ENCLOSURE, STANDARD DISPLAY, PLASTIC END CAP, REMOTE HEAD</div>

<div>•<span> </span>///096-3473-11///:<span> </span>///MERIDIAN HYDROGEN CYANIDE SENSOR - HCN  (Sensor de HCN con tecnología Electroquímica de larga vida Útil///</div>

<div>•<span> </span>//096-3483// ///NPT to NPT Wire Gland Assembly//</div>

<div>•<span> </span>//096-3559-01// // Explosion Proof Junction box, 2 cajas//</div>

<div>•<span> </span>//069-0097-50/// //Cable, 50FT. (15.2M: 069-0097-50)//</div>

<div>•<span> </span>Rango de medición: ///0 –  25 ppm (0 a 100 ppm) HCN///(AUTO-AJUSTABLE)</div>

<div>•<span> </span>Material de la carcasa: ///Aluminio libre de cobre///</div>

<div>•<span> </span>Voltaje de servicio 3/4 hilos: /// 10-30 VCC (24 VCC nominal)///</div>

<div>•<span> </span>Protección de la carcasa NEMA 4X, IP66</div>

<div>•<span> </span>Alarmas: 3 alarmas programables con inicio y reseteo (banda muerta ajustable); 1 fallo de sistema fail-safe</div>

<div>•<span> </span>Relés Cuatro relés tipo C, con corriente nominal de 5 A a 30 VCC/240 VCA, cargas resistivas</div>

<div>•<span> </span>Idiomas Español, inglés, portugués, francés, chino y ruso</div>
</div>

Flow Indicator with Rotor DAH<br />
Model: DAH-1-2-03H-N-15<br />
[DAH-1]:<br />
Operating principle, rotor<br />
Mounting position, all directions<br />
Flow direction, in direction of the arrow<br />
Max. temperature, 100 °C<br />
Max. pressure, 16 bar<br />
[2]: Material (housing/connection), st. st.<br />
[03H]: Nom. diameter, 1/2" (Qn: 1...12 L/min water)<br />
[N]: Thread, NPT-thread female<br />
[15]: Connection, 1/2"

05230A1-Indura-15-6-2015<br /><br />

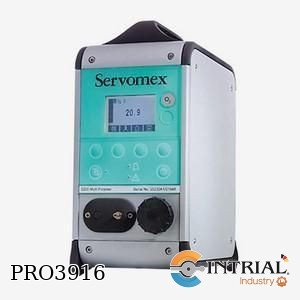

SERVOFLEX Mini MP Portable Analyser                                                    <br />
•    With the following configuration:<br />
•    Supply Power: Rechargeable Battery Euro<br />
•    Measurement 1:Oxygen, industrial version (3601, 1 dec place)<br />
•    sampling System:  AFCD<br />
•    Inlet Coupler<br />
•    1/4" Barb Exhaust / Vent Outlet<br />
•    Rear Panel<br />
•    User Manual English<br />
•    Printer   : Not Supplied                                     <br />
•    Transport Case : Not Supplied<br />
•    Notice: Certain versions of the 5100/5200 can contain batteries, in such cases the battery details are as follows: Lithium Ion batteries, Not restricted PI 967, Battery rating  two 3.8V 2.4Ah cells. Total 7.6V 18.2 Wh

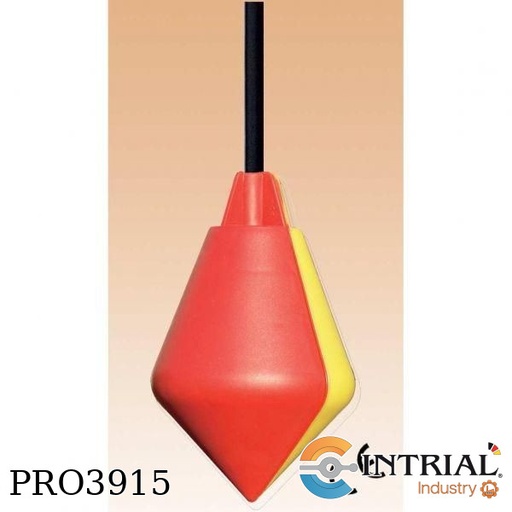

INTERRUPTOR TIPO FLOTADOR PARA LIQUIDOS,<br />
Angulo diferencial : +/- 165°,<br />
Principio de funcionamiento : Omnidireccional,<br />
Densidad fluidos : 0,70 a 1,50,Presión Max : 3.5 bares,<br />
Temperatura máxima : 85°C,<br />
Índice de protección : IP 68,<br />
Alimentación eléctrica : 250 VCA/VCC -50/60 Hz,<br />
Potencia de desconexión : 20 (8) A,(20 A resistivos - 8 A inductivos),<br />
Microinterruptor inversor : Contactos plata ,/Níquel,<br />
Envolvente bicónico : Polipropileno copolímero,<br />
Cables normalizados HR HY (Hypalon) H07RN8-F,<br />
Tipo de cable: 3 conductores 1mm2 (con tierra),<br />
Peso flotador sin cable : 325 g,<br />
Peso del cable : HR HY (Hypalon) 110 g/m,<br />
Longitud del cable: 25 m,<br />
GARANTIA: 1 AÑO

Buffer  SOLUCION DE CALIBRACION DE CONDUCTIVIDAD· Marca : Oakton (USA)· Valor<br />
de conductividad : 1413 uS/cm· Fco x 500 ml.

AWRT20T4XXXC15XX+FA4A4+C034Z<br />
Acoustic Wave Remote Transducer<br />
* 20kHz for applications up to 20m Liquids and 7m Solids(large & Medium Part)<br />
* Facing material: Teflon 80 C<br />
* Housing: Polypropylene<br />
* Connection: IP68 Sealed unit w/cable<br />
* Cable Length: 15m cable<br />
Flange: ANSI 4"<br />
* Cone Mounted<br />
* Flange Material: Polypropylene<br />
Focaliser Cone<br />
* 3" Cone for 30-20 & 15 Khz<br />
* Cone Material: Polypropylene

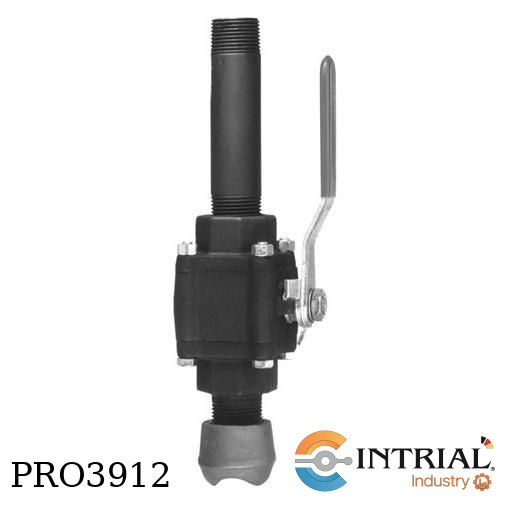

Access Valve Assembly Retractable System<br />
Consisting of:<br />
• Threadolet for Flat Surfase<br />
• All thread nipple<br />
• Ball valve 1”<br />
• 5” Nipple<br />
• Full Valve Provided in Carbon Steel

Modelo: 096-3480-01 + 096-3473-55<br />
///Medidor/Detector de Gases Combustibles (LEL), Versión Compacta///<br />
Especificaciones Exactas del modelo cotizado<br />
///096-3480-01///: ALUMINUM ENCLOSURE, STANDARD DISPLAY, PLASTIC END<br />
CAP (Transmisor Universal que se puede usar para todo tipo de Sensores)<br />
///096-3473-55///: ///MERIDIAN COMBUSTIBLE CATALYTIC BEAD SENSOR(Sensor de<br />
Combustible, con tecnología Catalítica de larga vida Útil///<br />
Rango de medición: ///0 – 100 % LEL///(AUTO-AJUSTABLE)<br />
Material de la carcasa: ///Aluminio libre de cobre///<br />
Voltaje de servicio 3/4 hilos: /// 10-30 VCC (24 VCC nominal)///<br />
Protección de la carcasa NEMA 4X, IP66<br />
Alarmas: 3 alarmas programables con inicio y reseteo (banda muerta ajustable);<br /><br />
MERIDIAN COMBUSTIBLE CATALYTIC BEAD SENSOR, <br />
esta tecnología es ideal para medir presencia de hidrogeno.<br />
///096-3473-55///: ///MERIDIAN COMBUSTIBLE CATALYTIC BEAD SENSOR(Sensor de<br />
Combustible, con tecnología Catalítica de larga vida Útil///<br />
Rango de medición: ///0 – 100 % LEL///(AUTO-AJUSTABLE)<br /><br />
Hoja técnica :<br />
https://app.box.com/s/bbkinwyle85zmed6hvgwuv169yd0ypf4

Spares Kit - Rechargeable Battery Pack

AWI2SB20T4XXXX<br />
TRANSMISOR DE ULTRASONIDO       <br />
•    MARCA HAWK (AUSTRALIA)<br />
•    AWI2: Model (Integral 2 Wire, No relays, Modbus)<br />
•    S: Housing (Valox 357U)<br />
•    B: Power Supply (12-30 VDC)<br />
•    20: Transducer Frequency 20 Khz<br />
•    T: Process Temperature - Facing material selection (Teflon 80°C (176°F) 10, 15, 20, 30kHz only) )<br />
•    4: Transducer Housing Material (Polypropylene)<br />
•    X: End Cap Mounting Thread Standard (Not Required (Standard Flange Mount, see flange & cone selection))<br />
•    X: End Cap Mounting Thread Sizes (Not Required (Standard Flange Mount))<br />
•    X: 4-20mA analogue Output<br />
•    X: Approval Standard (Not Required)<br />
•    X: Software Options (Not Required)

<div>SMART DIFFERENTIAL PRESSURE TRANSMITTER + DIAPHRAGM SEAL + CAPILLARY</div>

<div></div>

<div>ADP9000-D5-NNS-NNN-NPN-NN + D1-A20N6-N03-N</div>

<div>ADP9000: SMART DIFFERENTIAL PRESSURE TRANSMITTER</div>

<div>•<span> </span>Marca: ALIA</div>

<div>•<span> </span>Model ADP9000 Series</div>

<div>•<span> </span>D: Differential pressure transmitter</div>

<div>•<span> </span>5: Pressure Range: Calibration Range:0~14 mH2O</div>

<div>•<span> </span>N: Diaphragm Material(Stainless Steel 316L)</div>

<div>•<span> </span>N: Process Flanges, Drain/Ventvalve Material(Stainless Steel 304)</div>

<div>•<span> </span>S: Bolts / Nuts Material: Stainless Steel 316</div>

<div>•<span> </span>N: Mounting Bracket Material(Carbon Steel)</div>

<div>•<span> </span>N: Wetted O-ring Material(buna-N)</div>

<div>•<span> </span>N: Fill Fluid(silicone)</div>

<div>•<span> </span>N: Connection: 1/4" -18 NPT</div>

<div>•<span> </span>P: Electrical Connections(1/2 NPT Female)</div>

<div>•<span> </span>N:Maximum Pressure Limits(4 MPa = 40 bar)</div>

<div>•<span> </span>NN: Option(None)</div>

<div>•<span> </span>Turn Down Ratio : 1 : 100 Current</div>

<div>•<span> </span>Output : 4 - 20 mA 2 wires with Hart Signal</div>

<div>•<span> </span>Accuracy : +/- 0.075% of span</div>

<div>•<span> </span>Power Supply: 9- 36 VDC</div>

<div></div>

<div>D1-A20N6-N03-N</div>

<div>•<span> </span>1: One-sided Capillary connects remote diaphragm seal</div>

<div>•<span> </span>A: Process Connection:ANSI 150# </div>

<div>•<span> </span>2: Flange Size:2”</div>

<div>•<span> </span>0: Flush Diaphragm </div>

<div>•<span> </span>N: Diaphragm Material:ss 316L</div>

<div>•<span> </span>6: Flange Material: Stainless Steel 316</div>

<div>•<span> </span>Fill Fluid:Silicone</div>

<div>•<span> </span>N03: Capillary Length:3 m</div>

<div>•<span> </span>N: Options: Non</div>

<strong>Temperature Switch For Liquids<br />
Brand: Kobold (Alemania)<br />
Model: TWR-21-050-0</strong><br />
[TWR-21]:<br />
Standard contact<br />
Fitting/housing, brass<br />
Seal, w/o<br />
Max. temperature, 150 °C<br />
Max. pressure, PN 64<br />
Tolerance, up to 90 °C = +-5 °C; from 100 °C = +-7 °C<br />
Hysteresis, max. 20 °C<br />
Contact, N/O<br />
Connection, G 3/4 male<br />
Electron. connection, plug acc. DIN 43 650<br />
[050]: Switch point, 50°C<br />
[0]: Signal lamp, w/o

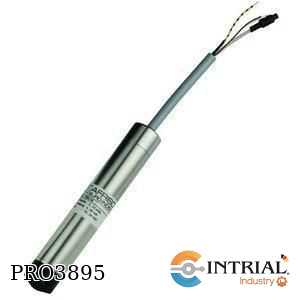

<div>Modelo: DMU 08 (31565) + 40 m Cable PUR</div>

<div>TRANSMISOR DE PRESION HYDROFOX<br />
• SONDA DE NIVEL para tanques de agua y similares<br />
• Marca: AFRISO (Alemania)<br />
• Principio de medición: piezoresistivo<br />
• acero inoxidable<br />
• célula de medida<br />
• Precisión de medida (IEC 60770): 0.35% FSO < ±0.5 % FSO)<br />
• Piezas húmedas: Acero Inoxidable /FKM 316 L<br />
• Safety Integrity Level: SIL 2<br />
• Alimentación: DC 8-32 V<br />
• Salida: 4-20 mA<br />
• Sistema: 2-hilos<br />
• Conexión eléctrica: 40 m cable PUR<br />
• Rangos de medición: 0 a 4 Bar</div>

Modelo AFR2-1<br />
Fluido :Aire<br />
Cuerpo: de aluminio<br />
Filtro: polietileno; <br />
Diafragma y tapón de válvula de asiento: elastómero de nitrilo. <br />
Presión máx. de suministro: 17.2 bar (250 psi). <br />
Límites de temperatura: -20 a 70 °C (-4 a 158 °F). <br />
Tamaño mínimo de filtrado: 5 micras.
<div>
<div class="gtx-trans-icon"></div>
</div>

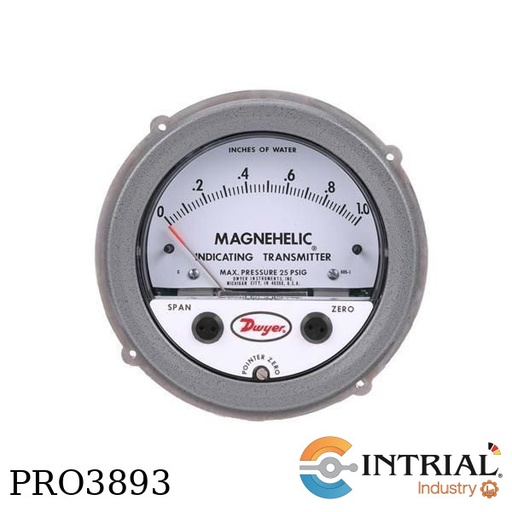

MAGNEHELIC® DIFFERENTIAL PRESSURE INDICATING TRANSMITTER<br />
Brand: DWYER<br />
Rane: 0-10" in w.c.<br />
GAGE SPECIFICATIONS<br />
Service: Air and non-combustible, compatible gases.<br />
Wetted Materials: Consult factory.<br />
Accuracy: See chart.<br />
Stability: ±1% FS/yr.<br />
Pressure Limits: See chart.<br />
Temperature Limits: 20 to 120°F (-6.67 to 48.9°C).<br />
Process Connections: 1/8˝ female NPT.<br />
Size: 4˝ (101.6 mm) dial face, 5˝ (127 mm) OD x 2-11/16˝ (68.3 mm); -SS bezel:<br />
4-3/4˝ (120.7 mm) OD x 2-21/32 (67.5 mm).<br />
Weight: 1 lb 12.6 oz (811 g).<br />
Agency Approvals: CE.<br />
TRANSMITTER SPECIFICATIONS<br />
Accuracy: See chart (includes linearity, hysteresis, repeatability).<br />
Temperature Limits: 20 to 120°F (-6.67 to 48.9°C).<br />
Compensated Temperature Range: 32 to 120°F (0 to 48.9°C).<br />
Thermal Effect: ±0.025% FS/°F (0.045% FS/°C).<br />
Power Requirements: 10-35 VDC (2-wire).<br />
Output Signal: 4-20 mA.<br />
Zero and Span Adjustments: Protected potentiometers.<br />
Loop Resistance: DC: 0 to 1250 Ω max.<br />
Current Consumption: DC: 38 mA max.<br />
Electrical Connections: Screw terminal block.<br />
Mounting Orientation: Diaphragm in vertical position. Consult factory for other<br />
position orientations.
