Automatización Industrial

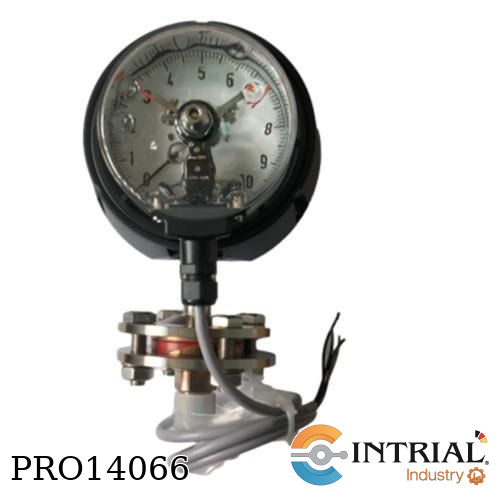

MANOMETRO TIPO FENOLICO CON GLYCERINA "RF130PG-D102"
RF130PG, D102(0 a 10 Bar) MK2.1.1<br />
MANOMETRO TIPO FENOLICO<br />
Marca: AFRISO(Alemania)<br />
Dial Ø: 4 ½ “ (130 mm)<br />
Carcaza: PP-GF 20, negra<br />
Elemento de medición: Acero Inoxidable 316Ti/316 L<br />
Precisión Clase: Grado 2A según ANSI B 40.1 (correspondiente para clase 0.5)<br />
Conexión: ½ NPTM- Inferior<br />
Rango: 0 a 10 Bar<br />
MK2.1.1<br />
2 Contactos electricos<br />
Contact 1: Close<br />
Contact 2: Close<br /><br />
MD30(31417W)(1/2”NPT) (PFA COATED)<br />
SELLO DIAFRAGMA EN ACERO INOXIDABLE Y REVESTIMIENTO EN PFA<br />
Marca: AFRISO (Alemania)<br />
Conexión a Instrumento: Conexión soldada<br />
Presión Nominal: PN25<br />
Conexión al proceso: 1/2” NPT<br />
Montaje: Inferior<br />
Revestimiento sello diafragma: Teflon PFA<br /><br />

S/ 0.00 0.0 PEN
MANOMETRO TIPO FENOLICO CON GLYCERINA, Dial Ø: 4 ½ “ (130 mm), Rango: -1 a 1.5 Bar + SELLO DIAFRAGM
RF130PG, D102(-1 a 1.5 Bar)<br />
MANOMETRO TIPO FENOLICO CON GLYCERINA<br />
Marca: AFRISO(Alemania)<br />
Dial Ø: 4 ½ “ (130 mm)<br />
Carcaza: PP-GF 20, negra<br />
Elemento de medición: Acero Inoxidable 316Ti/316 L<br />
Precisión Clase: Grado 2A según ANSI B 40.1 (correspondiente para clase 0.5)<br />
Conexión: ½ NPTM- Inferior<br />
Rango: -1 a 1.5 Bar<br /><br />
MD30(31417W)(1/2”NPT) (PFA COATED)<br />
SELLO DIAFRAGMA EN ACERO INOXIDABLE Y REVESTIMIENTO EN PFA<br />
Marca: AFRISO (Alemania)<br />
Conexión a Instrumento: Conexión soldada<br />
Presión Nominal: PN25<br />
Conexión al proceso: 1/2” NPT<br />
Montaje: Inferior<br />
Revestimiento sello diafragma: PFA
S/ 0.00 0.0 PEN
Ultrasonic-Level Indicators for liquids and solids, 0,45 - 15 m , -30...+90 °C, 0,5...3 bar abs, 4-
Ultrasonic-Level Indicators for liquids and solids<br />
Brand: Kobold (Alemania)<br />
Model: NUS-4-015-AD-3-RP<br />
[NUS-4]<br />
Measuring range on liquids 0,45 - 15 m <br />
Measuring range on solids 0,45 - 6 m <br />
Housing Aluminium<br />
max. temperature  -30...+90 °C<br />
max. pressure 0,5...3 bar abs<br />
[015] Sensor- and Connection-material: Polypropylene<br />
[AD] Connection ANSI-flange 5" 150 PSI <br />
[3] Power supply 12---36 VDC, 2 wires<br />
[RP] Output/Display: 4-20 mA,relay, programming unit<br />
(stand. adjustment) w. LCD display
S/ 5,397.79 5397.79 PEN
Liquid Level Switch, 90 °C, 150 °C, VAC: 24..240, 1 NPT
Liquid Level Switch<br />
Model: NWS-N25-2E-F-0117<br />
Brand: Kobold<br />
[NWS]<br />
Material st. steel<br />
Max. pressure 45 bar<br />
Max. temperature of media 90 °C<br />
CIP-Cleaning: 150 °C<br />
Power supply VDC or VAC: 24..240<br />
Protection: IP 65 / 67/ 68<br />
[N25] Connection: 1 NPT<br />
[2E] Power supply: Namur agreement with ATEX-approval<br />
[F] Electrical connection: 1.5 m fixed cable<br />
[0117] Sensor version (length): Standard version for NWS-R25/N25
S/ 2,109.31 2109.31 PEN

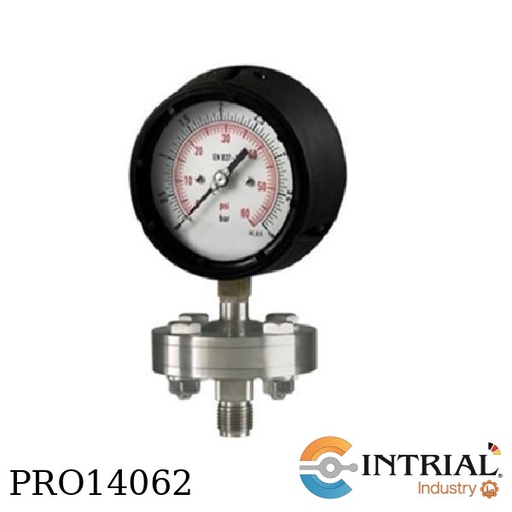

MANOMETRO TIPO FENOLICO CON GLYCERINA, Rango: 0 a 10 Bar, ½ NPTM
MANOMETRO TIPO FENOLICO CON GLYCERINA<br />
Marca: AFRISO(Alemania)<br />
Dial Ø: 4 ½ “ (130 mm)<br />
Carcaza: PP-GF 20, negra<br />
Elemento de medición: Acero Inoxidable 316Ti/316 L<br />
Precisión Clase: Grado 2A según ANSI B 40.1 (correspondiente para clase 0.5)<br />
Conexión: ½ NPTM- Inferior<br />
Rango: 0 a 10 Bar<br /><br />
MD30(31417W)(1/2”NPT) (PFA COATED)<br />
SELLO DIAFRAGMA EN ACERO INOXIDABLE Y REVESTIMIENTO EN PFA<br />
Marca: AFRISO (Alemania)<br />
Conexión a Instrumento: Conexión soldada<br />
Presión Nominal: PN25<br />
Conexión al proceso: 1/2” NPT<br />
Montaje: Inferior<br />
Revestimiento sello diafragma: PFA
S/ 2,732.58 2732.58 PEN

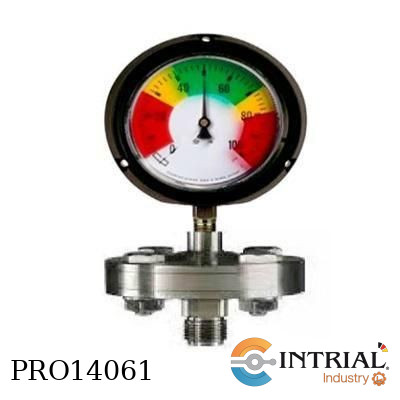

Manometro Fenolico, 60 psi, 1/2 NPT
RF130PG-D102(0 a 20 Bar)<br />
MANOMETRO TIPO FENOLICO CON GLYCERINA<br />
Marca: AFRISO(Alemania)<br />
Dial Ø: 4 ½ “ (130 mm)<br />
Carcaza: PP-GF 20, negra<br />
Elemento de medición: Acero Inoxidable 316Ti/316 L<br />
Precisión Clase: Grado 2A según ANSI B 40.1 (correspondiente para clase 0.5)<br />
Conexión: ½ NPTM- Inferior<br />
Rango: 0 a 20 Bar<br /><br />
MD30(31417W)(1/2”NPT) (PFA COATED)<br />
SELLO DIAFRAGMA EN ACERO INOXIDABLE Y REVESTIMIENTO EN PFA<br />
Marca: AFRISO (Alemania)<br />
Conexión a Instrumento: Conexión soldada<br />
Presión Nominal: PN25<br />
Conexión al proceso: 1/2” NPT<br />
Montaje: Inferior<br />
Revestimiento sello diafragma: PFA<br />
Version especial TPM con Codigo de Colores para mostrar en el displya del Manometro( 3 colores, rojo,<br />
verde y amarillo)
S/ 2,732.58 2732.58 PEN

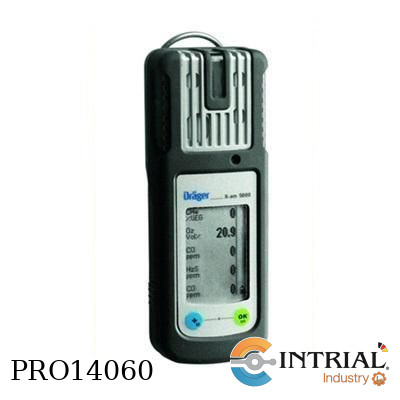

GAS DETECTOR FLUORIDE OF HYDROGEN "Draeger-am 5100"
GAS DETECTOR FLUORIDE OF HYDROGEN<br />
Brand: DRAGER<br />
Range: 0 - 30 ppm<br />
Draeger 4542153 X-am 5100 series 0 - 30 ppm impact resistant single gas detector with LCD display,<br />
audible/visual/vibrating alarm and alkaline battery which detects hydrogen chloride/hydrogen fluoride at 0.1<br />
resolution
S/ 10,619.80 10619.800000000001 PEN
Flujometro Electromagnetico EPS, 1020 L/h, DN6, PFA, Electrodo Platinum, HART
EPS Electromagnetic Flow Mete<br />
Brand: Kobold-Heinrichs<br />
Material Lining, PFA/Ceramics<br />
Process connection, DN6 <br />
Material, Ceramics/Platinum/EPDM<br />
Material electrodes, Platinum/Iridium<br />
Power supply, 230VAC, 50/60Hz<br />
Output Signal, 1x 0/4-20 mA, HART protocol
S/ 6,121.77 6121.77 PEN
Flujometro Electromagnetico EPS, 17.6 m3/h, 1" Class 150 RF, Hard Rubber, Electrodo St. St., HART
EPS Electromagnetic Flow Meter<br />
Brand: Kobold-Heinrichs<br />
Material Lining, Hard Rubber<br />
Process connection, 1" Class 150 RF <br />
Material electrodes, st.st. 1.4571 <br />
Earthing electrode, st.st. 1.4571 <br />
Power supply, 230VAC, 50/60Hz<br />
Output signal, 1x 0/4-20 mA, HART protocol
S/ 0.00 0.0 PEN
EPS Electromagnetic Flow Meter, Max. measuring range, 70 m³/h, Installation length, 200 mm
EPS Electromagnetic Flow Meter<br />
Brand: KOBOLD (Heinrichs)<br />
Model: EPS-H-206R-1-S-S-1-0<br />
[H]: Material Lining, Hard Rubber (Ebonit), Standard 2x Measuring Electrodes,<br />
Process-Temperature, 0°C…+95°C<br />
[206R]:Process connection, ANSI flanges 2" Class 150 RF ASME B16.5-2003,<br />
Max. measuring range, 70 m³/h, Installation length, 200 mm.<br />
[1]: Material Process connection, Flange steel painted<br />
[S]:Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S]: Earthing electrode, st.st. 1.4571 (316 -TI)<br />
[1]: Transmitter mounting, Integrated transmitter<br />
Protection class, sensor IP 67<br />
[0]:Certificates, w/o<br />
<br />
Include<br />
TRANSMITTER<br />
Brand: KOBOLD (Heinrichs)<br />
Model: UMF2-A-1-1-G-0BK<br />
[A]: Mounting, Integrated transmitter IP 67 standard<br />
Thread - electrical connection, ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G]: Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold
S/ 6,976.11 6976.110000000001 PEN
Flujometro Electromagnetico EPS, 300 L/min, 1-1/2" Class 150 RF, PTFE, Electrodo Hastelloy C276, HAR
EPS Electromagnetic Flow Meter<br />
Brand: Kobold-Heinrich<br />
Material Lining, PTFE<br />
Process connection, 1½" Class 150 RF<br />
Material electrodes, Hastelloy<br />
Earthing electrode, w/o<br />
Power supply, 230VAC, 50/60Hz<br />
Output signal, 1x 0/4-20 mA, HART protocol
S/ 6,169.74 6169.74 PEN
MATE II-ADT02
S/ 1,827.34 1827.3400000000001 PEN
MATE II-ACM02
S/ 2,149.59 2149.59 PEN

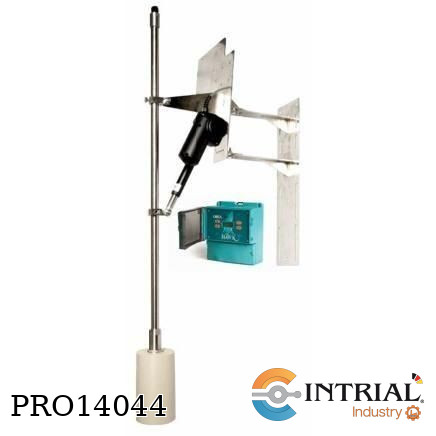

ORCA Remote Sonar Level Transmitter + ORCA Remote Sonar Transducer + Automatic Scum Cleaner OSIRSCA
<div>OSIRDAX<br />
--------------<br />
ORCA Remote Sonar Level Transmitter, 3 relay alarms<br />
* Power Supply 90-250 VAC and 24-30VDC / Sealing: IP67<br />
* Communication: Profibus PA<br />
* Display: LCD Display (2 line x 12 digit alphanumeric)<br />
OSIRT302SHXC6<br />
----------------------------<br />
ORCA Remote Sonar Transducer<br />
* 150 kHz for Industrial and Mining Application / Max Range: 25 mts<br />
* Full Fiberglass high temp version for Facing & Housing Material<br />
* End Connection: 1" NPT<br />
* IP 68 Sealed with 6 mts cable</div>

<div>A C C E S S O R I E S<br />
================<br />
OSIRSCA<br />
--------------<br />
Automatic Scum Cleaner<br />
* 24VDC Electric Actuator incl. Mounting Accessories<br />
OSIRMEL3<br />
---------------<br />
Mounting Extension Pipe<br />
* Stainless Steel Pipe with a length of 3 mts<br />
SUNHOOD<br />
---------------<br />
Stainless Steel Sunhood for Orca(included with OSIRSC_ package)<br />
HAWKLINK<br />
---------------<br />
Usb cable and converter for GoshawkII</div>
S/ 48,942.63 48942.630000000005 PEN
PR14043
S/ 109.86 109.86 PEN
DIFFERENTIAL PRESSURE SWITCH, 0.4 to 1.6 w.c., -40 to 140°F, 60 Hz, 1/8" female NPT.
EXPLOSION-PROOF DIFFERENTIAL PRESSURE SWITCH<br />
Compact, Low Cost, Explosion-proof and Weatherproof<br />
Brand: DWYER<br />
Range: 0.4 to 1.6 w.c.<br />
Service: Air and non-combustible,compatible gases.<br />
Temperature Limits: -40 to 140°F<br />
Enclosure Rating: NEMA 3 (IP54),NEMA 7 & 9.<br />
Switch Type: Single-pole double-throw (SPDT).<br />
Electrical Rating: 15 A @, 125, 250, 480 VAC, 60 Hz. Resistive 1/8 HP @125 VAC, 1/4 HP @ 250 VAC, 60 Hz.<br />
Electrical Connections: 3 screw type, common, normally open and normally closed.<br />
Process Connections: 1/8" female NPT.<br />
Mounting Orientation: Diaphragm in vertical position. <br />
Set Point Adjustment: Screw type on top of housing.<br />
Weight: 3.25 Ib (1.5 kg)<br />
Agency Approvals: CE, CSA, FM, UL
S/ 915.50 915.5 PEN
MANÓMETRO CON CONTACTOS ELÉCTRICOS, 0/10 bar , 316 Ti / 316 L, 160 mm (6”)
MANÓMETRO CON CONTACTOS ELÉCTRICOS<br />
Marca: AFRISO (Alemania)<br />
Diámetro de la carcasa: 160 mm (6”)<br />
Rango: 0/10 bar simple escala, color negro<br />
Carcasa: acero inoxidable 1.4301 con bisel de bayoneta<br />
Material en contacto: Acero Inoxidable 316 Ti / 316 L<br />
Precisión Contacto: 1,0<br />
MK2.21: 2 Contactos Eléctricos: NC y NO<br />
Tipo de Conexión: ½ NPT Macho, inferior<br />
Bottom connection, back flange<br />
Con parafina<br />
Punto de accionamiento independiente
S/ 2,014.10 2014.1000000000001 PEN
Flujometro Electromagnetico EPS, 1767 m³/h, 10" Class 150 RF, Hard Rubber, Electrodo Hastelloy C276,
EPS MAGNETIC INDUCTIVE FLOWMETER<br />
Brand: Kobold–Heinrichs<br />
Material Lining, Hard Rubber<br />
Process connection,10" Class 150 RF<br />
Material electrodes, Hastelloy <br />
Earthing electrode, Hastelloy<br />
Power supply, 230VAC, 50/60Hz<br />
Signal output, 1x 0/4-20 mA, HART protocol<br />
Cable,15m
S/ 16,013.93 16013.93 PEN
Flujometro Electromagnetico EPS, 274 m3/h, 6" Class 150 RF, Hard Rubber, Electrodo Hastelloy C276, H
EPS MAGNETIC INDUCTIVE FLOWMETER<br />
Brand: Kobold–Heinrichs<br />
Material Lining, Hard Rubber<br />
Process connection, 6" Class 150 RF<br />
Material electrodes, Hastelloy <br />
Earthing electrode, Hastelloy<br />
Power supply, 230VAC, 50/60Hz<br />
Output signal, 1x 0/4-20 mA, HART protocol<br />
Cable, 15m
S/ 11,850.23 11850.23 PEN
Flujometro Electromagnetico EPS, 274 m3/h, 4" Class 150 RF, Hard Rubber, Electrodo Hastelloy C276, H
EPS MAGNETIC INDUCTIVE FLOWMETER<br />
Brand: Kobold–Heinrichs <br />
Material Lining, Hard Rubber<br />
Process connection, 4" Class 150 RF <br />
Material electrodes, Hastelloy <br />
Earthing electrode, Hastelloy <br />
Power supply, 230VAC, 50/60Hz<br />
Output signal, 1x 0/4-20 mA, HART protocol<br />
Cable, 15m
S/ 10,627.12 10627.12 PEN
