<div>•<span> </span>THERMOWELL</div>

<div>•<span> </span>Brand:  INTRIAL(Made in Germany)</div>

<div>•<span> </span>ø 7,5 mm, </div>

<div>•<span> </span>Length 65 mm,</div>

<div>•<span> </span>Material Titan</div>

<div>•<span> </span>***According your drawing***</div>

Modelo :APRH , Hydrogen, and Inert Gase<br /><br />
o    MEECO AQUAVOLTTM Moisture Analyzer F4000(Cell Type: APRH , Hydrogen, and Inert Gases)<br />
•    <br />
•    Micro-Processor based, modular, 19" rack mounted analyzer<br />
•    Includes Instruction Manual M4000 1<br />
•    Includes Hook Up Kit L1487 1<br />
o    Cell Type: APRH<br />
o    Gas Application: Hydrogen, Argon, Nitrogen, Helium, Neon, Carbon Dioxide<br />
o    Range: 1-1000 ppmV<br />
o    Accuracy Specification: +/- 5% or 0.4 ppm, whichever is greater<br />
o    Power: 100-240 VDC 50/60 Hz<br />
•    Standard Features Include:<br />
o    Stainless Steel Wetted Components<br />
o    RS232 Communication and Flash Update<br />
o    Two Programmable Moisture Level Alarms and One Cell Protection Alarm<br />
o    0-5 VDC, 4-20 mA, 0-20 mA or 0-24 mA output (user selectable and scaleable)<br />
o    Units of measure include ppmV, ppmW, °C or °F dewpoint

Modelo: AQUAVOLT(F400)- APR<br /><br />
MEECO AQUAVOLTTM Moisture Analyzer F4000(Cell Type: APR, Inert Gases, CO2 and Methane )<br />
Micro-Processor based, modular, 19" rack-mounted analyzer<br />
Includes Instruction Manual M4000 1<br />
Includes Hook-Up Kit L1487 1<br />
Cell Type: APR<br />
Gas Application: Argon, Nitrogen, Helium, Neon, Carbon Dioxide & Methane<br />
Range: 1-1000 ppmV<br />
Accuracy Specification: +/- 5% or 0.4 ppm, whichever is greater<br />
Power: 100-240 VDC 50/60 Hz<br />
Standard Features Include:<br />
Stainless Steel Wetted Components<br />
RS232 Communication and Flash Update<br />
Two Programmable Moisture Level Alarms and One Cell Protection Alarm<br />
0-5 VDC, 4-20 mA, 0-20 mA or 0-24 mA output (user selectable and scaleable)<br />
Units of measure include ppmV, ppmW, °C or °F dewpoint

Modelo: PRO5399-TE-K-26,7X300/150<br />
SCREW-IN THERMOCOUPLE (PRO5399)<br />
•Brand:  INTRIAL(Made in Germany)<br />
•1 x type K, protective tube ø 26,7 mm<br />
•Length 300 mm<br />
•Material 2.4816 (INCONELL)<br />
•With Process connection 1"NPT<br />
•Stainless steel nipple 1/2"<br />
•Diameter SCHD<br />
•Universal union of stainless teel of 1/2" diameter and 1/2"NPT<br />
•Length 150 mm<br />
•Connection head made of aluminium<br />
•Electrical connection 1/2"NPT<br />
•IP67<br />
•Temperature range of Operation: 0 to +800°C,<br />
Nota.-  Incluye Certificado de calibración en 3 puntos: ( 760°C, 870°C y 982°C)<br /><br />
*****ACCORDING YOUR DRAWING*****

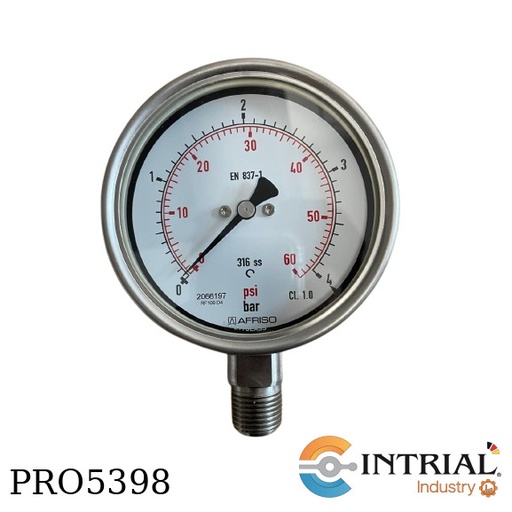

<p class="MsoNormal">Manómetro tipo Bourdon<br />
RANGO 0 to 4 bar/0 to 58 psi<br />
Marca AFRISO(Alemania)  <br />
Diámetro de Carcasa 4''(100mm)  <br />
Precisión 1.0 (EN 837-1/6)<br />
Temperatura operación Max 150°C  <br />
Conexión INFERIOR,1/2''NPT<br />
Material :caja y conexión en acero inoxidable 1.4571.<br />
Con/sin glicerina</p>

<div>RF100Ch,D402(16 bar)<br />
• MANÓMETRO TIPO BOURDON PARA APLICACIONES QUÍMICAS<br />
• Marca: AFRISO(Alemania)<br />
• Rango: 0 a 16 bar/psi<br />
• Diámetro de Carcasa: 4''(100 mm)<br />
• Precisión: 1.0<br />
• Temperatura operación medio: Max 150°C<br />
• Material caja /conexión: acero inoxidable 304/Acero Inoxidable 316<br />
Para Aplcación TPM</div>

<div>MD30 (31417W)<br />
• DIAFRAGMA DE ACERO INOXIDABLE<br />
• Marca: AFRISO (Alemania)<br />
• Conexión a Instrumento: Conexión soldada<br />
• Presión Nominal: PN25<br />
• Conexión al proceso: 1/2” NPT Acero inoxidable 1.4571<br />
• Montaje: Inferior</div>

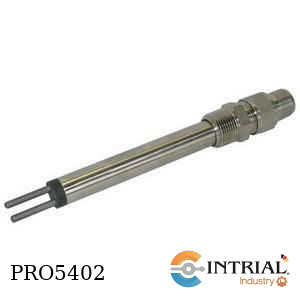

<div>•<span> </span>Screw-in resistance thermometer</div>

<div>•<span> </span>Brand: INTRIAL (Made in Germany)</div>

<div>•<span> </span>1 x Pt 100 Ohm DIN EN 60751, class A/0°C,</div>

<div>•<span> </span>3-wire, tube ø 5 x 0,5 x 100 mm, with thread</div>

<div>•<span> </span>M8 x 1, thread lenght 15 mm, with 2 nuts,</div>

<div>•<span> </span>material 1.4571, with strain relief with spring,</div>

<div>•<span> </span>lenght 65 mm, 2.000 mm cable</div>

<div>•<span> </span>glassilk/glassilk/stainless steel mesh, free</div>

<div>•<span> </span>Ends with forked cable lug, temperature</div>

<div>•<span> </span>range: -50°C to +400°C</div>

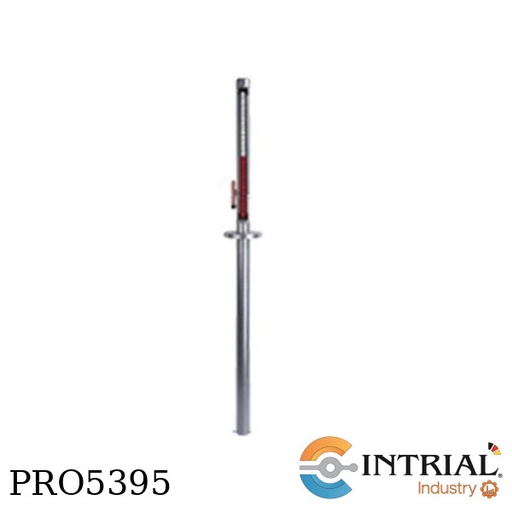

Bypass-Level Indicators, ATEX-Version<br />
NBK-03-A25-RP-E-F (700 mm)<br />
NBK-03:<br />
Bypass- tube, st. st. 1.4571<br />
Max. temperature at PP-roller-indicator, 120 °C<br />
Max. pressure, PN 16 / Cl 150<br />
Protection class roller- indicator / ball indicator, IP54<br />
A25: Connection; ANSI-Flange 1"<br />
RP: Roller-indicator; PP-roller indicator<br />
Length of roller indicator: 700 mm<br />
E: Electric attachment part / ATEX; Reed chain/4-20 mA, 2-wire<br />
Length of reed chain: 700 mm<br />
F: Op. density / Float; 0,54 kg/dm³; Titanium<br />
Distance center to center (CC): 700 mm<br />
Datasheet: <br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/n2gb_nbk-03-atex-gl.pdf

CAUDALÍMETRO DE ÁREA VARIABLE-BAJO VOLUMEN KDG<br />
Marca: KOBOLD<br />
KDG-92:<br />
Longitud de montaje: 90 mm<br />
Principio de funcionamiento: de área variable<br />
Dirección del flujo: de abajo hacia arriba<br />
Material del cuerpo: Acero Inoxidable<br />
Vidrio: Borosilicato<br />
Precisión: Clase 3<br />
Max. temperatura con / sin contacto: 100 ° C / 70 ° C<br />
Max. Presión: PN 16<br />
70: Rango de medición, 5,0 ... 50 l / h de aire<br />
N: Conexión, 1/4 NPT<br />
V: Sello, FPM<br />
0: Montaje en pared, w / o<br />
00: Contactos rango de medición, w / o<br />
0: regulador de presión diferencial de flujo, w / o

Modelo : 04100C1(100ppmCO2-1000ppmCO)-Praxair<br />
·    CHASSIS TYPE: Long Chassis (2 long sensor modules)<br />
·Long Sensor Modules 1: GFX CO2 0-5/100vpm<br />
·Long Sensor Modules 2: **Simplified SIPS GFX CO 0-100/1000vpm**<br />
·Flow Driven GFX for sensor 1<br />
·Flow Driven GFX for sensor 2<br />
·FLOWMETER (LEFT): 2500ml Flowmeter for Module 1<br />
·FLOWMETER (RIGHT):2500ml Flowmeter for Module 2<br />
·MOUNTING: Bench Mount, 19" Rack ears only<br />
·POWER: EUR 170-264V AC<br /><br />
Opciones: El precio Incluye, la calibración, pues en marcha y arranque del equioo en sus oficinas de Lima

•    Model: MICROVIEW(MCM)<br />
• Portable Microview ranged 0.1-100 ppm (Moisture)<br />
• Brand: MCM (England)<br /><br />
•    Sensor Type Silicon Sensor, Temperature Controlled to 46ºC<br />
•    Operating Range 1 to 100 ppm[V]. Other ranges available upon request<br />
o    Resolution 1 ppm[V] , sensitivity 0.1 ppm<br />
o    Stability ±1% of the operating range<br />
•    • Statement of accuracy within +/- 1 ppm between 0.5 and 7.5 Ppm<br />
•    Speed of Response Full scale ‘wet’ to ‘dry’ in <1 minute using Push Purge®<br />
•    Sample Flow Rate Flow independent. Recommended 0.05 to 1 litre / min<br />
•    Sample Gas Pressure Atmospheric vent<br />
•    Display Backlit LCD presenting graphical data, digital value and audit information. The display shows the last 15 minutes of the current measurement, and stores 100 measurements in the memory<br />
•    Power Supply Rechargeable internal lead / acid battery<br />
•    Diagnostics Push Purge® feature aids Sensor dry down, confirms that the Sensor and electronics are operational and highlights the presence of contamination. Push Purge® confirms if the speed of response of the analyser is maintained and validates readings on-line by removing hysteresis before each measurement<br />
•    Standard Calibration In ppm [V], traceable to National Standards<br />
•    Operating Temperature -20 to +40°C.<br />
•    Mounting Free-standing (portable) or rack-mount (on-line)<br />
•    Weight 7kg (portable) / 3kg (on-line)<br />
•    • Push purge sensor drying feature<br />
• automatic zero adjust on purge gas<br />
• 10 measurement in built data logger<br />
• Graphical display<br />
• sample connection on 1/8" compression<br />
• Vent to atmosphere

Modelo:          04100C1-(N2O-50-500-PPM)            <br />
Analizador  N2O, 500PPM<br />
•    Flow Driven GFX<br />
•    FLOWMETER (LEFT)         None<br />
•    FLOWMETER (RIGHT)      None<br />
•    AUTOCALIBRATION        No additional hardware<br />
•    EXTRA OUTPUTS   None<br />
•    MOUNTING 19" Rack ears only

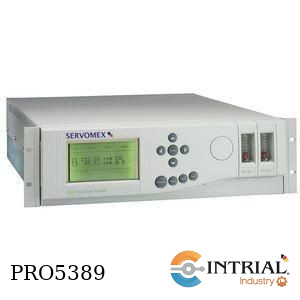

Modelo:          04100C1-(Zirconia-PPMO2)<br />
•    CHASSIS TYPE       Short Chassis (max 2 short or 1 long sensor modules)<br />
•    GAS SENSOR MODULE 1            <br />
•    Short Sensor Modules           Zr O2 704 Trace<br />
•    SAMPLE SYSTEM FOR MODULE 1<br />
•    Flow Driven Zr<br />
•    FLOWMETER (LEFT)         None<br />
•    FLOWMETER (RIGHT)      None<br />
•    OIL/DUST FILTER FOR ZIRCONIA O2 704 TRACE (supplied as loose item)           <br />
Oil/Dust Filter Zirconia O2 Module 1<br />
•    AUTOCALIBRATION        No additional hardware<br />
•    EXTRA OUTPUTS   None<br />
•    MOUNTING 19" Rack ears only

<div>SENSOR PT-100/3HILOS CON ENCAPSULADO SEGÚN DIAGRAMA ADJUNTO<br />
Marca:  INTRIAL (Made in Germany)</div>

<div>•<span> </span>Todo en Acero Inoxidable</div>

<div>•<span> </span>Tipo de Perno M16x1.5</div>

<div>•<span> </span>Cuello Sujetacable</div>

<div>•<span> </span>Rango de Temperatura: -40°C to +200°C</div>

<div>•<span> </span>3 hilos por elemento</div>

<div>•<span> </span>5 metros de cable fibra malla</div>

<div>•<span> </span>Resorte de protección</div>

<div>•<span> </span>Alta Temperatura</div>

<div>•<span> </span>Marca: Intrial (Procedencia Alemana)</div>

MODELO: K2001(Plasma)-1-PPMN2-ARGON-110VAC<br />
<br />
•Analizador de Traza de Nitrógeno en Argón<br />
•Rango de 0-1 ppm, 0-10ppm y 0-100ppm<br />
Configuration:<br />
• Power Supply European Power Lead (110VAC)<br />
• Background Argon<br />
• Auto calibration Not required<br />
• 4-20 mA output Standard<br />
• 2 Alarms dry contact output Standard<br />
• User Manual English<br />
---------------------------<br />
Product configuration includes the following items as standard:<br />
Ethernet Connection<br />
1/8" Compression Fitting for Sample Connection

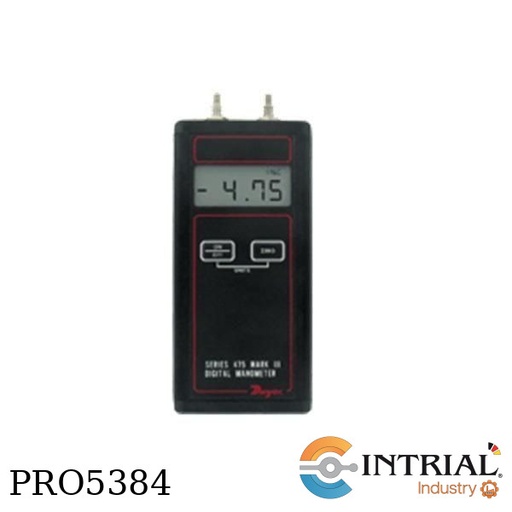

Modelo : 475-00-FM-NIST<br />
Description: Handheld digital manometer, range 0-4.000" w.c. (0.996 kPa), max. pressure 5 psig. Series 475 Mark III Handheld Digital Manometer Ranges from 1" w.c. to 150 psid, ±0.5% Accuracy<br />
Country Of Origin: United States<br />
Option: Include NIST traceable calibration certicate
<div>
<div class="gtx-trans-icon"></div>
</div>

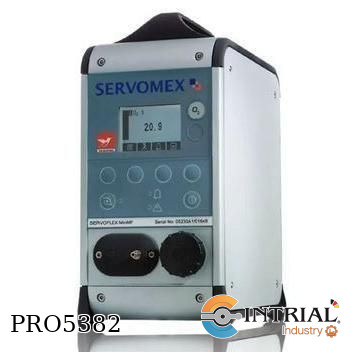

SERVOFLEX analizador portátil de Para Oxigeno Medicinal/Industrial<br />
Con la siguiente configuración:<br />
Alimentación 220VAC, Incluye baterías<br />
Celda de Medición paramagnética para Oxigeno Medicinal/Industrial (0.1% precisión)<br />
Inlet Coupler 1/4” Barb<br />
Exhaust / Vent Outlet Rear Panel<br />
Manual en ingles<br />
Impresora(NO incluida)<br />
Maletín de transporte(NO incluido)<br />
Sampling System AFCD<br />
******Batería de Litio incluido(Not restricted PI 967)<br />
////////MORE SPECIFICATIOS////////<br />
Technology: Paramagnetic<br />
Full scale range (FSR): 0-100% O2<br />
Minimum output range: 0-1% O2<br />
Cell construction: 316 Stainless Steel 316<br />
Decimal places: 1<br />
/////PERFORMANCE/////<br />
Accuracy, general use: ±0.1% O2 FSR<br />
Accuracy, stable environment: ±0.1% O2<br />
Zero drift, per week:  ±0.2% O2<br />
Response time (T90): <15 seconds<br />
Tilt effect, at 15° from cal: ±0.15% O2<br />
Pressure effect: Directly proportional to ambient barometric pressure<br />
Flow variation effect: ±0.1% O2 for a ±0.5psig (3.5kPa)<br />
Operating temperature: +14°F to +122°F (-10°C to +50°C)<br />
Temp. coefficient, zero: ±0.2% O2 per 18°F (10°C)<br />
Temp. coefficient, span: ±0.3% O2 per 18°F (10°C)<br />


CONSUMABLE KIT FOR 01 YEAR OPERATION<br />
Reagent-less Calcium Hardness Consumables Kit<br />
(Orion 2120XP Calcium HardnessMonitor)<br />
Contains everything it is needed to operate the analyzer for 1 year<br />
* (6) 2ft length diffusion tubing with O-rings<br />
* (1) each calcium standard solution kit<br />
* (1) each calcium sensing electrode<br />
* (1) each reference electrode<br />
* (5) 2oz bottles reference electrode filling solution<br />
* (1) O-ring kit<br />
* Check valve<br />
* Pipette tips<br />
* Restriction tube assembly<br />
* Inlet filter with Gaskets

PHOTOELECTRIC SENSOR<br />
Brand: OPTEX<br />
Model: JD-SR80P<br />
Sensing distance, 800 mm<br />
Light source, Red LED<br />
Response time, 0.5 ms or less<br />
Hysteresis, 20% or less<br />
Distance adjustment, 2-turn endless potentiometer (with indicator)<br />
Supply voltage, 10 to 30 VDC, including 10% ripple (p-p)<br />
Current consumption, 20 mA or less
