<div>70-SGI-1 LPM</div>

<div>•<span> </span>Valve Inlet: C-10 </div>

<div>•<span> </span>Flow Rate: 1 LPM FIXED </div>

<div>•<span> </span>Gauge PSI: 1800 PSI / 124 bar</div>

<div>•<span> </span>Material: Brass, Nickel Plated</div>

<div>•<span> </span>Fits Cylinder: 34L Aluminum, 58L Aluminum, 74L Aluminum, 105L Aluminum, 116L Aluminum, 103L Steel</div>

<div>•<span> </span>ecosmart™: 44ES Aluminum, 66ES Aluminum</div>

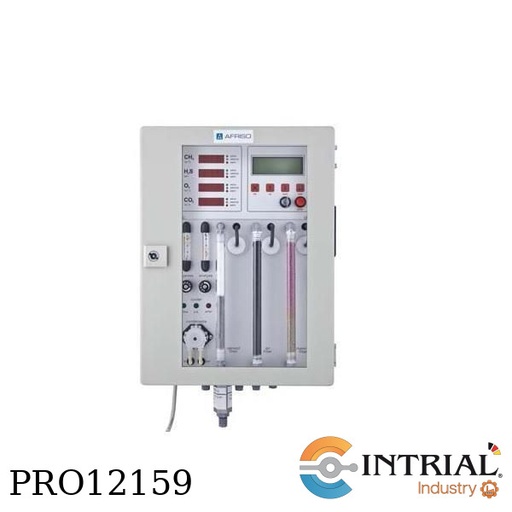

<div>Profibus DP for BIOLYZER<br />
Brand: AFRISO<br />
Modelo: <span> </span>69637</div>

MULTI-JET WATER METER WITH PULSED OUTPUT<br />
Brand: DWYER <br />
Serie WMT <br />
Connection: 2” NPT<br />
Max Flow: 160 GPM<br />
Nominal Flow Range: 80 a 160<br />
Pulse output (REED SWICHT).  <br />
Electrical Rating: 0.01 A @ 24 VAC/DC.<br />
Mounting Orientation: Horizontal with the register face pointing up<br />
Temperature Limit: 104°F (40°C).<br />
Pressure Limit: 232 psi (16 bar).<br />
Electrical Connections: Color-coded lead wires, 4.5´ (1.5 m) long.<br />
Mounting Orientation: Horizontal with the register face pointing up<br />

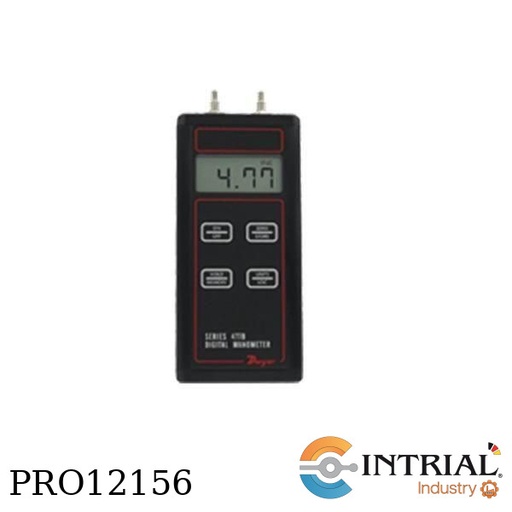

<div>477AV-5</div>

<div>HANDHELD DIGITAL MANOMETER</div>

<div>Measures Pressure; Flow and Velocity</div>

<div>Range: 0 to 20.0 PSI</div>

<div>Service: Air and compatible gases.</div>

<div>Accuracy: ±0.5% FS, 60 to 78°F (15.6</div>

<div>to 25.6°C); ±1.5% FS from 32 to 60°F</div>

<div>and 78 to 104°F (0 to 15.6°C and 25.6 to 40.0°C).</div>

<div>Pressure Hysteresis: ±0.1% FS.</div>

<div>Temperature Limits: 0 to 140°F (-17.8 to 60°C).</div>

<div>Compensated Temperature Limits: 32 to 104°F (0 to 40°C).</div>

<div>Storage Temperature Limits: -4 to 176°F (-20 to 80°C).</div>

<div>Display: 0.42" (10.6 mm) 4 digit LCD.</div>

<div>Resolution: See chart.</div>

<div>Units of Pressure: in w.c., ft w.c., in Hg,</div>

<div>psi, oz/in2, mm w.c., cm w.c., mm Hg,</div>

<div>mbar, Pa, kPa, hPa.</div>

<div>Units of Velocity: fpm, fps, mph, m/h,</div>

<div>m/s, k/h, knot.</div>

<div>Units of Flow: cfm, m3/h, m3/s.</div>

<div>Power Requirements: 9 V alkaline</div>

<div>battery, installed non-functional, user replaceable.</div>

<div>Weight: 10.2 oz (289 g).</div>

<div>Process Connections: Two barbed connections for use with 1/8" </div>

<div>(3.18<span> </span>mm) or 3/16" (4.76 mm) ID tubing</div>

<div>Two compression fittings for use with 1/8"</div>

<div>Agency Approvals: CE.</div>

<div>Marca: DWYER</div>

MINERAL ISULATED THERMOCOUPLE<br />
2 x type K<br />
Sheath ø 6 mm<br />
Junction point indirect<br />
Length : 180+1/-4 mm<br />
Material 1.4541<br />
With over sleeve ø 6,35 x 30 mm<br />
High temperature sealed<br />
With shinking hose<br />
With 2 x 72” connection cable glass silk/glass silk<br />
(cable no. 102), with free ends<br />
Brand: INTRIAL (German manufacture)<br />
*According your drawing 309-306871-007**

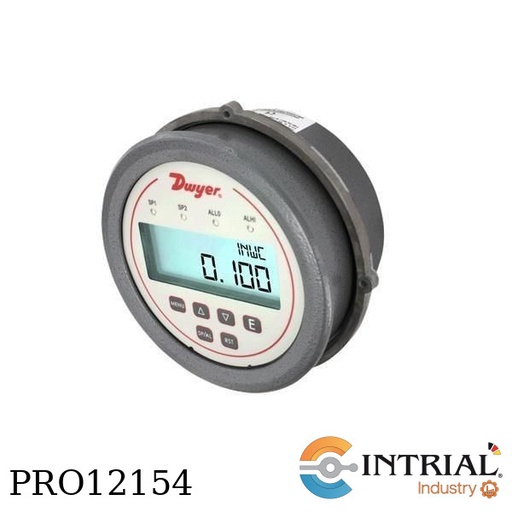

DIGIHELIC® 3 DIFFERENTIAL PRESSURE CONTROLLER<br />
Range: 0-0.25 in w.c.<br />
Brand: DWYER INSTRUMENTS<br />
Service: Air and non-combustible,compatible gases.<br />
Housing Material: Die cast aluminum case and bezel.<br />
Accuracy: ±1.5% <br />
Stability: < ±1% per year.<br />
Temperature Limits: 32 to 140°F (0 to 60°C).<br />
Compensated Temperature Limits: 32 to 140°F (0 to 60°C).<br />
Thermal Effects: 0.020%/°F (0.036/°C) from 77°F (25°C). <br />
For 0.25 in and ±0.25 in w.c. ranges: ±0.03%/°F (±0.054%/°C).<br />
Power Requirements: 12-28 VDC, 12-28 VAC 50 to 400 Hz.<br />
Power Consumption: 3 VA max.<br />
Output Signal: 4-20 mA DC into 900 Ω max.<br />
Zero & Span Adjustments: Accessible via menus.<br />
Response Time: 250 ms (damping set to 1).<br />
Display: Backlit 4 digit LCD 0.4" height<br />
LED indicators for set point and alarm status.<br />
Electrical Connections: 15 pin male high density D-sub connection. <br />
18" (46 cm) cable with 10 conductors included.<br />
Process Connections: 1/8" female NPT<br />
Side or back connections.<br />
Mounting Orientation: Mount unit in vertical plane.<br />
Size: 5" (127 mm) OD x 3-1/8" (79.38 mm).<br />
Weight: 1.75 lb (794 g).<br />
Agency Approvals: CE.<br />
SWITCH SPECIFICATIONS<br />
Switch Type: 2 SPDT relays.<br />
Electrical Rating: 1 A @ 30 VAC/VDC.<br />
Set Point Adjustment: Adjustable via keypad on face.
<div>
<div class="gtx-trans-icon"></div>
</div>

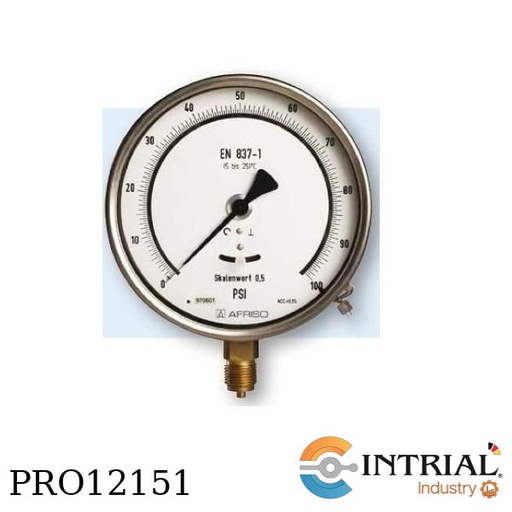

Modelo: RF160F,D801(0 a 100 Bar/psi)<br />
MANOMETRO PATRON TIPO BOURDON<br />
Marca: AFRISO (Alemania)<br />
Housing Ø: 160 mm<br />
Material Housing: Stainless steel<br />
Measuring element: Copper alloy<br />
Precision: 1.0<br />
Conexion: 1/2 npt, Bronce<br />
Rango: 0 a 100 Bar<br />
Doble escala Bar/psi

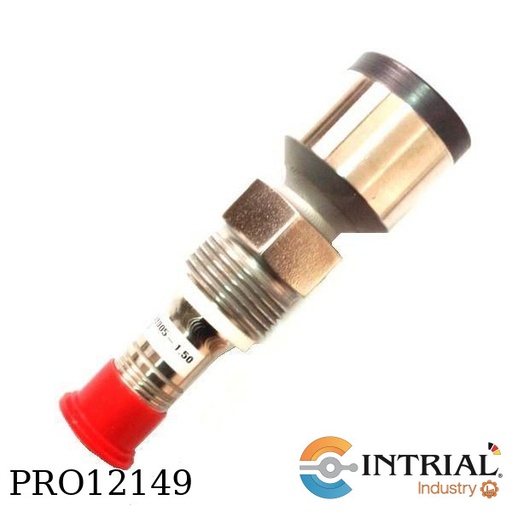

HIGH SPEED “MICROCOR” ER probes<br />
COSASCO 2" Flush Probe<br />
• Flush Element Probe F10: 10 mils thickness (5 mils probe span)<br />
• Corrosion rate of 10mpy detected in less than 01 hour<br />
• Probe element Alloy: K03005 (Carbon Steel)<br />
• Length: 1.5"

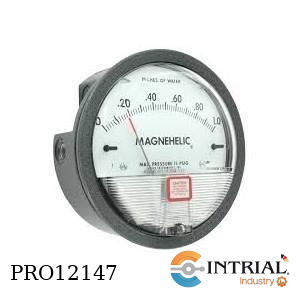

DIFFERENTIAL PRESSURE GAGE<br />
Series 2000 Magnehelic®<br />
Brand DWYER (USA)<br />
Range 0-1000 Pa.<br />
Accurate within 1%<br />
OPTIONS - INTEGRATED MOUNTING PLATE<br />
AHU1 :  Furnished with attached surface mounting plate
<div>
<div class="gtx-trans-icon"></div>
</div>

Model 2000-750PA-AHU1<br />
Differential pressure gage, <br />
Series 2000 Magnehelic® <br />
Brand DWYER (USA)<br />
Range 0-750 pa. <br />
Accurate within 1%
<div>
<div class="gtx-trans-icon"></div>
</div>

FTII-100-38OD-M-14-DK<br />
Tubing Fitting Inox<br />
Tipo: Racor Recto (D-MT)<br />
Para Tubing de: 3/8 OD<br />
Tipo de Rosca: Macho<br />
Rosca: 1/4 NPT<br />
Marca: DK-LO

<div>TRANSMISOR DE PRESION - HYDROFOX</div>

<div>•<span> </span>DMU 07 (31797) (Transmisor de Presión)</div>

<div>•<span> </span>Marca: AFRISO(Alemania)</div>

<div>•<span> </span>Precisión: 0.35 % , FSO (Full scale)</div>

<div>•<span> </span>Partes en contacto: Cermico/FKM /Acero Inox 316 L</div>

<div>•<span> </span>Conexión: G 1 1/2” Con Diafragma</div>

<div>•<span> </span>Salida: 4 a 20 mA</div>

<div>•<span> </span>Alimentación: 9 a 32 VDC</div>

<div>•<span> </span>Sistema: 2 hilos</div>

<div>•<span> </span>Conexión eléctrica: ISO 4400 (43650-A)</div>

<div>•<span> </span>Rango: 0 a 1 bar</div>

<div>Modular C-Face Mount</div>

<div>PART NUMBER: AV850UPF8WXXP000<span> </span> </div>

<div>BRAND: AVTRON</div>

<div>•<span> </span>Rotor Bore Size<span> </span>(UP): <span> </span>GE CD400 Motor Shaft Adapter & Universal 5/8 in. Rotor for 2-3/8” * Cover Plates (F): <span> </span>Flat Outboard Cover<span> </span> </div>

<div>•<span> </span>Left Module Line Driver (8): <span> </span>5-24v in, 5-15v out hi-power standard (4125)<span> </span> </div>

<div>•<span> </span>Left Module PPR (W): <span> </span>1000 PPR<span> </span> </div>

<div>•<span> </span>Right Module Line Driver (X): <span> </span>No Right Output<span> </span> </div>

<div>•<span> </span>Right Module PPR (X): <span> </span>No Right Output<span> </span> </div>

<div>•<span> </span>Connector Options (P): <span> </span>Industrial EPIC Style w/Plug<span> </span> </div>

<div>•<span> </span>Modifications (000): <span> </span>None</div>

<div>
<div class="gtx-trans-icon"></div>
</div>

Modular C-Face Mount<br />
PART NUMBER: AV850UFF8WXXP000<br />
•    Rotor Bore Size    (UF):  GE CD180-320 Motor Shaft Adapter & Universal 5/8 in. Rotor for 1-1/8”<br />
•    Cover Plates (F): Flat Outboard Cover<br />
•    Left Module Line Driver (8): 5-24v in, 5-15v out hi-power standard (4125)<br />
•    Left Module PPR (W): 1000 PPR<br />
•    Right Module Line Driver (X): No Right Output<br />
•    Right Module PPR (X): No Right Output<br />
•    Connector Options (P): Industrial EPIC Style w/Plug<br />
•    Modifications (000):  None

<strong>Flow Divider <br />
Brand: Power-Hydraulik<br />
Model: PR307-58-S</strong><br />
- Country of Origin: USA<br />
- 5-section flow divider<br />
- max. inlet flow: 200 l / min<br />
- max. working pressure continuous: 210 bar<br />
- incl. mounting brackets<br />
- net weight: 14,2 kg/ a piece

Model:  PR 304-58-S<br />
•    Article number: 113045100<br />
•    Stromteiler PR 304-58-S<br />
•    5-section flow divider<br />
•    max. inlet flow:  120 l/min                                 <br />
•    max. working pressure continuous: 210 bar<br />
•    incl. mounting brackets net weight: 15,4 kg/Piece

<strong>Model :  PR 307-60-S</strong><br />
•    Article number: 113073100<br />
•    Stromteiler PR 307-60-S<br />
•    3-section flow divider<br />
•    max. inlet flow: 120 l/min                                          <br />
•    max. working pressure continuous: 210 bar<br />
•    incl. mounting brackets net weight: 10,8 kg/Piece

AVTRON HS35M Encoder<br />
MAGNETIC, Mill Duty Incremental /Hollow Shaft Mount<br />
• Left PPR (Y): 1024 PPR<br />
• Right PPR (X): No Right Output<br />
• Line Driver (6): 5-28v In/Out (7272)<br />
• Bore Size: (Q): 14mm via insert<br />
• Connector Options (W): 18 in. Sealed Cable (or Special Length)<br />
• Mounting Style (U): Universal (Thru & End of Shaft)<br />
• Protection (0): No Protective Basket<br />
• Tehther (U): All Tether Kits A-F<br />
• Channels and Modifications (910): 10'/3m Cable, All channels (A,A\,B,B\,Z,Z\)

SMARTach III Severe Mill Duty Hollow Shaft Magnetic Encoder, 1 1/8" Bore<br />
Brand: AVTRON<br />
Part Number: AV685N1E8YXXT000<br />
[N]: Temperature Rating, -20°C to +80°C (Standard) <br />
[1]: Anti-Rotational Tether, 12 inch Threaded Rod Tether (B32809) <br />
[E]: Shaft Mounting, Standard (End of Shaft) Mount <br />
[8]: Left Output Line Driver, 5-24v in, 5-24v out hi-power standard (HX) <br />
[Y]: Left Output PPR, 1024 PPR <br />
[X]: Right Output Line Driver, No Right Output <br />
[X]: Right Output PPR, No Right Output <br />
[T]: Connector Options, 5 ft. Flex Conduit with Terminal Box <br />
[000]: Modifications, None
