MAGNETIC LEVEL SWITCHES M04 <br />
MARCA: KOBOLD<br />
Guide Tube: E: 1.4404<br />
Process Connection: 4N9: 2" NPT<br />
Connection material: st.steel 1.4404<br />
Electrical connection: M16 x 1,5<br />
Contact L1: S: N/O<br />
Contact L2: S: N/O<br />
Electr. connection: With housing<br />
L0: 654MM <br />
L1: 529MM<br />
L2: 604MM

Toroidal Conductivity Sensor<br />
Aquasensors Analog Plus<br />
* Range: 0 to 2,000,000 uS/cm (0 to 2000 mS/cm)<br />
* Accuracy: 0.1% of reading<br />
* Resolution: 1 uS/cm (4.5 significant digits)<br />
* Sensor Material: CPVC<br />
* Temperature Range: -5 to 75C<br />
* Maximum Pressure: 100 Psi<br />
* Maximum Flow Rate: 10 ft/sec<br />
* Cable Length: 30 feet (9 Mts)<br />
* Mounting: ¾” NPT

AQUAPRO (AP4444K)<br />
Multi-Input Intelligent Process Analyzer<br />
* Controls up to 4 parameter with 4-20mA output for each one.<br />
* Display all 4 parameter in just one screen<br />
* Chanel 1: Toroidal Conductivity (With two 4-20mA included)<br />
* Chanel 2: Toroidal Conductivity (With two 4-20mA included)<br />
* Chanel 3: Toroidal Conductivity (With two 4-20mA included)<br />
* Chanel 4: Toroidal Conductivity (With two 4-20mA included))<br />
Power Supply: 90 to 240 VAC with 3 relays<br />
More Details, see PDF Attached

Pressure Rating 3600 Psi<br />
Temperature Rating 450F (232 C)<br />
Double Block Valve for Enhance Safety<br />
Rotating Base for easier positioning<br />
Meets NACE MR0175 and MR0103<br />
Includes:<br />
- Brass Hammer<br />
- Field Service Valve Box

0190015<br />
Marca: Hp Technik<br />
Mechanical Seals<br />
For Shaft 12mm

Modelo: IA6-12GM50-IU-V1<br />
Marca: PEPPERL+FUCHS<br />
Características:
<ul><li>Analog output 0 V ... 10 V/4 mA ... 20 mA</li>
<li>Inductive analog</li>
<li>4 hilos</li>
<li>rango de 0 a 6mm</li>
<li>Voltaje de alimentación 15 a 3VDC</li>
</ul>

Modelo: V1-G-2M-PUR<br />
Marca: PEPPERL+FUCHS<br />
Características:
<ul><li>Conector M12 Hembra - 4 hilos (22awg)</li>
<li>Longitud 2 mts.</li>
<li>Uso con sensores</li>
<li>IP68</li>
</ul>

BOCINA E9-6045; 240W-24VDC<br />
Marca HELLA<br />
Compresor aire para bocinapotencia 240W<br />
Voltaje 24VDC<br />
Rango frecuencia trabajo 780-840Hz<br />
Servicio electroneumatico<br />
Volumen [Db(a)]: 118Db<br />
Dos tonos

<div>Banco de Baterías modelo DataSafe 1 x 4DX-15 compuesto por:</div>

<div>•<span> </span>1 celda de 8Vcc de tensión cada una y 2121Watts/cell de capacidad en 15min de descarga a 1,67Vpc de tensión final y 20°C de temperatura. </div>

<div>•<span> </span>Las celdas se entregan cargadas con electrolito en su interior.</div>

<div>•<span> </span>No se incluye accesorios de conexión.</div>

<div>•<span> </span>Jarra: Standard</div>

<div>•<span> </span>Incluye export packing.</div>

9036DG2<br />
-Float Switch<br />
-Marca: Squart D by Schneider Electric<br />
-Descripcion: Float switch open tank -NEMA 1 <br />
-Pedestal mounted - 2 NC DPST contacts

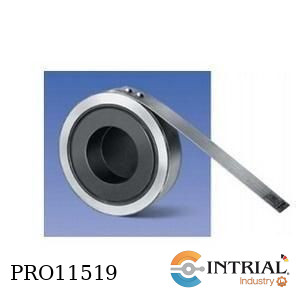

DISK TYPE MONO <br />
Brand: ZOOK<br />
Materials: Armor Material CARBON STEEL<br />
Specified Size:  1.5 IN <br />
Flange: 150# ANSI B16.5<br />
Burst (Specified): 100 PSIG @ 72° F<br />
MDR: 0% <br />
Burst/Perf Tolerance: +/-5%<br />
MNFA: 1.76 SQIN<br />
Krgl: 0.26<br />
Testing Code ZOOK

AQUAPRO (AP3333K)<br />
Multi-Input Intelligent Process Analyzer<br />
* Controls up to 4 parameter with 4-20mA output for each one.<br />
* Display all 4 parameter in just one screen<br />
* Chanel 1:Contacting Conductivity (With two 4-20mA included)<br />
* Chanel 2: Contacting Conductivity (With two 4-20mA included)<br />
* Chanel 3: Contacting Conductivity (With two 4-20mA included)<br />
* Chanel 4: Contacting Conductivity (With two 4-20mA included)<br />
Power Supply: 90 to 240 VAC with 3 relays<br />
More Details, see PDF Attached

<strong>-Manómetro tipo Bourdon<br />
-Marca AFRISO(Alemania)  </strong><br />
​RF160Ch,D402(0 a 6 bar/psi)<br />
-RANGO :0 to 6 bar/0 to 145 psi<br />
-Diámetro de Carcasa 6''(160mm)<br />
Precisión 1.0 (EN 837-1/6)<br />
-Temperatura operación Max 120°C  <br />
Conexión  INFERIOR,1/2 ''NPT<br />
Protección Blow-out: Posterior<br />
-Material:caja y conexión en acero <br />
inoxidable 1.4571  <br />
con/sin glicerina<br />
(Especificar al ordenar no afecta el precio),

LEVEL SWITCHES FOR LIQUID AND OIL  APPLICATION<br />
Brand: Kobold <br />
Model: NV-11-03-D-1-1BSP<br />
Housing material, brass<br />
min. Density, 0,7 kg/dm³<br />
Contact, N/O or SPDT<br />
onnection G 3/4<br />
Contact version, SPDT (cCSAus)<br />
Connecting cable, PVC-cable 1.5 m (standard).<br />
Conexión final de proceso 1BSP con adaptador

Nro Parte: GP-116L-98-25<br />
• Calibration Gases for analyzer, gas detector and laboratory applications<br />
• Brand: Marca: INTRIAL(made in USA)<br />
• Material: Aluminum Alloy or Steel<br />
• Valve Inlet: 5/8”-18 UNF (C10)<br />
• Gas Type: Reactive/ Non Reactive<br />
• Dimensions: 14.25” X 3.53” (362mm X90mm)<br />
• Water Capacity: 1.72 Liters<br />
• Weight: 2 lbs 2oz(964 gr aprox)<br />
• Gas Shelf Life:<br />
o Non-Reactive, 48 Months<br />
o Reactive, from 6 to 24 Months ( depend on each concentration)<br />
o Four-Gas Mix With (Hydrogen Sulfide and/or Sulfur Dioxide),24 Months<br />
o See attached PDF file for more information<br /><br />
• ////Gas Mix combination: 25 PPM H2S in Nitrogen Balance////

Dual Magnet Float Level Switch NGS<br />
Modelo: NGS-21-N-8<br />
[NGS-21] Dual-Magnet Float Switch<br />
[N] Process connection: 2 NPT<br />
[8] Arm length: L-or Z arm<br />
Version: Standard, fix hysteresis<br />
Material (wetted parts) st. st. 1.4571<br />
max. temperature 250 °C<br />
max. pressure 25 bar<br />
min. density 0,7 kg/dm³<br />
Microswitch SPDT, with 2 switch contacts<br />
Electrical connection M20x1,5

<div>TOMA MULTICONTACTO</div>

<div>•<span> </span>500V 6P + T</div>

<div>•<span> </span>CONECTOR AEREO MULTICONTACTO</div>

<div>•<span> </span>TOMA MOVIL (HEMBRA)</div>

<div>•<span> </span>CABLEADO FLEXIBLE DE 1 a 4MM2</div>

<div>•<span> </span>CABLEADO RIGIDO 1.5/6MM2</div>

<div>•<span> </span>500V;16A</div>

<div>•<span> </span>CON CONTACTO DE TIERRA</div>

<div>•<span> </span>MARCA: MARECHAL</div>

<div>CONECTOR MULTICONTACTO</div>

<div>•<span> </span>500V 6P + T</div>

<div>•<span> </span>CLAVIJA AEREO MULTICONTACTO</div>

<div>•<span> </span>ENCHUFE MOVIL (MACHO)</div>

<div>•<span> </span>CABLEADO FLEXIBLE DE 1/4MM2</div>

<div>•<span> </span>CABLEADO RIGIDO 1.5/6MM2</div>

<div>•<span> </span>500V;16A</div>

<div>•<span> </span>CON CONTACTO DE TIERRA</div>

<div>•<span> </span>MARCA: MARECHAL</div>

LEVEL SWITCHES<br />
Brand: KOBOLD (Alemania)<br />
Max. temperature: 110°C<br />
Max. pressure: 16 bar<br />
Contact: N/O contact (Standard CE)<br />
Electrical connection: PVC cable<br />
Connection: G ¾ , 50mm<br />
Switching hysteresis: approx 8 mm<br />
Bistable reed contact: N/O contact  N/C Contact Standard.

///096-3473-02///: : HYDROGEN SULFIDE SENSOR- H2S (LOW METHANOL)<br />
Rango : 50 pmm (por defecto) (ajustable a 10 ppm / 25 ppm  100 ppm)
