31287<br />
Wall mounting housing WAG 01<br />
Brand: AFRISO

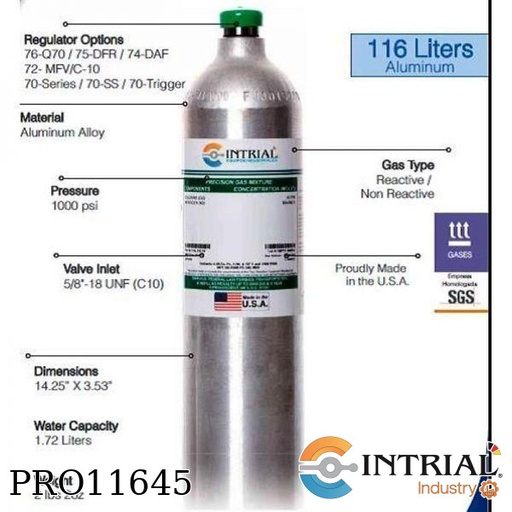

•    Marca: INTRIAL(manufacture in USA)<br />
•    20 ppm Hydrogen Sulfide.<br />
•    60 ppm Carbon Dioxide<br />
•    15% Oxygeno<br />
•    25% Methano (LEL)<br />
•    Balance Nitrogen<br />
•    contained in a 116 Liter  Aluminum cylinder  <br />
•    With a  C-10 connection.<br />
•    SDS # G-1215  <br />
•    Gas wt.= 0.1508 kg.,UN1956 1000 PSI

•    Marca: INTRIAL(manufacture in USA)<br />
•    25 ppm Hydrogen Sulfide.<br />
•    50 ppm Carbon Dioxide<br />
•    12% Oxygeno<br />
•    2.5% Methano (50% LEL)<br />
•    Balance Nitrogen<br />
•    contained in a 116 Liter  Aluminum cylinder  <br />
•    With a  C-10 connection.<br />
•    SDS # G-1215  <br />
•    Gas wt.= 0.1508 kg.,UN1956 1000 PSI

•    Marca: INTRIAL(manufacture in USA)<br />
•    50 ppm Hydrogen Sulfide.<br />
•    300 ppm Carbon Dioxide<br />
•    20% Oxygeno<br />
•    2.5% Methano (50% LEL)<br />
•    Balance Nitrogen<br />
•    contained in a 116 Liter  Aluminum cylinder  <br />
•    With a  C-10 connection.<br />
•    SDS # G-1215  <br />
•    Gas wt.= 0.1508 kg.,UN1956 1000 PSI

•    Marca: INTRIAL(manufacture in USA)<br />
•    15 ppm Hydrogen Sulfide.<br />
•    100 ppm Carbon Dioxide<br />
•    18% Oxygeno<br />
•    2.5% Methano (50% LEL)<br />
•    2.5% Dioxido de Carbono<br />
•    Balance Nitrogen<br />
•    contained in a 116 Liter  Aluminum cylinder  <br />
•    With a  C-10 connection.<br />
•    SDS # G-1215  <br />
•    Gas wt.= 0.1508 kg.,UN1956 1000 PSI

<div>
<div>OSIRDYX<br />
--------------<br />
ORCA Remote Sonar Level Transmitter, 3 relay  alarms<br />
* Power Supply  90-250 VAC and 24-30VDC<br />
* Sealing: IP67<br />
* Communication: 2 x 4-20mA Analog Output modules with MODBUS<br />
* Display:  LCD Display  (2 line x 12 digit alphanumeric)</div>

<div>OSIRT302SHXC15<br />
----------------------------<br />
ORCA Remote Sonar Transducer<br />
* 150 kHz for Industrial and  Mining Application<br />
* Maximum Range: 25 mts<br />
* Full Fiberglass high  temp version for Facing & Housing Material<br />
* No Approval standard required<br />
* End Connection: 1" NPT<br />
* IP 68 Sealed with 15 mts  cable</div>

<div>A C C E S S O R I E S<br />
================<br />
OSIRSC-A<br />
--------------<br />
Automatic Scum  Cleaner<br />
* 24VDC Electric Actuator incl. Mounting Accessories<br />
* Stainless Steel SUNHOOD<br />
OSIRMEL-3<br />
---------------<br />
Mounting Extension Pipe<br />
* Stainless Steel Pipe with a length of 3 mts</div>
</div>

Válvula de aguja SNV 8 1/4" HEMBRA NPT-1/4" MACHO NPT Marca: Danfoss

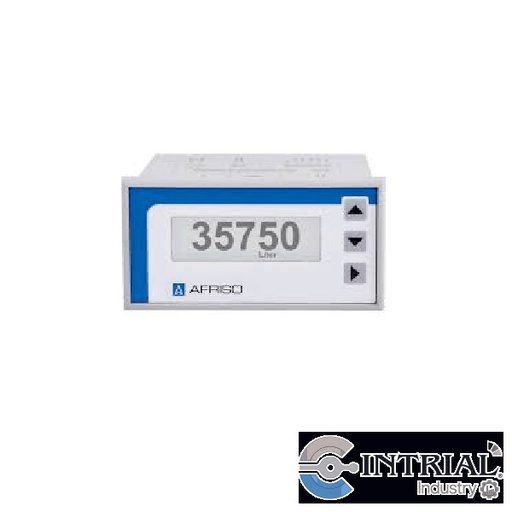

DA12(31282) + WAG01(31287)<br />
DA 12 (31282) <br />
DISPLAY DIGITAL <br />
•Marca: AFRISO(Alemania) <br />
•Display de 5 dígitos pantalla gráfica LCD<br />
•Interfaz basada en texto del usuario<br />
•Rango de medición +- 99.999 dígitos(escalable según valores requeridos)<br />
•Linealidad +- 0.1% del rango de medida<br />
•Resolución posición del punto decimal, se puede establecer como necesario<br />
•Tiempo max de respuesta mayor 0.2 s<br />
•Temperatura de funcionamiento ambiente:-10/+55C°<br />
•Tensión de alimentación: AC/DC 20-253V<br />
•Sensor input señales analógicas estándar:(ej: 4-20mA,0-20mA,0-10V)<br />
•Salida analógica: 0/4-20mA<br />
•Con aislamiento galvánico<br />
•Grado de protección IP 65(EN60529)<br />
•Conexión eléctrica Plug – IN Screw terminal<br />
•(1.5mm2)<br />
•Carcaza:Standard vivienda de montaje: en rack W x H x D 96 x 48 x 135 mm<br />
•Salida Analogica 2: 0-10 V<br />
•salidas de conmutación, Contactos del relé: 2 <br />
•Contactos: AC 250 V, 2 A, 100 VA<br /><br />
WAG 01 (31287)<br />
•Wall mounting housing WAG 01 for one DA

Low Volume Flowmeter/-switch<br />
Brand: Kobold (Alemania)<br />
Model: KSK-2-025-H-P08-00<br />
[KSK-2]<br />
Operation principle variable area<br />
Mounting position vertical<br />
Flow direction from bottom<br />
Material Polysulfone <br />
Accuracy Class 4<br />
Max. temperature 100 °C*<br />
* with PVC-Connection max. 60 °C<br />
Max. pressure PN 10<br />
Seal EPDM <br />
[025] Measuring range: 2,5...30 L/h water<br />
[H] Scale, L/h waterscale<br />
[P08] Connection for size, PVC G 1/4 female <br />
[00] Option contact, w/o

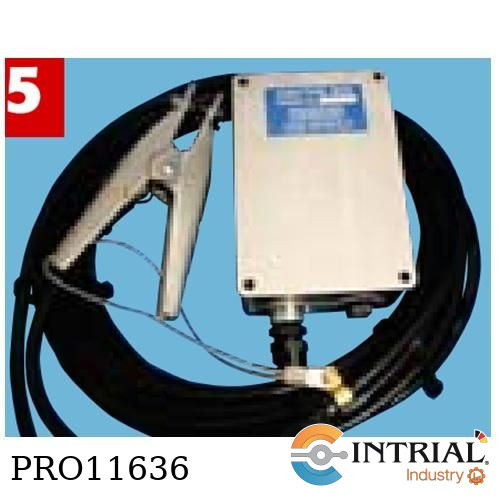

KIT, GROUND VERIFICATION CLAMP<br />
Brand: CIVACON<br />
Cord Set<br />
Juntion box 40 Ft

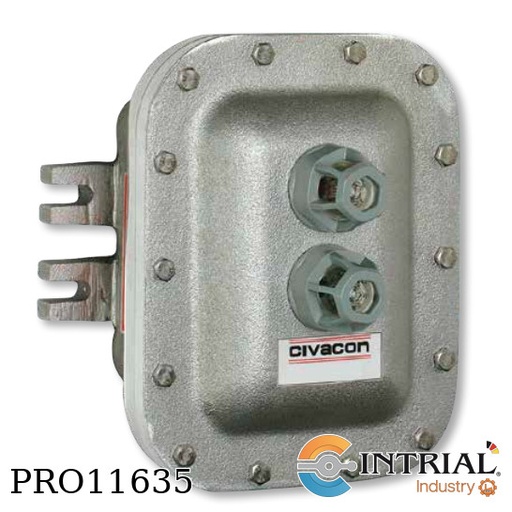

<div>GROUND MONITOR, 240V W/ RED AND GREEN STATUS LIGHTS<br />
Brand: CIVACON<br />
Model: 8030-240</div>

<div>Met-Sop Banco de montaje</div>

<div>•<span> </span>Banco de montaje</div>

<div>•<span> </span>Construido en acero simple con pintura anti-corrosión, incluye accesorios, Niples. Bridas y conexión especial para manguera de Camión de descarga(el cual será confirmado por el cliente)</div>

<div>•<span> </span>Diseño, montaje e Ingeniería</div>

ZE311058<br />
Ball Valve<br />
Brand: END ARMATUREN<br />
2" NPT<br />
800 WOG <br />
1.4408/PTFE<br />
female/female, full bore<br />
DIN3202-M3

Medidor de Caudal para DIESEL<br />
Temperatura de operación: hasta 80 °C<br />
Material de carcasa: st. steel<br />
Material de rotor: PPS<br />
Rango de operación: 30 a 450 L/min<br />
Conexión mecánica: 2” NPT<br />
Electrónica: Dual LCD totaliser/rate, outputs: pulse, analogue<br />
Sello: FKM

Combination Air Eliminator / Strainer / Check Valve<br />
Model: ES050-A1-23C<br />
[ES050]: Model Size: 2" (50mm)<br />
[A1]: Materials and Mesh Sizing: Aluminum body / Stainless Steel screen element<br />
[23C]: Process connections / Inclusions / Coupling: NPT female threaded / Strainer, air eliminator, check valve, Close coupled to flow meter

Modelo: MGMG2S3362xx050/AX<br />
Brand: END ARMATUREN<br />
•Valvula Soloinde para Combustible y certificación EX<br />
•2/2-Solenoid Valve, G2", ss/FKM, 24VDC-Ex<br />
•0.5-16bar, servo-assisted, ATEX<br />
•Coil:<br />
•II 2G Ex mb II T4 und II 2D Ex tD A21 IP65 T130°C<br />
•medium temperature (TS): 0 bis +80°C<br />
•ambient temperature: 0 bis +50°

Valvula de 3 vias, 2” G<br />
Material. Acero simple<br />
Marca: End Armaturen

<strong>Flowindicator with Threaded Connection<br />
Brand: Kobold (Alemania)<br />
Model: DAR-1308H-R50-B </strong><br />
[DAR-1]:<br />
Operating principle: Rotor<br />
Mounting position: all directions<br />
Flow direction: in direction of the arrow<br />
Max. temperature: 120 °C (Option B/R: 260 °C)<br />
Max. pressure: 16 bar (Option 25 or 40 bar)<br />
[3]: Housing: Cast steel<br />
[08H]: Nom. diameter, 2"<br />
[R]: Thread: G-thread female<br />
[50]: Connection*, 2"<br />
* acc. to nom. diameter<br />
[B]: Option: 2" borosilicate glass

<strong>Guided Wave Radar Level Transmitter<br />
Brand: Kobold (Alemania)<br />
Model: NGM-1-200-N5-A4-00</strong><br />
[NGM-1]:<br />
Version, Single rod<br />
Measuring range, 0,1-3 m<br />
Sensor diameter (wire rope for NGM-4), 6 mm<br />
min. dielectric Constant, 1,8<br />
Max. medium viscosity 500 cP<br />
max. temperature, -40..+150°C<br />
max. temperature with PTFE-coating, -15..+100°C<br />
[200]: Material Probe/O-Ring, st. steel 1.4404/PEEK/without O-ring<br />
[N5]: Connection, 3/4 NPT male<br />
[A4]: Output, 4-20 mA, contakt PNP<br />
[00]: Option, without<br />
Probe length, Single rod, 1410 mm

Transmisor de Presión Diferencial  PAD<br />
Marca: Kobold<br />
Measuring Range: 1.5 - 75 mBar <br />
Filling liquid: Silicone<br />
Process connection: 1/4" NPT Female (Standard)<br />
Approvals for hazardous applications: Standard (waterproof IP67)<br />
Capillary Stainless Steel 1.4571 (2 metros)
