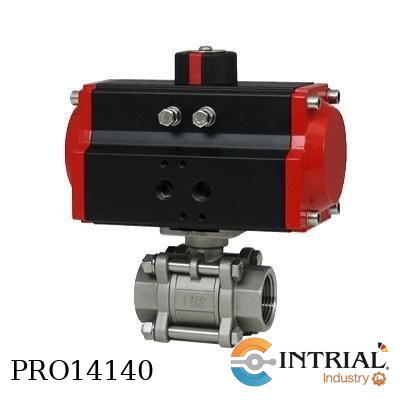

3-PIECE NPT STAINLESS STEEL BALL VALVES, -0.7 to 69 bar, 2”, Female NPT., -20 to 392°F

3-PIECE NPT STAINLESS STEEL BALL VALVES
Brand: DWYER
VALVE
Service: Compatible liquids and gases.
Body: 3-piece.
Line Sizes: 2”.
End Connections: Female NPT.
Pressure Limits: 28" Hg to 1000 psi
(-0.7 to 69 bar) up to 250°F.
Wetted Materials: Body and ball: 316
SS (CF8M); Stem: 316 SS; Seat: RTFE/
PTFE; Seal, Washer, and Packing:
PTFE.
Temperature Limits: -20 to 392°F
(-29 to 200°C).
Other Materials: O-ring:
Fluoroelastomer; Handle: 304 SS;
Washer: 301 SS; Stem Nut, Locking
Device, Gland Ring: 304 SS; Handle
Sleeve: PVC.
Agency Approvals: Meets the technical
requirements of EU Directive 2011/65/
EU (RoHS II).
ACTUATORS
Pneumatic “DA”
Type: DA series is double
Normal Supply Pressure: DA: 40 to 115
psi (2.7 to 7.9 bar
Maximum Supply Pressure: 120 psi
(8.6 bar).
Air Connections: DA03: 1/4" female NPT;
Housing Material: Anodized aluminum
body and epoxy coated aluminum end
caps.
Temperature Limits: -40 to 176°F (-40
to 80°C).
Accessory Mounting: NAMUR
standard.
[WE02]: series, model.
[HDA03]: Size and Actuador, 2" double acting.
