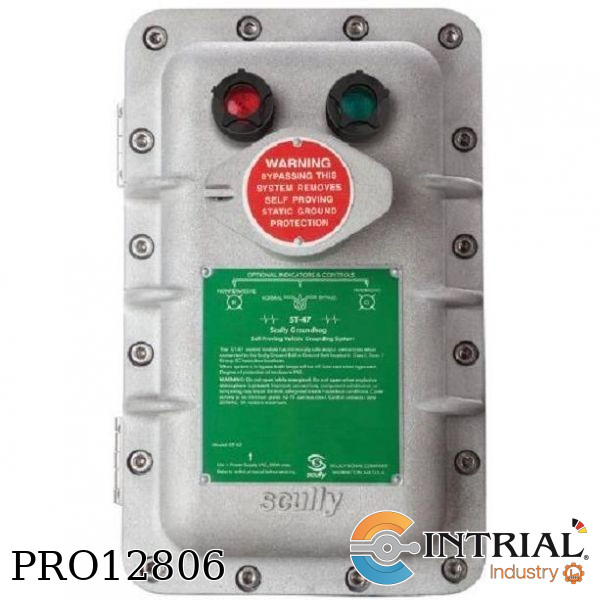

Monitor de control con lámparas e interruptor de derivación protegido con llave (funcionamiento a 11

Modelo:  ST-47-115 ELK -Y

MONITOR DE CONEXIÓN A TIERRA Monitor de conexión a tierra

Control Monitor with Lamps and Key Protected Bypass Switch (115 VAC operation)

Brand: SCULLY (USA)

/////TECHNICAL SPECIFICATIONS/////////

Operation Temperature: -40° to +140° F (-40° to +60° C)

Enclosure: Explosion-Proof Weather-Proof

Housing, suf_x “E”

Indicators: Red-not grounded/non-permit.

Green-grounded/permit.

Response Time: 0.5 seconds maximum.

Electrical Connections: Internal terminal strips,identi_ed for easy installation.

Bypass Switch: Key lockable off-on bypass switch for ELK model only.

Output Control: One normally open user contact rated 250, 5A resistive load.

Power Requirements:

Y: Include: Junction Box, 10 meters Coiled Cable, Clamp



ST-47–115 Models: 105–125 VAC, 50/60 Hz. 0.250 Amperes maxim

ST-47–240 Models: 208–240 VAC, 50/60 Hz. 0.125 Amperes maximum.

Approvals: The explosion-proof housing is approvedfor • mounting in Class I, Division 1, Groups C & D environments • by FM Global (FM) and the Canadian Standards Association (CSA). The intrinsically safe outputs are approved for use in Class I, Division 1, Groups A, B, C and D environments by FM and CSA.



For  Tag: 5780-GSP-30130A Tag: 5780-GSP-30130B Tag: 5780-GSP-30131 Tag: 5780-GSP-30132
