BOMBA DE LUBRICACION REDUCTOR HPGR PRESION PN 25, VELOCIDAD 1200 RPM CAUDAL 430 L/MIN MATERIAL

ASF8-400RD200001R
A-SF8/400RD-LFM, Zahnradpumpe, 4-8 bar
40 HP (30kW), 1200, 460V, 60Hz, IP55, NPE, NEMA 364TD (B5)

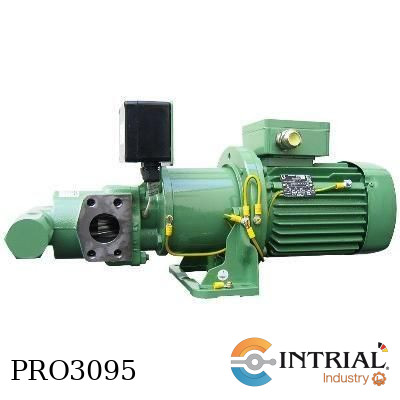

Gear pump unit : SF 8/400 RD - VLFM
STEIMEL part-no. : ASF8-400RD200001R
Dimension of drawing : DPA058D-200001R
Spare part list : DET058400RD--150R
Connection of suction
and pressure : SAE 5 ( DN 131 )
Pressure relief valve : 8 bar opening
casing parts : EN-GJL 250 (GG 25)
Shaft : 16 Mn Cr S 5, hardened
Gears : EN-GJS-400 (GGG 40),
 helical toothed
Shaft seal : radial shaft seal
Elastomeres : FKM
Bearing : Multilayer MD
Flow medium : Lubrication oil
Viscositiy : 50-150 cSt.
Temperature : 10-60° C
flow rate : approx. 430 l/min.
pressure : 5 bar
speed : 1185 1/min
sense of rotation : clockwise
pump base with feet : BLF058450285LA01
coupling : BKUA120-2860-302
3- phase motor : NEMA 364 TD
part-no. : LDM364-06-002
motor data
Power P : 40 HP (30 kW)
Rotation speed n : 1200 1/min
Voltage U : 3x 460 V
Frequency f : 60 Hz
protection class : IP 55
Insulation class : F
Design : D-flange (similar to B 5)
finish : primer HDO058-green
Type plate : ETY924-D-E-PE02
test run : yes, with ISO VG 46
weight net / each : approx. 465 kgs
dimensionn net / each : approx. 1450 x 690 x 750 mm
