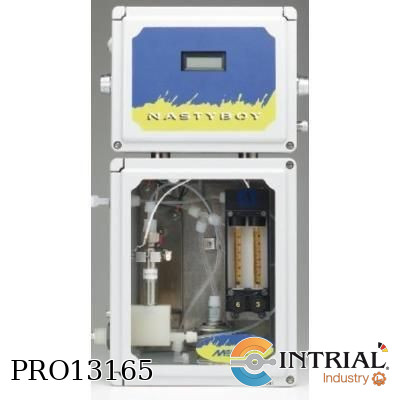

NASTYBOY, MOISTURE IN CHLORINE ANALYZER

Modelo:            NASTYBOY(F2400-12)
•    MEECO NASTYBOYTM F2400-12
•    Accuracy: +5% of reading or 0.4 ppm,
•    whichever is greater
•    Analog output: 4-20 mA into load of 475 ohms max.@ 24 VDC
•    Bypass flow: 0 to 2 scfh
•    Monitoring range: 1 to 200 ppm
•    Minimum detectable value: Below 1 ppm
•    Response time: 95% in 5 minutes for step change from 1 to 10 ppm
•    Sample pressure: 3-50 psig
•    Sample flow: 100 sccm
•    Power requirements for heater: 115/220 VAC, 50/60 Hz. Heater assembly prevents liquid formation in sample streams where ambient temperature fluctuates widely. Heater is provided as standard.
•    Ambient temperatures: –10 to 60 degrees Celsius
•    Mechanical Specifications
•    Electrolytic cell: Cl2 type
•    External connectors: Gas connections are !i -inch compression type
•    Electrical connections are !w -inch conduit
•    Housing: Two NEMA 4 boxes
•    Materials of construction: Kynar™, Teflon™, stainless steel and glass
•    Overall dimensions: 19”(h) x 9.25”(w) x 6.09”(d)
•    Flow system box is 11.25”(h) x9.25”(w) x 6.09”(d)
•    Electrical box is 7.25”(h) x 9.25”(w) x 5.09”(d)
•    Overall weight: 17 lbs. (Flow system box is 10 lbs.
•    and electrical box is 7 lbs. Cool options: Local digital display
•    CE Mark and FM approval pending
