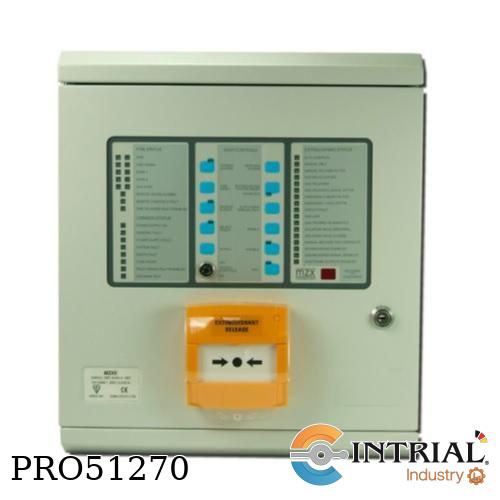

EXTINGUISHING CONTROL PANEL, 24VDC supply:1.0A

EXTINGUISHING CONTROL PANEL<br />
Barnd: ZETTLER<br />
508.033.050.EA<br />
Articulo: 31190005323<br />
Mains supply voltage:230VAC [+10% -15%]<br />
Mains supply frequency:50/60Hz.<br />
Power supply output voltage:<br />
19.0-28.3V, ripple 0.7V maximum<br />
Maximum power supply output:5A<br />
Alarm current (Mains failed):<br />
160mA<br />
+ 20mA to 50mA for each zone in alarm<br />
+ Ancillary equipment current<br />
+ Alarm circuit current<br />
+ Solenoid circuit current<br />
Mains Failed current:<br />
60mA + Ancillary equipment current<br />
Integral charger output, Quiescent:<br />
5 Amps, minus mains failed current<br />
Integral charger output, Alarm:<br />
5 Amps, minus Alarm current<br />
Maximum Auxiliary 24VDC supply:1.0A<br />
Alarm circuit rating:<br />
3 at 0.5A each (electronically fused)<br />
Actuator circuit rating:<br />
2 at 1A each (electronically fused)<br />
Internal Battery size:<br />
2 x 12Ah Sealed lead acid<br />
Enclosure Dimensions (mm):<br />
370 high x 325 wide x 125 deep<br />
Weight (excluding batteries):4.85kg.<br />
Cable Size Accepted by Terminals:<br />
1.0mm to 2.5mm CSA.<br />
(Cross Sectional Area)<br />
Maximum Detectors per Zone:<br />
32-dependant on type & EOL monitoring<br />
device<br />
(not allowed on Manual Release Zone)<br />
Maximum Call Points Per Zone:No Limit<br />
(not allowed on zones 1&2)<br />
***El modelo solicitado se encuentra obsoleto y fuera de produccion, fabrica recomienda<br />
el modelo: MZX-E como reemplazo directo***<br /><br />
