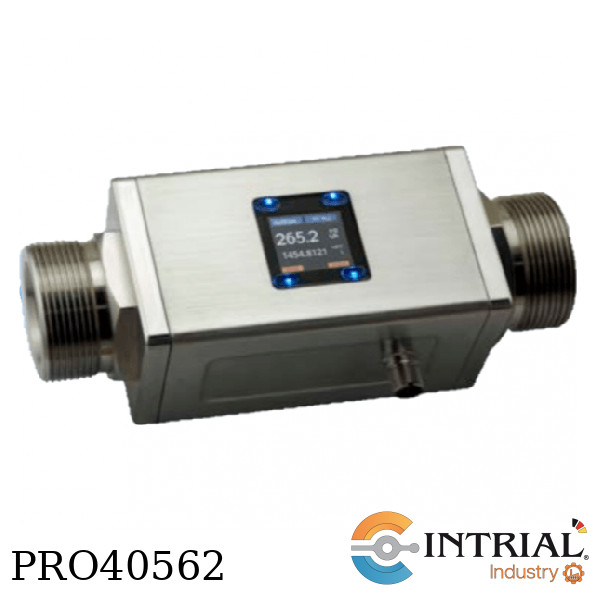

Compact Magnetic Inductive Flow Meter, Measuring range, 0,2…50 L/min
Compact Magnetic Inductive Flow Meter
Brand: Kobold (Alemania)
Model: MIM-1-2-15HG6-C3T-0
[MIM-1]
Operating principle, Magnetic Inductive
Mounting position, all directions, display rotatable
Display:
TFT-display, 128 x 128 color pixel,
1,4", rotatable in 90° steps,
2 indications free assignable
Integrated temperature sensor, Pt 1000
Material housing / insulation part, see below
Accuracy, ±(0.8% of meas.value +0,5% of FS)
Max. Viskosity, 70 mm²/s
Min. conductivity, >20 μ/cm
Power supply, 19 - 30 VDC
Max. temperature:
-20°C..+70°C (media),
-10°C..+60°C (ambient)
Max. pressure, PN 16
Protection, IP 67
[2] Material housing / insulation part, st. steel 1.4404 / PEEK / FKM
[15HG6] Measuring range (flow/temperature),0,2…50 L/min / -20..+70 °C / G 1 male
[C3T] Evaluation electronic:
Analogue output: 0(4)-20 mA, 0-10 V,
Switching output NPN, PNP, PushPull,
Frequency output, pulse output,
Part- or grand totaliser.
[0] Options, without
