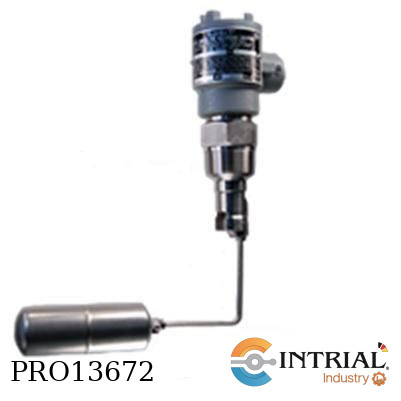

FLOTECT FLOAT SWITCH, 4 to 275°F, 316 SS

FLOTECT FLOAT SWITCH
Brand: DWYER
Brass body, side wall mounting
Service: Liquids compatible with wetted materials.
Wetted Materials: Float and Rod: 316 SS; Body: Brass
Magnet Keeper: 430 SS standard
Temperature Limits: 4 to 275°F (-20 to 135°C) standard
Pressure Limit: Brass body 1000 psig (69 bar)
Standard float rated 100 psig (6.9 bar)
Enclosure Rating: Weatherproof and Explosion-proof. **Listed with UL and CSA
for Class I, Groups C and D; Class II, Groups E, F, and G.
ATEX 0344 II 2 G Ex d IIB T6 Gb -20°C≤Tamb≤73°C.
Switch Type: SPDT snap switch standard,
Electrical Rating: UL, FM, ATEX and IECEx.
Electrical Connections: UL and CSA models: 16 AWG, 6" (152 mm) long. ATEX and IECEx unit: terminal block.
Conduit Connection: 3/4" (19.05 mm) female NPT standard or M25 with –BSPT option.
Process Connection: 1-1/2" (38.10 mm) male NPT or 1-1/2" (38.10 mm) male
BSPT standard, 2-1/2" (63.50 mm) male NPT
Mounting Orientation: Horizontal installation standard, optional vertical top mount.
Dead Band: 3/4" (19 mm) for standard float.
Specific Gravity: 0.7 minimum with standard float. For other floats see model chart.
Weight: 4 lb 9 oz (2.07 kg).
Agency Approvals: ATEX, CE, CSA, FM, IECEx, UL**.
****L4 TOP MOUNTED HSG L4 /L4-TOP V=18 Inches H=1 Inches***
