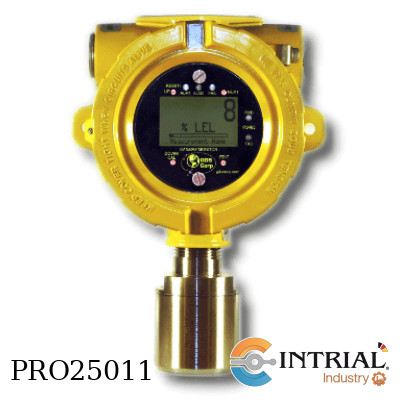

GASMAX II Gas Monitor - Detector ( 0 -1.0 % HYDROGEN)

GMII: GASMAX II Gas MonitorSingle / Dual Channel Toxic & Combustible Gas Monitor for Hazardous Locations
Chanel 1
- 2: Sensor Head (Local sensor head with splash guard)
- 14: Senor Type (Smart)
- 1: Target Gas Range (0 – 1 % H2)
Chanel 2
- 0: Sensor Head (No sensor head)
- 00: Senor Type (No sensor)
- 0: Target Gas Range (None)
Output- 0: standard 4 -20 ma output (3-wires)
- 0: standard temperature range
GASMAX II Gas Monitor Single / Dual Channel Toxic & Combustible Gas Monitor for Hazardous Locations
- Power Input: 10-30VDC at < 4 watts with relay board. Additional power required for Extended Temp & GDS-IR option.
- Display: Backlit 64 x 128 pixel LCD with 30-minute trend, bargraph
- Electrochemical Sensor Input: Channel 1 accepts microamp-level signals from GDS Corp toxic & oxygen deficiency sensors or 4-20mA current source
- Bridge Type Sensor Input: Channel 2 provides adjustable excitation voltage for SmartIR, PID and catalytic bead or 4-20mA current source
- Standard Output: Standard dual 3-wire 4-20mA current source. Max loop R is 750 ohms with nominal 24VDC power supply
- Optional Outputs: Dual 1500CMV isolated 4-20mA current source. Max loop R is 650 ohms with nominal 24VDC; Single or dual MODBUS slave ports; 3x program-mable alarm relays with 5A capability
- Temp: Electronics -40°C to +60°C; See Echem Sensor Manual for sensor limits
- Housing : Aluminum housing with epoxy paint standard; Optional #316 stainless steel housing (specify [SS] in part number)
- Dimensions: Width 5.4” (137 mm), Height 8” (203 mm), Depth 5” (127 mm) Shipping weight 6.5 pounds (3 kg)
- Approvals: CSA Certified for Class I, Div 1, Grps B, C, D. Suitable for XP installations
- Warranty: 2 years on electronics and one year on sensors
