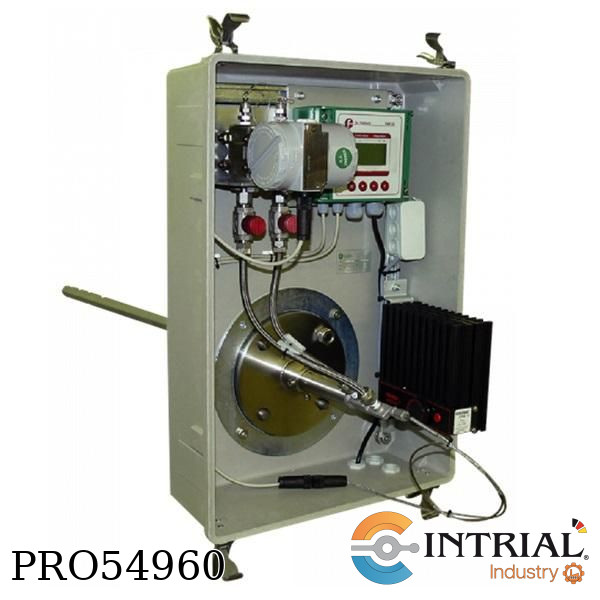

FLOW MEASURING DEVICE DR. FODISCH 230 V AC 50/60 Hz 3 - 60 m/s PT 100
FLOW MEASURING DEVICE<br />
Brand: DR. FODISCH<br />
Model: FMD09<br />
for the measurement of the gas velocity/flow, temperature<br />
approved according to DIN EN 15267-3<br />
for gas velocities > 3 m/s<br />
consisting of:<br />
Dynamic pressure probe with an integrated PT 100<br />
Probe material, 1.4571<br />
Channel insertion length, 530 mm<br />
Passive length, 300mm<br />
With differential pressure transmitter, mounting flange, ball valves,<br />
Analogue outputs, 3x 4...20 mA, potential isolated for gas velocity/flow,<br />
differential pressure, temperature or optional absolute pressure<br />
Digital signals, Failure, limit value 1 and limit value 2<br />
Power supply, 230 V AC 50/60 Hz<br />
Velocity, 3 - 60 m/s (operational status)<br />
Exhaust gas temperature, max. 850°C<br />
Ambient temperature, 0 ... +50°C<br />
Assembly port with special flange (adapter for 4" -150# RF flange contained within client scope)<br />
Incl. lacquered circuit boards and desiccant bags for tropical environments<br />
Incl. absolute pressure measurement measuring range: 800-1200 mbar
