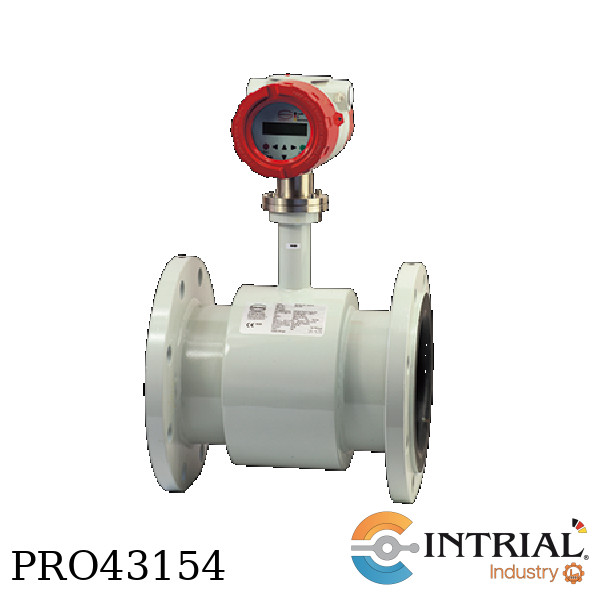

EPS Electromagnetic Flow Meter, -20°C…+150°C, ½ "Class 150 RF ASME B16.5-2003
EPS Electromagnetic Flow Meter<br />
Brand: Kobold – Heinrichs<br />
Model: EPS-P201R-1-H-0-1-0<br />
[P] Material Lining; PTFE <br />
Electrodes; Standard 2x Measuring Electrodes<br />
Process-Temperature; -20°C…+150°C<br />
[201R] ANSI flanges; Process connection: ½ "Class 150 RF ASME B16.5-2003 <br />
Max. measuring range (Water 20°C, 1 mPas); 6,6 m³/h<br />
Installation length; 200 mm<br />
[1] Material Process connection; Flange steel painted <br />
[H] Material electrodes; Hastelloy C276 <br />
[0] Earthing electrode; w/o <br />
[1] Transmitter mounting; Integrated transmitter <br />
Protection class, sensor; IP67<br />
[0] Certificates; w/o<br /><br />
Transmitte<br />
Brand: Kobold – Heinrichs<br />
Model: UMF2-A-1-4-G-0BK<br />
[A] Mounting; Integrated transmitter IP 67 standard ½" NPT (f) <br />
[1] Display and control unit; integrated <br />
[4] Power supply; 24V DC (±15%) <br />
[G] Output signal; current output: 1x 0/4-20 mA c/w HART protocoll <br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK] Design; Kobold
