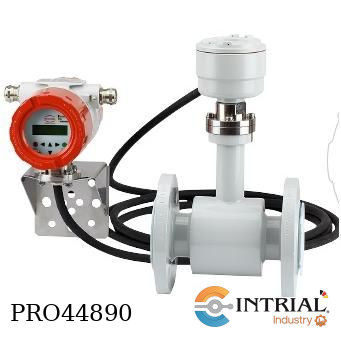

EPS Electromagnetic Flow Meter

<strong>EPS Electromagnetic Flow Meter<br />
Model: EPS-H-349B-1-S-S-2-0+UMF2-C-1-4-F-0BK-7<br />
Brand: Kobold-Heinrich</strong><br />
[EPS] Sensor<br />
[H] Material Lining, Hard Rubber (Ebonit),<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes, 0°C...95°C<br />
[349B]: Process connection, DN200 PN10 Form B1 DIN EN 1092-1 <br />
Max. Proc measuring range (Water 20°C, 1 mPas), 1110 m³/h<br />
Installation length 350 mm<br />
[1] Material Process connection, Flange steel painted<br />
[S] Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S] Earthing electrode, st.st. 1.4571 (316 TI)<br />
[2] Transmitter mounting, Remote Transmitter. <br />
Protection class sensor, IP 67 terminal conn.box via M 20 x 1,5<br />
[0] Certificates, w/o<br /><br />
[UMF2]<br />
[C] Mounting, Remote transmitter<br />
Connection to sensor, Incl 2,5 m cable, c/w pipe-/wall mounting bracket<br />
Thread - electrical connection, ½" NPT (f)<br />
[1] Display and control unit, integrated<br />
[4] Power supply, 24V DC (±15%)<br />
[F] Output:<br />
current output: 1x 0/4-20 mA<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK] Design, Kobold<br />
[7] Longer cable, 50m.
