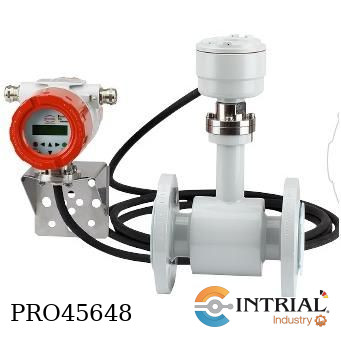

Flujometro electromagnético.

EPS Electromagnetic Flow Meter<br />
Model: EPS-H-335B-1-S-S-2-0<br />
Brand: Kobold-Heinrich<br />
[EPS] Sensor<br />
[H] Material Lining, Hard Rubber (Ebonit)<br />
Standard 2x Measuring- + 2x Groundelectrodes<br />
Process-Temperature, 0°C…+95°C<br />
[335B] Process connection, DN100 PN16 Form B1 DIN EN 1092-1<br />
Max. measuring range, 274 m³/h, Installation length, 250 mm.<br />
[1] Material Process connection, Flange steel painted<br />
[S] Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S] Earthing electrode, st.st. 1.4571 (316 -TI)<br />
[2] Transmitter mounting, Remote Transmitter<br />
Protection class, sensor, IP 67 terminal conn.box via M 20 x 1,5 <br />
cable > 10m add. term.conn.box on transmitter<br />
[0] Certificates, w/o<br /><br />
UMF2-C-1-4-F-0BK-1<br />
[UMF2] Transmitter<br />
[C] Mounting, Remote transmitter, <br />
Connection to sensor: incl 2,5 m cable, c/w pipe-/wall mounting bracke<br />
Thread - electrical connection, ½" NPT (f)<br />
[1] Display and control unit, integrated<br />
[4] Power supply, 24V DC (±15%)<br />
[F] Output Signal:<br />
current output: 1x 0/4-20 mA<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK] Design, kobold<br />
[1] Longer cable 5m, breakout cable
