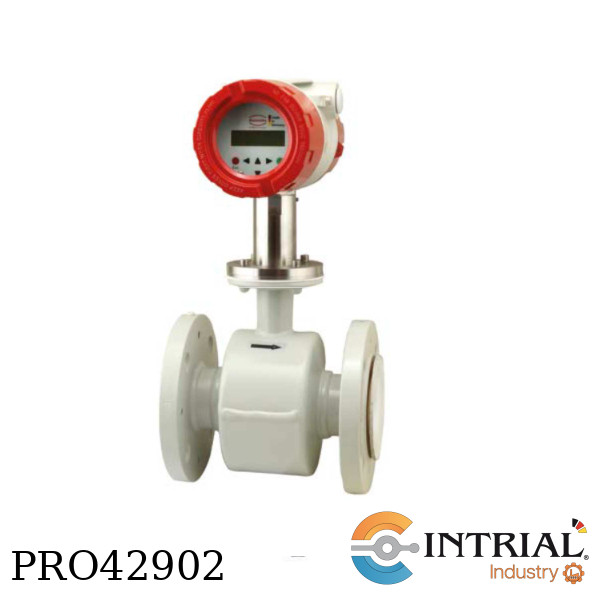

Flujómetro electromagnético (DN80; 170 m³/h; 200 mm)

EPS Electromagnetic Flow Meter<br />
Brand: Kobold (Heinrichs)<br />
Model: EPS-H-330B-1-S-S-1-0<br />
[H]: Material – lining, Hard Rubber (Ebonit) <br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes<br />
Process-Temperature, 0°C…+95°C<br />
[330B]: Process Connection, DN80 PN16 Form B1 DIN EN 1092-1<br />
Max. measuring range (Water 20°C, 1 mPas), 170 m³/h<br />
Installation length, 200 mm<br />
[1]: Material Process connection, Flange steel painted<br />
[S]: Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S]: Earthing electrode, st.st. 1.4571 (316 TI) <br />
[1]: Transmitter mounting, integrated transmitter<br />
Protection class sensor, IP67<br />
[0]: Certificates, w/o<br />
<br />
Include<br />
TRANSMITTER<br />
Brand: Kobold (Heinrichs)<br />
Model: UMF2-A-1-1-F-0BK<br />
[A] Mounting, Integrated transmitter IP 67 standard<br />
Thread - electrical connection, ½" NPT (f)<br />
[1] Display and control unit, integrated<br />
[1] Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[F] Output signal, <br />
current output: 1x 0/4-20 mA<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK] Design, Kobold
