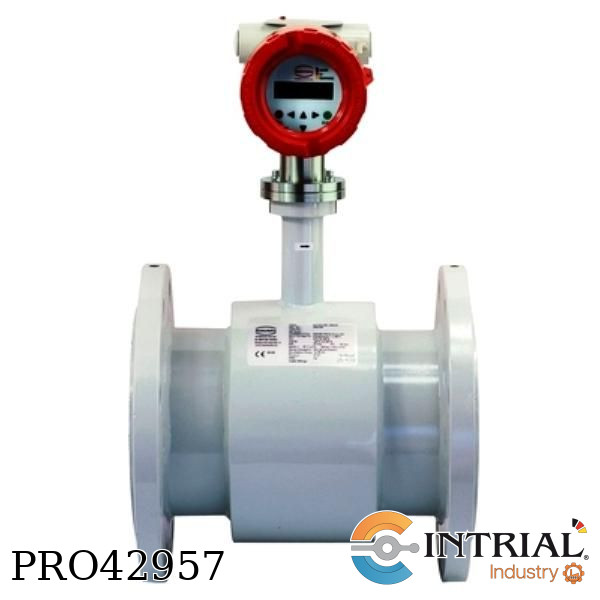

Electromagnetic Flow Meter-EPS
<strong>EPS Electromagnetic Flow Meter<br />
Brand: Kobold – Heinrichs (Germany)<br />
Model: EPS-H-213R-1-H-H-1-0+UMF2-A-1-4-G-0BK</strong><br />
[EPS]: Model Sensor<br />
[H]: Material Lining, Hard Rubber (Ebonit),<br />
Electrodes, Standard 2x Measuring- + 2x Ground electrodes, 0°C...95°C<br />
[213R] Process connection, 8" Class 150 RF ASME B16.5-2003<br />
Max. measuring range (Water 20°C, 1 mPas), 1110 m³/h<br />
[1]: Material Process connection, Flange steel painted<br />
[H] :Material electrodes, Hastelloy C276<br />
[H]: Earthing electrode, Hastelloy <br />
[1]: Transmitter mounting, Integrated transmitter<br />
Protection class, sensor IP67<br />
[0]:Certificates, w/o<br /><br /><br />
[UMF2]: Model Transmitter<br />
[A]: Mounting, Integrated transmitter IP 67 standard<br />
Thread - electrical connection, ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[4]: Power supply, 24V DC (±15%)<br />
[G]: current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold
