EPS Electromagnetic Flow Meter, Max. measuring range: 170 m³/h, Installation length: 272 mm.

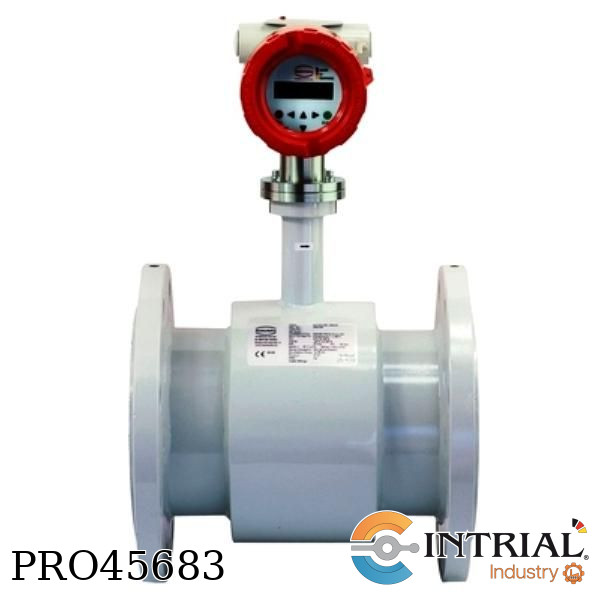

EPS Electromagnetic Flow Meter<br />
Brand: Kobold<br />
Model: EPS-H-208R-1-S-S-1-0<br />
[EPS]: Sensor<br />
[H]: Material Lining, Hard Rubber (Ebonit)<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes<br />
Process-Temperature 0°C...95°C<br />
[208R]: Connection flange, 3" Class 150 RF ASME B16.5-2003<br />
Max. measuring range: 170 m³/h, Installation length: 272 mm.<br />
[1]: Material Process connection, Flange steel painted<br />
[S]: Material electrodes, st.st. 1.4571<br />
[S]: Earthing electrode, st.st. 1.4571<br />
[1]: Transmitter mounting integrated version, protection IP 67<br />
[0]: Certificates, without<br /><br />
UMF2-A-1-4-G-0BK<br />
[UMF2]: Transmitter<br />
[A]: Mounting, Integrated transmitter IP 67 standard<br />
Thread - electrical connection, ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[4]: Power supply, 24V DC (±15%)<br />
[G]: Output signal<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold
