EPS Electromagnetic Flow Meter, Max. measuring range, 70 m³/h, Installation length, 200 mm

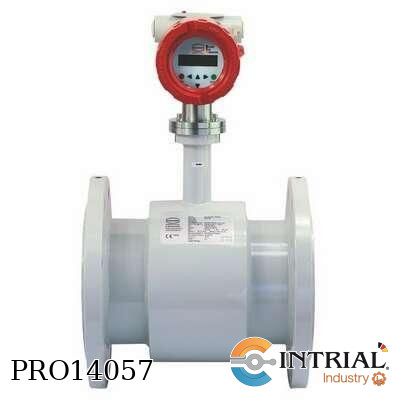

EPS Electromagnetic Flow Meter
Brand: KOBOLD (Heinrichs)
Model: EPS-H-206R-1-S-S-1-0
[H]: Material Lining, Hard Rubber (Ebonit), Standard 2x Measuring Electrodes,
Process-Temperature, 0°C…+95°C
[206R]:Process connection, ANSI flanges 2" Class 150 RF ASME B16.5-2003,
Max. measuring range, 70 m³/h, Installation length, 200 mm.
[1]: Material Process connection, Flange steel painted
[S]:Material electrodes, st.st. 1.4571 (316 -TI)
[S]: Earthing electrode, st.st. 1.4571 (316 -TI)
[1]: Transmitter mounting, Integrated transmitter
Protection class, sensor IP 67
[0]:Certificates, w/o

Include
TRANSMITTER
Brand: KOBOLD (Heinrichs)
Model: UMF2-A-1-1-G-0BK
[A]: Mounting, Integrated transmitter IP 67 standard
Thread - electrical connection, ½" NPT (f)
[1]: Display and control unit, integrated
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz
[G]: Output Signal:
current output: 1x 0/4-20 mA c/w HART protocoll
pulse output: passive Um=24 VDC
status output: passive Um=24 VDC
[0BK]: Design, Kobold
