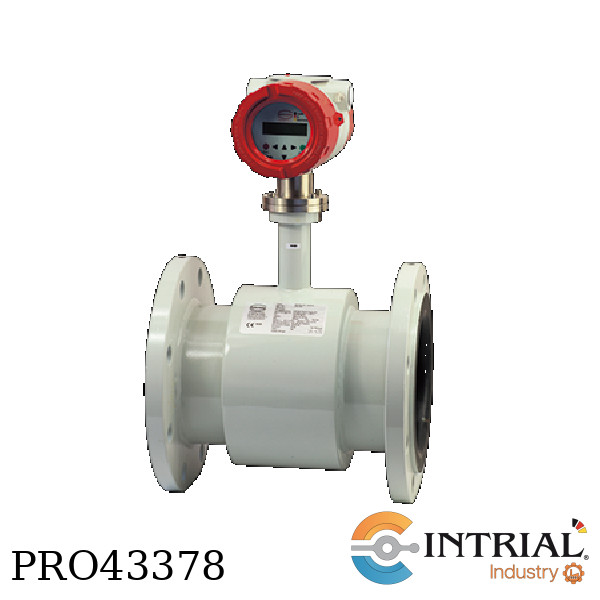

EPS Electromagnetic Flow Meter

EPS Electromagnetic Flow Meter<br />
Brand: Heinrichs (Alemania)<br />
Model: EPS-A-7000-N-N-0-1-0 <br />
[EPS-A]: Sensor<br />
Material Lining Ceramics, Standard 2x Measuring Electrodes<br />
Process Temperature, -20°C…+150°C<br />
[7000]: Process connection, DN15 Tri-Clamp-Connection<br />
Material Lining / Electrodes / Sealing, Ceramics / Platinum<br />
Max. measuring range, 6,6 m³/h<br />
Installation length, 144 mm<br />
[N]: Material Process connection, HC22(2.4602)PTFE-gasket<br />
[N]: Material electrodes, Platinum / Iridium<br />
[0]: Earthing electrode, w/o<br />
[1]: Transmitter mounting, Integrated transmitter<br />
Protection class, sensor IP 67<br />
[0]: Certificates, w/o<br /><br />
UMF2-A-1-1-G-0BK<br />
[UMF2]: Transmitter<br />
[A]: Mounting, Integrated transmitter IP 67 standard<br />
Thread - electrical connection, ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G]: Output signal<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold
