Magnetic inductive flowmeter. Max. Range (Water 20°C, 1 mPas), 17 m³/h. Connection, 1" Class 150. Ou

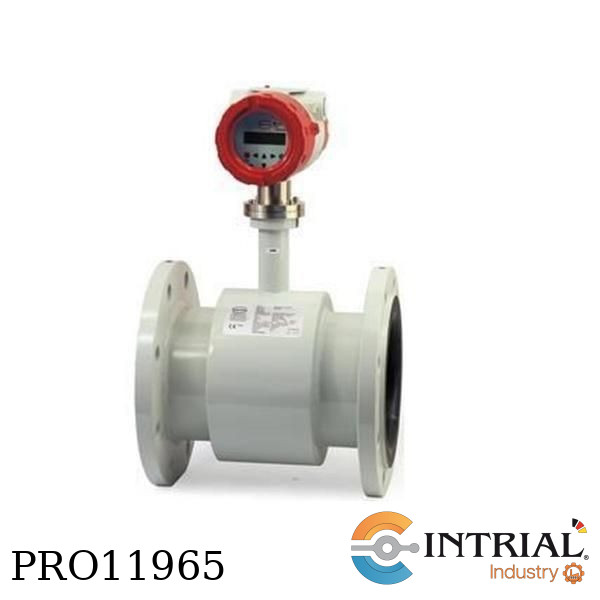

Magnetic inductive flowmeter
EP-H-203R-1-SS-2-0/UMF2-C-1-2-G-0BK-2
Brand: Kobold-Heinrichs
H: hard-rubber, standard 3 stainless steel electrodes 0°C...80°C
203R:
Process Connection, 1" Class 150 RF ASME B16.5-2003
Max. measuring range (Water 20°C, 1 mPas), 17 m³/h
1: Material flanges, steel (painted)
SS: Material electrodes, Stainless steel incl. grounding electrode
2: Transmitter mounting, remote transmitter, IP67, junction box via M20 x 1,5
0: Approvals, without
UMF2
C:
Mounting, remote transmitter incl. 2,5m cable and wall mounting bracket cable >10m c/w term.conn box on transmitter ½" NPT (f)
1: Display and control unit, integrated
2: Power supply, 115V AC (+10%, -15%), 50/60Hz
G: Output:
current output 1: 4 - 20mA with HART-protocol
pulse output: passive Um=24VDC
status output: passive Um=24VDC
0BK: Design, Kobold
2: Extended cable length; 10m breakout cable
Included: calibration certificate
Datasheet:
http://www.heinrichs.eu/uploads/tx_rsbproductdownload/ep_umf2b_db_en.pdf
