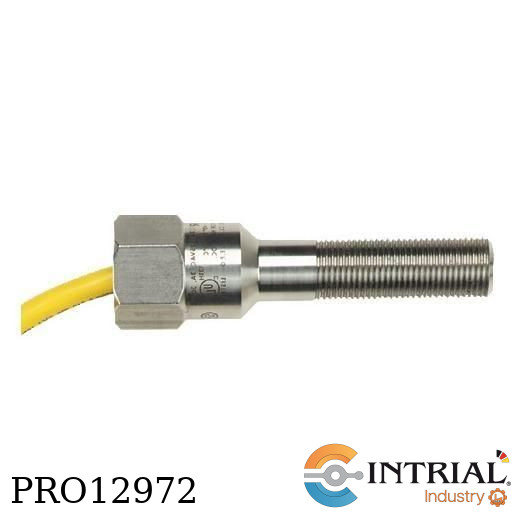

Sensor detector de posición serie DT
Modelo: DT1160
Detector y accionador de alta intensidad, distancia de detección de 0.5" (12.7 mm).
Temperature Limits: -40 to 163°F (-40 to 73°C).
Switch Type: Tungsten, SPDT, Form C.
Electrical Rating: 3 A @ 125 VAC, 3 A @ 30 VDC.
Enclosure Rating: Weatherproof; Hermetically sealed;
Explosion-proof UL & CSA listed for Class I,
Groups A, B, C, & D; Class II, Groups E, F & G. Divisions 1 & 2.
Intrinsically Safe: Simple apparatus (w/barrier).
Operating/Response Time: 3.0 ms.
Initial Contact Resistance: 0.50 Ω (max).
Repeatability: 0.005" (.01 cm).
Hysteresis: 0.030" (.08 cm).
Electrical Connection: Factory sealed leads with 18" min, 4 conductor,
PVC insulated, 18 AWG – green/red/black/white (ground/NC/ NO/common). Housing: 316 SS.
Potting: Epoxy resin.
Conduit: 1/2"-14" female NPT.
Weight: 0.32 lb (145 g); 0.45 lb (204 g) with actuator
| Marca: DWYER |
| Línea: DWYER (CM) |
