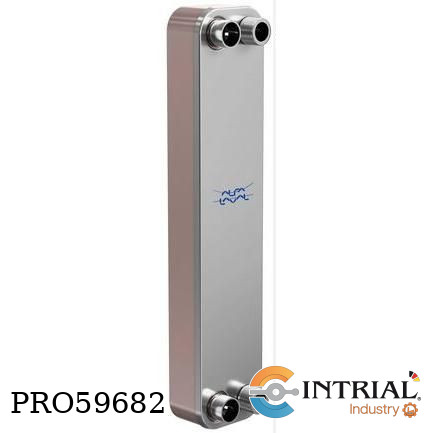

Brazed plate heat exchanger ALFA LAVAL -196 / 225 °C 50 bar 147 x 113 x 527 mm

Brazed plate heat exchanger<br />
Brand: ALFA LAVAL<br />
Model: CBH60-40H<br />
Process data:<br />
 Hot side<br />
  Fluid, Water<br />
  Duty type, Liquid cooling<br />
 Cold side<br />
  Fluid, Water<br />
  Duty type, Liquid heating<br />
Heat exchanger specification:<br />
 Hot side<br />
  Relative directions of fluids, Countercurrent<br />
  Number of plates, 40<br />
  Number of passes, 1<br />
  Channel arrangement, 1*20H<br />
  Channel volume, 2,1dm³<br />
  Number of circuits, 1<br />
  Design pressure at -196 °C, 50 bar<br />
  Design pressure at 225 °C, 39 bar<br />
  Design temperature (min./max.), -196 / 225 °C<br />
  Pressure vessel code, PED/UK<br />
  Material channel plates/sealing, ALLOY 316 / Cu<br />
  Connection S1 (Hot-In), Soldering 1 3/8" ALLOY 316<br />
  Connection S2 (Hot-Out), Soldering 1 3/8" ALLOY 316<br />
  Connection S3 (Cold-In), Soldering 22 mm ALLOY 316<br />
  Connection S4 (Cold-Out), Soldering 22 mm ALLOY 316<br />
  Unit dimensions (length x width x height), 147 x 113 x 527 mm<br />
 Cold side<br />
  Relative directions of fluids, Countercurrent<br />
  Number of plates, 40<br />
  Number of passes, 1<br />
  Channel arrangement, 1*19H<br />
  Channel volume, 2,0dm³<br />
  Number of circuits, 1<br />
  Design pressure at -196 °C, 50 bar<br />
  Design pressure at 225 °C, 39 bar<br />
  Design temperature (min./max.), -196 / 225 °C<br />
  Pressure vessel code, PED/UK<br />
  Material channel plates/sealing, ALLOY 316 / Cu<br />
  Connection S1 (Hot-In), Soldering 1 3/8" ALLOY 316<br />
  Connection S2 (Hot-Out), Soldering 1 3/8" ALLOY 316<br />
  Connection S3 (Cold-In), Soldering 22 mm ALLOY 316<br />
  Connection S4 (Cold-Out), Soldering 22 mm ALLOY 316<br />
  Unit dimensions (length x width x height), 147 x 113 x 527 mm
