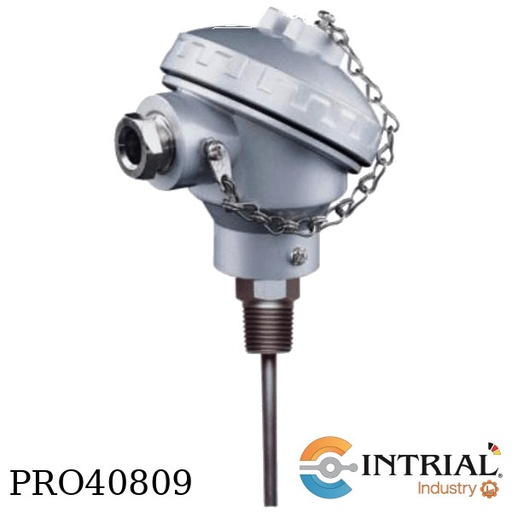

Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-W-8-N15-G-3-G-A-0 (500mm)<br />
[MWD-W]:<br />
Version: For mounting in thermowell, insert filled with MgO, removable<br />
Protective tube material: st.st. 1.4404<br />
Max. pressure: see thermowell<br />
Connection:fixed connection<br />
Neck pipe: divisible<br />
HL= 150 mm<br />
Longitud de Inserción= 280 mm<br />
[8]:Measuring insert diameter /8 mm <br />
[N15]: Process connection, 1/2" NPT male <br />
[G]: Sensor, 1x Pt100, cat. A,  (-70..+400 °C) <br />
[3]: Wiring, 3 Wires<br />
[G]: Terminal head, screw cap with chain, aluminium <br />
[A]: Head-mounted transmitter, programable 2 wire transmitter model 5334D <br />
[0]: Options, without

Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-W-8-N15-G-3-G-A-0 (500mm)<br />
[MWD-W]:<br />
Version: For mounting in thermowell, insert filled with MgO, removable<br />
Protective tube material: st.st. 1.4404<br />
Max. pressure: see thermowell<br />
Connection:fixed connection<br />
Neck pipe: divisible<br />
HL= 150 mm<br />
Longitud de Inserción= 500 mm<br />
[8]:Measuring insert diameter /8 mm <br />
[N15]: Process connection, 1/2" NPT male <br />
[G]: Sensor, 1x Pt100, cat. A,  (-70..+400 °C) <br />
[3]: Wiring, 3 Wires<br />
[G]: Terminal head, screw cap with chain, aluminium <br />
[A]: Head-mounted transmitter, programable 2 wire transmitter model 5334D <br />
[0]: Options, without

Industrial Resistance Thermometers acc. DIN <br />
Brand: Kobold (Alemania)<br />
Model: MWD-L-C-N20-C-3-G-C-0<br />
[MWD-L]:<br />
Version Protective tube acc. DIN 43772, <br />
filled with MgO, insert not removable<br />
Protective tube material st.st. 1.4404<br />
Max. pressure (@ 20°C) 30 bar<br />
Connection fixed connection<br />
Neck pipe without<br />
[C]: Diameter / length thermowell, 12 mm / 300 mm<br />
[N20]: Process connection, 3/4" NPT male<br />
[C]: Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br />
[3]: Wiring, 3 Wires<br />
[G]: Terminal head, screw cap with chain, aluminium<br />
[C]: Head-mounted transmitter, <br />
transmitter with PROFIBUS/Fieldbus model 5350A<br />
[0]: Options, without

<p class="MsoNormal">Industrial Resistance Thermometers acc. DIN<br />
Model: MWD-B-8-G15-C-3-G-A-0<br />
Brand: Kobold (Alemania)<br />
[MWD-B]:<br />
Version Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material st.st. 1.4404<br />
Max. pressure (@ 20°C) 30 bar<br />
Connection fixed connection<br />
Neck pipe HL: 130 mm <br />
Electrical connection: M20x1.5 <br />
[8]: Diameter / length thermowell, 8 mm / 200 mm <br />
[G15]: Process connection, G1/2 male<br />
[C]: Sensor, 1x Pt100, cat. A,  (-70..+250 °C)<br />
[3]: Wiring, 3 wires <br />
[G]:Terminal head, screw cap with chain, aluminium<br />
[A]: Head-mounted transmitter, programable 2 wire transmitter model 5333D<br />
[0]: Options, without</p>

<p class="MsoNormal"><span style="font-size:13.5pt;color:#000000;"><span style="font-size:16pt;"></span></span></p><p></p>

[MWD-B]:<br />
Version Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material st.st. 1.4404<br />
Max. pressure (@ 20°C) 30 bar<br />
Connection fixed connection<br />
Neck pipe HL: 130 mm <br />
Electrical connection: M20x1.5 <br />
[8]: Diameter / length thermowell, 8 mm / 100 mm <br />
[G08]: Process connection, G1/4 male<br />
[A]: Sensor, 1x Pt100, cat. B,  (-70..+250 °C)<br />
[3]: Wiring, 3 Wires<br />
[P]:Terminal head, screw cap with chain, PP<br />
[0]: Head-mounted transmitter, without transmitter<br />
[0]: Options, without

<strong>BimetaThermowells for Temperature Sensors<br />
Model: TWL-1-3-3-A-N-DN5C-A-1<br />
Brand: Kobold (Alemania)</strong><br />
[TWL-1]:<br />
Version standard<br />
Thermowell cylindrical, tapered<br />
Material neckpipe/sensor/thermowell drilled<br />
Connection head Form XD with chain, M20 x 1,5 <br />
Approval ATEX II 2 GD Ex d IIC T6 <br />
[3]: Sensor, 1x Pt100, cat, B,  (-80..+600 °C)<br />
[3]: Wiring, 3 wires<br />
[A]: Head-mounted transmitter, Model 5333D<br />
[N]: Connection neckpipe, 1/2" NPT male <br />
[DN5C]: Connection, 3/4" NPT male, PN 250<br />
[A]: Neckpipe/lagging extension (HL/T), Standard neckpipe (130 mm)w/o lagging extension<br />
[1]: Options, with LED-display<br /><br />
Dimensions Temperature Sensor:<br />
Neck pipe length (HL): 130 mm (Standard for TWL-1) (For Ex applications is needed)<br />
Inmension length (EL): U + H – 8 mm = 114.30 + 46 – 8 = 152.30 mm<br />
Bulb diameter: 6 mm<br /><br />
Dimensions Thermowell:<br />
Length Thermowell (H): 46 mm<br />
Immersion length Thermowell (U): 114.30 mm (4.5”)

Sheath Resistance Thermometers<br />
Model: TWM-1-62-XX2-1-4-M<br />
Brand: Kobold<br />
[TWM-1]: <br />
Protective tube material: st.st. (1.4541)<br />
Sheath tip: st.st. (1.4571)<br />
Temperature range: -20 - 600 °C<br />
ConnectingG 1/2 male<br />
[62]: Sheath diameter: 6,0 mm<br />
[XX2]: Immersion length: 180 mm<br />
[1]: Type of sensor: 1x Pt100 (-200 - 400°C)<br />
[4]: Wiring: 4 wires<br />
[M]: electr. Connection: Head form MA.

Glass Thermometer for Machines TGL<br />
Brand: Kobold (Alemania)<br />
Model:TGL-52-06-C-063-G<br />
[TGL-52]:<br />
Housing (mm), 150x36<br />
Form B, acc. DIN, 16186<br />
Housing material, aluminum<br />
Design, 90° angle<br />
Immersion tube, brass<br />
[06] Meas. range/scaling, 0...60 °C / 1°<br />
[C] Scale, ° C <br />
[063]: Imm. Length, 63 mm<br />
[G]: Connection, G 1/2 male

Bimetallic Thermometers<br />
Brand: Kobold (Alemania)<br />
Model: TBI-IU-F-10-100-3G<br />
[TBI-IU]:<br />
Housing material, st.st.<br />
Accuracy (DIN 16203), class 1<br />
Connection, to bottom<br />
Probe, G 1/2 male<br />
[F] Diameter, 100 mm<br />
[10] Range, 0...100 °C<br />
[100] Immersion tube length, L1 = 100 mm<br />
[3G] Protect. tube/ immers. Tube, immersion tube, st. st. G 1/2

Bimetallic Thermometers<br />
Brand: Kobold (Alemania)<br />
Model: TBI-IU-F-16-063-3G<br />
[TBI-IU]:<br />
Housing material, st.st.<br />
Accuracy (DIN 16203), class 1<br />
Connection, to bottom<br />
Probe, G 1/2 male<br />
[F] Diameter, 100 mm<br />
[16] Range, 0...160 °C<br />
[063] Immersion tube length, L1 = 63 mm<br />
[3G] Protect. tube/ immers. Tube, immersion tube, st. st. G 1/2

Capillary Thermometers<br />
Brand: Kobold (Alemania) <br />
Model: TNF-2F-2-40-E-42<br />
[TNF-2F]:<br />
Diameter 100 mm<br />
Probe material st.st.<br />
Class 1,0<br />
[2]: Housing Material, st.st.<br />
[40]: Measuring Ranges, 0...400 °C<br />
[E]: Capillaries tube, st.st.<br />
Capillary tube, 10 meters<br />
Probe  length, 2 meters<br />
Probe diameter, 12 mm<br />
[42]: Probe, G 3/4 turnable nipple

Industrial Resistance Thermometers acc. DIN <br />
Brand: Kobold (Alemania)<br />
Model: MWD-L-4-N08-C-3-E-0-0<br />
[MWD-L]:<br />
Version Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material st.st. 1.4404<br />
Max. pressure (@ 20°C) 30 bar<br />
Connection fixed connection<br />
Neck pipe without<br />
[4]: Diameter / length thermowell, 4 mm / 76.2 mm<br />
[N08]: Process connection, 1/4" NPT male<br />
[C]: Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br />
[3]: Wiring, 3 Wires<br />
[E]: Terminal head, Output signal: 4 ... 20 mA<br />
[0]: Head-mounted transmitter, without transmitter<br />
[0]: Options, without<br /><br />
Include 1:<br />
FUENTE STEP<br />
Model: 6602868648<br />
FUENTE STEP-PS/1AC/24DC/1.75 PHOENIX CONTACT<br /><br />
Include 2:<br />
Certificado de Calibración INACAL<br />
Model: CERTF-INA-MWD-L<br />
Certificado de Calibración para 03 Puntos de Medición

Industrial Resistance Thermometers acc. DIN <br />
Brand: Kobold (Alemania)<br />
Model: MWD-L-4-N08-C-3-E-0-0<br />
[MWD-L]:<br />
Version Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material st.st. 1.4404<br />
Max. pressure (@ 20°C) 30 bar<br />
Connection fixed connection<br />
Neck pipe without<br />
[4]: Diameter / length thermowell, 4 mm / 76.2 mm<br />
[N08]: Process connection, 1/4" NPT male<br />
[C]: Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br />
[3]: Wiring, 3 Wires<br />
[E]: Terminal head, Output signal: 4 ... 20 mA<br />
[0]: Head-mounted transmitter, without transmitter<br />
[0]: Options, without

Industrial Resistance Thermometers<br />
Model: MWD-E-8-C15-A-3-B-A-0<br />
Brand: Kobold<br />
[MWD-E]:<br />
Version Protective tube acc. DIN 43772, filled with MgO, insert removable<br />
Protective tube material st.st. 1.4404<br />
Max. pressure (@ 20°C) 30 bar<br />
Connection Compression fitting<br />
Neckpipe without<br />
Measuring range: 0 a 100°C<br />
[8]: Diameter / length thermowell, 8mm / 125mm<br />
[C15]: Process connection, Compression fitting 1/2 NPT male<br />
[A]: Sensor, 1x Pt100, cat. B, (-70..+250 °C)<br />
[3]: Wirings, 3 wires<br />
[B]: Terminal head, DIN B, screwd cover, aluminium<br />
[A]: Head-mounted transmitter, programable 2 wire transmitter model 5334DD<br />
[0]: Options, without

Industrial Resistance Thermometers acc. DIN <br />
Brand: Kobold (Alemania)<br />
Model: MWD-L-8-N08-C-3-E-0-0<br />
[MWD-L]:<br />
Version Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material st.st. 1.4404<br />
Max. pressure (@ 20°C) 30 bar<br />
Connection fixed connection<br />
Neck pipe without<br />
[8]: Diameter / length thermowell, 8 mm /300 mm<br />
[N08]: Process connection, 1/4" NPT male<br />
[C]: Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br />
[3]: Wiring, 3 Wires<br />
[E]: Terminal head, Anschlusskopf<br />
[0]: Head-mounted transmitter, without transmitter<br />
[0]: Options, without

Digital Thermometer, microprocessor-controled<br />
Brand: Kobold (Alemania)<br />
Model: DTM-S0-10-0-1A-A4G-0<br />
[DTM-S0]<br />
Housing material: st. st. /Polyamide<br />
Housing diameter 100 mm<br />
Accuracy class 0,5<br />
max. temperature: 200 °C<br />
Power supply: 15...30 VDC<br />
Connection : to bottom.<br />
Diameter bulb: 8mm<br />
Probe Length: 300 mm<br />
[10] Range: 0...100 °C<br />
[0] Cable: whitout<br />
[1A] Probe for all models: 1/2 NPT sl. nut + nipple<br />
[A4G] Output: 4..20 mA, 2 contacts<br />
[0] Options: without

Sheath Resistance Thermometers<br />
Model: TWM-8-32-100-1-3-M<br />
Brand: Kobold<br />
[TWM-8]: <br />
Protective tube material: st.st. (1.4541)<br />
Sheath tip: st.st. (1.4571)<br />
Temperature range: -20...600 °C<br />
[32]: Sheath diameter: 3,0 mm<br />
[100]: Immersion length: 100 mm<br />
[1]: Type of sensor: 1x Pt100 (-200..400°C)<br />
[3]: Wiring: 3 wires<br />
[M]: electr. Connection: Head form MA.

Sheath Resistance Thermometers acc.<br />
Model: TWM-8-32-200-1-3-M<br />
Brand: Kobold<br />
[TWM-8]: <br />
Protective tube material: st.st. (1.4541)<br />
Sheath tip: st.st. (1.4571)<br />
Temperature range: -20...600 °C<br />
[32]: Sheath diameter: 3,0 mm<br />
[200]: Immersion length: 200 mm<br />
[1]: Type of sensor: 1x Pt100 (-200..400°C)<br />
[3]: Wiring: 3 wires<br />
[M]: electr. Connection: Head form MA.

Bimetallic Thermometers TBE (610 mm)<br />
Brand: Kobold (Alemania)<br />
Model: TBE-2-2-F30-9A-7-C40-R11<br />
Housing material, st.st.<br />
Accuracy (DIN 16203), class 1<br />
Connection to, bottom<br />
Probe, st.st.<br />
[2]: Diameter, 125 mm<br />
[F30]: Measuring Range, Scale °C, ranges +50......+550 °F<br />
[9A]: Probe type/Process connection, sliding male and swivel nut 1/2 NPT<br />
[7]: Bulb diameter/-length: 6.4 mm, (610 mm. = 24" )<br />
[C40]: Case and ring stainless steel AISI 316<br />
[R11]: Silicone filling (max. 250 °C) IP 67

Bimetallic Thermometers TBE (450 mm)<br />
Brand: Kobold (Alemania)<br />
Model: TBE-2-2-F30-9A-7-C40-R11<br />
Housing material, st.st.<br />
Accuracy (DIN 16203), class 1<br />
Connection to, bottom<br />
Probe, st.st.<br />
[2]: Diameter, 125 mm<br />
[F30]: Measuring Range, Scale °C, ranges +50......+550 °F<br />
[9A]: Probe type/Process connection, sliding male and swivel nut 1/2 NPT<br />
[7]: Bulb diameter/-length: 6.4 mm, (450 mm. = 18" )<br />
[C40]: Case and ring stainless steel AISI 316<br />
[R11]: Silicone filling (max. 250 °C) IP 67
