Resistance Thermometers Exd<br />
Model: TWL-2-8-3-L-N-GN4B-A-0-Y1<br />
Brand: Kobold<br />
[TWL-2]:<br />
Version with nipple union<br />
Thermowell, cylindrical drilled<br />
Material neckpipe/sensor/thermowell st.st. 1.4404 <br />
Connection head Form XD with chain, M20 x 1,5 <br />
Approval ATEX II 2 GD Ex d IIC T6 <br />
[8] Sensor: 2x Pt100, cat. A, (-80..+600 °C)<br />
[3] Wiring: 3 wires<br />
[L] Head-mounted transmitter, without transmitter<br />
[N] Connection neckpipe, 1/2" NPT male<br />
[GN4B] Connection thermowell: 1/2" NPT male, PN 100<br />
[A] Neckpipe/lagging extension <br />
Standard neckpipe (150 mm)w/o lagging extension<br />
[0] Options: without <br />
[Y1] Immersion length 102 mm

Resistance Thermometers Exd<br />
Model: TWL-1-5-4-L-N-G4NB-F-0-Y1<br />
Brand: Kobold<br />
[TWL-1]:<br />
Version standard<br />
Thermowell cylindrical, drilled<br />
Material neckpipe/sensor/thermowell st.st. 1.4404 <br />
Connection head Form XD with chain, M20 x 1,5 <br />
Approval ATEX II 2 GD Ex d IIC T6 <br />
[5] Sensor: 1x Pt100, cat. A, (-30..+550 °C)<br />
[4] Wiring: 4 wires<br />
[L] Head-mounted transmitter, without transmitter<br />
[N] Connection neckpipe, 1/2" NPT male<br />
[GN4B] Connection thermowell: 1/2" NPT male, PN 100<br />
[F] Neckpipe/lagging extension <br />
Special neckpipe length 200 mm<br />
[0] Options: without <br />
[Y1] Immersion length 230 mm

Resistance Thermometers Exd<br />
Model: TWL-1-5-4-L-N-G4NB-F-0<br />
Brand: Kobold<br />
[TWL-1]:<br />
Version standard<br />
Thermowell cylindrical, drilled<br />
Material neckpipe/sensor/thermowell st.st. 1.4404 <br />
Connection head Form XD with chain, M20 x 1,5 <br />
Approval ATEX II 2 GD Ex d IIC T6 <br />
[5] Sensor: 1x Pt100, cat. A, (-30..+550 °C)<br />
[4] Wiring: 4 wires<br />
[L] Head-mounted transmitter, without transmitter<br />
[N] Connection neckpipe, 1/2" NPT male<br />
[GN4B] Connection thermowell: 1/2" NPT male, PN 100<br />
Immersion length 60 mm<br />
[F]: Neckpipe/lagging extension <br />
Special neckpipe length 200 mm<br />
[0] Options: without

Thermocouples Exd<br />
Brand: Kobold (Alemania)<br />
Model: TTL-1-3-2-A-N-0000-G-0<br />
[TTL-1]:<br />
Version standard<br />
Thermowell, w/o<br />
Material neckpipe/sensor/thermowell st.st. 1.4404 <br />
Connection head Form XD with chain, M20 x 1,5 <br />
Approval ATEX II 2 GD Ex d IIC T6<br />
[3]: Sensor, 1x NiCr-Ni (type K), cat, 2<br />
[2]: Wiring: 2 wires<br />
[A]: Head-mounted transmitter, programable 2 wire transmitter model 5334D<br />
[N]: Connection neckpipe, 1/2" NPT male <br />
[0000]: Connection thermowell, w/o thermowell<br />
Immersion length (EL), for sensor w/o thermowell, 250 mm<br />
[G]: Standard neckpipe (130 mm) w/o thermowell<br />
[0]: Options: w/o

Thermocouples Exd<br />
Brand: Kobold (Alemania)<br />
Model: TTL-1-3-2-A-N-0000-G-0<br />
[TTL-1]:<br />
Version standard<br />
Thermowell, w/o<br />
Material neckpipe/sensor/thermowell st.st. 1.4404 <br />
Connection head Form XD with chain, M20 x 1,5 <br />
Approval ATEX II 2 GD Ex d IIC T6<br />
[3]: Sensor, 1x NiCr-Ni (type K), cat, 2<br />
[2]: Wiring: 2 wires<br />
[A]: Head-mounted transmitter, programable 2 wire transmitter model 5334D<br />
[N]: Connection neckpipe, 1/2" NPT male <br />
[0000]: Connection thermowell, w/o thermowell<br />
Immersion length (EL), for sensor w/o thermowell, 350 mm<br />
[G]: Standard neckpipe (130 mm) w/o thermowell<br />
[0]: Options: w/o

Insertion Resistance Thermometers compact<br />
Brand: Kobold (Alemania)<br />
Model: MMA-0-XX-G15-M-3-M-0-0<br />
[MMA-0]:<br />
Probe material st.st. 1.4404<br />
Connection fixed <br />
Design w/o stand-off <br />
Max. Temperature, - 70...+150°C <br />
[XX]: Special lenght/ diameter, 345 mm / Ø9<br />
[G15]: Connection, G 1/2 male<br />
[M]: Sensor Type/Category, 1x Pt100, class 1/3 DIN (-70..+250°C)<br />
[3]: Wiring, 3-wire<br />
[M]: Electr. Connection, Plug M12x1 <br />
[0]: Head Transmitter, without<br />
[0]: Options: without<br />
Dimensions:<br />
*Inmersion length = 345 mm<br />
*Special diameter Thermometer = 9 mm

Insertion Resistance Thermometers compact<br />
Brand: Kobold (Alemania)<br />
Model: MMA-0-XX-XXX-M-3-M-0-0 <br />
[MMA-0]:<br />
Probe material st.st. 1.4404<br />
Connection fixed <br />
Design w/o stand-off <br />
Max. Temperature, - 70...+150°C <br />
[XX]: Special lenght / diameter, 230 mm / Ø9 <br />
[XXX]: Process connection, special options, G3/4<br />
[M]: Sensor Type/Category, 1x Pt100, class 1/3 DIN (-70..+250°C)<br />
[3]: Wiring, 3-wire<br />
[M]: Electr. Connection, Plug M12x1 <br />
[0]: Head Transmitter, without<br />
[0]: Options: without<br />
Dimensions:<br />
*Inmersion length = 230 mm<br />
*Special diameter Thermometer = 9 mm<br />
*Special process connection = G3/4

Insertion Resistance Thermometers compact<br />
Brand: Kobold (Alemania)<br />
Model: MMA-0-XX-G15-M-3-M-0-0 <br />
[MMA-0]:<br />
Probe material st.st. 1.4404<br />
Connection fixed <br />
Design w/o stand-off <br />
Max. temperature - 70...+150°C <br />
[XX]: Special lenght / diameter: 175 mm / Ø6 <br />
[G15]: Connection, G 1/2 male<br />
[M]: Sensor Type/Category, 1x Pt100,class 1/3 DIN (-70..+250°C)<br />
[3]: Wiring, 3-wire<br />
[M]: Electr. Connection, Plug M12x1 <br />
[0]: Head Transmitter, without<br />
[0]: Options: withouth

Bimetallic Thermometers<br />
Brand: Kobold (Alemania)<br />
Model: TBE-1-2-F12-3A-6-C40-R10-C01<br />
[TBE-1]:<br />
Housing material, st.st.<br />
Accuracy (DIN 16203), class 1<br />
Connection to, rear<br />
Probe, st.st.<br />
[2]: Diameter, 125 mm<br />
[F12]: Measuring Range, Scale °F, ranges acc. data sheet (0-200°F)<br />
[3A]: Probe type/Process connection, Protect. tube/ immers. tube 1/2 NPT <br />
[6]: Bulb diameter/-length, 6mm/ (Pendiente a confirmar por el cliente)<br />
[C40]: Options, Case and ring stainless steel AISI 316<br />
[R10]: Options, Glycerine filling (max. 160 °C) IP 67<br />
[C01]: Options, Calibration report<br />
*No incluye Placa en Acero Inoxidable

Immersion and Insertion Thermocouples<br />
Model: TTE-864-100-J1-E<br />
Brand: Kobold<br />
[TTE-864]:<br />
Protective tube material, st. st. 1.4571<br />
Version, straight<br />
Diameter 6 mm<br />
Temp. range at > 50 mm, 0...600 °C<br />
Connecting line 2,5 m<br />
[100]: Immersion length, 100 mm<br />
[J1]: Type of sensor, 1x FeCu-Ni<br />
[E]: Connection cable, 2, 5 m, st.st. stranded wire

Screw-In Thermocouples<br />
Brand: Kobold<br />
Model: TTE-164-10-2-K1-E<br />
[TTE-164]<br />
Protective tube material, st. st. 1.4571<br />
Protective tube connection, G 1/2 male fixed<br />
Temperature range, -200...600 °C<br />
electr. Connection, Connecing line<br />
[10] Immersion length , 100 mm<br />
[2] G 1/2 male fixed<br />
[K1] Type of sensor, 1x NiCr-Ni<br />
[E] Electric connection, 2, 5 m, st.st. stranded wire

Electronic temperature sensor with 3 digits LED Display<br />
Brand: Kobold (Alemania)<br />
[TDA-15H2]:<br />
Housing (mm), st. st<br />
Output, 0(4)-20 mA (switch output)<br />
max. pressure, 80 bar<br />
max. temperature, 120 °C<br />
Display, 3 digit LED display<br />
Measuring range, -20...+120 °C<br />
version, compact<br />
[R4]: Connection G 1/2 male<br />
[2]: Sensor length 200 mm*<br />
maximum length for NPT screw thread is 184 mm instead of 200 m.<br />
[L]: Output 0(4)-20 mA<br />
[3M]: Electrical connection M12x1 plug connector<br /><br />
include: <br />
Accessories Plug Connector from Z2<br />
Brand: Kobold (Alemania)<br />
Model: ZUB-KAB-12K002<br />
M12x1 box with 2 m cable

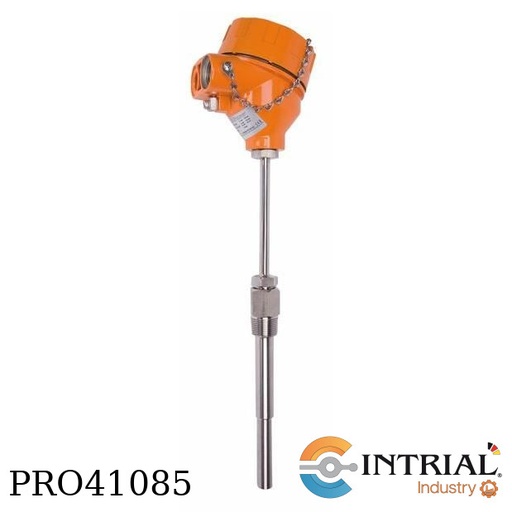

Resistance Thermometers Exd<br />
Model: TWL-1-5-3-A-N-0000-A-0<br />
Brand: Kobold<br />
[TWL-1]:<br />
Version standard<br />
Thermowell cylindrical, drilled<br />
Material neckpipe/sensor/thermowell st.st. 1.4404 <br />
Connection head Form XD with chain, M20 x 1,5 <br />
Approval ATEX II 2 GD Ex d IIC T6 <br />
[5]: Sensor: 1x Pt100, cat. A, (-30..+550 °C) <br />
[3]: Wiring: 3 wires<br />
[A]: Head-mounted transmitter Model 5333D <br />
[N]: Connection neckpipe, 1/2" NPT male <br />
[0000]: Connection w/o thermowell<br />
[A]: Neckpipe/lagging extension (HL/T), Standard neckpipe (130 mm)w/o lagging extension<br />
[0]: Options, w/o

Sheath Resistance Thermometers<br />
Model: TWM-8-62-300-1-3-S<br />
Brand: Kobold<br />
[TWM-8]: <br />
Protective tube material: st.st. (1.4541)<br />
Sheath tip: st.st. (1.4571)<br />
Temperature range: -20...600 °C<br />
[62]: Sheath diameter: 6,0 mm<br />
[300]: Immersion length: 300 mm<br />
[1]: Type of sensor: 1x Pt100 (-200..400°C)<br />
[3]: Wiring: 3 wires<br />
[S]: electr. Connection: Silicone cable

Temperature Transmitters for DIN-Rail and Surface Mounting<br />
Brand: Kobold<br />
Model: KM-325-V<br />
Input: Pt100, Pt500, Pt1000, Cu40, Cu100, Ni100, Ni550, Ni1000<br />
Thermocouples:.B;E,J,K,N,R,S,T<br />
Resistance: 100...400 Ohm, 10...2000 Ohm<br />
Voltage: 10..75 mV, 100...2000 mV<br />
Output: 4..20 mA<br />
Mounting: connection head<br />
Galvanic isolation: yes<br />
Programmier Modus: HART<br />
Power supply: 7,5..45 VDC<br />
[V] Factory setting, To be specified in words.

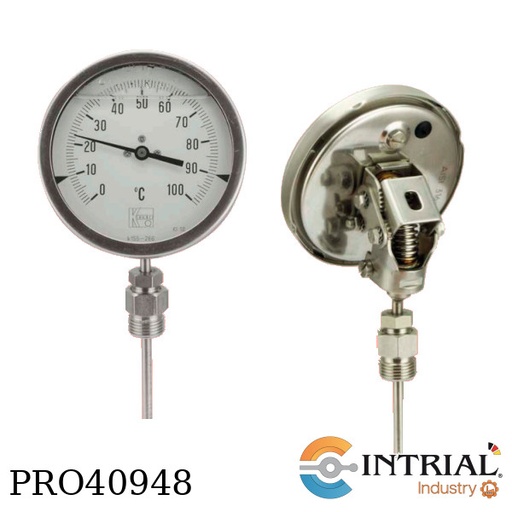

Bimetallic Thermometers<br />
Model: TBE-1-1-C14-3A-6-C01<br />
Brand: Kobold (Alemania)<br /><br />
[TBE-1]:<br />
Housing material, st.st.<br />
Accuracy (DIN 16203), class 1<br />
Connection to, rear<br />
Probe, st.st.<br />
[1]: Diameter, 100 mm<br />
[C14]: Measuring Range, Scale °C, ranges acc. data sheet (-20..+120°C)<br />
[3A]: Protect. tube/ immers. tube 1/2 NPT<br />
[6]: Bulb diameter/-length, 6 mm / 203.2 mm (8”)<br />
[C01]: Options, Calibration report

Insertion Resistance Thermometers compact MMA<br />
Brand: Kobold (Alemania)<br />
Model: MMA-H-10-C50-C-3-D-A-0<br />
[MMA-H]:<br />
Probe material, st.st. 1.4404<br />
Connection, fixed <br />
Design, c/w stand-off<br />
Max. temperature, -198...+250°C<br />
[10]: Immersion length / diameter, 100 mm / Ø6<br />
[C50]: Connection, Clamp DN50<br />
[C]: Sensor Type/Category, 1x Pt100, class A (-70..+250°C)<br />
[3] Wiring, 3-wire<br />
[D]: Electr. Connection, plug acc. to DIN 43650 <br />
[A]: Head Transmitter, 4..20 mA, range 0 bis 100 °C<br />
[0]: Options, without

Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-F-6-N15-A-3-I-A-0<br />
[MWD-F]:<br />
Version, For mounting in thermowell, insert filled with MgO, removable<br />
Protective tube material, st.st. 1.4404<br />
Max. pressure (@ 20°C), see thermowell<br />
Connection, fixed connection<br />
Neckpipe, with<br />
[6]: Diameter / length thermowell, 6mm / 90 mm<br />
[N15]: Process connection, 1/2" NPT male <br />
[A]: Sensor, 1x Pt100, cat. B, (-70..+250 °C) <br />
[3]: Wiring, 3 wires <br />
[I]: Terminal head, screw cap with chain, st. steel 1.4401<br />
[A]: Head-mounted transmitter, programable 2 wire transmitter model 5334D<br />
[0]: Options, without

<strong>Bimetallic Thermometers TBE<br />
Brand: Kobold (Alemania)<br />
Model: TBE-3-2-C40-3A-7-C40</strong><br />
[TBE-3]: <br />
Housing material, st.st.<br />
Accuracy (DIN 16203), class 1<br />
Connection to, bottom<br />
Probe, st.st.<br />
[2]: Diameter, 125 mm<br />
[C40]: Measuring Range, Scale °C, ranges acc. Datasheet (0…+400°C)<br />
[3A]: Probe type/Process connection, Protect. tube/ immers. tube 1/2 NPT<br />
[7]: Bulb diameter/-length, 6,4 mm/150 mm<br />
[C40]: Options, Case and ring stainless steel AISI 316

Bimetallic Thermometers TBE<br />
Brand: Kobold (Alemania)<br />
Model: TBE-3-2-C14-3A-7-C40<br />
[TBE-3]:<br />
Housing material, st.st.<br />
Accuracy (DIN 16203), class 1<br />
Connection to, bottom<br />
Probe, st.st.<br />
[2]: Diameter, 125 mm<br />
[C14]: Measuring Range, Scale °C, ranges acc. Datasheet (-20…+120C)<br />
[3A]: Probe type/Process connection, Protect. tube/ immers. tube 1/2 NPT<br />
[7]: Bulb diameter/-length, 6,4 mm/100 mm<br />
[C40]: Options, Case and ring stainless steel AISI 316
