Gear pump unit : SF 6/180 RD - VLFM

<strong>Gear pump unit : SF 6/180 RD - VLFM<br />
Brand: STEIMEL<br />
Steimel part no. : ASF6-180RD151529R</strong><br />
Specification:<br />

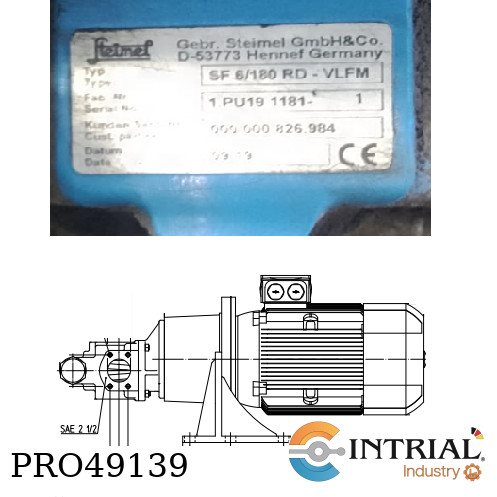

Dimensional drawing : DPA056D-160LFM-R32<br />
List of spare parts : DET056180RD--165R<br />
Suction and pressure<br />
connections : SAE 2 ½<br />
casing parts : EN-GJL-250 (GG-25)<br />
shafts : 16MnCrS5, hardened<br />
gear wheels, noise optimized : EN-GJS-400-15 (GGG-40)<br />
ionitrided, helical toothed<br />
shaft sealing : radial shaft sealing ring<br />
Elastomers : FKM<br />
Flow medium : lube oil<br />
Viskosity : 50-5000 cSt <br />
Temperature : 10-60°C<br />
Flow rate : approx. 256 / 307 l/min<br />
pressure : 5 bar<br />
speed : 1450 / 1750 1/min.<br />
pressure relief valve jet<br />
range of adjustment : 2-16 bar<br />
opening pressure : 8 bar<br />
sense of rotation : clockwise<br />
test run : yes, with HLPD 46<br />
coupling : BKUA095-2442-301<br />
pump mount with base : BLF056350188LA21<br />
three-phase motor : LDM160-04-027 (Birkenbeul)<br />
Moto data:<br />
power 1/2 : 11 / 12,6 kW<br />
speed 1/2 : 1500 / 1800 1/min<br />
voltage 1 : 400/690 Volt at 50 Hz<br />
voltage 2 : 460 Volt Dreieck at 60 Hz<br />
additional type plate<br />
but without IE3 marking<br />
voltage : 380-420/660-720 Volt at 50/60 Hz<br />
440-480 Volt at 60 Hz <br />
Efficiency class : IE3<br />
Degree of protection : IP 55<br />
Form of construction : B 5<br />
finish : primer RAL 6011 HDO058-green<br />
Type plate : ETY924-D-E--PE02
